Grandstream GWN7624 Dual Band Wi-Fi 5 IEEE 802.11 a/b/g/n/ac 2.03 Gbit/s Wireless Access Point
2.40 GHz, 5 GHz - 4 x Internal Antenna(s) - Internal - MIMO Technology - Multi User MIMO - 4 x Network (RJ-45) - Gigabit Ethernet - PoE Ports - 25 W - In-wall
- SKU
- GWN7624
- Category
- Wireless Access Points/Bridges
MSRP$85.00
$79.08
Save 7%Back ordered — ships when restocked.
Genuine Grandstream Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GWN7624
- Category
- Wireless Access Points/Bridges
Overview

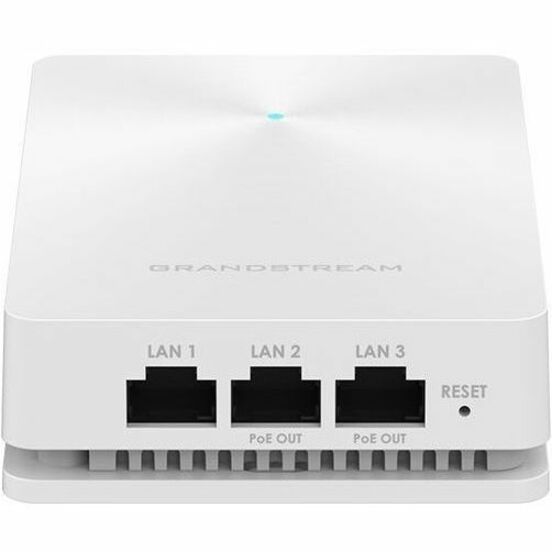

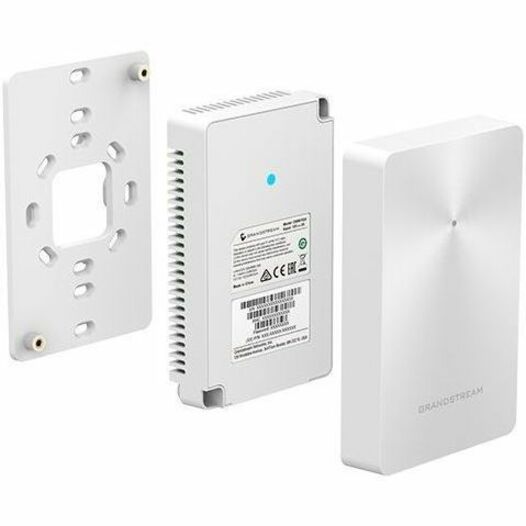

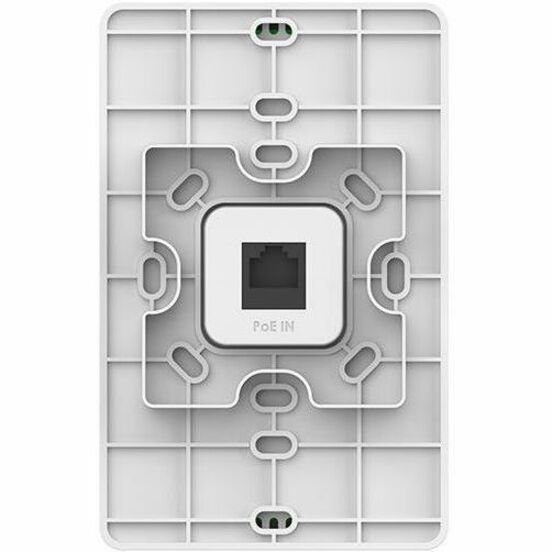

The GWN7624 is an in-wall Wi-Fi access point designed for small-to-medium sized businesses, offices, residential and commercial locations, hotels and more. It provides three Gigabit network ports to provide IP phones, IPTV, computers and similar devices with Ethernet while also providing and uplink Gigabit network port with PoE/PoE+. The GWN7624 offers 2.4G 2×2:2, 5G 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. This access point is designed to be mounted in-wall to provide a clean and professional installation that blends into the surrounding environment. To ensure easy installation and management, the GWN7624 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface. The GWN7624 is also supported by GWN.Cloud and GWN Manager, Grandstream's free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-overWi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and 200 concurrent clients per AP, the GWN7624 is an ideal Wi-Fi access point for medium wireless network deployments with medium user density.
• 2.03 Gbps wireless throughput and 2 Gigabit wireline ports
• 5GHz 4×4:4 MU-MIMO
• Supports up to 200 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self power adaptation upon auto detection of PoE or PoE+
• Embedded controller can manage up to 30 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller
Highlights
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- 2.03 Gbit/s wireless transmission speed provides high and efficient communication with maximum efficiency
- IEEE 802.11 a/b/g/n/ac wireless LAN standard lets you connected on the go so your productivity never stops
- Gigabit Ethernet port for ultra-fast wired network speeds
- With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
- Data Encryption feature effectively protects your precious and valuable data from unauthorized access
- Internal antenna form factor for enhanced performance and feasible placement
- In-wall form factor ensures maximum comfort and pain, fatigue-free usage
Specifications
| Package Contents |
|
|---|---|
| Product Type | Wireless Access Point |
| Manufacturer Part Number | GWN7624 |
| Network Band | Dual Band |
| Form Factor | In-wall |
| Manufacturer | Grandstream Networks, Inc |
| Product Model | GWN7624 |
| Product Name | GWN7624 Wireless Access Point |
| Power Consumption | 25 W |
| Wireless Transmission Speed | 2.03 Gbit/s |
| Brand Name | Grandstream |
| Country of Origin | China |
| Height | 1.5" |
| Width | 3.4" |
| Depth | 5.3" |
| Frequency Band | 2.40 GHz, 5 GHz |
| Antenna Form Factor | Internal |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac |
| Encryption Standard | WEP, WPA-PSK, WPA2-PSK, WPA-ENT, WPA2-ENT, TKIP, AES, WPA3 |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 4 |
| PoE (RJ-45) Port | Yes |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| PoE PD Port | Yes |
| MIMO Type | Multi User MIMO |
| Wi-Fi Generation | Wi-Fi 5 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), China Restriction of Hazardous Substances (China RoHS) |
