GIGABYTE NVIDIA GeForce RTX 5060 Graphic Card - 8 GB GDDR7
7680 x 4320 - 2.51 GHz Core - 128 bit Bus Width - PCI Express 5.0 - DisplayPort - 3 x DisplayPort - HDMI
- SKU
- GVN5060WF2OC8GD
- Category
- Graphic Cards
$383.17
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GVN5060WF2OC8GD
- Category
- Graphic Cards
Overview
CORE CLOCK
2512 MHz (Reference card: 2497MHz)
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
Highlights
- Cost-efficient NVIDIA GeForce provides effective Blu-ray playback acceleration and great gaming experience
- Supports DirectX 12 API for efficient workload distribution across all available cores to get the best output
- PCI Express 5.0 host interface for reliable data transfer and enhanced performance
- GDDR7 memory technology effectively enables data to be moved at various points in a CPU clock cycle to allow maximum productivity
- Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
- Plug-in Card form factor for your convenience and simplicity of usage
- 8 GB GDDR7 memory works well with most of the graphics-demanding games and with its nimble rendering, you can experience movies with crystal clear display
- Active Cooler cooler type for dependable and long-term cooling to ensure maximum productivity
- 4 monitors supported for reliable, smooth operation and output
- Dual-fan Cooler feature for maximum efficiency and convenience
Specifications
| Host Interface | PCI Express 5.0 |
|---|---|
| Product Type | Graphic Card |
| Manufacturer Part Number | GVN5060WF2OC8GD |
| Platform Supported | PC |
| Standard Memory | 8 GB |
| API Supported | DirectX 12, OpenGL 4.6 |
| Features | Dual-fan Cooler |
| Form Factor | Plug-in Card |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | GV-N5060WF2OC-8GD |
| Product Name | GeForce RTX 5060 WINDFORCE OC 8G Graphic Card |
| Brand Name | GIGABYTE |
| Cooler Type | Active Cooler |
| Memory Technology | GDDR7 |
| Bus Width | 128 bit |
| Number of Monitors Supported | 4 |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 5060 |
| Power Supply Wattage | 450 W |
| HDMI | Yes |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| DisplayPort | Yes |

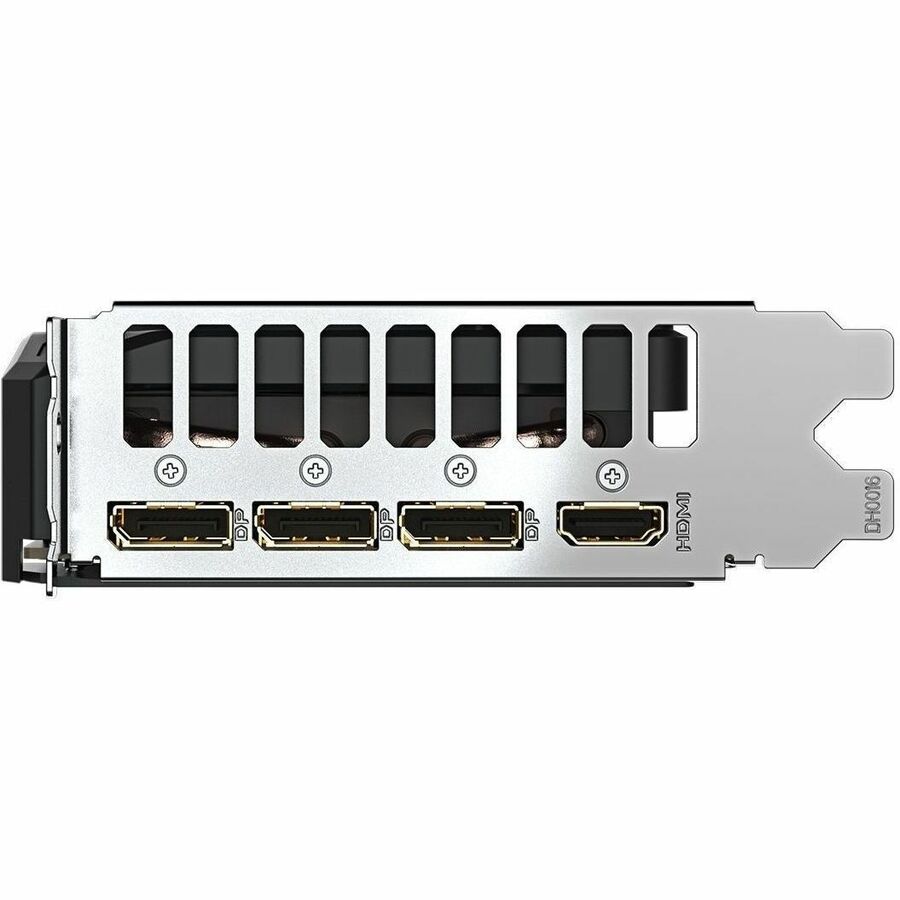

| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| GPU Clock | 2.51 GHz |
| CUDA Cores | 3840 |
| Power Connector | 1x 8-pin |
| AI-powered | Yes |
