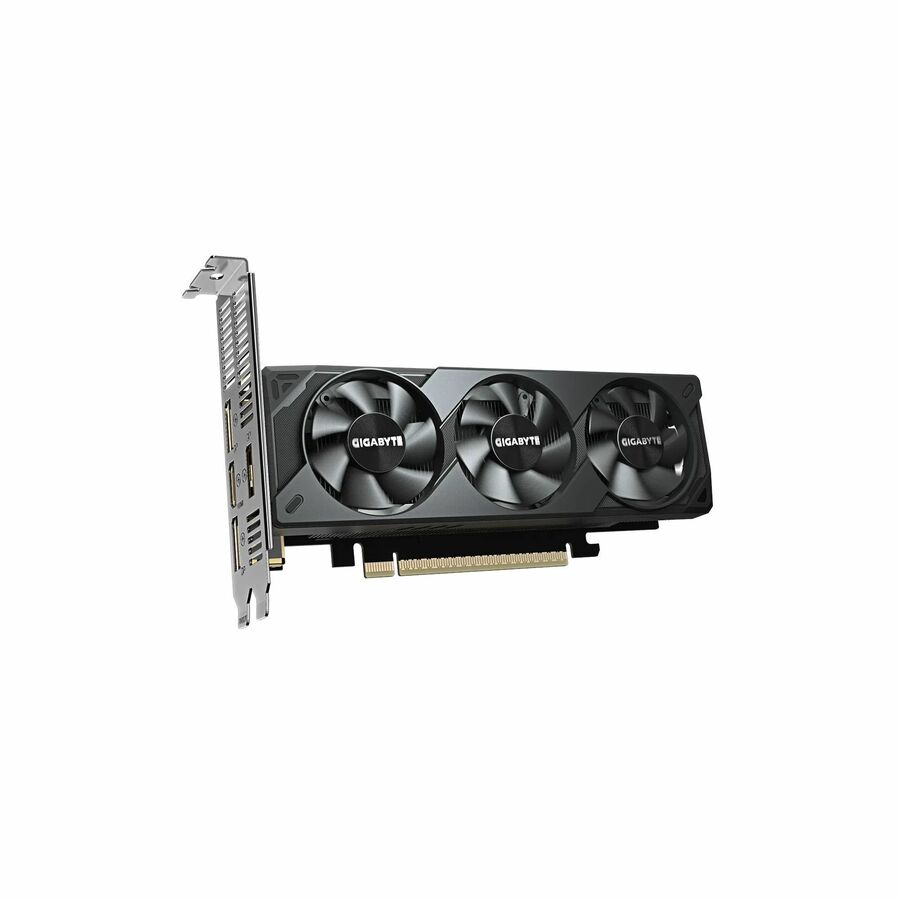

GIGABYTE NVIDIA GeForce RTX 5060 Graphic Card - 8 GB GDDR7 - Low-profile
7680 x 4320 - 2.51 GHz Core - 128 bit Bus Width - PCI Express 5.0 - DisplayPort - 3 x DisplayPort - HDMI
- SKU
- GVN5060OC8GL
- Category
- Graphic Cards
$395.23
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GVN5060OC8GL
- Category
- Graphic Cards
Overview
CORE CLOCK
2512 MHz (Reference card: 2497MHz)
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

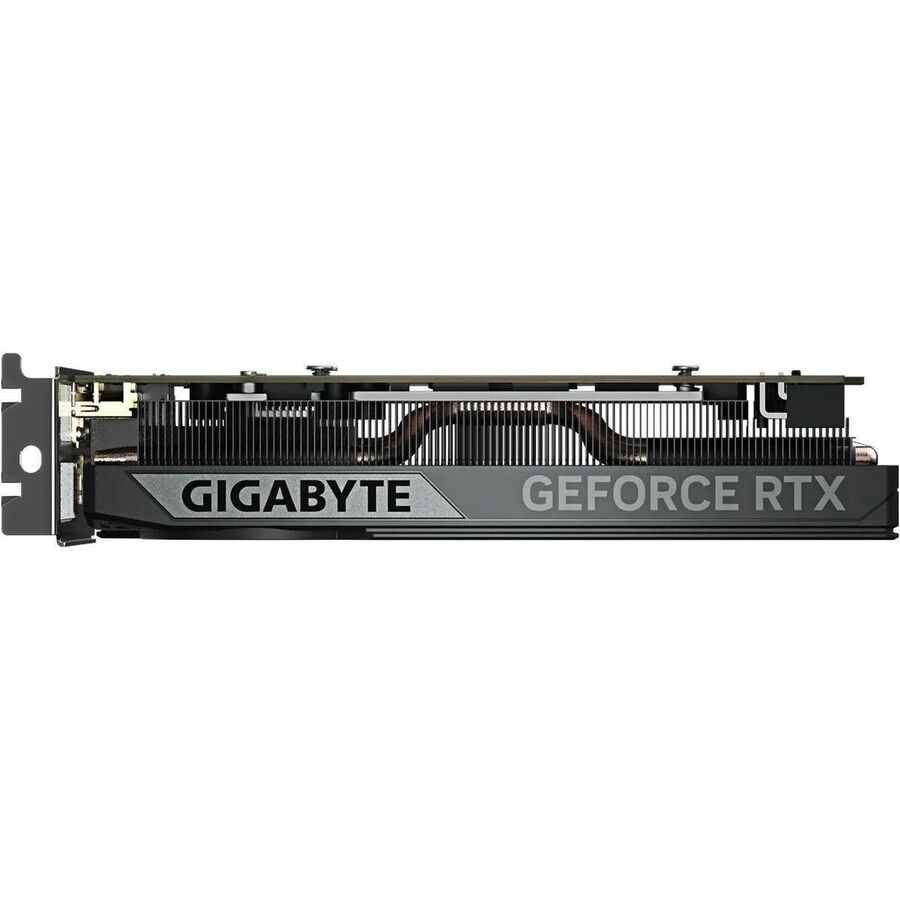

GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
Highlights
- Enjoy optimal gaming experience and ultra-rich content with NVIDIA GeForce RTX 5060
- Features DirectX 12 API for vibrancy and clarity
- PCI Express 5.0 host interface ensures dependable data transfer for maximum efficiency
- GDDR7 memory technology effectively enables data to be moved at various points in a CPU clock cycle to allow maximum productivity
- HDMI (High Definition Multimedia Interface) offers fantastic sound/video quality and single-cable comfort
- Plug-in Card form factor for added reliability and dependability
- Comes in 1.4" height for better reliance and increased efficiency
- Comes in 2.7" width for maximum productivity and easy carrying
- 8 GB GDDR7 memory works well with most of the graphics-demanding games and with its nimble rendering, you can experience movies with crystal clear display
- Loaded with a power-efficient fan to dissipate heat and as a result, you get enduring usability
Specifications
| Host Interface | PCI Express 5.0 |
|---|---|
| Product Type | Graphic Card |
| Manufacturer Part Number | GVN5060OC8GL |
| Platform Supported | PC |
| Standard Memory | 8 GB |
| API Supported | DirectX 12, OpenGL 4.6 |
| Features | Triple-fan Cooler |
| Form Factor | Plug-in Card |
| Length | 7.2" |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | GV-N5060OC-8GL |
| Product Name | GeForce RTX 5060 OC Low Profile 8G Graphic Card |
| Brand Name | GIGABYTE |
| Cooler Type | Fan Cooler |
| Memory Technology | GDDR7 |
| Height | 1.4" |
| Width | 2.7" |
| Bus Width | 128 bit |
| Number of Monitors Supported | 4 |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 5060 |
| Card Height | Low-profile |
| Power Supply Wattage | 450 W |
| HDMI | Yes |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| DisplayPort | Yes |
| Slot Space Required | Dual |
| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| GPU Clock | 2.51 GHz |
| CUDA Cores | 3840 |
| Power Connector | 1x 8-pin |
| AI-powered | Yes |
