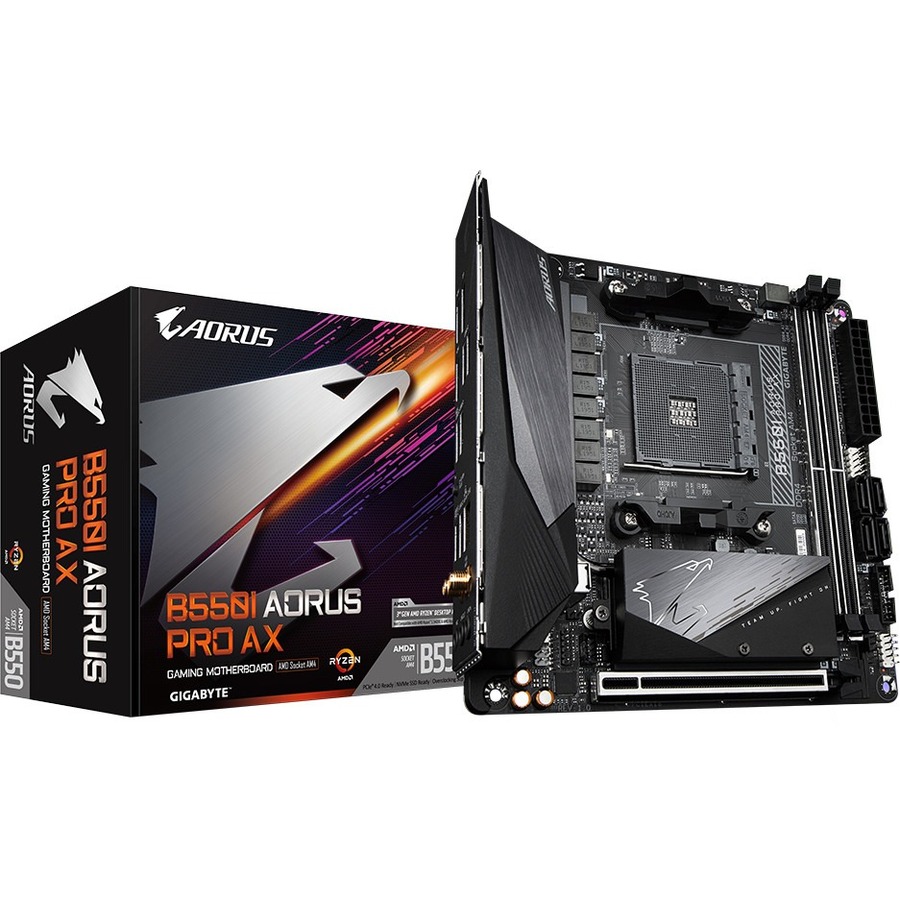

GIGABYTE Ultra Durable B550I AORUS PRO AX Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Mini ITX
Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- B550I AORUS PRO AX
- Category
- Motherboards
$233.20
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B550I AORUS PRO AX
- Category
- Motherboards
Overview

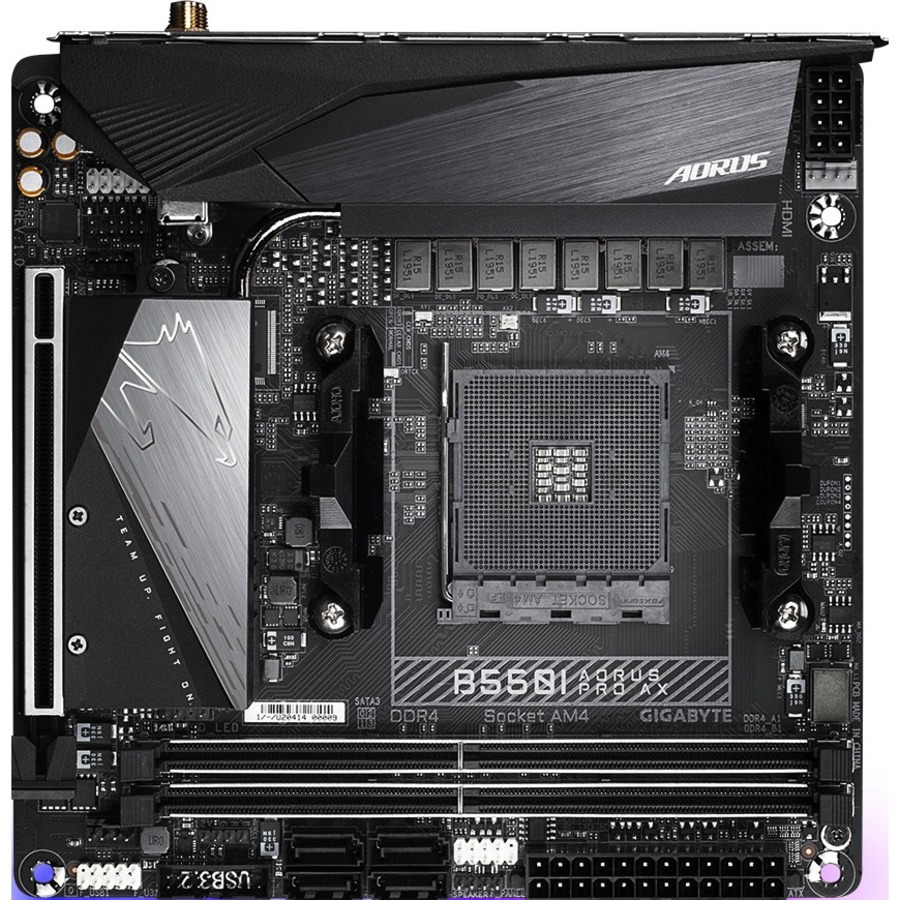

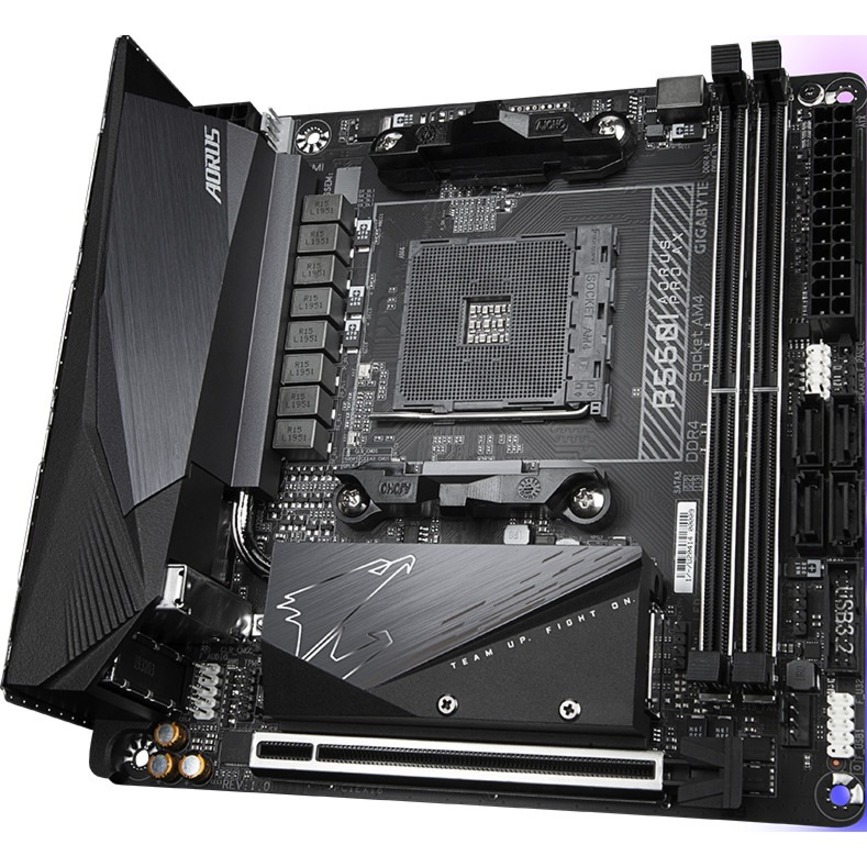

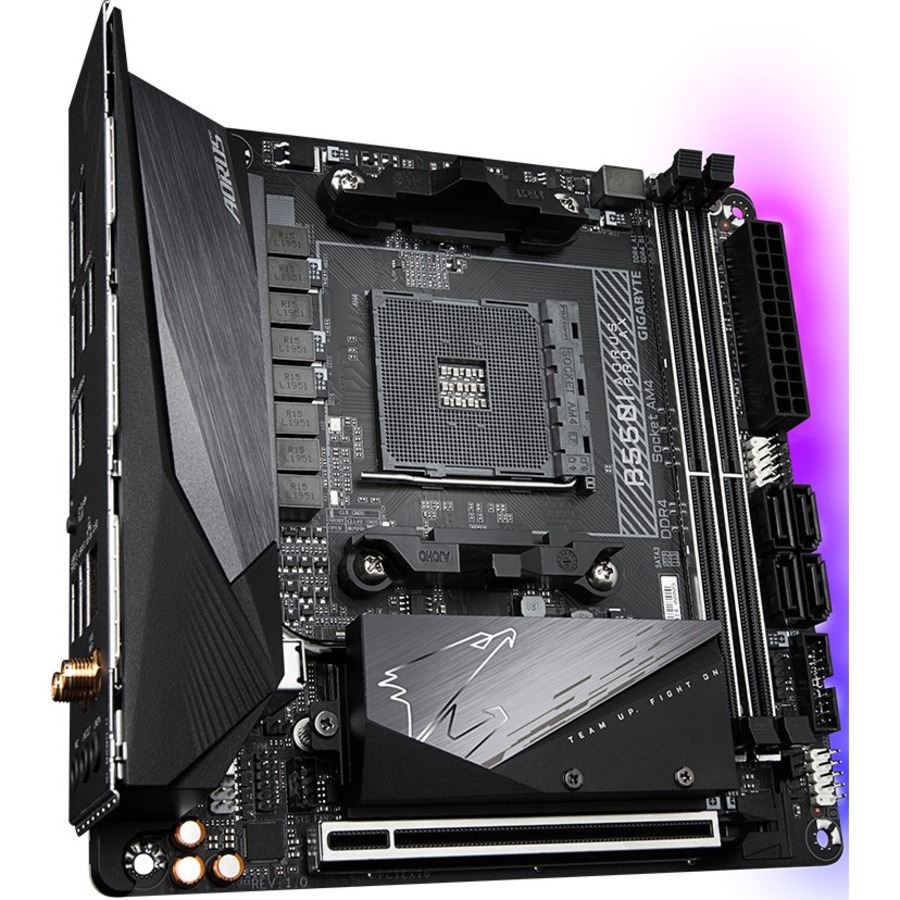

AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
• Supports 3rd Gen AMD Ryzen? Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
• Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
• Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
• Ultra Durable? PCIe 4.0 Ready x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
• Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
• AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
• Blazing Fast 2.5GbE LAN with Bandwidth Management

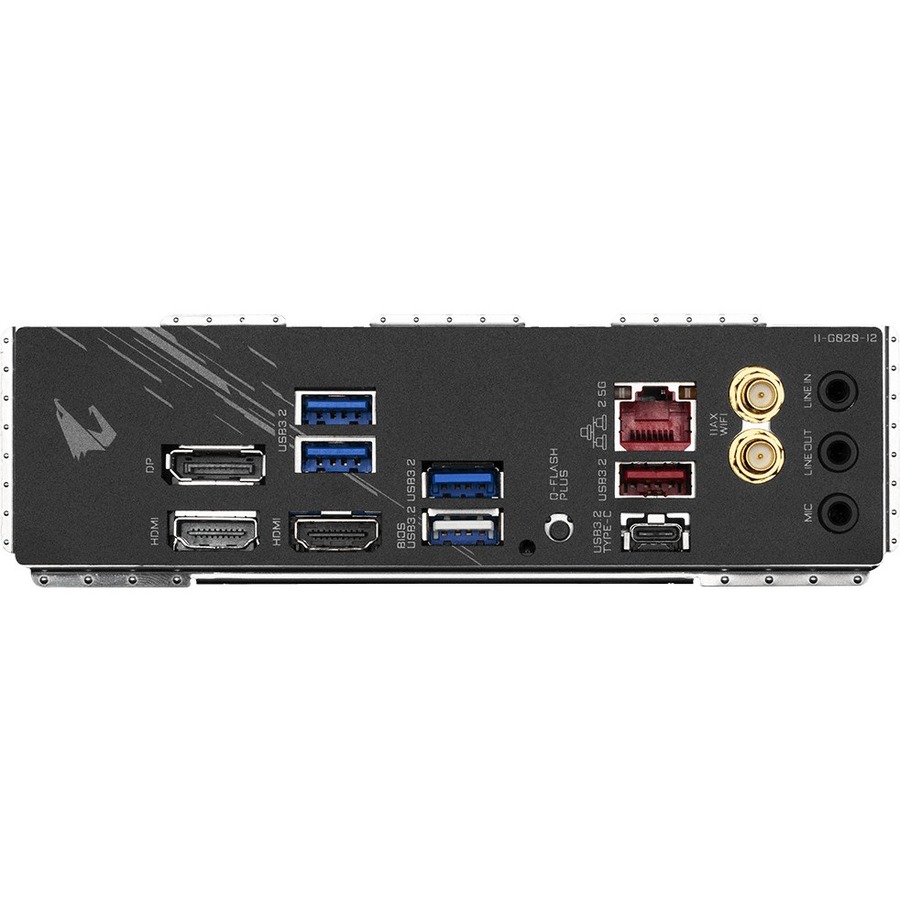

• USB 3.2 Gen2 Type-C? & DisplayPort + Dual HDMI Support
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Pre-installed IO Shield for Easy and Quick Installation
Best Choice for Small but Powerful PC
B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.
ULTIMATE POWER DESIGN
To fully support the latest 3rd Gen AMD Ryzen? processors, B550 motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 motherboards for enthusiast. No Compromise and never stop to achieve higher.
UNPARALLELED PERFORMANCE
GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.
ADVANCED THERMAL SOLUTION
Unthrottled performance is guaranteed by the advanced thermal solution which including Extended VRM Heatsink, Heatpipe, Thermal Guards, and Baseplate. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts and professional gamers.
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.
HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
Highlights
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
Specifications
| Package Contents |
|
|---|---|
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | B550I AORUS PRO AX |
| Maximum Memory Supported | 64 GB |
| Limited Warranty | 3 Year |
| Form Factor | Mini ITX |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | B550I AORUS PRO AX |
| Product Name | Ultra Durable B550I AORUS PRO AX (rev. 1.0) Desktop Motherboard |
| Processor Supported | Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO |
| Product Line | Ultra Durable |
| RAID Levels | 0, 1, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM4 |
| Brand Name | GIGABYTE |
| Memory Technology | DDR4 SDRAM |
| Country of Origin | China |
| Width | 6.7" |
| Depth | 6.7" |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Number of Memory Slots | 2 |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 1 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 2 |
| Total Number of PCI Express Slots | 1 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 1 |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 5300 MHz, 5200 MHz, 5000 MHz, 4866 MHz, 4600 MHz, 4400 MHz, 4000 MHz, 3600 MHz, 3333 MHz, 3200 MHz, 2933 MHz, 2667 MHz, 2400 MHz, 2133 MHz |
| Number of USB 3.2 Ports | 6 |
| Number of Onboard USB 3.2 Ports | 2 |
| 2.5Gigabit Ethernet | Yes |
