Ryzen 7, Ryzen 5 Processor Supported - 96 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 2 x SATA Interfaces
$167.11
Special order — estimated available by September 10, 2026.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

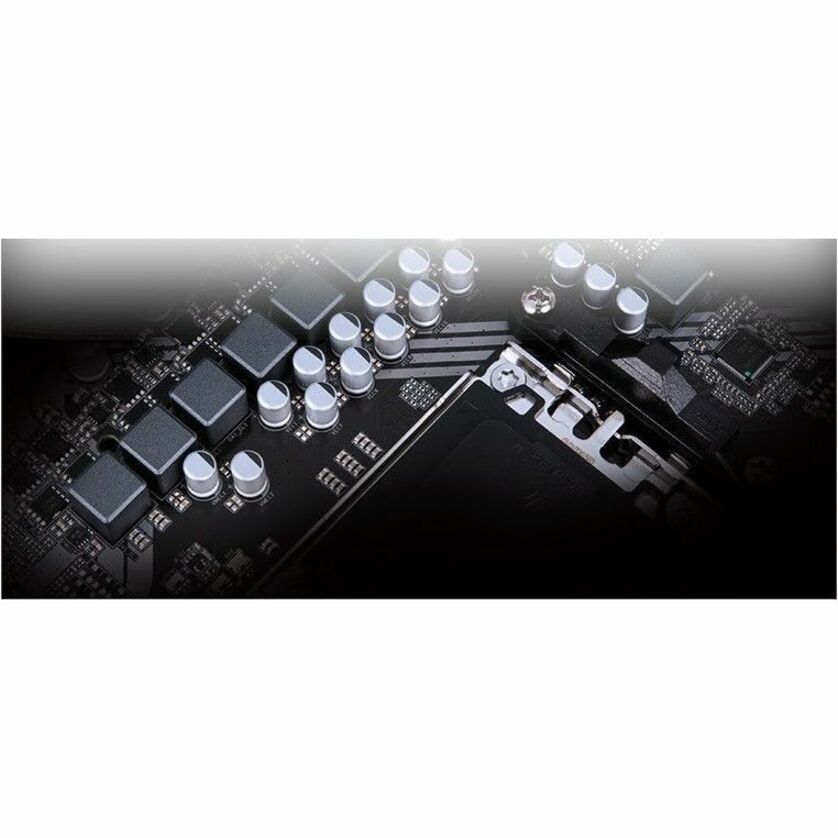

Digital VRM Design 5+2+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+1 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO?/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
• STEP 1: Plug 24pin & 8pin power supply cable on motherboard
• STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"" , save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
• STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
• Cooling Features
• High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users' specified temperature point
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | A620I AX |
| Brand Name | GIGABYTE |
| Product Line | Ultra Durable |
| Product Model | A620I AX |
| Product Name | Ultra Durable A620I AX Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Number of PCI Express x16 Slots | 1 |

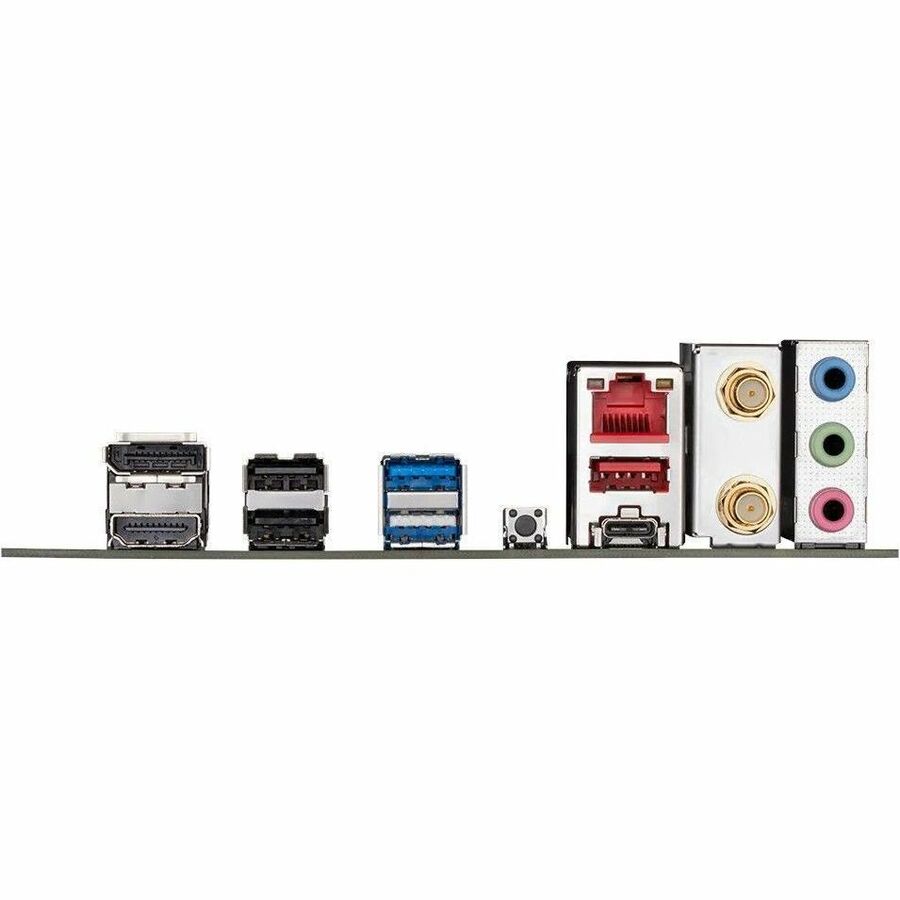

| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM, UDIMM |
| Maximum Memory Supported | 96 GB |
| Memory Speed Supported | 6400 MHz, 6200 MHz, 6000 MHz, 5600 MHz, 5400 MHz, 5200 MHz, 4800 MHz, 4400 MHz |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 5 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | A620 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7, Ryzen 5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | Radeon Graphics |
