Fluke 787B ProcessMeter
1000 V, 1 A AC - 1000 V, 1 A DC - CAT III 1000V
- SKU
- FLUKE-787B CAL
- Category
- Multimeters
MSRP$1,647.99
$1,507.84
Save 9%Back ordered — ships when restocked.
Genuine Fluke through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- FLUKE-787B CAL
- Category
- Multimeters
Overview

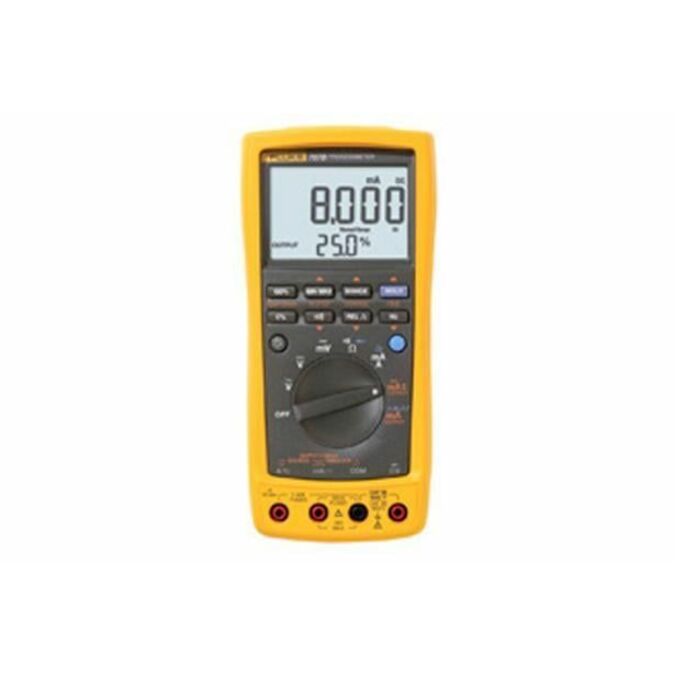

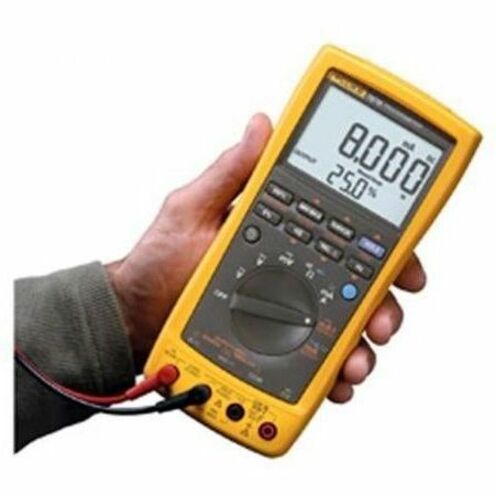

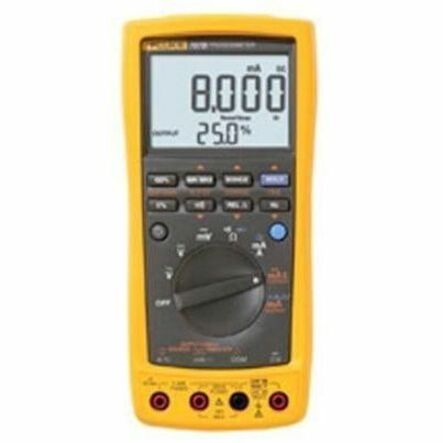

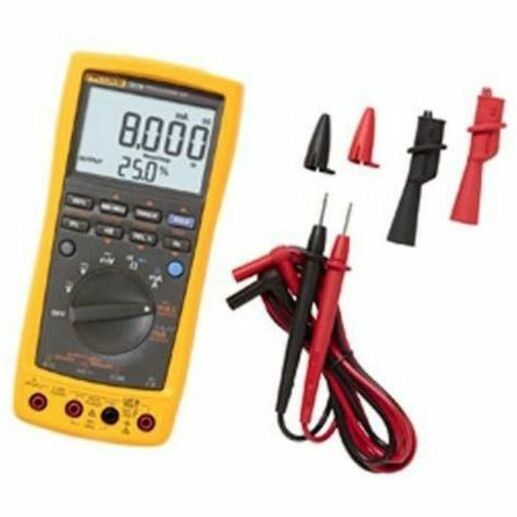

Product overview: Fluke 787B ProcessMeter
The Fluke 787B ProcessMeter? doubles your troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. Based on the trusted measurement capabilities of the Fluke 87V meter, the 787B adds the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications.
With Fluke Connect® mobile app and desktop software compatibility, technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere.* If you're looking for even more troubleshooting power, the Fluke 789 ProcessMeter? offers technicians even more flexibility, and even includes a built-in 24 V loop power supply.
Highlights
- Compact digital multimeter and mA loop calibrator solution
- Measure/Source/Simulate loop currents while powering the loop
- Manual and automatic ramp up - ramp down functions
- Easy-to-read backlit display
Specifications
| Package Contents |
|
|---|---|
| Product Type | Multimeter |
| Manufacturer Part Number | FLUKE-787B CAL |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1.32 lb |
| Manufacturer | Fluke Corporation |
| Product Model | 787B |
| Product Name | 787B ProcessMeter |
| Brand Name | Fluke |
| Measurement Type | DC Current, DC Voltage, AC Current, AC Voltage, Resistance, Temperature, Frequency, Continuity, Diode Test |
| Height | 2" |
| Width | 3.9" |
| Depth | 8" |
| Meter Type | Digital |
| True RMS | Yes |
| Maximum AC Voltage Measurement | 1000 V |
| Maximum DC Voltage Measurement | 1000 V |
| Maximum AC Current Measurement | 1 A |
| Maximum DC Current Measurement | 1 A |
| Maximum Resistance Measurement | 40 Mega Ohm |
| Maximum Temperature Measurement | 82.4°F (28°C) |
| Maximum Frequency Measurement | 20 kHz |
