SKU
PM55A
Category
Multimeters
Overview

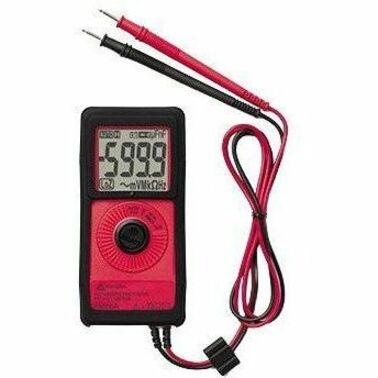

The Amprobe PM55A is the ultimate pocket-sized multimeter. Only 3/8" thick and less than 3 oz in weight with full functionality offering AC and DC voltage measurement to 600 V, AC and DC current to 2000 µA, resistance to 6 Megohm, capacitance to 2000 µF, frequency to 30 kHz, diode test and continuity with beeper. It also offers VolTect?, a built-in, non-contact voltage detection feature for AC voltages.
Another key feature of this pocket multimeter is AutoTect, which automatically selects between AC and DC voltage, or resistance measurement based on the test point to which the leads are connected. Fully auto ranging, this meter offers nine different measurement functions plus features that are usually found in much more expensive and larger meters.
The digital display is oversized with large digits and unit icons in the display. In spite of its size, this pocket multimeter is fully safety rated to CAT III 300 V, CAT II 600 V and is UL listed. No other meter this small offers such performance and high safety ratings.
Highlights
AutoTect feature directs the meter to know if it is measuring AC or DC volts or resistance with no user interface
The AutoTect feature has lower input impedance which zeros out ghost voltages
Measures AC/DC current, capacitance, frequency, continuity with beeper
Voltect feature is a built-in, non-contact voltage detector
Power supply 3 V standard button battery x 1 (IEC-CR2032; ANSI-NEDA-5004LC)
Automatic power off
Specifications
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
PM55A
Brand Name
Amprobe
Product Model
PM55A
Product Name
PM55A Pocket Multimeter with VolTect Non-Contact Voltage Detection
Product Type
Multimeter
Technical Information
Meter Type
Digital
Measurement Type
AC Voltage, DC Voltage, DC Current, AC Current, Resistance, Frequency, Capacitance, Diode Test, Continuity
Ranging Type
Auto
Maximum AC Voltage Measurement
600 V
Maximum DC Voltage Measurement
600 V
Maximum AC Current Measurement
2 mA
Maximum DC Current Measurement
2 mA
Maximum Resistance Measurement
6 Mega Ohm
Maximum Capacitance Measurement
0.002F
Maximum Frequency Measurement
30 kHz
Features
Auto Power Off
Miscellaneous
Package Contents
PM55A Pocket Multimeter with VolTect Non-Contact Voltage Detection
