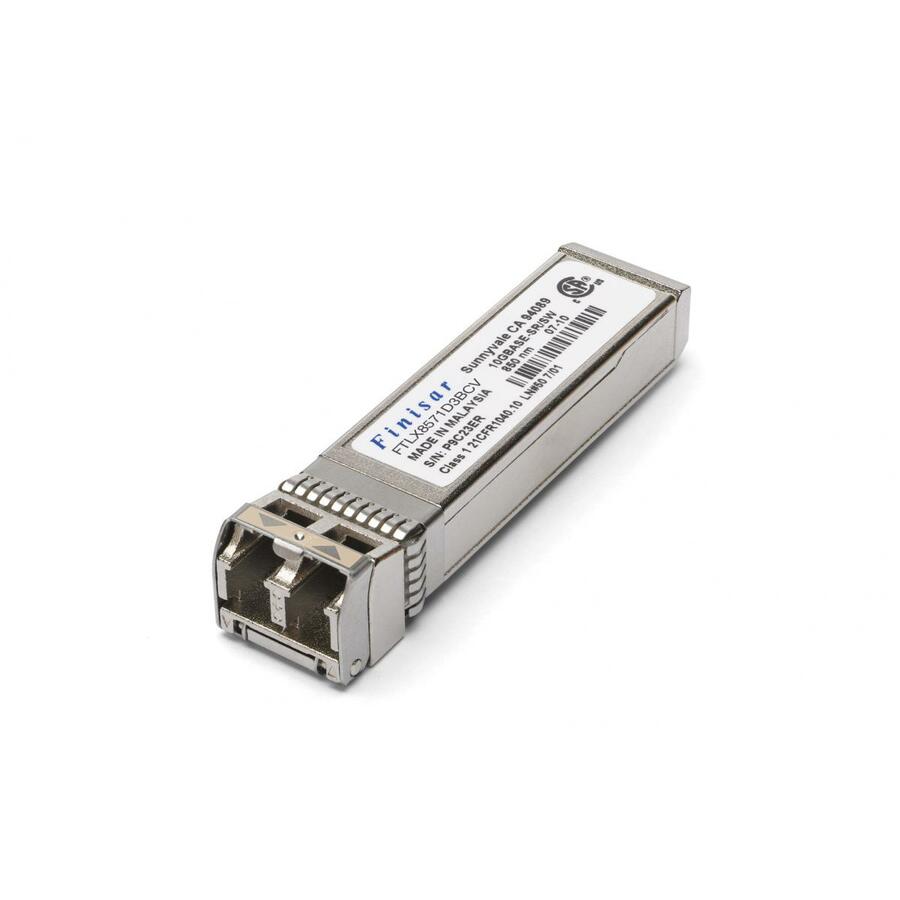

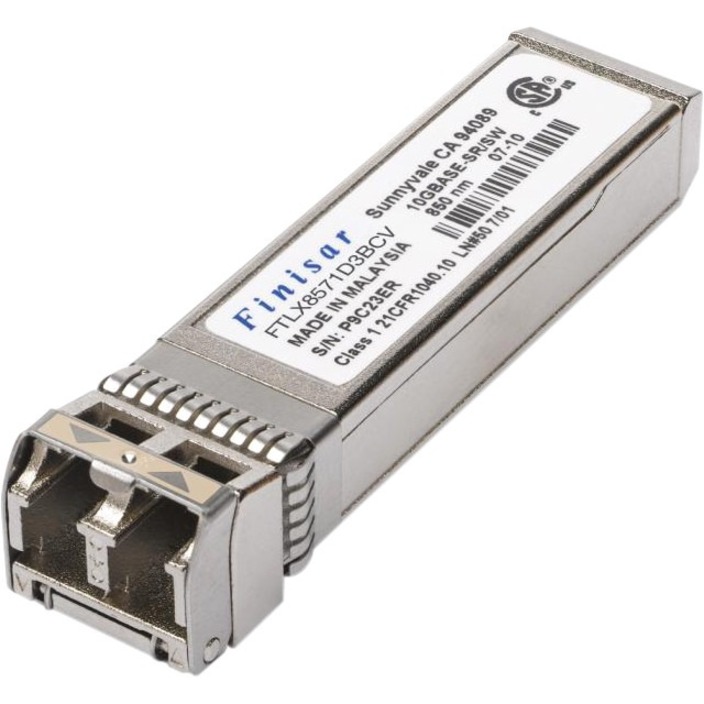

Finisar SFP+ Module
For Optical Network, Data Networking - 1 x LC Duplex 10GBase-SR/SW Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-SR/SW, 1000Base-SX - Hot-pluggable
- SKU
- FTLX8574D3BCV
- Category
- Modules
MSRP$114.62
$103.30
Save 10%In stock: 192
Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- FTLX8574D3BCV
- Category
- Modules
Overview
Finisar's FTLX8574D3BCV 1G/10G Dual-Rate SFP+ optical transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431, IEEE 802.3-2012 10GBASE-SR/SW and 1000BASE-SX. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The FTLX8574D3BCV is a "limiting module" , i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperability with an SFP+ limiting module. This product is for applications specifically designed for 10G SFP+ ports and 1G/10GSFP+ ports and not native 1G SFP ports. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
Highlights
- SFP+ offers enhanced dependability with maximum productivity
- With 10GBase-SR/SW technology, enjoy up to 10Gbps data transfer rate over optical fiber cable
- Enjoy flexibility and scalability with data transfer rate of up to 10 Gbps with 10 Gigabit Ethernet technology
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
- Hot-pluggable form factor for added reliability and dependability
- SFP+ with optical network application/usage for maximum dependability and convenience
Specifications
| Application/Usage | Optical Network, Data Networking |
|---|---|
| Product Type | SFP+ |
| Manufacturer Part Number | FTLX8574D3BCV |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-SR/SW Network |
| Connector Type | LC |
| Form Factor | Hot-pluggable |
| Manufacturer | Finisar Corporation |
| Product Name | SFP+ Module |
| Network Technology | 10GBase-SR/SW, 1000Base-SX |
| Brand Name | Finisar |
| Country of Origin | Malaysia |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet, Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 1 |
