COHERENT FTLF8538P5BCZ SFP+ Module
Finisar

COHERENT FTLF8538P5BCZ SFP+ Module

For Data Networking, Optical Network - 1 x LC Duplex 25GBase-SR Network - Optical Fiber - 50/125 µm - 850 nm, 860 nm, 840 nm Wavelength - Multi-mode - 25 Gigabit Ethernet - 25GBase-SR - 25 Gbit/s - 0.10 km Maximum Distance - Hot-pluggable

SKU
FTLF8538P5BCL
Category
Modules

MSRP$301.08

$266.34

Save 12%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FTLF8538P5BCL
Category
Modules

Overview

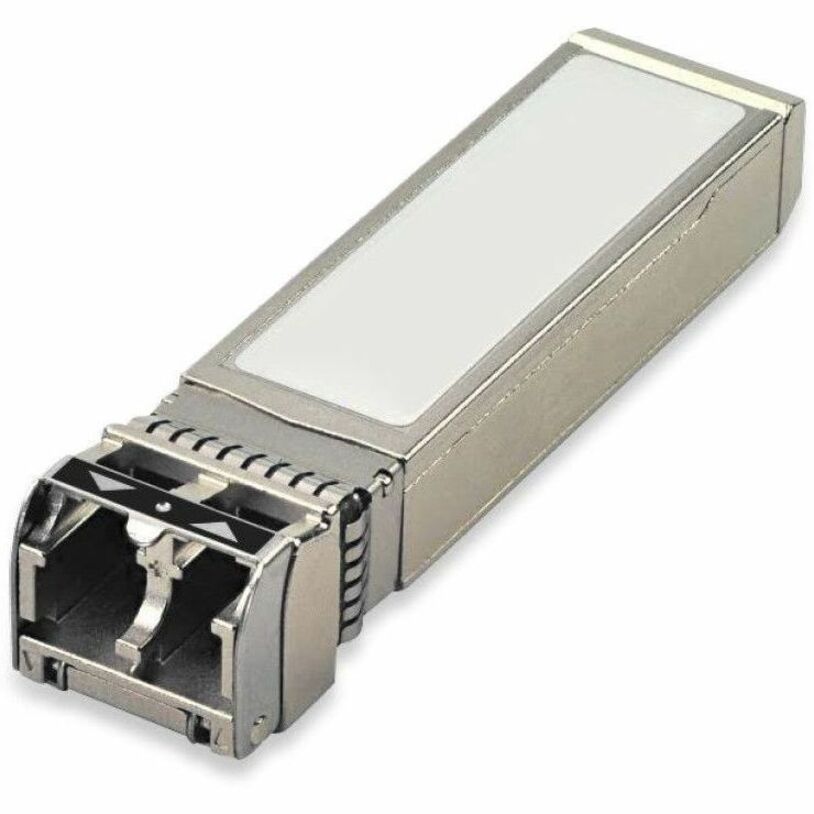

25GBASE-SR Low Latency SFP+ Transceiver

FTLF8538P5BCz SFP+ transceivers are designed for use in 25Gb/s data rate over multimode fiber. They are compliant to IEEE802.3by, SFF-8472 Rev 12.2band SFF-8402g, and compatible with SFF-8432aand applicable portions of SFF-8431 Rev. 4.1c. The transceiver is RoHS compliant as described in Application Note AN-2038.

FEATURES

• Up to 25.78 Gb/s bi-directional data links

• Hot-pluggable SFP+ footprint

• Built-in digital diagnostic functions

• 850nm Oxide VCSEL laser transmitter

• Duplex LC connector

• RoHS compliant

• 100m over M5F MMF (50/125 um OM4)

• 70m over M5E MMF (50/125um OM3)

• 1E-12 BER over 30m OM3 / 40m OM4 MMF

• Metal enclosure, for lower EMI

• 1.0W maximum power consumption

• Single 3.3V power supply

• Operating temperature range: 0°C to 70°C

APPLICATIONS

• 25GE SR

• 100G SR4 fan out to 4x25GE SR

• eCPRI

Highlights

  • SFP+ offers enhanced dependability with maximum productivity
  • 25GBase-SR network technology for convenient, easy sharing of data and information over the network with maximum internet usage feasibility
  • Uses 25 Gigabit Ethernet technology to fulfill the high bandwidth requirement
  • Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
  • With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
  • Hot-pluggable form factor for your convenience and simplicity of usage
  • SFP+ with data networking application/usage for maximum productivity and usability

Specifications

Application/UsageData Networking, Optical Network
Product TypeSFP+
Manufacturer Part NumberFTLF8538P5BCL
Maximum Distance Supported0.10 km
Interfaces/Ports Details1 x LC Duplex 25GBase-SR Network
Connector TypeLC Duplex
Form FactorHot-pluggable
ManufacturerFinisar Corporation
Product ModelFTLF8538P5BCZ
Product NameFTLF8538P5BCZ SFP+ Module
Network Technology25GBase-SR
Brand NameCOHERENT
Country of OriginMalaysia
Maximum Data Transfer Rate25 Gbit/s
Ethernet Technology25 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports1
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Fiber Optic Cable Core/Cladding Specification50/125 µm
Fiber Optic Cable Wavelength850 nm, 860 nm, 840 nm
