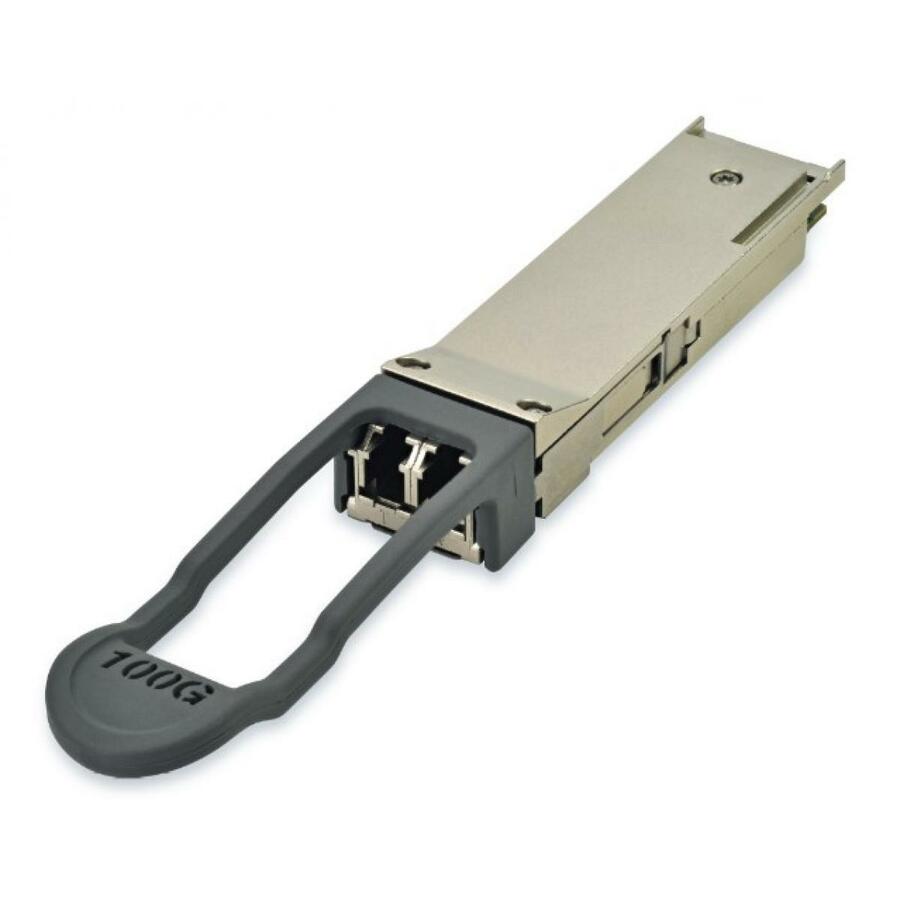

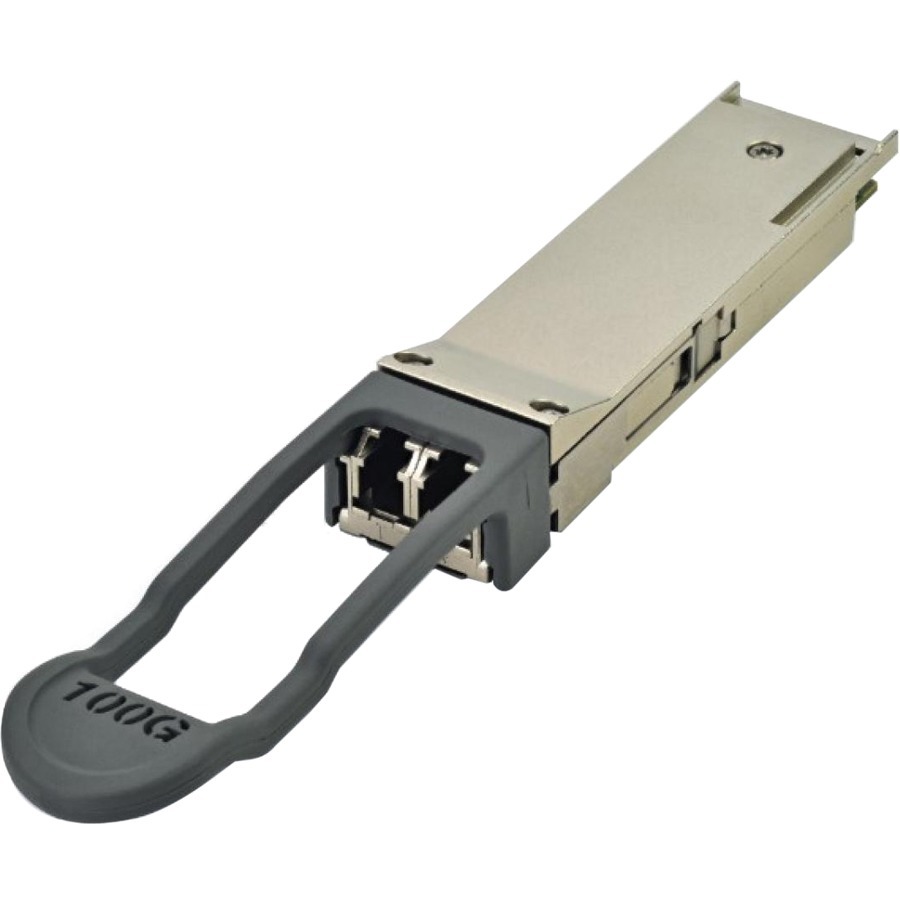

Finisar 100G 100m SWDM4 QSFP28 Optical Transceiver
Finisar

Finisar 100G 100m SWDM4 QSFP28 Optical Transceiver

For Data Networking, Optical Network - 1 x LC Duplex 100GBase-SWDM4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SWDM4 - Hot-pluggable

SKU
FTLC9152RGPL
Category
Modules

MSRP$1,078.02

$940.07

Save 13%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FTLC9152RGPL
Category
Modules

Overview

Finisar's FTLC9152RGPL 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2171. The transceiver is RoHS-6 compliant per Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.

Highlights

  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation <3.5W
  • RoHS-6 compliant
  • Commercial case temperature range of 0°C to 70°C
  • Single 3.3V power supply
  • Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)
  • 4x25Gb/s 850nm VCSEL-based transmitter
  • 4x25G CAUI-4 electrical interface
  • Duplex LC receptacles

Specifications

Application/UsageData Networking, Optical Network
Product TypeQSFP28
CompatibilityMSA Compliant
Manufacturer Part NumberFTLC9152RGPL
Interfaces/Ports Details1 x LC Duplex 100GBase-SWDM4 Network
Connector TypeLC
Form FactorHot-pluggable
ManufacturerFinisar Corporation
Product ModelFTLC9152RGPL
Product Name100G 100m SWDM4 QSFP28 Optical Transceiver
Network Technology100GBase-SWDM4
Brand NameFinisar
Environmentally FriendlyYes
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports1
