COHERENT SFP+ Module
Finisar

COHERENT SFP+ Module

For Data Networking, Optical Network - 1 x Duplex LC 10GBASE-LR/LW Network - Optical Fiber - 1310 nm Wavelength - Single-mode - 10 Gigabit Ethernet - 10GBase-LR/LW - 10.50 Gbit/s - 10 km Maximum Distance - Hot-pluggable - 1 / Piece

SKU
FTLX1475D3BNV
Category
Modules

MSRP$290.73

$257.17

Save 12%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FTLX1475D3BNV
Category
Modules

Overview

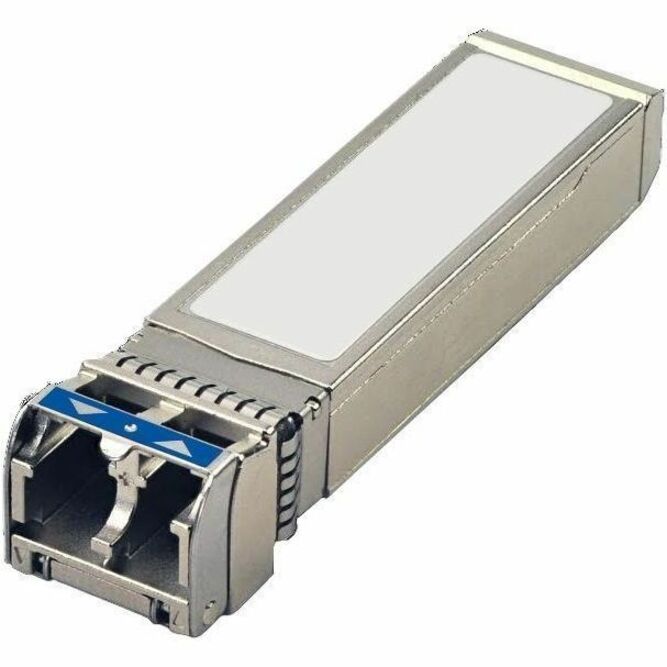

FTLX1475D3BNV 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311 , SFF-84322 and IEEE 802.3ae 10GBASE-LR/LW3 , and 10G Fibre Channel 1200-SM-LL-L4. This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-84725 . TheFTLX1475D3BNV employs a limiting receiver. FTLX1475D3BNV transceivers are RoHS compliant per Directive 2011/65/EU6 , and Finisar Application Note AN-2038

Highlights

  • Hot-pluggable SFP+ footprint
  • Supports rate selectable 1.25Gb/s and 9.95 to 10.5Gb/s
  • bit rates
  • Power dissipation < 1W
  • RoHS-6 compliant (lead-free)
  • Extended temperature range -5°C to 85°C
  • Single 3.3V power supply
  • Maximum link length of 10km
  • Uncooled 1310nm DFB laser
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Built-in digital diagnostic functions

Specifications

Application/UsageData Networking, Optical Network
Product TypeSFP+
Manufacturer Part NumberFTLX1475D3BNV
Maximum Distance Supported10 km
Packaged Quantity1 / Piece
Interfaces/Ports Details1 x Duplex LC 10GBASE-LR/LW Network
Connector TypeLC Duplex
Form FactorHot-pluggable
ManufacturerFinisar Corporation
Product NameSFP+ Module
Network Technology10GBase-LR/LW
Brand NameCOHERENT
Maximum Data Transfer Rate10.50 Gbit/s
Ethernet Technology10 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Product ColorStainless Steel
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 6
Fiber Optic Cable Wavelength1310 nm
