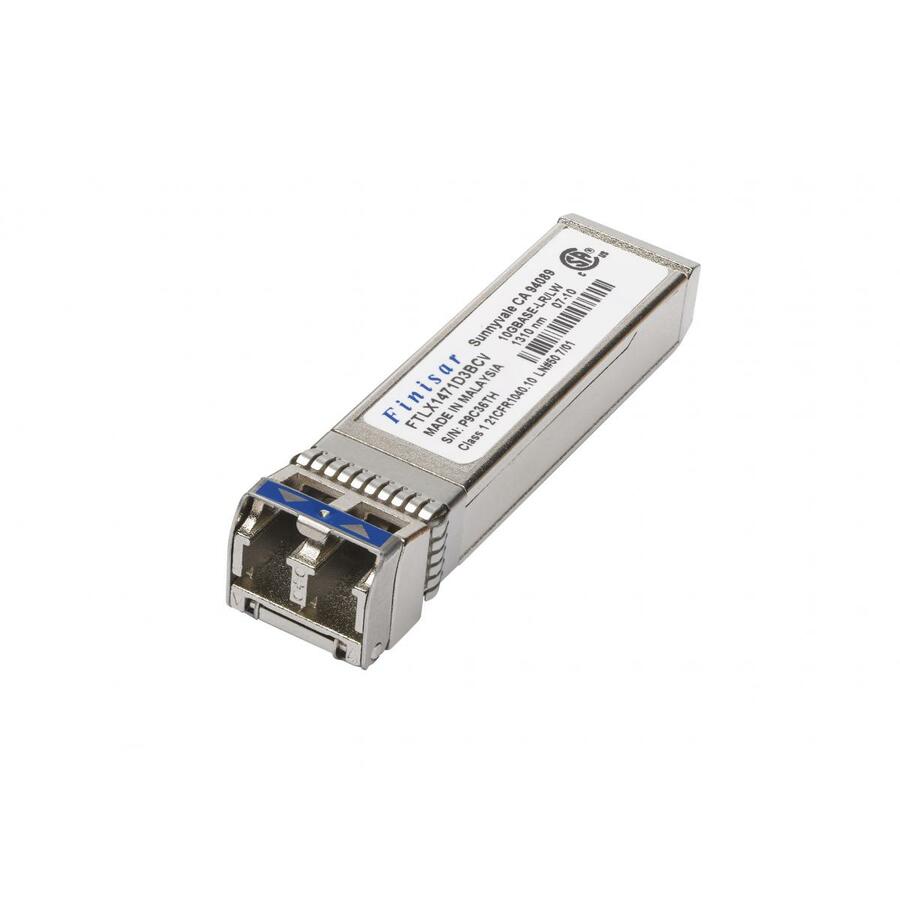

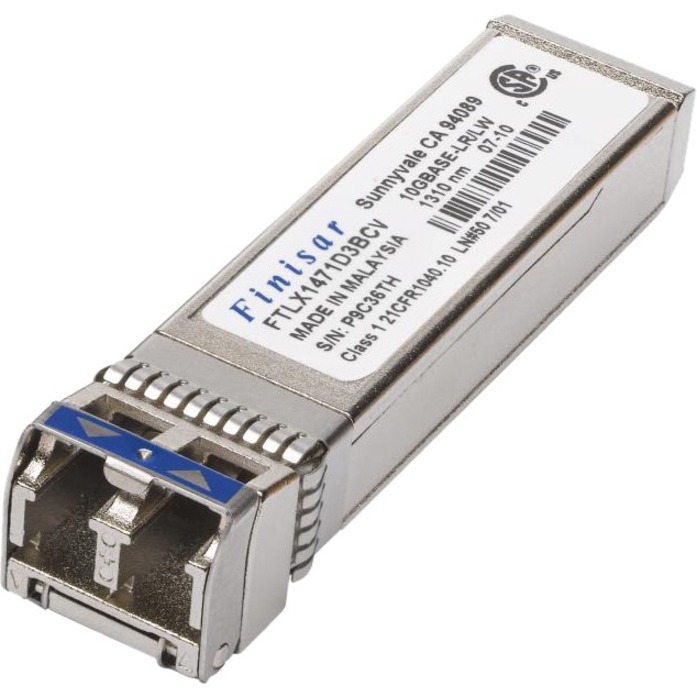

Finisar FTLX1475D3BCV SFP+ Module
For Data Networking, Optical Network - 1 x LC Duplex Fiber Channel Network - Optical Fiber - Single-mode - 10 Gigabit Ethernet - Fiber Channel, 10GBase-LR/LW - Hot-pluggable
- SKU
- FTLX1475D3BCV
- Category
- Modules
MSRP$140.35
$124.51
Save 11%In stock: 68
Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- FTLX1475D3BCV
- Category
- Modules
Overview
Finisar's FTLX1475D3BCV 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over Single Mode Fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L. This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. The FTLX1475D3BCV employs a limiting receiver. The transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
Highlights
- Hot-pluggable SFP+ footprint
- Supports rate selectable 1.25 Gb/s and 9.95 to 10.5 Gb/s bit rates
- Power dissipation < 1W
- RoHS-6 compliant (lead-free)
- Single 3.3V power supply
- Maximum link length of 10km
- Uncooled 1310nm DFB laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
- Commercial temperature range: -5°C to 70°C
Specifications
| Application/Usage | Data Networking, Optical Network |
|---|---|
| Product Type | SFP+ |
| Compatibility | MSA Compliant |
| Manufacturer Part Number | FTLX1475D3BCV |
| Interfaces/Ports Details | 1 x LC Duplex Fiber Channel Network |
| Connector Type | LC |
| Form Factor | Hot-pluggable |
| Manufacturer | Finisar Corporation |
| Product Model | FTLX1475D3BCV |
| Product Name | FTLX1475D3BCV SFP+ Module |
| Network Technology | Fiber Channel, 10GBase-LR/LW |
| Brand Name | Finisar |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 1 |
