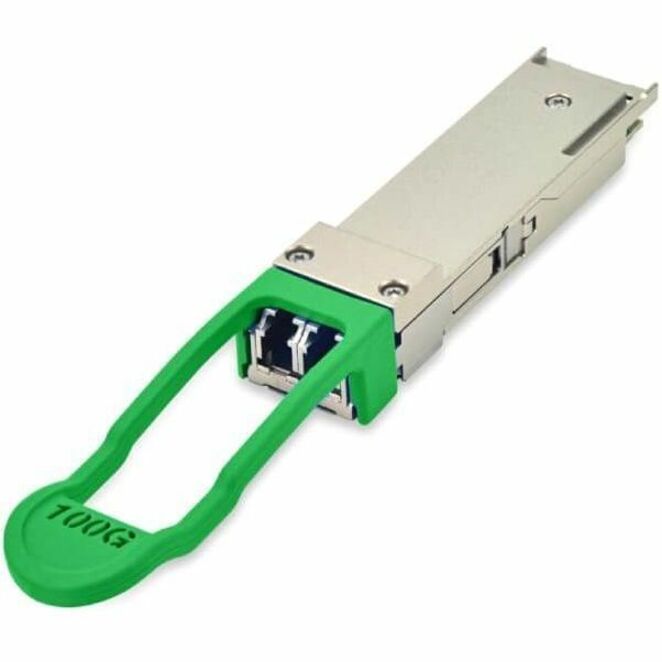

Finisar 100G CWDM4 2km Gen3 QSFP28 Optical Transceiver
Finisar

Finisar 100G CWDM4 2km Gen3 QSFP28 Optical Transceiver

For Data Networking, Optical Network - 1 x LC Duplex 100GBase-CWDM4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-CWDM4 - 103.10 Gbit/s - 2 km Maximum Distance - Hot-pluggable - 2

SKU
FTLC1157RGPL
Category
Modules

MSRP$918.32

$808.32

Save 12%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FTLC1157RGPL
Category
Modules

Overview

FTLC1157RGPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2km of single mode fiber specifically for data center applications. They are compliant with the QSFP28 MSA, CWDM4 MSA, and portions of IEEE P802.3bm. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Notes AN-2153 and AN-2154. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Highlights

  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation < 3.5W
  • RoHS compliant
  • Commercial case temperature range of 0°C to +70°C
  • Adaptive CTLE
  • Single 3.3V power supply
  • Loss budget of 5 dB on up to 2km of Single Mode Fiber (SMF) [with KR4 FEC]
  • 4x25Gb/s CWDM transmitter
  • 4x25G retimed electrical interface
  • Duplex LC receptacles
  • I2C management interface

Specifications

Application/UsageData Networking, Optical Network
Product TypeQSFP28
Manufacturer Part NumberFTLC1157RGPL
Maximum Distance Supported2 km
Packaged Quantity2
Interfaces/Ports Details1 x LC Duplex 100GBase-CWDM4 Network
Connector TypeLC
Form FactorHot-pluggable
ManufacturerFinisar Corporation
Product Name100G CWDM4 2km Gen3 QSFP28 Optical Transceiver
Network Technology100GBase-CWDM4
Brand NameFinisar
Environmentally FriendlyYes
Maximum Data Transfer Rate103.10 Gbit/s
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
