120 V AC, 230 V AC Input - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-x Output Port(s) - 90 W
SKU
Category
Power Injectors/Splitters
$91.99
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine EnGenius Technologies through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Power Injectors/Splitters
Overview

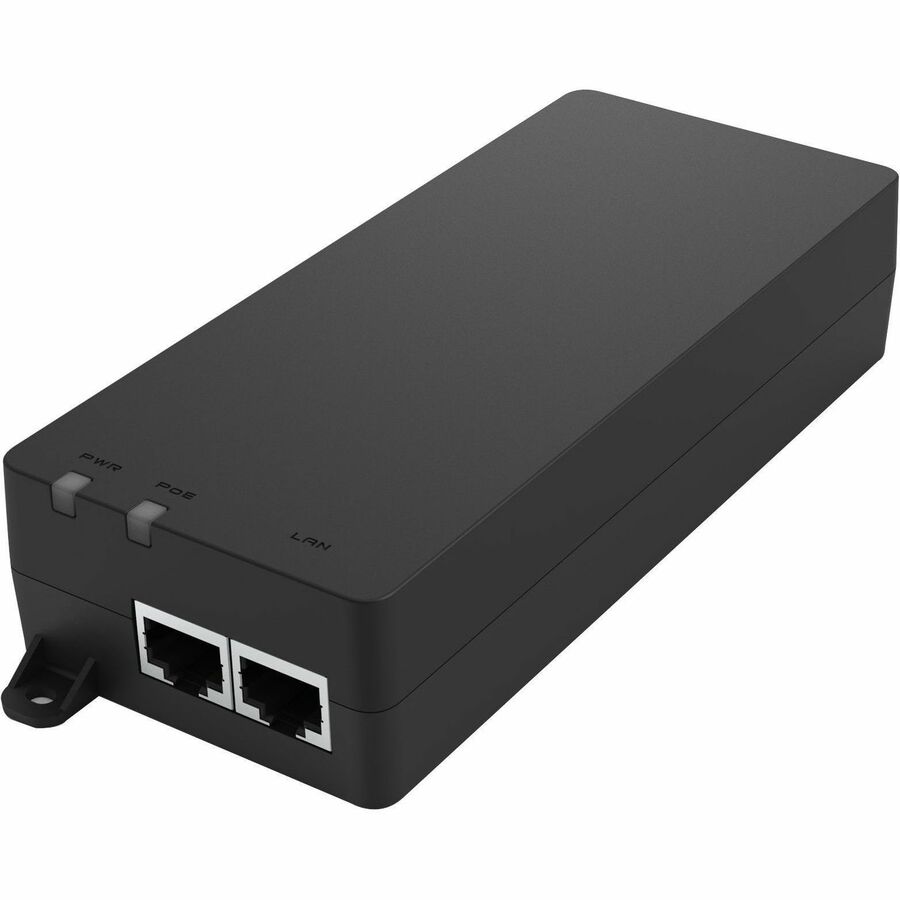

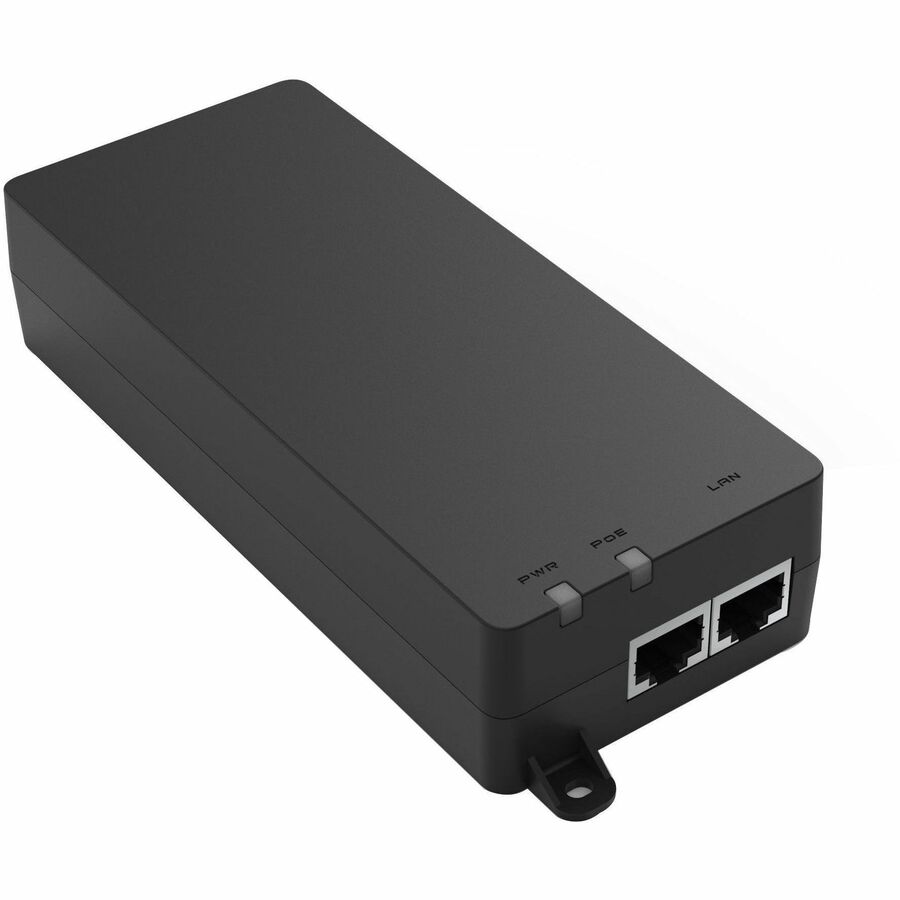

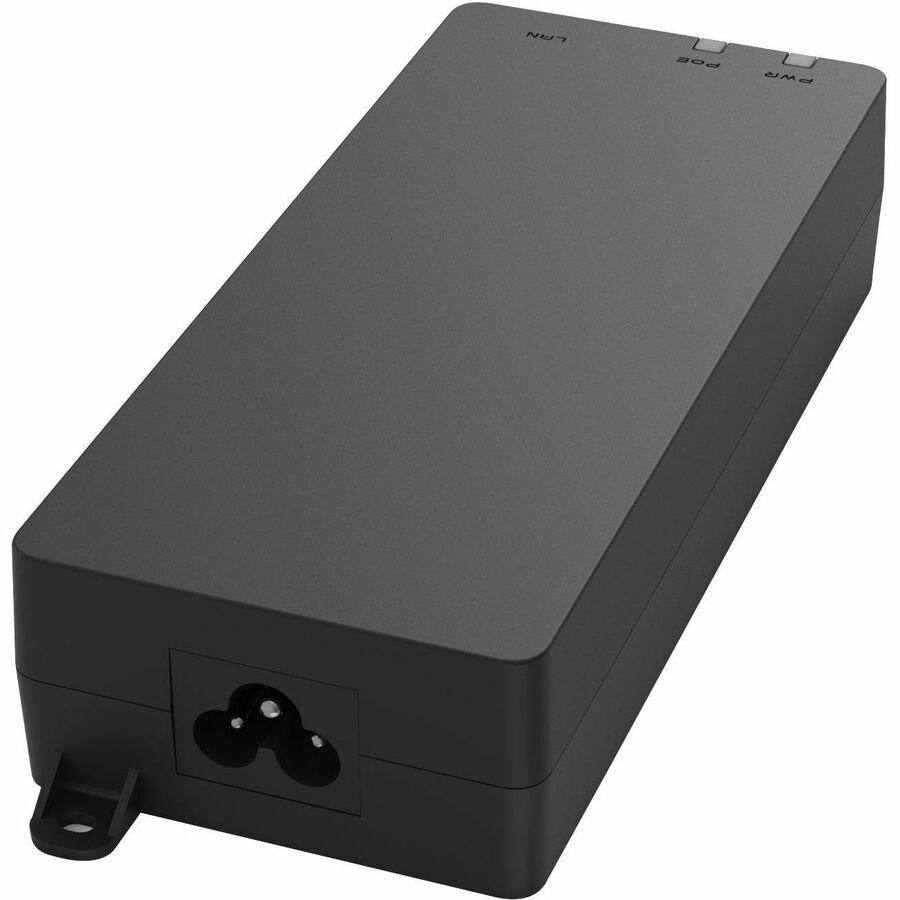

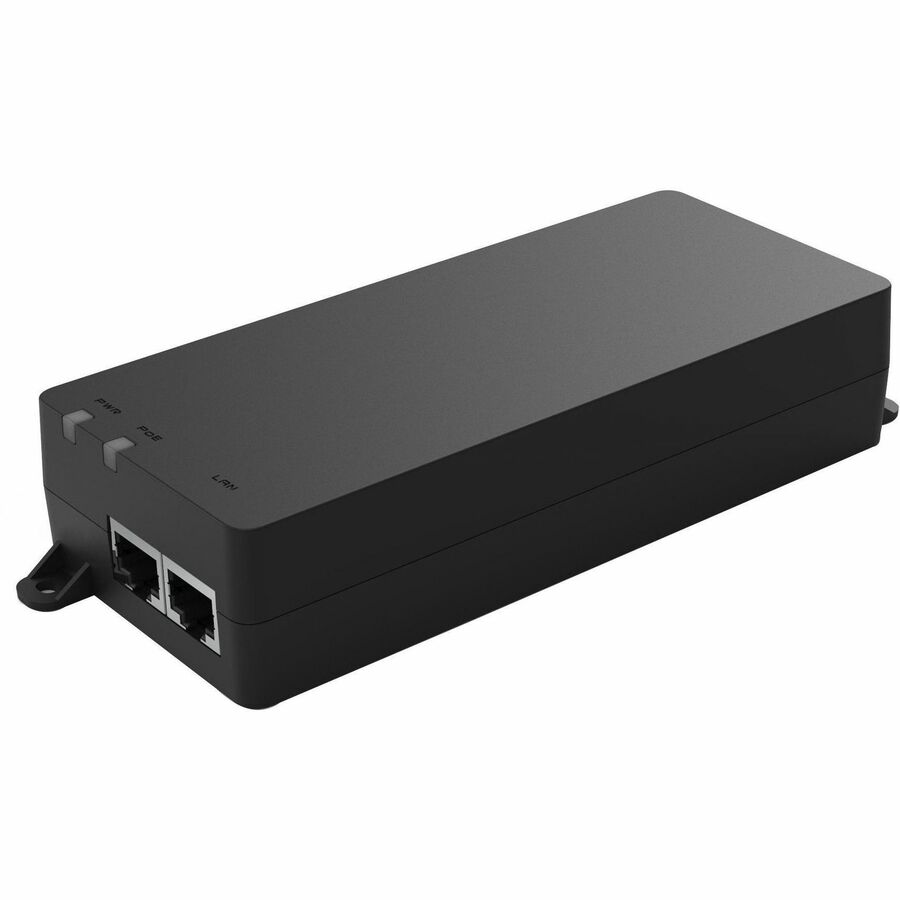

The EnGenius EPA5090XBT PoE Injector delivers 90-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
• IEEE 802.3bt Type 3 & 4 compliant
• IEEE 802.3af/at backward compatible
• Backward compatible for legacy PoE while future proofing network with up to 10Gb bandwidth
• Supports 10/100/1000 Mbps and 2.5/5/10 Gbps applications
• Output power up to 90W over four pairs with auto-detection on power requirement
• Leverage energy efficient PoE of up to 90W with full power capabilities
• Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
• Fan-less design ideal for silent operation
• Simple plug-and-play installation
Warranty
Limited Warranty: 1 Year
Specifications
General Information
Manufacturer
EnGenius Technologies, Inc
Manufacturer Part Number
EPA5090XBT
Brand Name
EnGenius
Product Model
EPA5090XBT
Product Name
EPA5090XBT PoE Injector
Packaged Quantity
1
Product Type
PoE Injector
Interfaces/Ports
Input Ports
1 x 10/100/1000Base-T
Output Ports
1 x 10/100/1000Base-x
Physical Characteristics
Height
1.3"
Width
2.6"
Length
5.9"
Weight (Approximate)
12.50 oz
Power Description
Input Voltage
120 V AC, 230 V AC
Maximum Input Current
950 mA
Maximum Output Power
90 W
Technical Information
Protection Type
Surge Protection, Over Current, Over Voltage, Short Circuit
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
EPA5090XBT PoE Injector
1 x Quick Installation Guide (Printed on side of Box)
