SKU
EPA5060HBT
Category
Power Injectors/Splitters
Overview

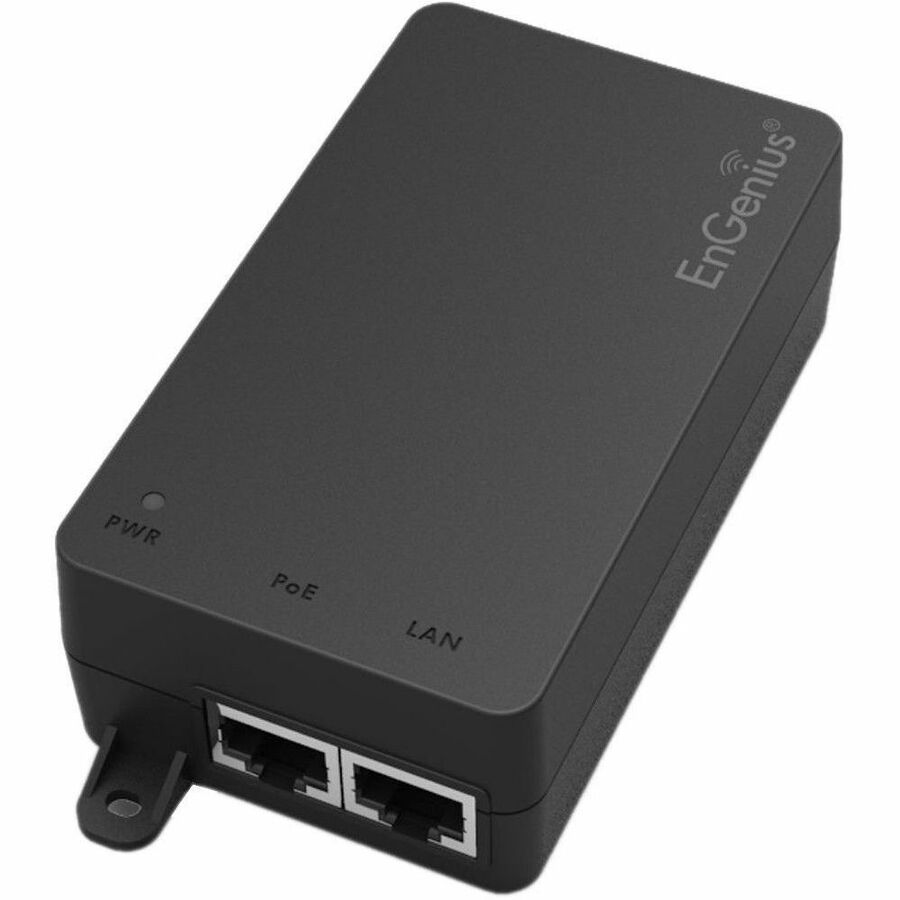

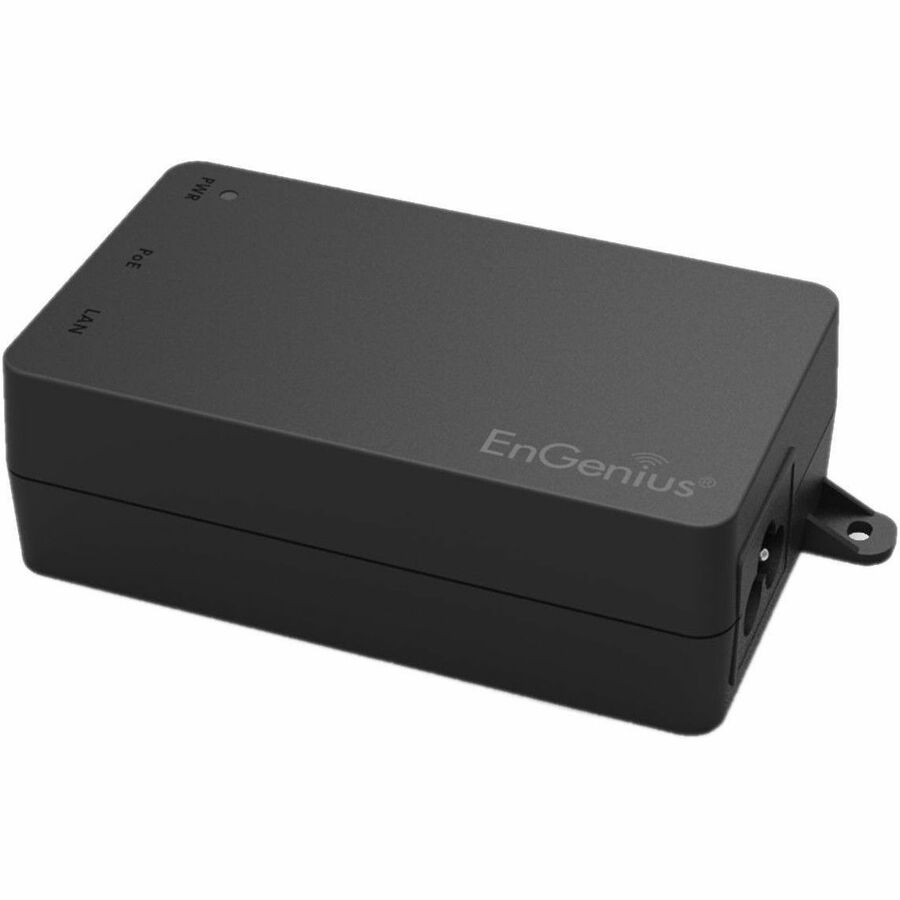

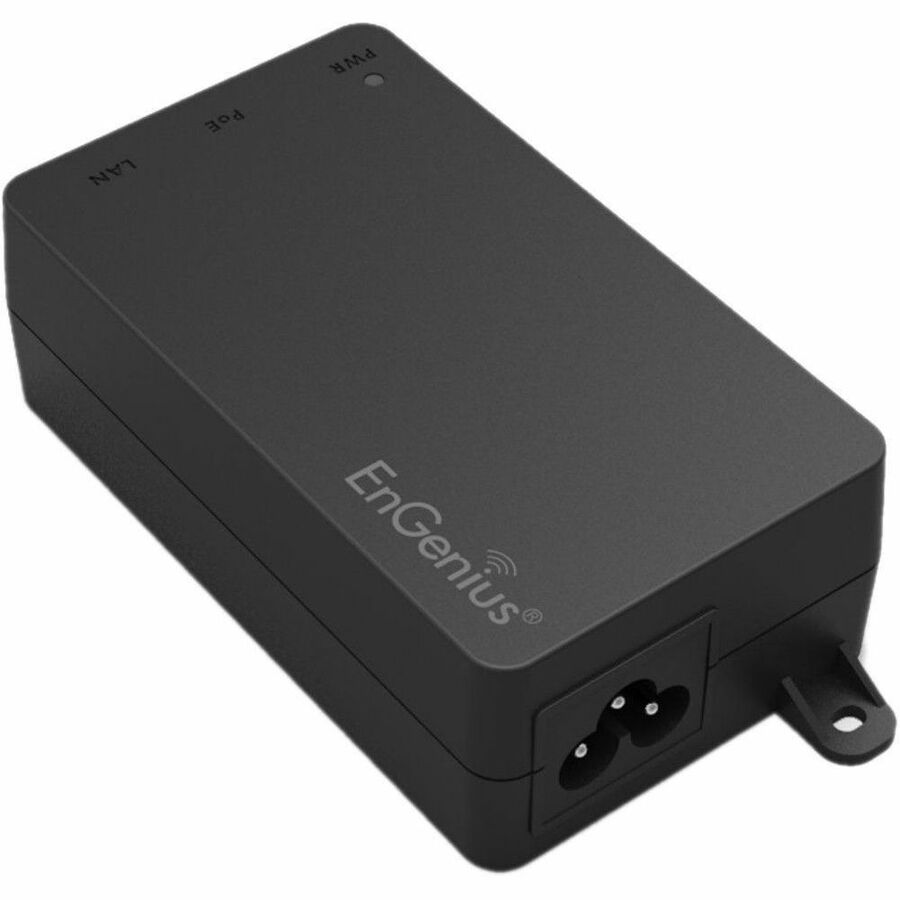

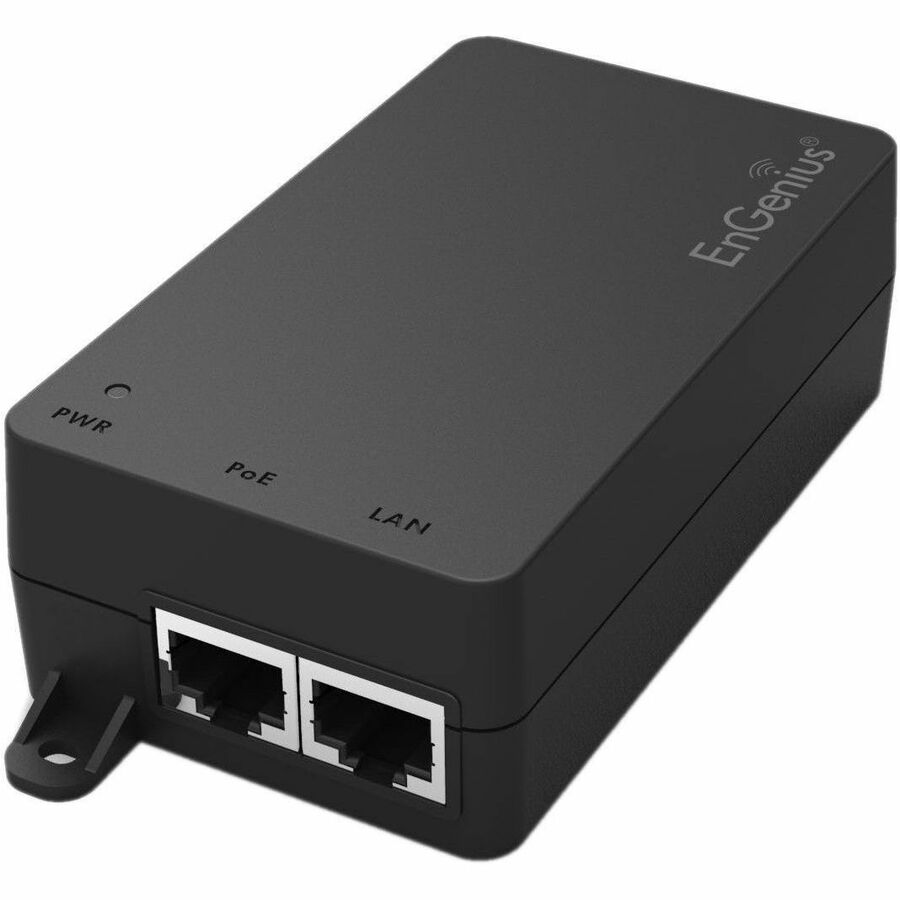

The EnGenius EPA5060HBT PoE Injector delivers 60-watts of power and 2.5Gb data communication to compatible network devices up to 328 feet (100m) over CAT5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.IEEE 802.3bt Type 3 compliant
• IEEE 802.3af/at backward compatible
• Backward compatible for legacy PoE -Supports 10/100/1000 Mbps Up to 2.5Gb applications
• Output power up to 60W over four pairs with auto-detection on power requirement
• Leverage energy efficient PoE up to 60W with full power capabilities
• Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
• Fan-less design ideal for silent operation
• Simple plug-and-play installation
Warranty
Limited Warranty: 1 Year
Specifications
General Information
Manufacturer
EnGenius Technologies, Inc
Manufacturer Part Number
EPA5060HBT
Brand Name
EnGenius
Product Model
EPA5060HBT
Product Name
60W 802.3af/at/bt 2.5GbE Power over Ethernet Injector
Packaged Quantity
1
Product Type
PoE Injector
Interfaces/Ports
Input Ports
1 x RJ-45
Output Ports
1 x RJ-45
Physical Characteristics
Product Color
Black
Mount Type
Desktop/Surface-mountable
Height
1.3"
Width
2.3"
Length
3.9"
Weight (Approximate)
7 oz
Power Description
Input Voltage
120 V AC, 230 V AC
Minimum Input Current
750 mA
Maximum Input Current
1.12 A
Maximum Output Power
60 W
Technical Information
Protection Type
Surge Protection, Over Voltage, Over Current, Short Circuit
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
60W 802.3af/at/bt 2.5GbE Power over Ethernet Injector
1 x Quick Installation Guide (Printed on side of Box)
