SKU
EPA5006GAT
Category
Power Injectors/Splitters
Overview

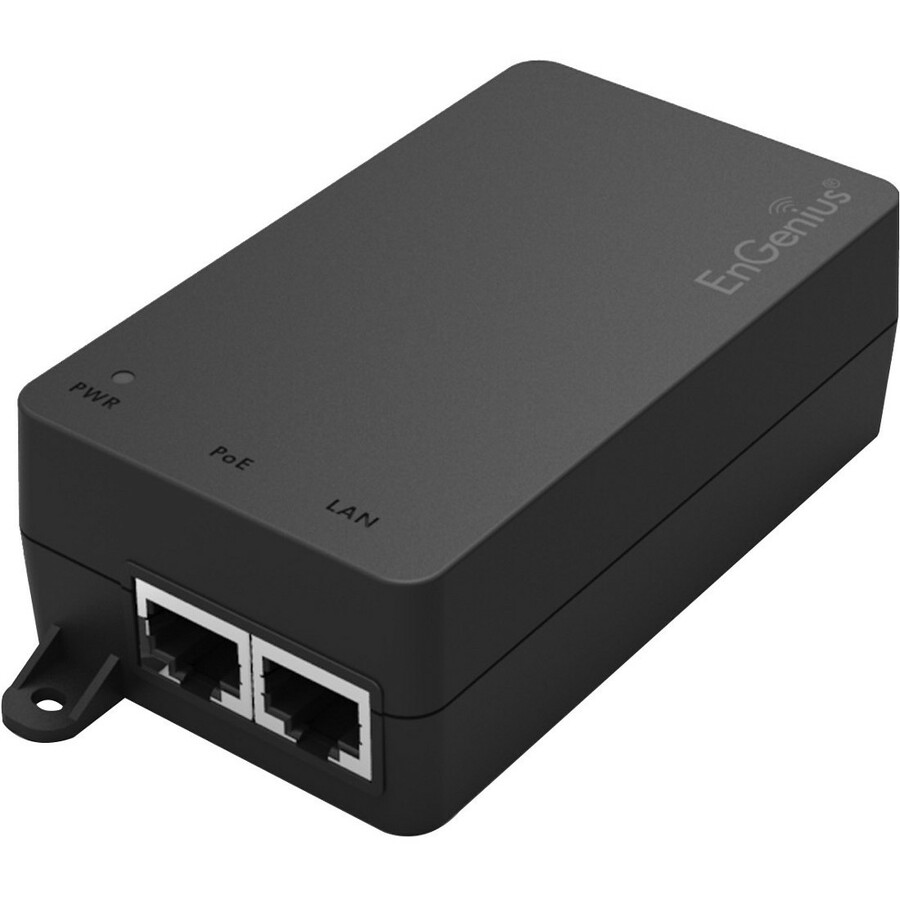

EnGenius PoE Adapter is easily to power and to network over Ethernet for increasing scalability and reducing installation time and cost.
EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an 802.3at/af - compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.
Outdoor Networking Facility and Low Port Density Installations
The EPA5006GAT PoE adapter is fully compliance with 802.3at/af defection mechanism, with disconnect, short -circuit and overload protection to assure the securable and reliable connection for 802.3at/af devices. By sending maximum 30W output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.
Warranty
Limited Warranty: 1 Year
Specifications
General Information
Manufacturer
EnGenius Technologies, Inc
Manufacturer Part Number
EPA5006GAT
Brand Name
EnGenius
Product Model
EPA5006GAT
Product Name
802.3at/af Compatible Gigabit Single Port Poe Adapter
Product Type
PoE Injector
Interfaces/Ports
Input Ports
1 x Gigabit Ethernet
Output Ports
1 x Gigabit Ethernet
Physical Characteristics
Form Factor
External
Mount Type
Wall Mountable
Height
1.3"
Width
2.3"
Depth
3.9"
Power Description
Input Voltage
120 V AC, 230 V AC
Maximum Input Current
800 mA
Maximum Output Power
30 W
Technical Information
Protection Type
Over Voltage, Overload Protection, Short Circuit, Over Current
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
802.3at/af Compatible Gigabit Single Port Poe Adapter
