5:4 - 5 ms
17" Viewable - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - 3 Year
Request pricing
Confirmed with stock before any payment.
Genuine Elo Touch Solutions through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

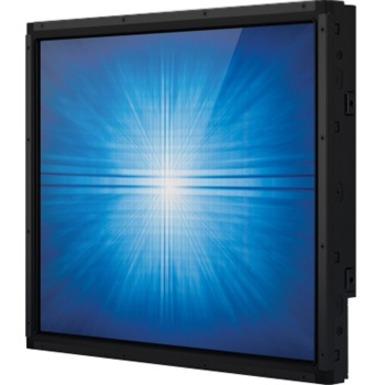

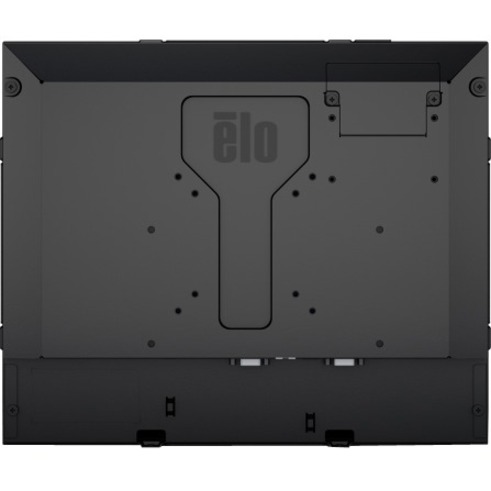

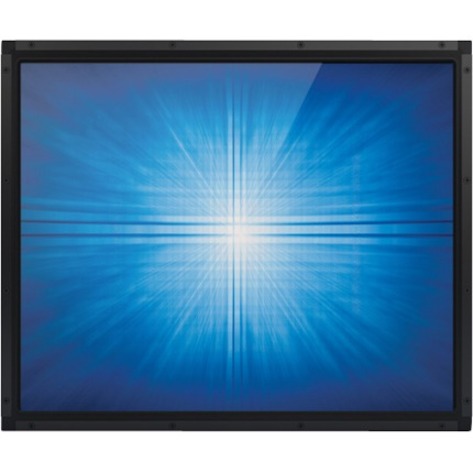

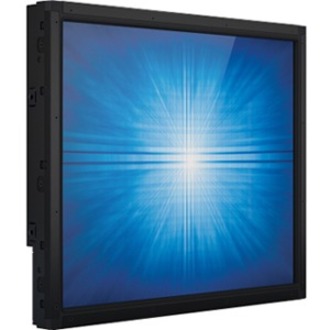

Elo 1790L Open Frame Touchscreen Display
The Elo 1790L 17-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
More from the Manufacturer
Elo 1790L Open Frame Touchscreen Display
The Elo 1790L 17-inch open frame touchscreen display delivers an industrial-grade solution thatis cost-effective for OEMs and systems integrators requiring a reliable product for theircustomers. Designed with reliability from the start, Elo's open frames deliver outstandingimage clarity and light transmission with stable, drift-free operation for accurate touchresponses. The 90-Series product line is available in a wide range of sizes, touch technologiesand brightness, offering the versatility needed for commercial kiosk applications fromself-service and gaming to industrial automation and healthcare.
Design Your Solution with Elo
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientationsproviding optimal flexibility for mounting in any table, kiosk, or cabinet design. Whetherviewing directly, at an angle, or from a distance, our open frames offer what you need whilemaintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass
Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru
functionalityfor installations that require a front layer of glasswith
thickness’s up to 6mm or solutions that require specificIP ratings.
Whether you need a flush-mounted display or one thatis
fully-encased behind a cover glass, our robust PCAPOpen
Frames are purpose-built for durability in variousapplications and
environments: from self-service kiosks tohighly used gaming
cabinets to harsh industrial machines.
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E326942 |
| Brand Name | Elo |
| Product Model | 1790L |
| Product Name | 1790L 17" Open Frame Touchscreen (Rev B) |
| Packaged Quantity | 1 |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Physical Characteristics | |
| Color Family | Black |
| VESA Mount Compatible | Yes |
| Product Color | Black |
| VESA Mount Standard | 100 x 100 |
| Height | 12.1" |
| Width | 14.5" |
| Depth | 1.9" |
| Weight (Approximate) | 7.94 lb |
| Power Description | |
| Operating Power Consumption | 17.80 W |
| Standby Power Consumption | 1.50 W |
| Off-Mode Power Consumption | 500 mW |
| Technical Information | |
| Screen Size Class | 17" |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 5 ms |
| Aspect Ratio | 5:4 |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Mount Type | Front Mount, Rack-mountable |
| Backlight Technology | LED |
| Features | On-screen Display (OSD), Anti-glare |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Curved Screen | No |
| Touchscreen Information | |
| Touchscreen Type | IntelliTouch Surface Wave |
| Video | |
| Maximum Resolution | 1280 x 1024 |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 800:1 |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 Nit |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
