Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ZC122A902120041
Category
Industrial UPS
Overview
The Eaton BladeUPS is a scalable & modular UPS system designed for high density computing environments, including large data centers. Dissipating one-third of the heat of traditional modular UPS systems, this powerful configuration provides the power protection your mission-critical applications need.
Plug-and-play parallel configuration
Expanding your BladeUPS without the help of Eaton is easy with the UPS' intelligent system. It automatically detects connected modules and fully configures itself for parallel operations.
Support for dynamic data centers
The modular, scalable design allows the BladeUPS to accommodate growth from 12 - 60 kW with its flexible, building-block architecture.
Save space in the rack and the server room
With double the power density of other UPSs on the market, the BladeUPS offers the smallest footprint of any UPS in its class.
Reduce air conditioning needs by a third
The lower heat dissipation of a BladeUPS means they can be located near equipment racks without concern about hot spots, all while reducing overall cooling costs.
Warranty
Limited Warranty: 18 Month
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable.
Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Specifications
Battery Information
DC System Voltage
240 V DC
Battery Characteristics
Valve Regulated Lead Acid (VRLA)
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
4.70 Minute
Backup/Run Time (Half Load)
13 Minute
Environmental Conditions
Maximum Operating Elevation
3280.84 ft
Thermal Dissipation
371.03 W
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
ZC122A902120041
Brand Name
Eaton
Product Line
BladeUPS
Product Name

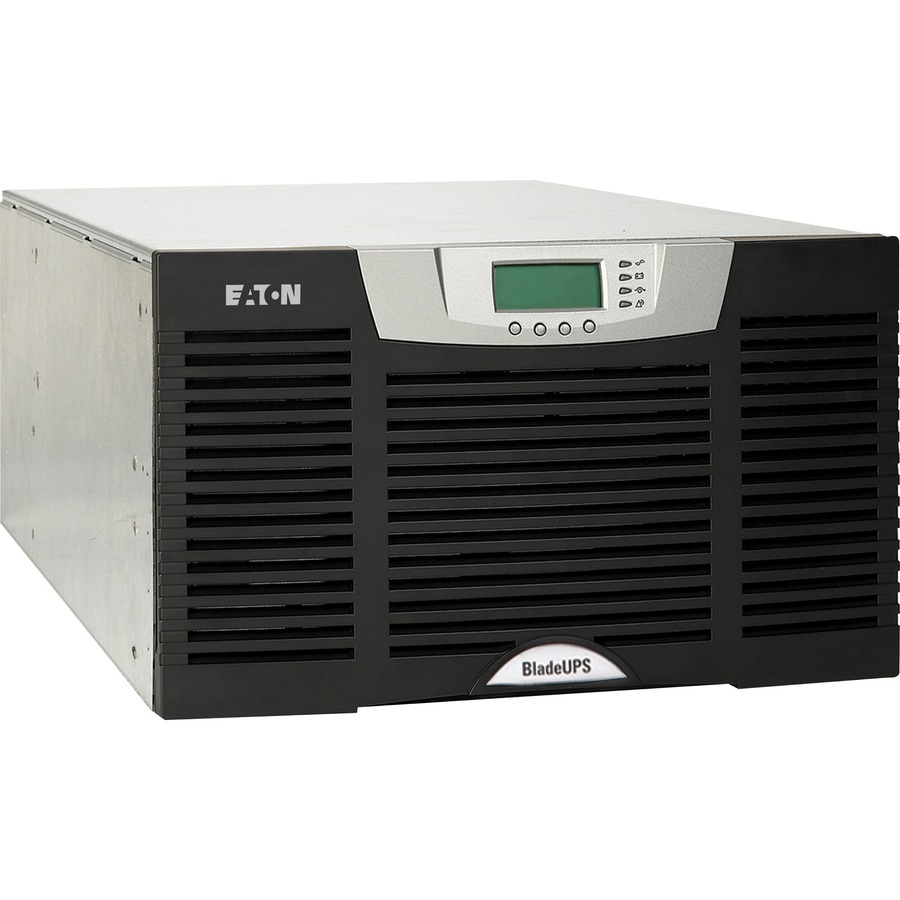

BladeUPS 12kW Rack-mountable UPS
Product Type
Double Conversion Online UPS
Management
Alarm
Low Battery
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
6U
Height
10.3"
Width
17.4"
Depth
28.4"
Weight (Approximate)
135 lb
Power Description
Input Voltage
400 V AC
Input Voltage Range
311 V AC - 500 V AC
Output Voltage
400 V AC
Input Frequency
60 Hz
Output Frequency
60 Hz
Technical Information
Plug/Connector Type
Hard Wire 4-wire (3PH + G)
Receptacle Type
Hard Wire 4-wire (3PH + G)
Phase
Three Phase
Application/Usage
Data Center, Mission Critical Equipment, Server Room, High-end System Component
