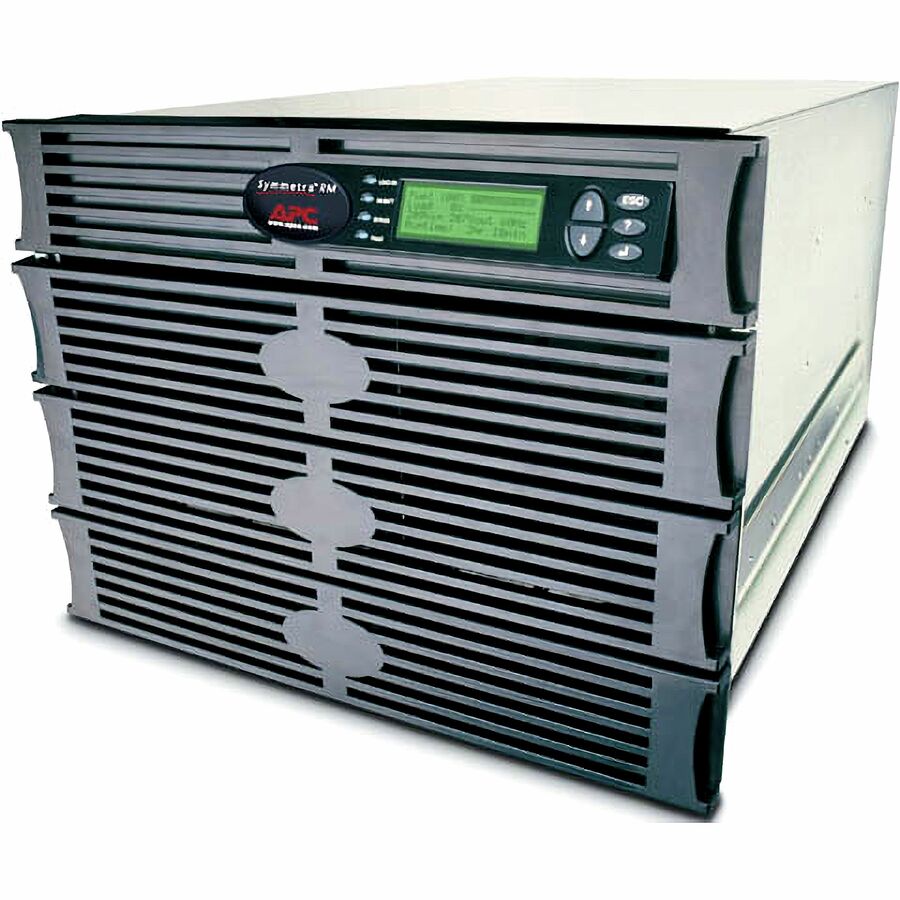

APC Symmetra RM 2kVA Scalable to 6kVA N+1 208/240V

8U Rack-mountable - 4 Hour Recharge - 12.30 Minute Stand-by - 208 V AC Input - 208 V AC Output - 1 x NEMA L6-30R, 2 x NEMA L6-20R - Sine Wave

SKU: SYH2K6RMT
Category: Industrial UPS

MSRP$7,345.00

$4,711.01

Save 36%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SYH2K6RMT
Category: Industrial UPS

Overview

Highly available single phase UPS features redundant and scalable double-conversion on-line power protection

Warranty

Additional Warranty Information: 2 years repair or replace, optional on-site warranties available, optional extended warranties available Limited Warranty: 2 Year

Specifications

Additional Warranty Information	2 years repair or replace, optional on-site warranties available, optional extended warranties available
Battery Chemistry	Lead Acid
Package Contents	Symmetra RM 2kVA Scalable to 6kVA UPS CD with software Rack mounting brackets Rack mounting support rails User manual
Product Type	Double Conversion Online UPS
Input Voltage	208 V AC
Manufacturer Part Number	SYH2K6RMT
Limited Warranty	2 Year
Output Voltage	208 V AC
Weight (Approximate)	164.35 lb
Form Factor	Rack-mountable
Manufacturer	Schneider Electric SA
Product Name	Symmetra RM 2kVA Scalable to 6kVA UPS
Network Management	SNMP Manageable
Overload Protection	Yes
Product Line	Symmetra
Thermal Dissipation	126.02 W
Waveform Type	Sine Wave
Product Series	RM
Rack Height	8U
Brand Name	APC by Schneider Electric
Plug/Connector Type	Hard Wire 3-wire, NEMA L6-30P
Output Frequency	60 Hz
Alarm	On Battery, Low Battery, Configurable Delay
Country of Origin	Philippines
Cord Length	10 ft
Height	14"
Width	19"
Depth	28.7"
Input Frequency	63 Hz
Receptacle Type	NEMA L6-30P 30A
Environmentally Friendly	Yes
Maximum Operating Temperature	104°F (40°C)
Backup/Run Time (Half Load)	29.10 Minute
Backup/Run Time (Full Load)	12.30 Minute
Battery Characteristics	Spill-proof/Maintenance-free
Load Capacity (VA)	2000 VA
Number of Battery & Surge Outlets	3
Typical Battery Recharge Time	4 Hour
Product Color	Black
Receptacle Detail	1 x NEMA L6-30R, 2 x NEMA L6-20R
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
