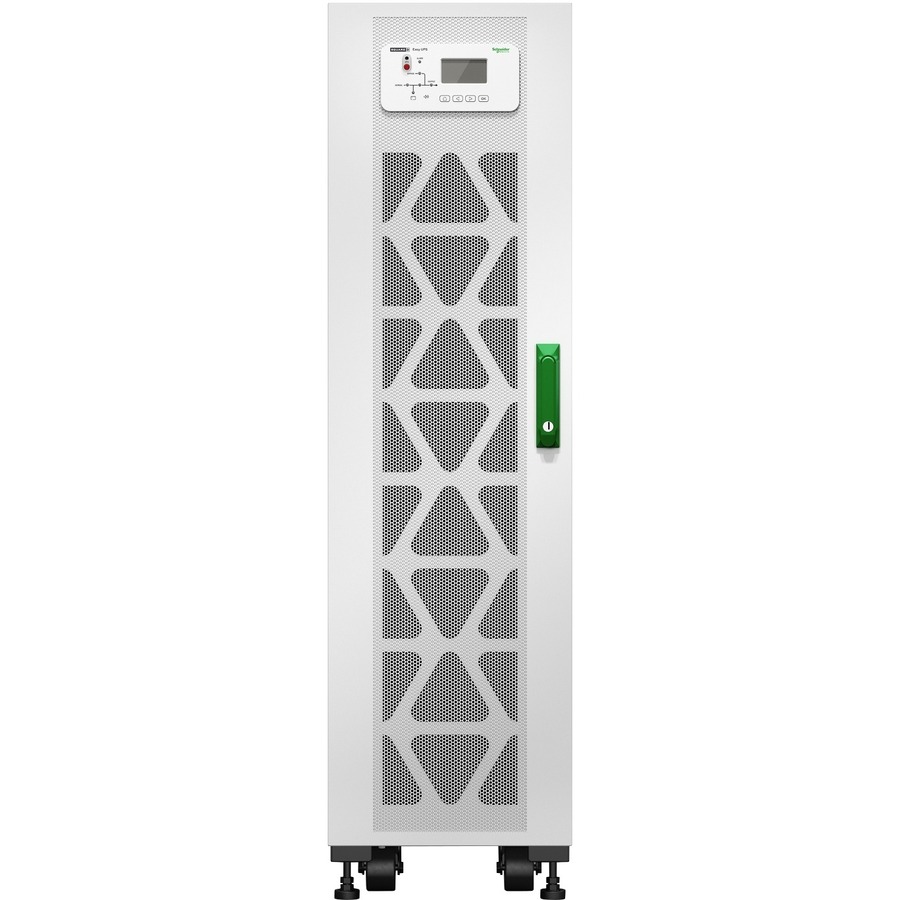

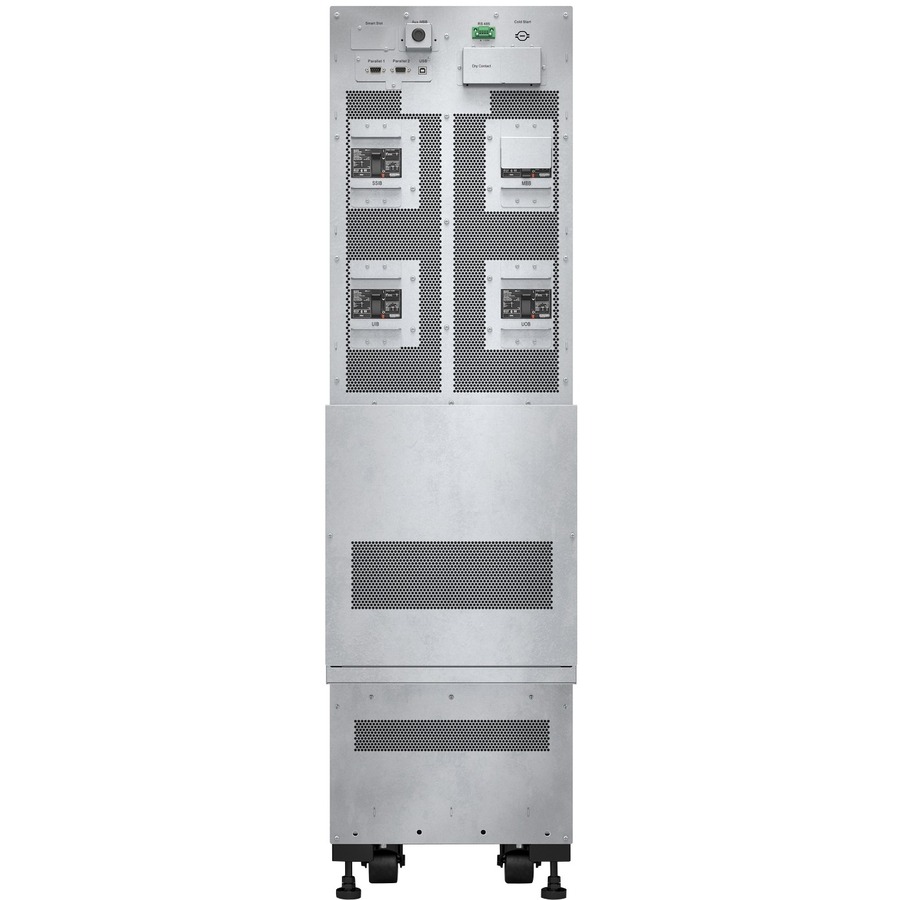

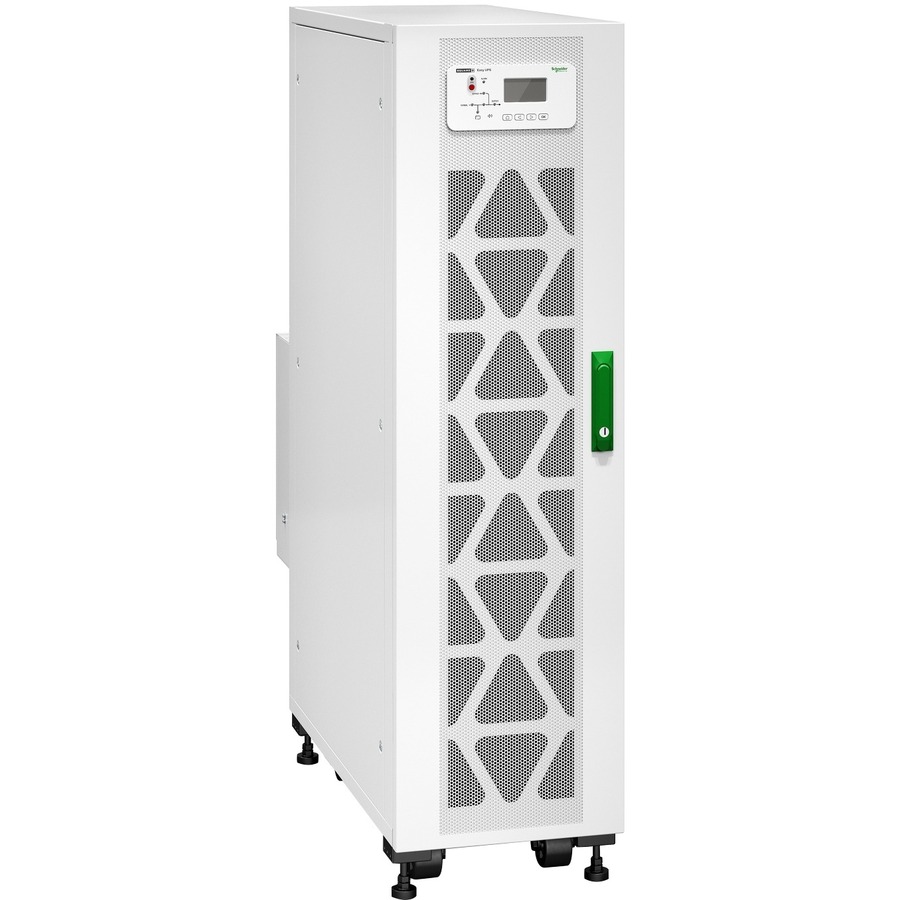

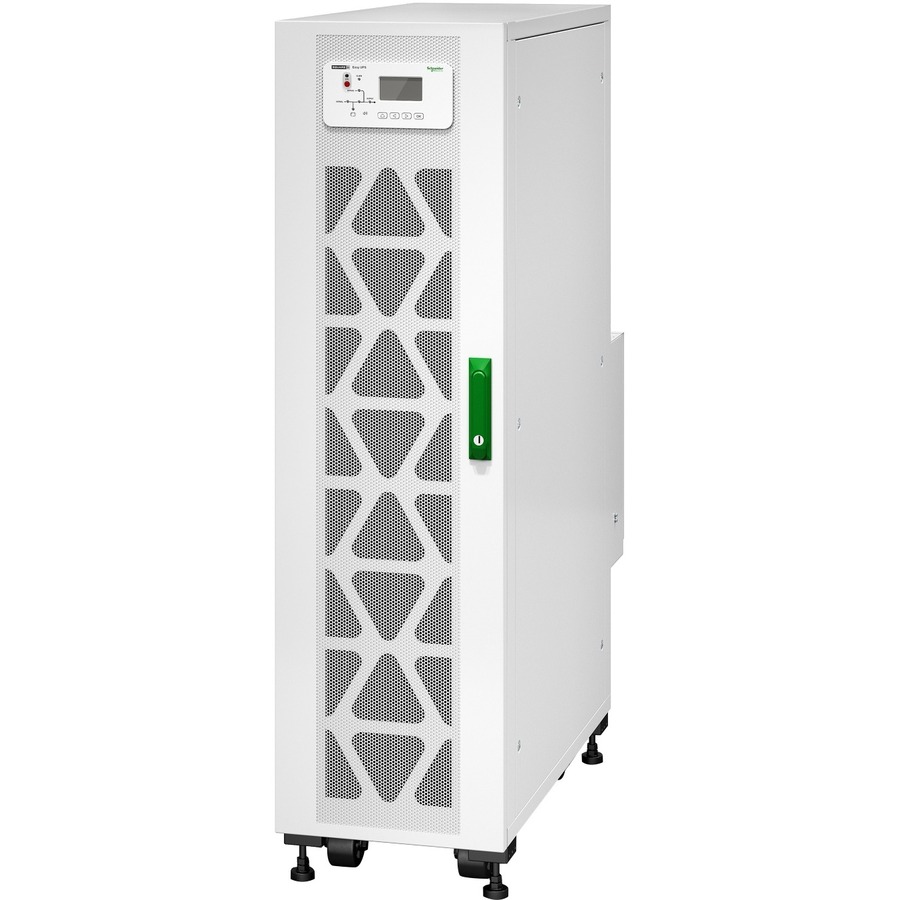

APC by Schneider Electric Easy UPS 3S 20kVA Tower UPS
Schneider Electric

APC by Schneider Electric Easy UPS 3S 20kVA Tower UPS

Tower - 230 V AC Input - 220 V AC, 208 V AC Output

SKU
E3SUPS20KFBS
Category
Industrial UPS

MSRP$21,945.00

$14,783.62

Save 33%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
E3SUPS20KFBS
Category
Industrial UPS

Overview

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.

Specifications

Application/UsageBusiness, Data Center, Electrical Room
Package Contents
  • Easy UPS 3S 20kVA Tower UPS
  • Dust Filter
  • Installation Manual
  • Start-Up Service
Product TypeDouble Conversion Online UPS
Input Voltage230 V AC
Manufacturer Part NumberE3SUPS20KFBS
Output Voltage220 V AC, 208 V AC
Weight (Approximate)291.01 lb
Form FactorTower
ManufacturerSchneider Electric SA
Product NameEasy UPS 3S 20kVA Tower UPS
Product LineEasy UPS 3S
Thermal Dissipation410.30 W
Brand NameAPC by Schneider Electric
Output Frequency60 Hz
Height55.1"
Width15"
Depth37.8"
Input Frequency70 Hz
PhaseThree Phase
Environmentally FriendlyYes
Maximum Operating Temperature104°F (40°C)
Load Capacity (VA)20 kVA
DC System Voltage120 V DC
Maximum Operating Elevation4921 ft
Maximum Storage Elevation49212.60 ft
Storage Temperature5°F (-15°C) - 104°F (40°C)
Product ColorWhite
Sound Emission (A-Weighted)68 dB(A)
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS)
