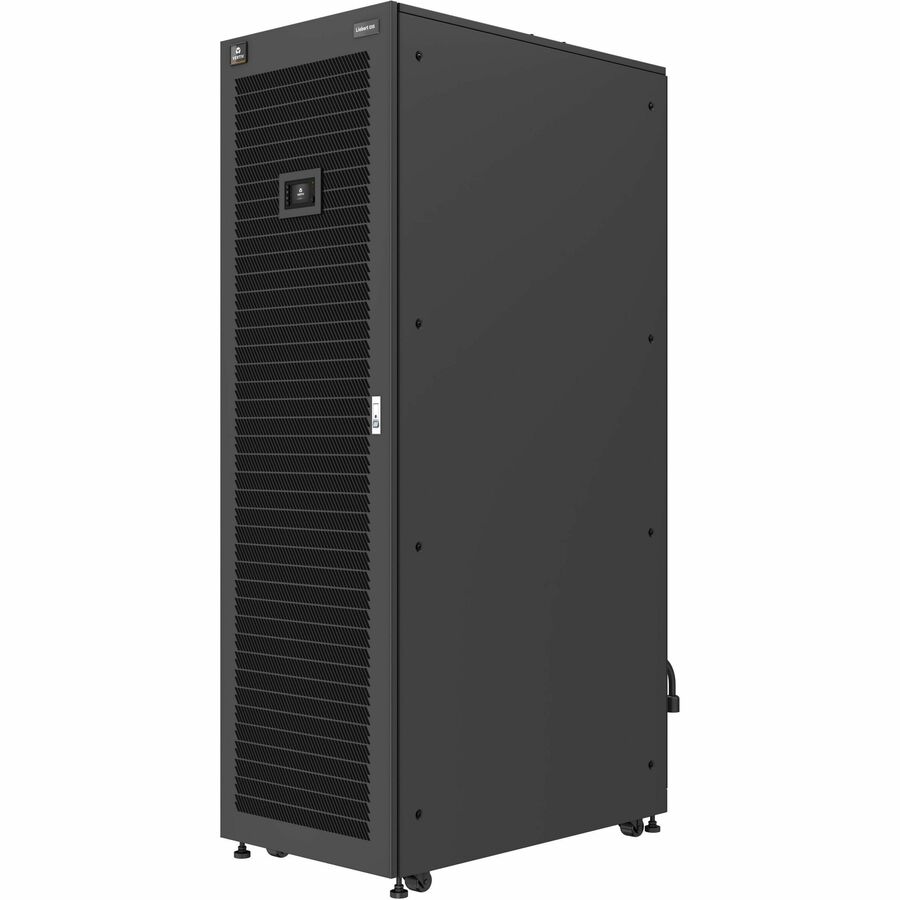

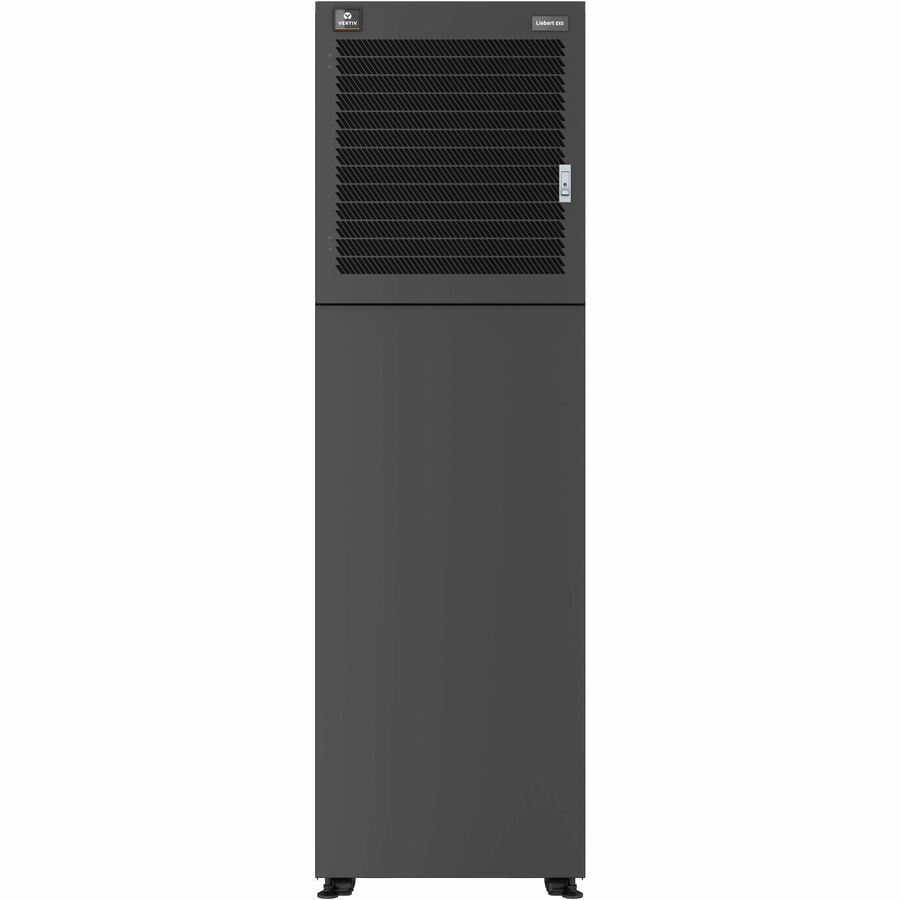

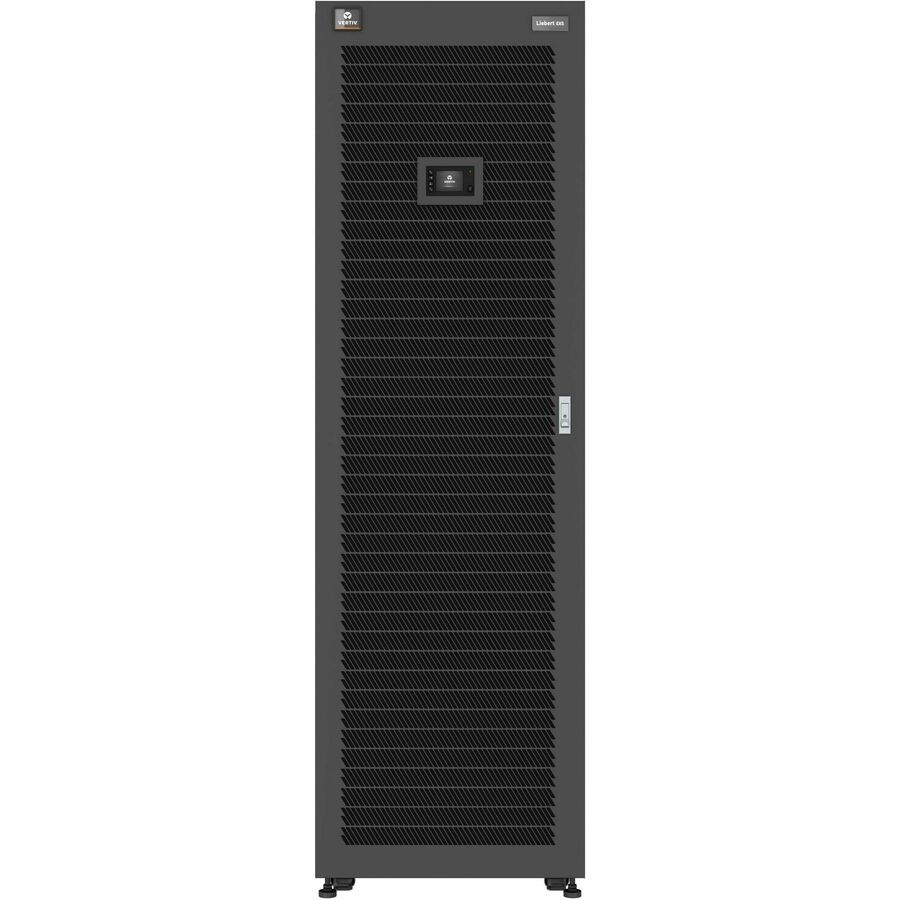

Vertiv Liebert EXS V-Model UPS tower 15kVA/15kW 208/120VAC (220/127VAC)3-phase 4 Wire|w/ Liebert Intellislot Card (RDU120)|RunTime 15min(EXSV-15KN)
Vertiv

Vertiv Liebert EXS V-Model UPS tower 15kVA/15kW 208/120VAC (220/127VAC)3-phase 4 Wire|w/ Liebert Intellislot Card (RDU120)|RunTime 15min(EXSV-15KN)

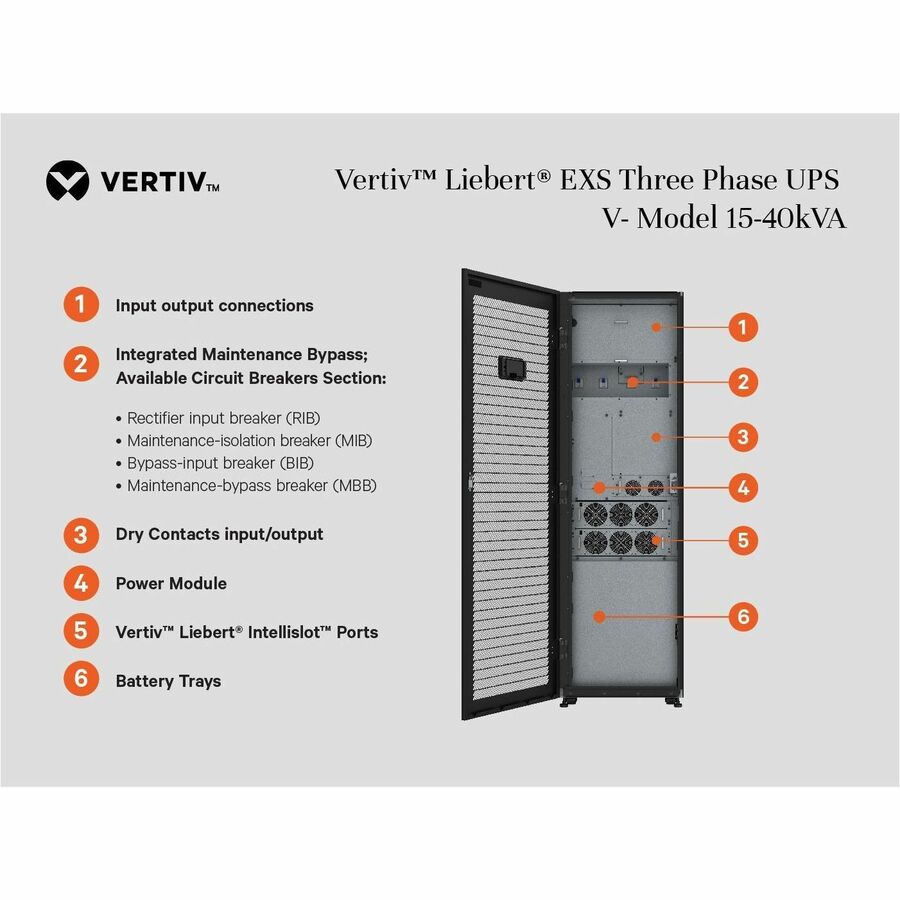

Integrated Solution supports faster deployments | Easy to Install and Maintain | Diverse Application scenarios - In-Row, Room and against the wall| Maximum efficiency and eco mode saves energy | Flexible UPS, PDU and battery arrangements | High Power Factor | Has Integrated Maintenance Bypass option

SKU
EXSV-15KN
Category
Industrial UPS

MSRP$26,112.00

$17,547.26

Save 33%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EXSV-15KN
Category
Industrial UPS

Overview

The Vertiv Liebert EXS V-Model (EXSV-15KN) is a compact monolithic uninterruptible power system (UPS) that employs true on-line, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert EXS V-Model is designed to supply computers, servers, networking, and other sensitive equipment with clean sine wave input power. It is ideally suited to power IT devices in small data rooms, IT closets, VoIP, ISDN, storage, and security systems. It offers economical, efficient, and reliable three-phase power for critical loads up to 15kVA. This intelligent UPS has flexible UPS, power distribution and battery arrangements to meet capacity and runtime demands. It has an integrated maintenance bypass cabinet, which ensures critical loads operate even during service. It has power factor and high power-density in an optimized design and standalone unit. It is easy to install and operate.

More from the Manufacturer

Compact and Flexible Design

It uses an optimized tower design with a compact footprint. It has flexible UPS, power distribution and battery arrangements to meet your capacity needs and runtime demands.

Vertiv™ Liebert® EXS UPS V-Model-MODULE 2-1

Maximum Power Protection

This UPS offers reliable performance and high availability. It has integrated maintenance by-pass option for greater availability. Protect critical IT systems from electrical threats.

Vertiv™ Liebert® EXS UPS V-Model-MODULE 2-2

Fast, Easy Installation and Serviceability

This 3-phase UPS has pre-configured, integrated system that reduces field work. For maintenance and repair Vertiv services team enables hassle free experience.

Vertiv™ Liebert® EXS UPS V-Model-MODULE 2-3

High Efficiency and Low TCO

The UPS has efficiency of >93% in double conversion mode, 99% in eco mode. It ensures operational cost savings, reducing both the Total Cost of Ownership (TCO) and environmental impact. It has Energy Star 2.0 certification

Vertiv™ Liebert® EXS UPS V-Model-MODULE 2-4

Warranty

Limited Warranty: 1 Year

About Vertiv

Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity​ As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!​

Highlights

  • Reliable 3-phase power with double conversion technology for power protection and higher availability of critical systems
  • High operating efficiency (>93% in double conversion mode, 99% in eco mode)
  • Advanced battery monitoring
  • Operational footprint and flexibility
  • 1.0 Output Power Factor rating to deliver more usable power

Specifications

Application/UsageData Center, IT, Server, Storage Device, IT System, Medical, Medical Equipment, VoIP, Security System, Banking, Retail, Healthcare, Manufacturing Facility
Battery ChemistryLead Acid
Package Contents
  • EXSV-15KN 15kVA Tower UPS
  • Quick Installation Guide
  • Vertiv? Power Insight Management Software (free download from Vertiv.com)
  • IS-Unity DP Communication Card
  • Safety Instructions
  • WEE Recycling Sheet (ISO 14001 Compliance)
Software IncludedVertiv Power Insight Management
Product TypeDouble Conversion Online UPS
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberEXSV-15KN
Limited Warranty1 Year
Output Voltage208 V AC, 120 V AC, 220 V AC, 127 V AC
Weight (Approximate)1212 lb
Form FactorTower
ManufacturerVertiv
Product ModelEXSV-15KN
Product NameEXSV-15KN 15kVA Tower UPS
Network ManagementIntelligent Card Slot, Modbus RS-485, SNMP/Modbus/TCP/BacNet IP, Relay Contact
Product SeriesEXS
Brand NameVertiv Liebert

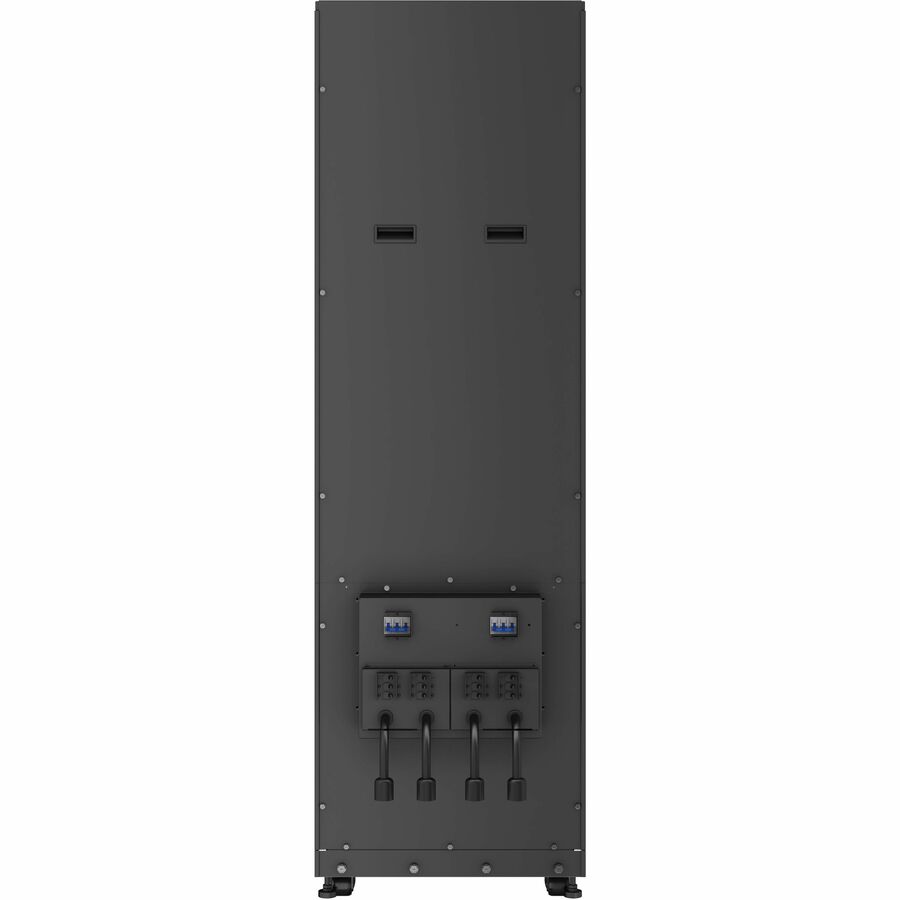

Plug/Connector TypeHard Wire 4-wire (3PH + G)
Output Frequency60 Hz
Height78.7"
Width23.6"
Depth39.3"
Input Frequency60 Hz, 40 Hz, 70 Hz
PhaseThree Phase
Receptacle TypeHard Wire 4-wire (3PH + G)
Environmentally FriendlyYes
Maximum Operating Temperature104°F (40°C)
Backup/Run Time (Half Load)32 Minute
Backup/Run Time (Full Load)15 Minute
Battery CharacteristicsValve-regulated
Load Capacity (VA)15 kVA
Load Capacity (Watt)15 kW
Energy StarYes
Maximum Operating Elevation4921 ft
Output Power Factor1
Environmental SensorsHumidity Sensor, Temperature Sensor
Receptacle Detail2 x Hard Wire 4-wire (3PH + G)
Energy Efficiency CertificationENERGY STAR 2.0
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
