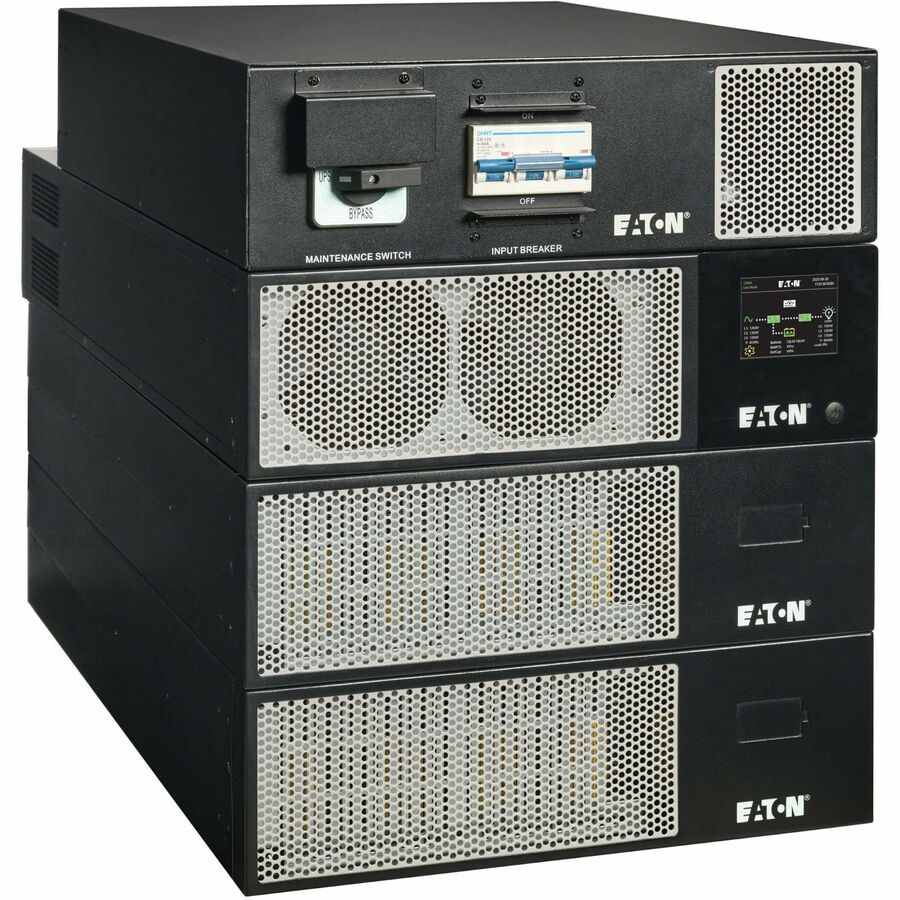

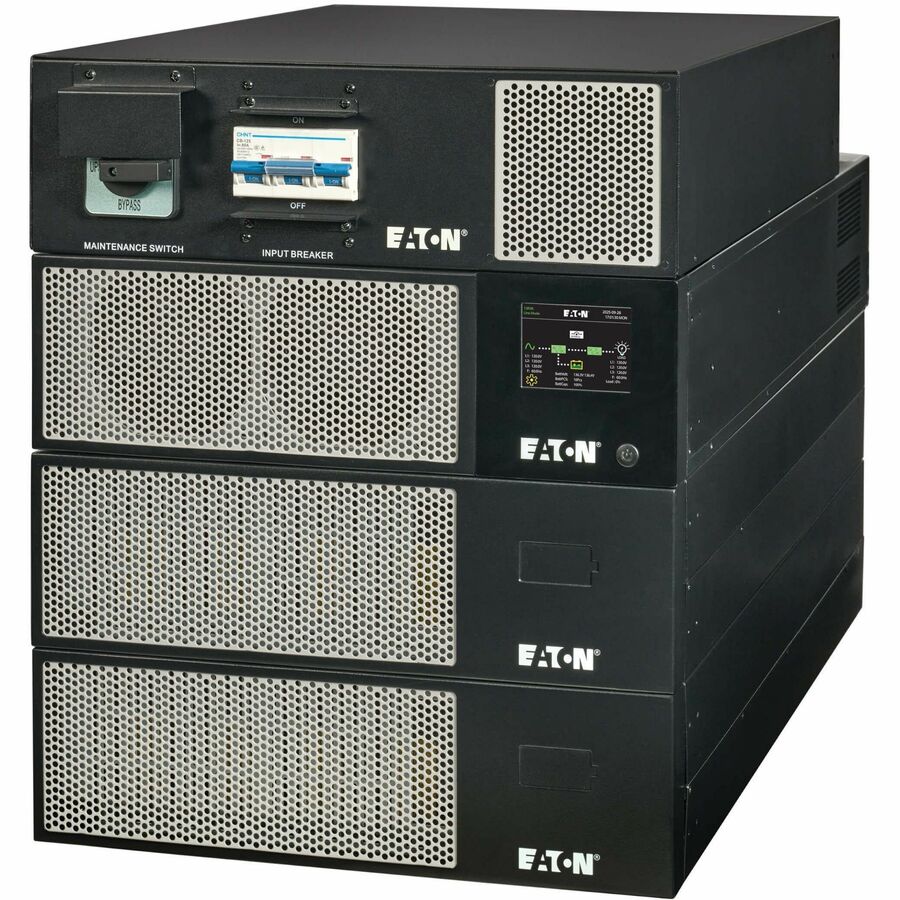

Eaton 13kW 208V 3-PH UPS with connectorized input and output cables and INDGW-M3 card
12U Rack-mountable - 5.20 Hour Recharge - 230 V AC, 120 V AC Input - 208 V AC, 120 V AC Output - 2 x IEC 309 60A (4-wire) - Pure Sine Wave - Serial Port - USB - LCD Display - TAA Compliant
- SKU
- 93PX13KIND
- Category
- Industrial UPS
MSRP$20,380.00
$16,541.52
Save 19%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 93PX13KIND
- Category
- Industrial UPS
Overview
• 93PX13KIND 13kW Rack-mountable UPS
• 93PX13KPM 3U Power Module
• INDGW-M3 Industrial Card
• 2 x 93PXEBM240 3U Extended Battery Modules
• 93PXMBP15K 3U Maintenance Bypass Panel
• Rack-Mounting Hardware
• Assorted Cabling
• User Documentation
Warranty
Limited Warranty: 2 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- Innovative quick-connect design for easy plug-and-play deployment and service
- Corded AC input and output for convenient utility power and PDU connections
- Unity power factor (1.0) and high power density to save data center white space
- Cybersecure network card enables full remote access and control 24/7
- Maintenance bypass keeps equipment operational during UPS service or replacement
- 2-year limited warranty
Specifications
| Application/Usage | Data Center, IT Infrastructure, Switch, Server, Healthcare, Hospital, IT Rack, Medical, Mission Critical Equipment, Edge Computing, Network, Server Room, Network Closet, IT Equipment, Education, Commercial, Financial Institution, Hyperconverged Infrastructure (HCI) |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Display | LCD |
| Efficiency | 97% |
| Input Voltage | 230 V AC, 120 V AC |
| Manufacturer Part Number | 93PX13KIND |
| Limited Warranty | 2 Year |
| Output Voltage | 208 V AC, 120 V AC |
| Form Factor | Rack-mountable |
| Manufacturer | Eaton Corporation |
| Product Model | 93PX13KIND |
| Product Name | 93PX 13kW Rack-mountable UPS |
| Network Management | RS-232, INDGW-M3 Card |
| Overload Protection | Yes |
| Protection Type | Backfeed, Surge |
| Waveform Type | Pure Sine Wave |
| Product Series | 93PX |
| Rack Height | 12U |
| Brand Name | Eaton |
| Plug/Connector Type | IEC 309 60A |
| Input Voltage Range | 121 V AC - 270 V AC, 53 V AC - 161 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Cord Length | 10 ft |
| Height | 20.6" |
| Width | 17.2" |
| Depth | 30.2" |
| Input Frequency | 50 Hz, 60 Hz |
| Phase | Three Phase |
| Receptacle Type | IEC 309 60A |
| Battery Capacity | 10000 mAh |
| USB | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Battery Characteristics | Hot-swappable/Valve-regulated |
| Load Capacity (VA) | 13 kVA |
| Load Capacity (Watt) | 13 kW |
| TAA Compliant | Yes |
| DC System Voltage | 120 V DC |
| EPO Port | Yes |
| Maximum Operating Elevation | 3280 ft |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Typical Battery Recharge Time | 5.20 Hour |
| Crest Factor | 3:1 |
| Input Power Factor | 1 |
| Output Power Factor | 1 |
| Number of External Battery Cabinets | 5 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 10 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 26 Minute |
| Receptacle Detail | 2 x IEC 309 60A |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
