SKU
ZC1212008100000
Category
Industrial UPS
Overview

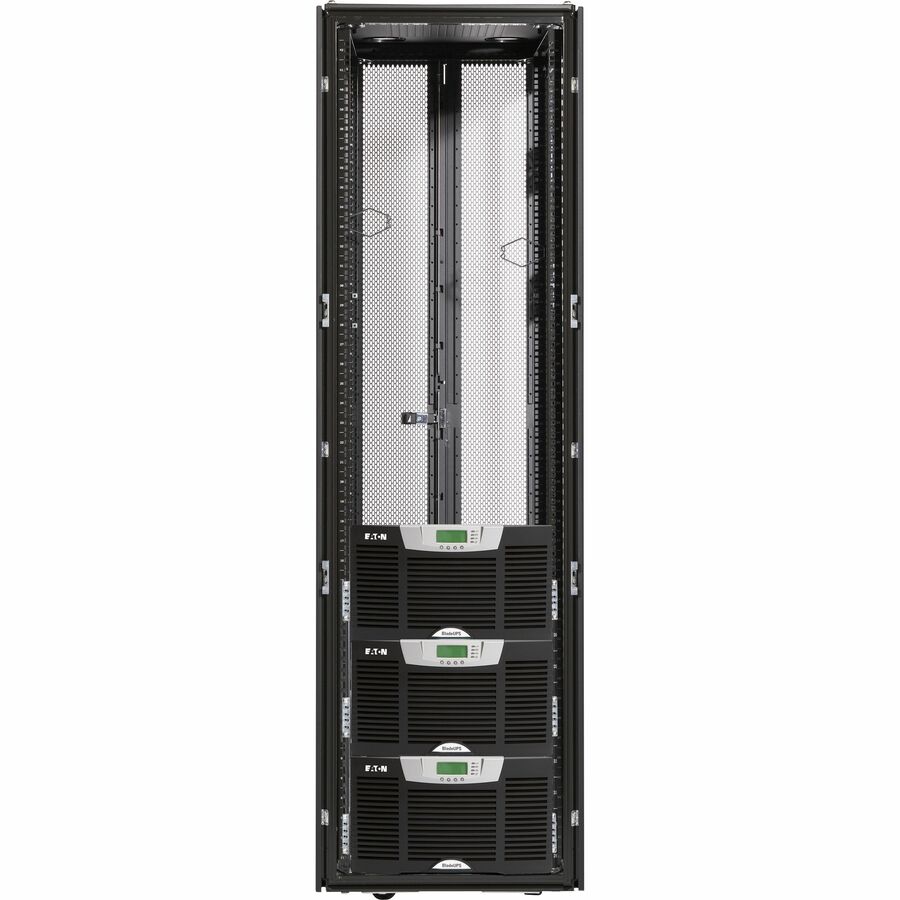

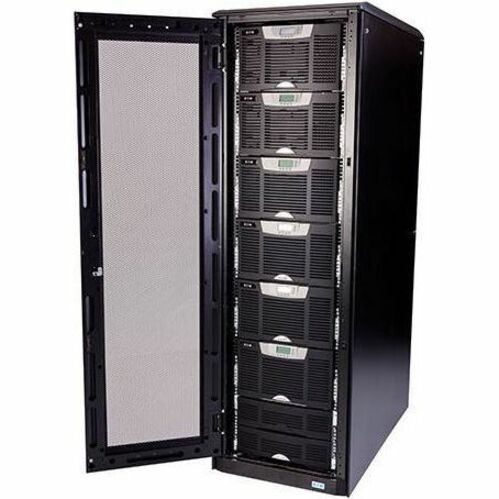

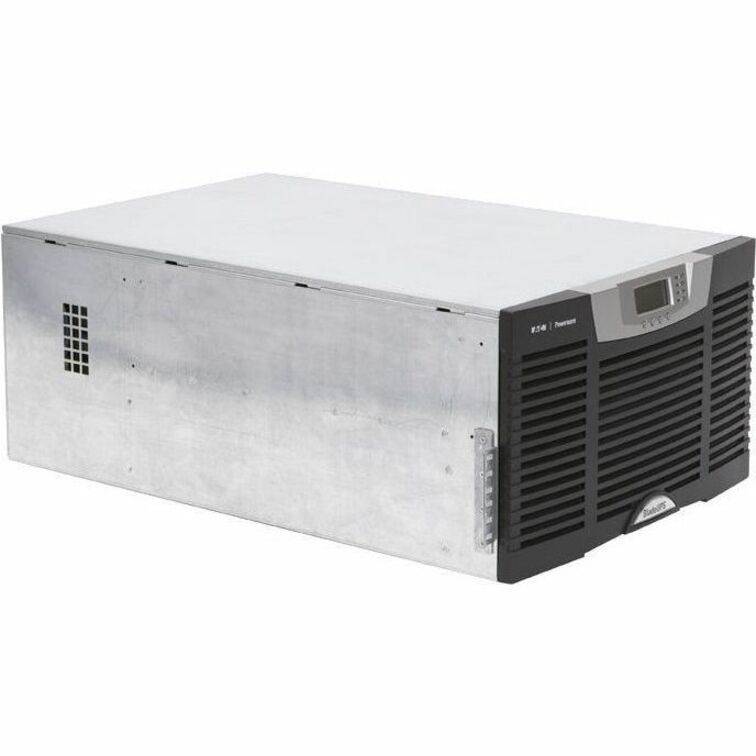

The Eaton BladeUPS is a three-phase, scalable and modular UPS for high density computing environments, including virtualized or machine learning IT applications. The BladeUPS delivers 12 kW of efficient, reliable power in only 6U of rack space, including batteries. You can expand its capacity by combining 12 kW modules in a scalable, building block fashion to deliver 60 kW (N+1) from a single rack enclosure. This powerful configuration delivers higher power density than competitive, modular solutions while dissipating only one-third of the heat. By incorporating a BladeUPSs bus bar, you can easily self-install new paralleled units to keep up with your data center needs. While you can design a BladeUPS from scratch, you can also quickly deploy the Eaton BladeUPS Preassembled System, which is a turnkey solution featuring easy customization, shipping and installation. The BladeUPS can be easily monitored via the units' brightly backlit LCD screen and through Eaton's Intelligence Platform.
Warranty
Limited Warranty: 18 Month
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable.
Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Specifications
Battery Information
DC System Voltage
240 V DC
Battery Characteristics
VRLA/AGM
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
4.70 Minute
Backup/Run Time (Half Load)
13 Minute
Display & Graphics
Display
LCD
Environmental Conditions
Thermal Dissipation
371.03 W
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
ZC1212008100000
Brand Name
Eaton
Product Line
BladeUPS
Product Name
12kVA Modular UPS
Product Type
Double Conversion Online UPS
Management
Network Management
PXGX Card, SNMP, Modbus, Dry Contact
Physical Characteristics
Form Factor
Modular
Rack Height
6U
Height
10.3"
Width
17.4"
Depth
28.4"
Power Description
Load Capacity (VA)
12 kVA
Load Capacity (Watt)
12 kW
Input Voltage
230 V AC
Input Voltage Range
180 V AC - 265 V AC
Output Voltage
208 V AC
Input Frequency
50 Hz, 60 Hz
Output Frequency
50 Hz, 60 Hz
Output Power Factor
0.9
Technical Information
Plug/Connector Type
Hard Wire 5-wire
Receptacle Type
Hard Wire 5-wire
Phase
Three Phase
Application/Usage
Critical IT Application, Data Center, Server, IT Equipment
