6U Rack-mountable - 4.70 Minute Stand-by - 208 V AC, 230 V AC Input - 208 V AC Output - LCD Display
SKU
Category
Industrial UPS
MSRP$17,200.00
$15,824.00
Save 8%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 8 and Nov 12, then process your delivery right after.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Industrial UPS
Overview

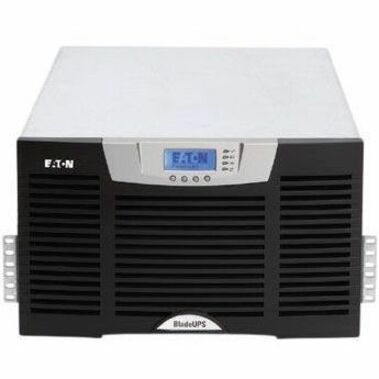

BladeUPS uninterruptible power system
Designed specifically for high-density computing environments, the Eaton® BladeUPS® delivers 5, 8 or 12 kW of efficient, reliable power in only 6U of standard rack space, including batteries. Expand capacity by combining 12 kW modules in a building block fashion to deliver 60 kW (N+1) from a single rack enclosure. This powerful configuration delivers higher power density than competitive, modular solutions, while dissipating only one-third of the heat.
The standard internal batteries provide needed ridethrough power until an auxiliary power source takes over or systems are gracefully shut down. Extend runtime up to 94 minutes at full load (or 250 minutes at half load) with extended battery modules (EBMs).
Warranty
Limited Warranty: 18 Month
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Specifications
Battery Information
DC System Voltage
240 V DC
Battery Characteristics
VRLA/AGM
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
4.70 Minute
Backup/Run Time (Half Load)
13 Minute
Replaceable Battery
Yes
Controls/Indicators
Status Indicators
Four status-at-a-glance LEDs
Display & Graphics
Display
LCD
Environmental Conditions
Thermal Dissipation
371.03 W
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
ZC121P068100000
Brand Name
Eaton
Product Line
BladeUPS
Product Name
BladeUPS 12kVA Rack-mountable UPS
Product Type
Double Conversion Online UPS
Management
Network Management
Dry Contact, INDGW-X2 Card, Web/SNMP
Alarm
Low Battery
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
6U
Height
10.3"
Width
17.4"
Depth
28.4"
Weight (Approximate)
135 lb
Power Description
Load Capacity (VA)
12 kVA
Load Capacity (Watt)
12 kW
Input Voltage
208 V AC, 230 V AC
Input Voltage Range
180 V AC - 265 V AC
Output Voltage
208 V AC
Input Frequency
50 Hz, 60 Hz
Output Frequency
50 Hz, 60 Hz
Output Power Factor
0.9
Technical Information
Plug/Connector Type
Hard Wire 4-wire (3PH + G)
Receptacle Type
Hard Wire 4-wire (3PH + G)
Protection Type
Surge
Phase
Three Phase
Application/Usage
Generator, Mission Critical Equipment, Data Center, PBX System, VoIP, Network Closet, IT Equipment, Computer
Efficiency
98%
Warranty
Limited Warranty
18 Month
Miscellaneous
Package Contents
BladeUPS 12kVA Rack-mountable UPS
Software Suite CD
Software Included
Intelligent Power Manager supervisory software and Intelligent Power Protector protection software
