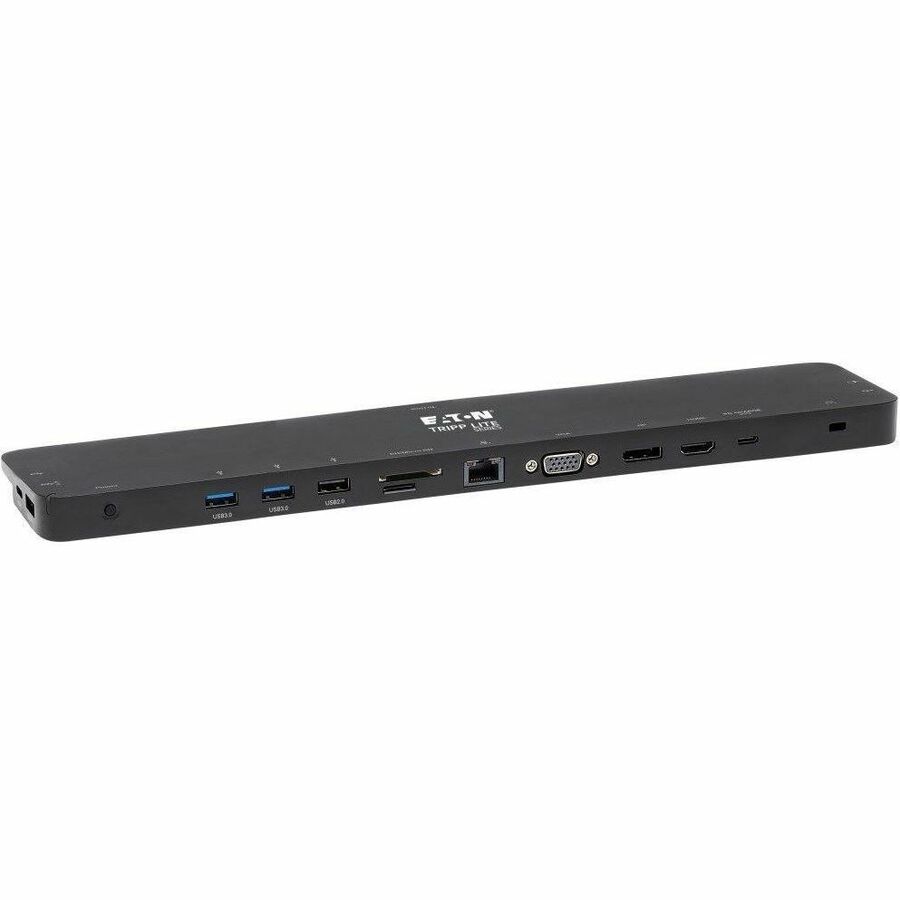

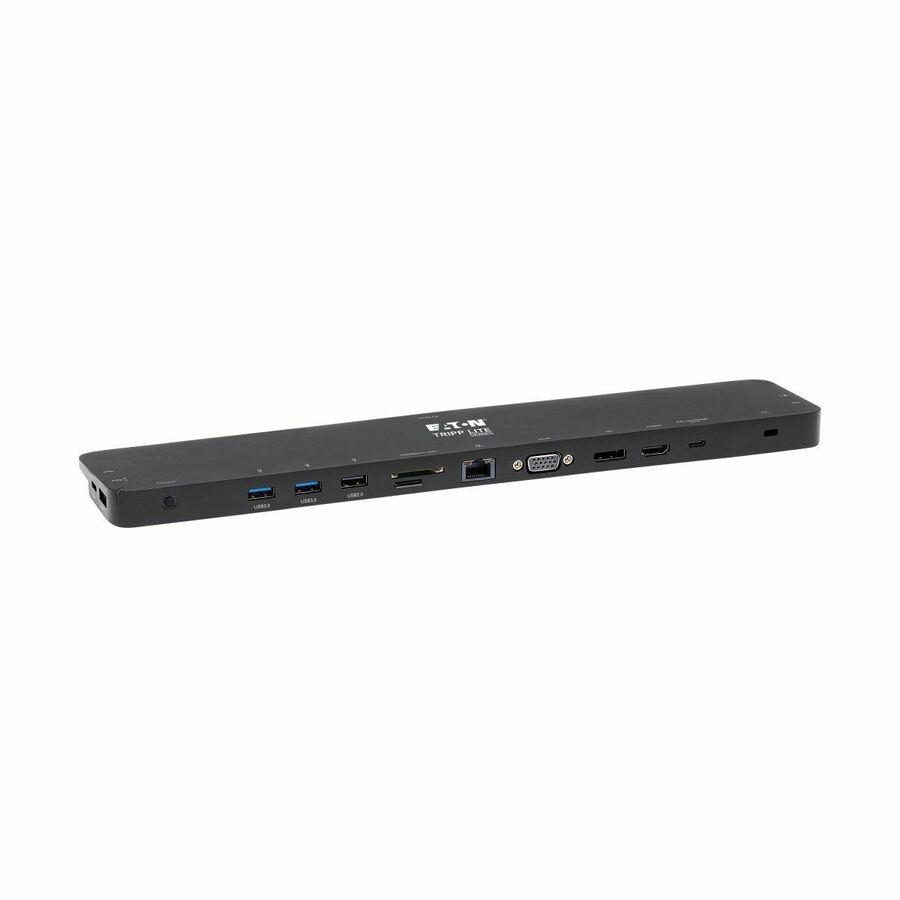

Tripp Lite by Eaton USB-C Dock Triple Display - 4K HDMI & DP VGA USB 3.x (5Gbps) and USB 2.0 Hub Ports GbE 100W PD Charging

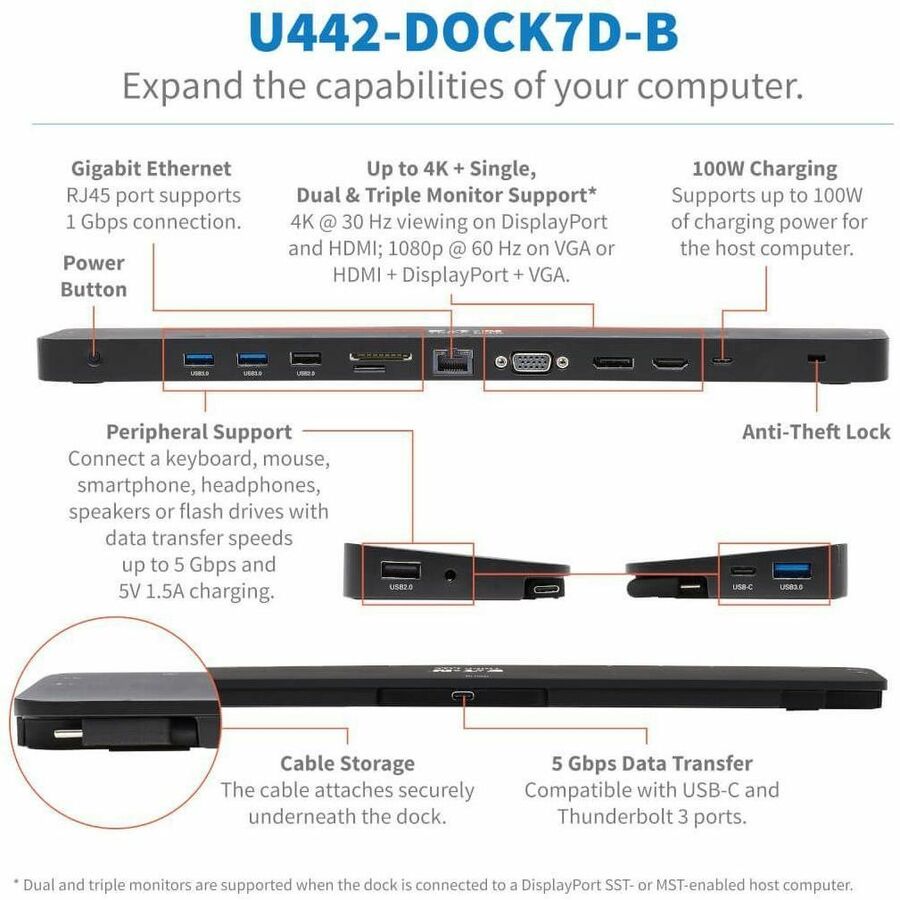

USB-C Docking Station Turns Your Laptop's USB-C or Thunderbolt 3 Port into 14 New Ports

This universal docking station with PD Charging expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 14 ports to your device:

• 4K HDMI

• 4K DisplayPort

• 1080p VGA

• RJ45 Gigabit Ethernet

• (2) USB 2.0

• (2) USB 3.0

• USB 3.0 with BC 1.2

• USB-C PD Charging

• USB-C data

• 3.5 mm mini stereo and

• SD and Micro SD card slots

Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals

By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.

Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI or DisplayPort Monitor

To send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or DP cable (such as Tripp Lite's P569-Series HDMI or P580-Series DP cables, sold separately). The DisplayPort and HDMI ports support UHD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz with 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

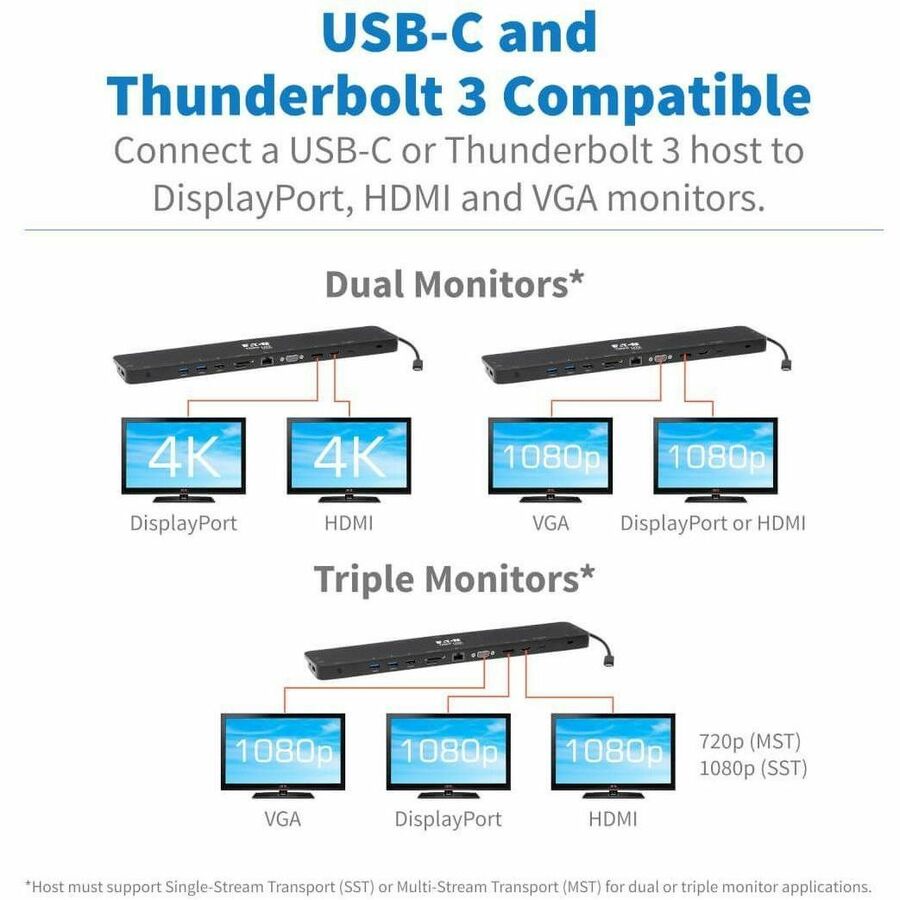

Extends or Mirrors High-Definition Video Across All 3 External Displays at the Same Time

By connecting the detachable USB-C cable to a source that supports Single-Stream Transport (SST) or Multi-Stream Transport (MST), you may connect three monitors simultaneously. You can display the same image on all three monitors (SST), extend the desktop across them (MST), or combine them into one large monitor in video wall mode (MST). Maximum resolutions are 1920 x 1080 (@ 60 Hz) in SST mode and 1280 x 720 (@ 60 Hz) in MST mode. Note: Mac OS laptops or computers will only extend to one monitor. The others will be mirrored.

3 USB 3.0 and 2 USB 2.0 Ports Connect Keyboards, Thumb Drives and Other Peripherals

Three USB 3.0 ports accept flash drives, mice, keyboards, printers and other USB peripherals, transferring data back and forth at speeds up to 5 Gbps. One is also BC 1.2-compliant, delivering up to 1.5A of fast-charging power to mobile devices. Two other ports are USB 2.0.

PD Charging Port Charges the Connected MacBook, MacBook Pro or Other Device

The USB-C 100W Power Delivery (PD) port provides power and charging to the connected PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone). Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). That's sufficient wattage to fast-charge, sync and power most high-capacity devices, including the MacBook Pro. This port, as well as the dock's other USB-C port, can also be used for transferring data up to 5 Gbps. PD 3.0 Fast Role Swap technology ensures all data and power connections remain stable if the wall charger becomes accidentally dislodged.

Accesses a Wired Gigabit Ethernet Network

The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (Tripp Lite N201-Series Cat6 cables sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

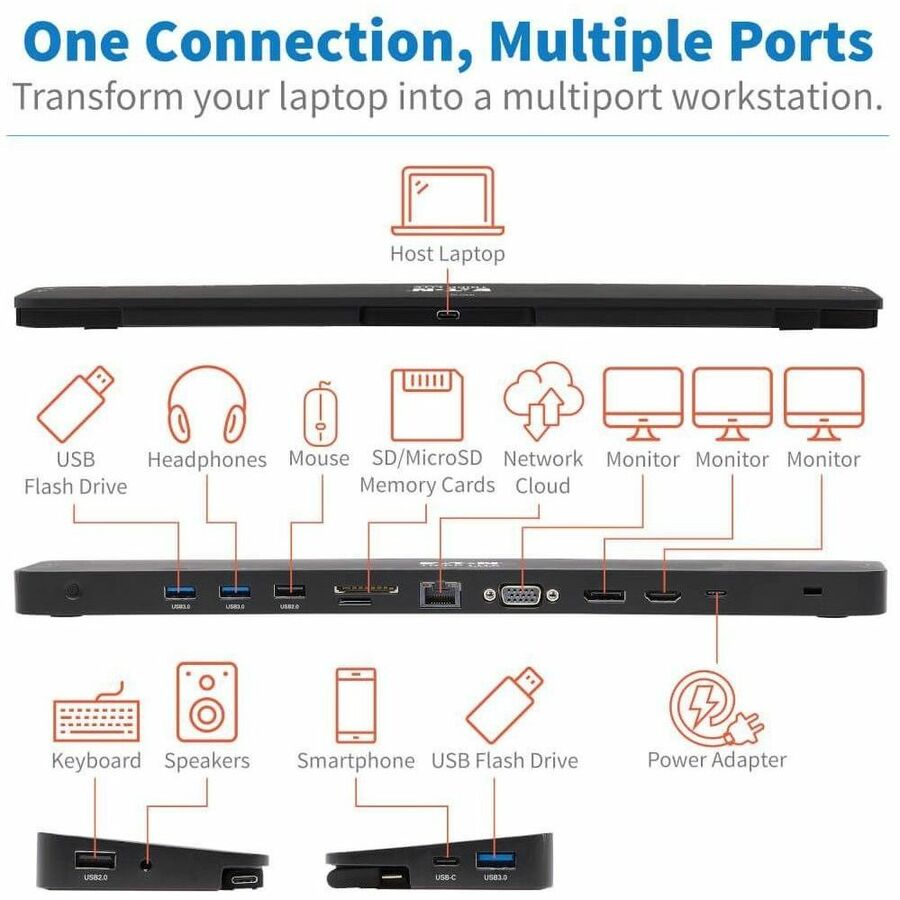

Transform Your Laptop’s USB-C Port into a Multiport Workstation

Newer tablets, laptops, desktop computers and even smartphones often have USB Type-C ports, but they come equipped with few others. Using a single USB-C or Thunderbolt 3 port, this Tripp Lite docking station adds versatile connections to your device.

Typical Applications

Send video to an HDMI, DisplayPort (DP) and VGA monitor simultaneously.

Add multiple USB-A peripherals.

Power and charge your laptop.

Connect to a Gigabit Ethernet network.

Listen to music with headphones.

Convert your MacBook or Chromebook into a powerful and portable workstation.

Connect One, Two or Three External Monitors to Your Video Source

This docking station supports USB DisplayPort Alternate Mode (Alt Mode) for transmitting video to a monitor, television or projector. The DisplayPort and HDMI ports support 4K video resolutions (DisplayPort: 4096 x 2160 at 30 Hz; HDMI: 3840 x 2160 at 30 Hz). The VGA port supports video resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

Show the same video on your laptop and one, two or three monitors.

Extend video across multiple monitors.

Share audio/video in a conference room, classroom or auditorium setting.

Connect USB Peripherals

The USB-C data port and USB-A ports allow you to connect a huge variety of USB devices, including flash drives, cameras, keyboards, mice and external hard drives. You can also connect a printer with a USB cable when a wireless connection isn’t feasible.

USB-C and USB 3.0 ports support data transfer at 5 Gbps.

USB 2.0 ports support data transfer at 480 Mbps.

One USB-A 3.0 port meets BC 1.2 to provide up to 1.5A of charging power.

USB-C Power Delivery (PD) port supports power input up to 100W from your laptop’s wall charger.

Save Space and Simplify Travel with an All-In-One USB-C Docking Station

One USB-C connection provides a large variety of ports, so you don’t need adapters. If you keep the docking station on your desk, you’ll have only one cable to unplug when you take your laptop on the road.

With its slim footprint, this portable docking station fits almost anywhere.

Detachable USB-C cable stores in the docking station.

Plug-and-play operation means you don’t need software or drivers.
