Eaton Tripp Lite Series USB-C Dock for Microsoft Surface - 4K HDMI, USB 3.x Gen 2 (10Gbps) and USB 2.0 Hub Ports, GbE, 100W PD Charging, Black
for Notebook/Desktop PC/Monitor/Workstation/Keyboard/Mouse/Hard Drive - 100 W - USB Type C - 1 Displays Supported - 4K, 2K - 3840 x 2160, 1920 x 1200, 1280 x 720 - 4 x USB Ports - 1 x USB 2.0 - 3 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - 1 x Mini DisplayPort - Black - Wired - Gigabit Ethernet - Portable
- SKU
- U442-DOCK14-MS
- Category
- Docking Stations
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- U442-DOCK14-MS
- Category
- Docking Stations
Overview
USB-C Docking Station Turns Your Microsoft Surface into a Versatile Workstation

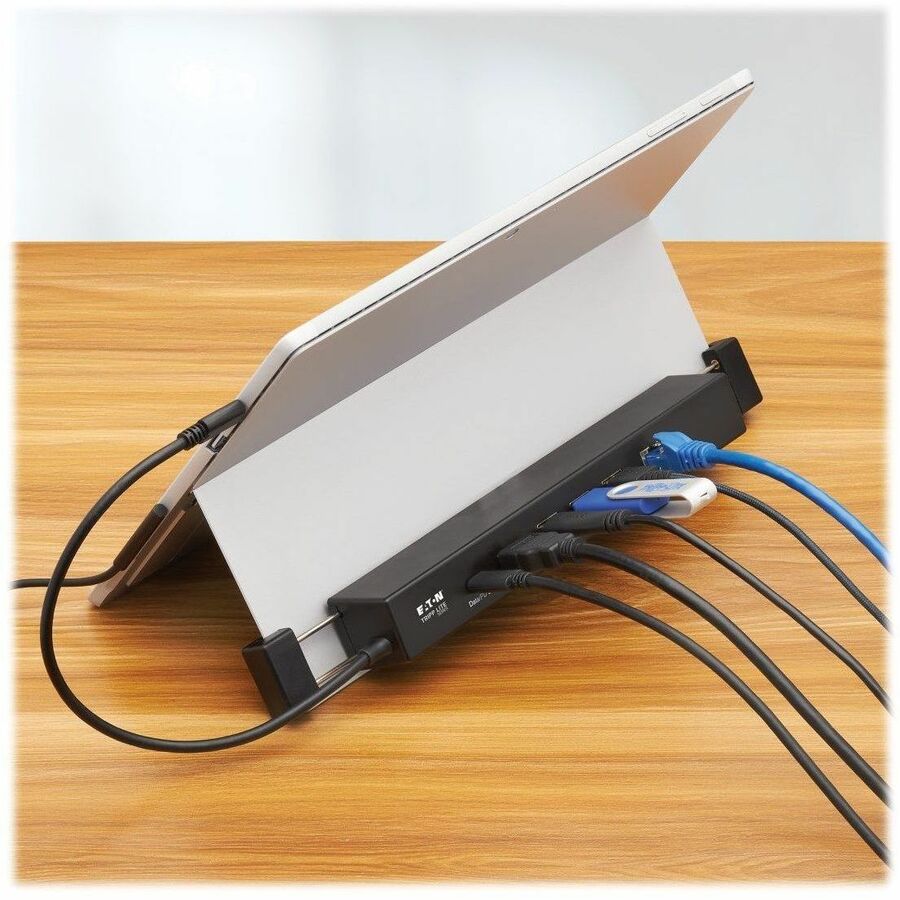

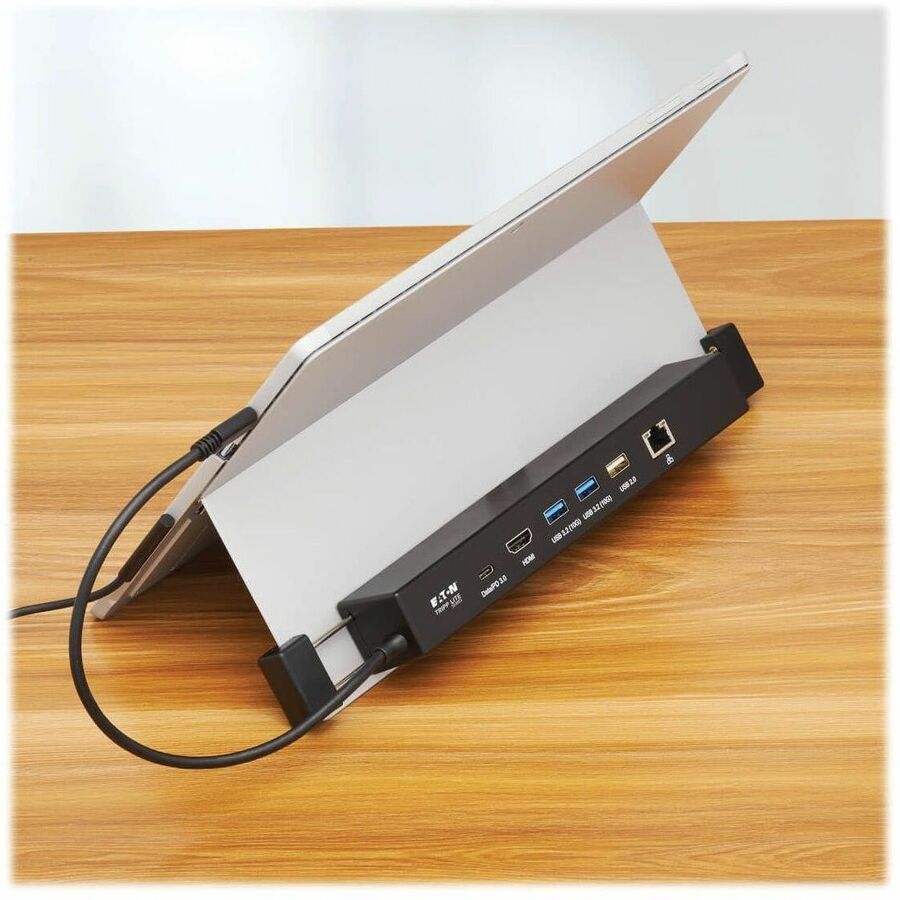

This multipurpose dock is compatible with any Surface device with a USB-C port. An adjustable clamp firmly secures the dock to compatible Surface devices up to 12 inches (30.5 centimeters) wide. You can connect to a wired Gigabit Ethernet network, transmit 4K video with audio to a larger screen, add a thumb drive and other USB peripherals, and charge your Surface, all at the same time. Note: This dock clamps to the following models: Surface GO, Surface GO 2, Surface GO 3, Surface Pro 7, Surface Pro 8 and Surface Pro X. It also works with other Surface devices with a USB-C port, but cannot clamp to them.
Transmits Crystal-Clear 4K Video with Digital Audio
The HDMI port supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. HDCP 2.3 compliance allows you to stream 4K Amazon and Netflix content with no complications. You may also connect to a DVI display by connecting an HDMI-to-DVI adapter (sold separately).
USB 3.2 Gen 2 Ports Connect Keyboards, Thumb Drives and Other Peripherals
Two USB-A ports and one USB-C port support USB 3.2 Gen 2 data transfer rates up to 10 Gbps for USB peripherals, such as flash drives, RAID storage, mice and keyboards. Another USB-A port supports USB 2.0 specifications for devices that require less speed. All ports are backward compatible with previous USB generations, so you can use legacy equipment.
PD Charging Port Charges Host Device via AC Wall Charger
The USB-C Power Delivery port supports power output up to 20V 5A (100W), which is more than sufficient for charging and powering the connected Surface. Just connect the device's wall charger to both the USB-C PD port and an AC outlet.
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Warranty
Limited Warranty: 1 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- HDMI port supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video
- USB hub ports allow connection of flash drives, hard drives and other peripherals
- Supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
- Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
- USB-C PD 3.0 port supports 20V 5A (100W) power output for charging host device
- 1-year limited warranty
Specifications
| Package Contents |
|
|---|---|
| Host Interface | USB Type C |
| Product Type | Docking Station |
| Compatibility | Clamps to any Microsoft Surface with USB-C port and width of 12 in. or less, including Surface GO, Surface GO 2, Surface GO 3, Surface Pro 7, Surface Pro 8, Surface Pro Also works with all other Surface devices with USB-C port, but cannot clamp to them |
| Device Supported | Hard Drive, Mouse, Keyboard, Workstation, Monitor, Notebook, Desktop PC |
| Manufacturer Part Number | U442-DOCK14-MS |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 8.80 oz |
| Connectivity Technology | Wired |
| Form Factor | Portable |
| Manufacturer | Eaton Corporation |
| Product Model | U442-DOCK14-MS |
| Product Name | U442-DOCK14-MS Docking Station |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Height | 1.26" |
| Width | 8.78" |
| Depth | 1.32" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 100 W |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of Displays Supported | 1 |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| Number of Mini DisplayPort | 1 |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 3 |
| Product Color | Black |
| Supported Resolutions | 3840 x 2160, 1920 x 1200, 1280 x 720 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K, 2K |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
