for TV/Monitor/Projector/Notebook/Tablet/Desktop PC - 100 W - USB Type C - 3 Displays Supported - 4K - 1920 x 1080, 3840 x 2160, 1280 x 720 - 2 x USB 3.0 - 4 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - VGA - DisplayPort - Silver - Audio Line In - Audio Line Out - Thunderbolt - Wired - Gigabit Ethernet
MSRP$457.69
$421.07
Save 8%In stock: 190
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
USB-C docking station with PD Charging adds HDMI, DP, VGA, USB 3.2, Ethernet and audio ports to your Windows laptop or PC.

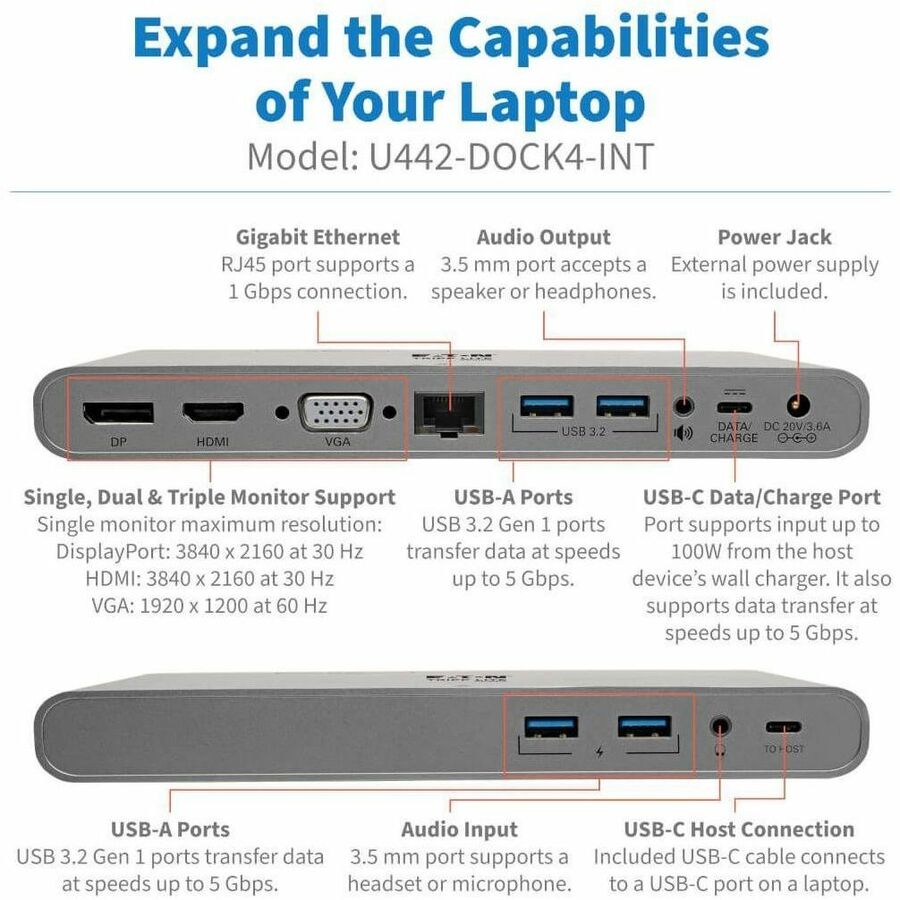

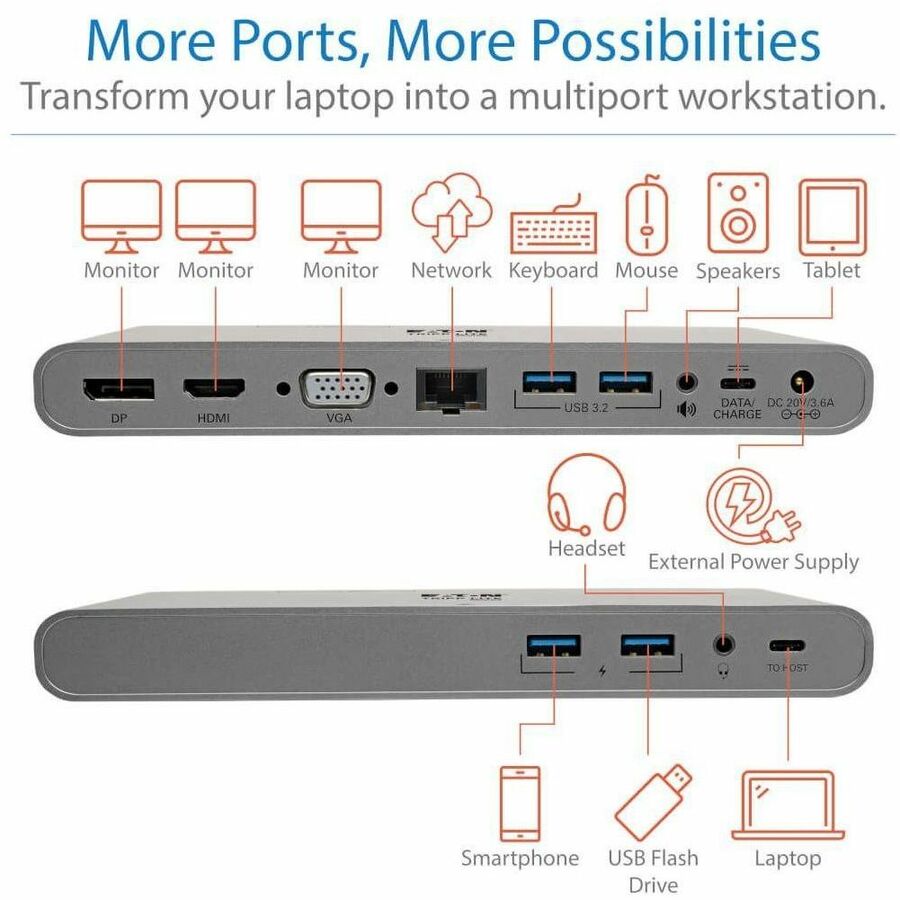

Features | USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Workstation
This USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging- compliant mobile device, connecting to a Gigabit Ethernet network and a lot more, all at the same time.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode,you can output 4K video and digital audio to a compatible monitor, television or projector without installing
special software drivers.
Transmits Crystal-Clear 4K Video and Digital Audio
The HDMI and DisplayPort (DP) outputs support Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports HD resolutions up to 1920 x 1200, including 1080p, at 60 Hz. A Mini DisplayPort (mDP) or DVI display may also be connected using a DP-to-mDP or HDMI-to-DVI adapter (sold separately).

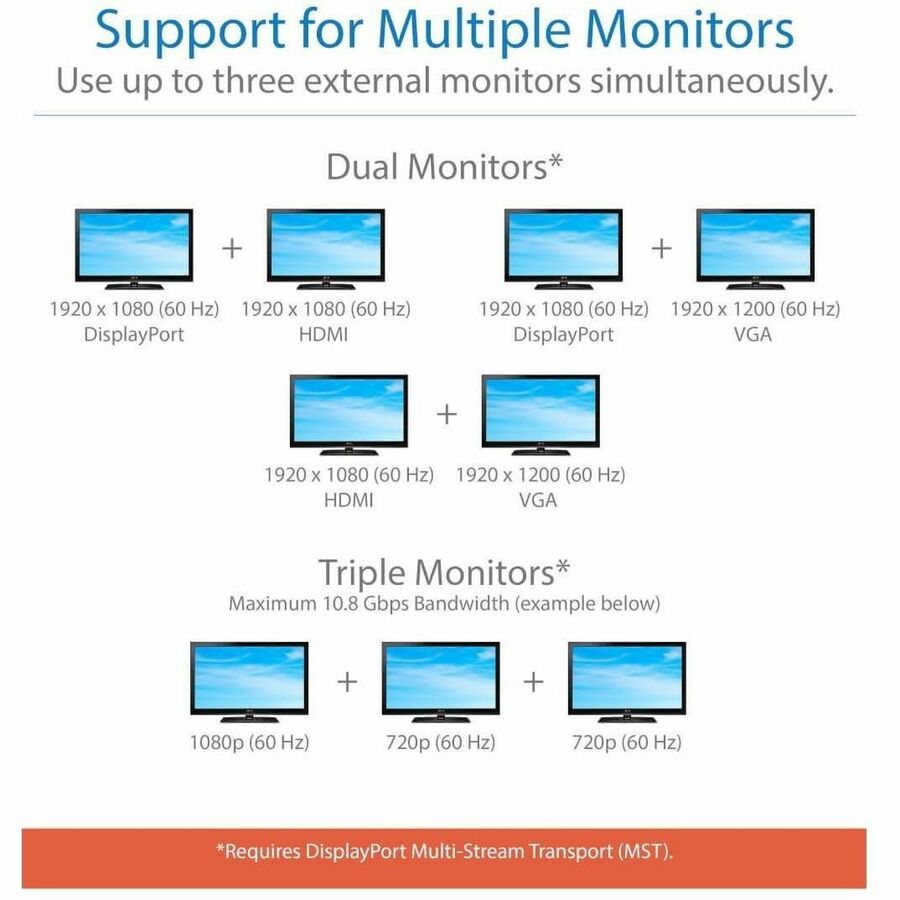

DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays
By connecting the detachable USB-C cable to a source that supports DisplayPort MST Mode, you may connect up to three displays simultaneously. This allows you to display the same image on all monitors, extend your host desktop across all with different windows open on each, or combine all into one large display as a video wall. See the included owner's manual for various combinations and video resolutions.
USB Ports Connect Keyboards, Thumb Drives and Other Peripherals
One USB-C and four USB-A hub ports accept USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps (10 times faster than USB 2.0) and are backward compatible with USB 2.0 and USB 1.1 devices. One port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device.
PD Charging Port Charges the Connected Notebook, Tablet or Other Device
The USB-C port supports Power Delivery (PD) charging of connected PD Charging-compliant devices, such as laptops, Kindles, iPads and Android smartphones. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). This port, as mentioned above, can also be used for transferring data up to 5 Gbps.
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U442-DOCK4-INT |
| Brand Name | Tripp Lite series |
| Product Model | U442-DOCK4-INT |
| Product Name | U442-DOCK4-INT Docking Station |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Number of USB 3.0 Ports | 2 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| Number of USB Type-A Ports | 4 |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| DisplayPort Version | 1.2 |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Product Color | Silver |
| Height | 0.87" |
| Width | 7.80" |
| Depth | 3.30" |
| Weight (Approximate) | 15.04 oz |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Device Supported | Monitor, Tablet, Notebook, Projector, Desktop PC, TV |
| Supported Resolutions | 1920 x 1080, 3840 x 2160, 1280 x 720 |
| Screen Mode Supported | 4K |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Apple iPad |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Vietnam |
