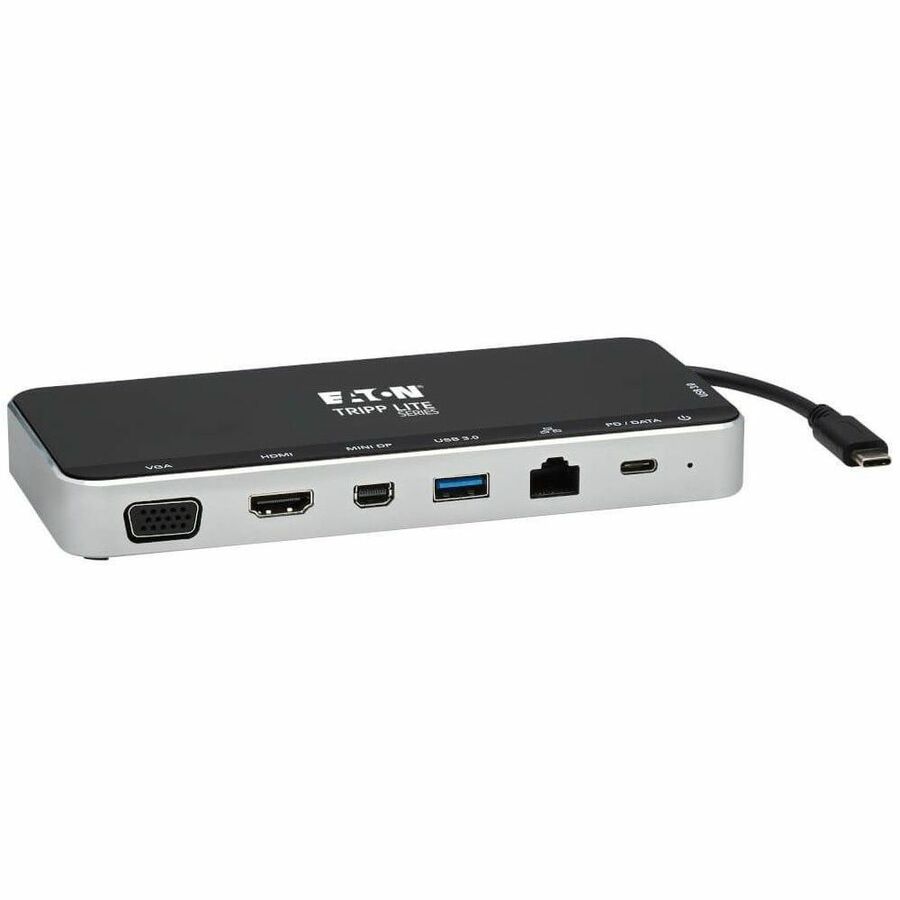

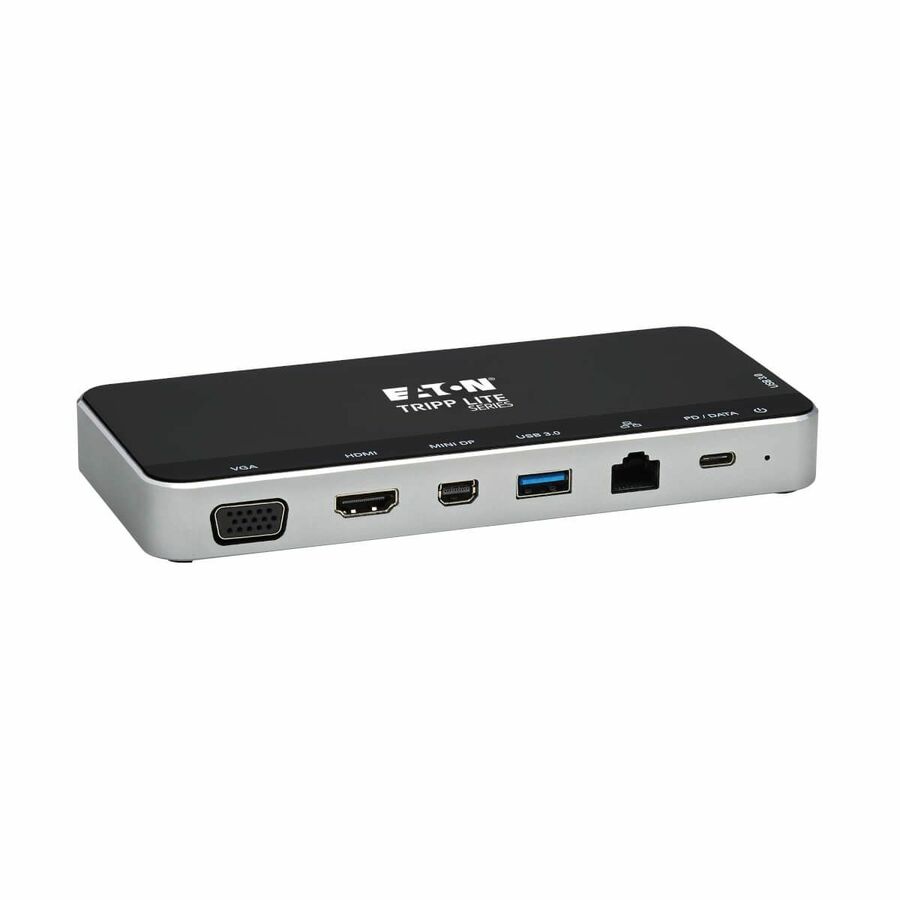

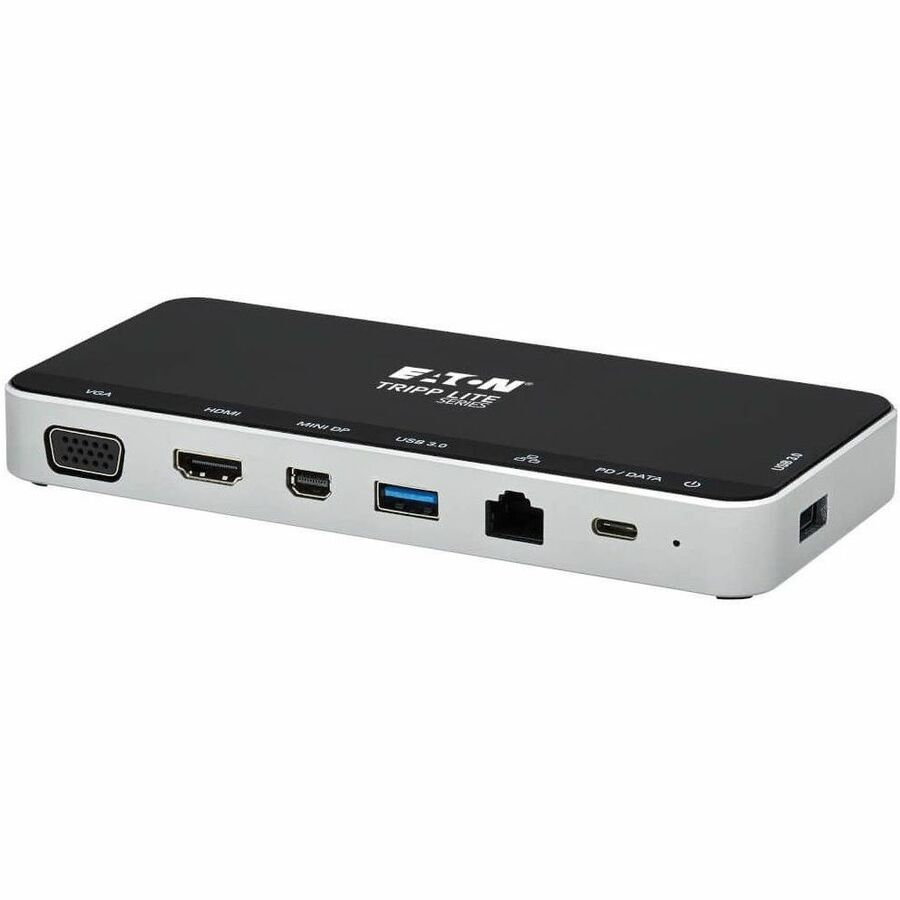

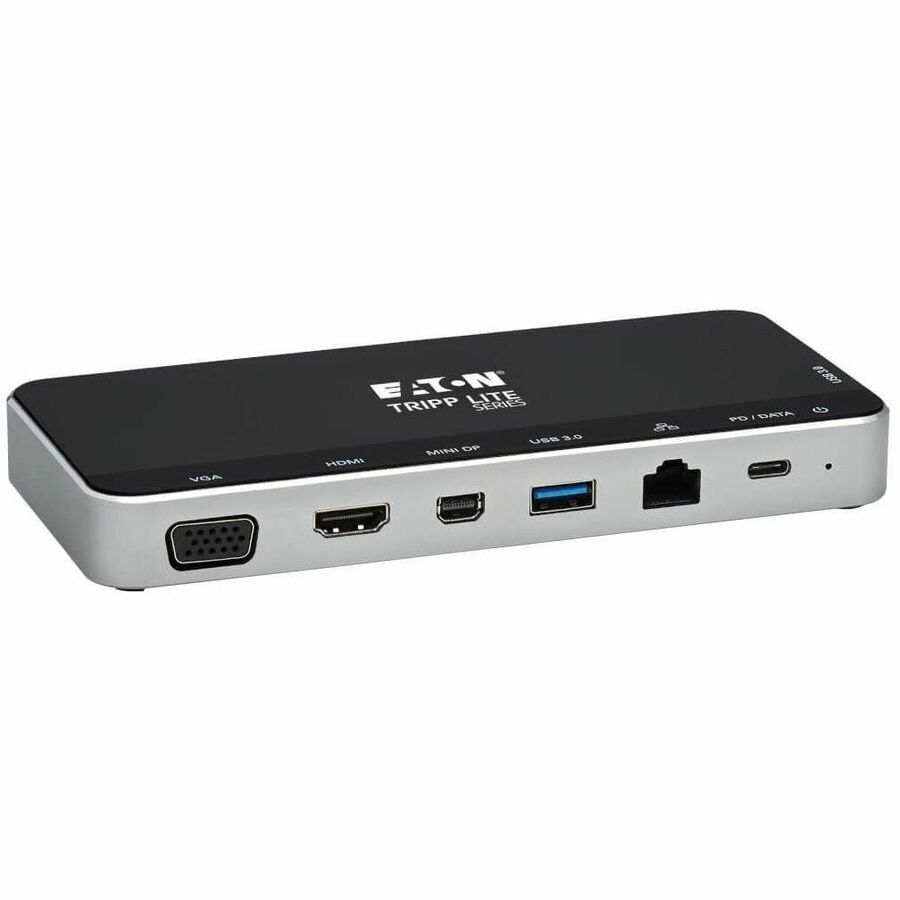

Tripp Lite by Eaton USB Dock Triple Display - 4K HDMI & mDP VGA USB 3.x (5Gbps) USB-A/C Hub GbE 60W PD Charging

USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Workstation

This multiport USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, tablet or other device with a USB-C or Thunderbolt 3 port. It's ideal for transmitting 4K video and digital audio to multiple large displays, adding a thumb drive and other USB peripherals, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network-all at the same time.

Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals

By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. Note: only one 4K display can be extended in an application. See the owner's manual for various configurations and maximum resolutions.

Transmits Crystal-Clear 4K Video and Digital Audio

The HDMI and Mini DisplayPort (mDP) outputs support true 4K resolutions up to 4096 x 2160 at 30 Hz. The VGA port supports HD resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

Extends High-Definition Video Across All 3 External Displays at the Same Time

By connecting the self-storing USB-C cable to a source that supports DisplayPort MST (Multi-Stream Transport) mode, you may connect up to three monitors simultaneously. With a Windows source device, you can display the same image on all connected monitors, extend the host desktop across them with different windows open on each, or combine them into one large display as a video wall. Note: Mac OS laptops or computers will only extend to one monitor. The other monitors will be mirrored. See the owner's manual for various configurations and maximum resolutions.

USB Ports Connect Keyboards, Thumb Drives and Other Peripherals

A USB-A port and a USB-C port accept USB peripherals, such as flash drives, mice, keyboards and printers. Both support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices.

PD Charging Port Charges the Connected Notebook, Tablet or Other Device

The USB-C Power Delivery port supports power output up to 20V 3A (60W), which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device's AC wall charger to the USB-C PD port.This port, as mentioned above, can also be used for transferring data up to 5 Gbps.

Accesses a Wired Gigabit Ethernet Network

The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (Tripp Lite N201-Series Cat6 cables sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

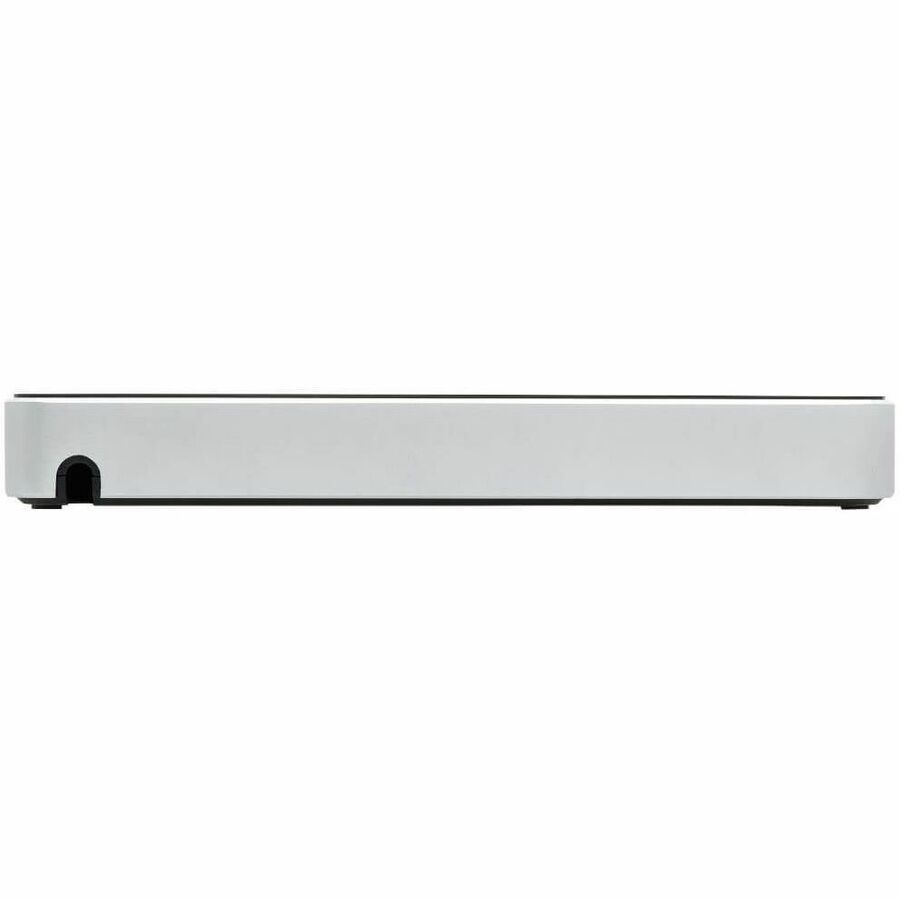

Self-Storing USB-C Connector Attaches in Either Direction

Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. The built-in cable fits within the base of the dock for convenient storage.

More from the Manufacturer

Add Ports to Your Workstation

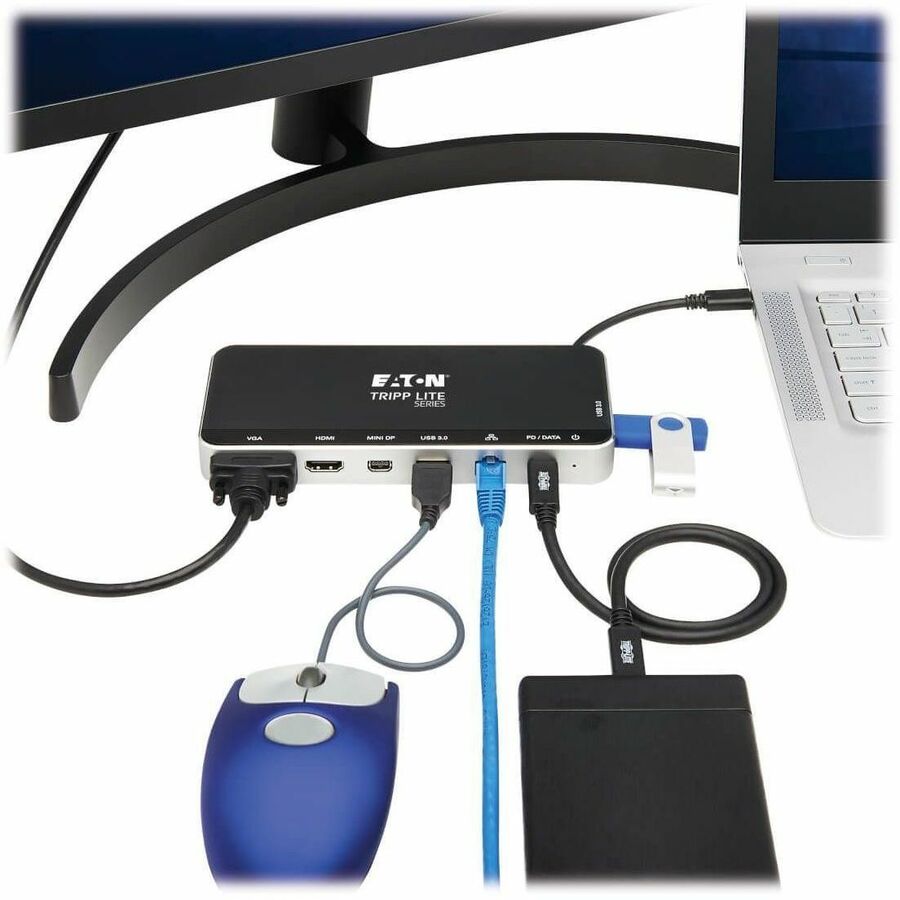

Newer tablets, laptops, desktop computers and even smartphones often have USB Type-C ports, but they come equipped with few others. Using a single USB-C or Thunderbolt 3 port, this Tripp Lite docking station adds versatile connections to your device.

Typical Applications

Extend or mirror your laptop or PC monitor on multiple displays to aid in multitasking and increase productivity

Transfer data to and from a USB flash drive or external hard drive

Access a wired Ethernet network in a location with no or spotty Wi-Fi

Charge your notebook or laptop by connecting its wall charger to the USB-C PD Charging port

Connect a microphone/headset to record a podcast or listen to music

More Screens Means More Productivity

Connecting the attached USB-C cable to a source device that supports DisplayPort MST (Multi-Stream Transport) mode to transmit content to up to three monitors simultaneously. With a Windows source device, you can display the same image on all connected monitors, extend the host desktop across them with different windows open on each, or combine them into one large display as a video wall. Note: Mac OS laptops or computers will only extend to one monitor. The other monitors will be mirrored.

HD Quality Viewing

4K @ 30 viewing supported on Mini DisplayPort and HDMI monitors

1080p @ 60 Hz viewing supported on VGA monitors

If your source computer supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers

All-In-One Travel Adapter

The compact U442-DOCK-16B not only fits conveniently on your desktop, but also in laptop bags and travel cases so you won’t need to bring multiple adapters on the road. Its self-storing USB-C plug conveniently folds into the U442-DOCK-16B’s housing, and its plug-and-play setup requires no software or external power source – it works right out of the box.

Limited USB-C ports can force you to choose between connecting a peripheral and charging your laptop’s battery. The USB-C Power Delivery (PD) port powers and charges your laptop without affecting the other connections. Your laptop’s wall charger connects to the USB-C PD port, which supports power input up to 20V, 3A (60W).
