for Notebook/Tablet PC/Desktop PC/Smartphone - 60 W - USB Type C - 2 x USB Ports - 1 x USB 3.0 - HDMI - VGA - Thunderbolt - Wired
MSRP$109.50
$100.74
Save 8%In stock: 242
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

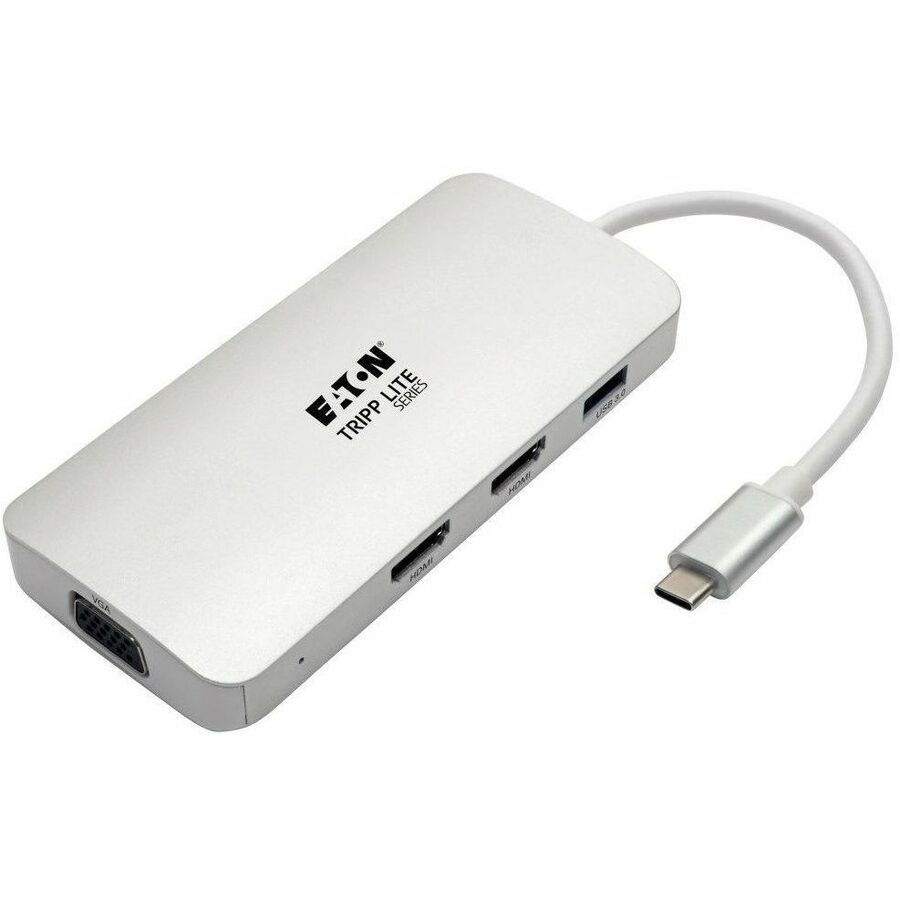

USB-C Dock Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation
The U442-DOCK12-S expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device and more-all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary. The two HDMI and single VGA ports support HD video resolutions up to 1920 x 1200 (including 1080p) @ 60 Hz. Up to three monitors can be connected at the same time, with the same image being displayed on all three. You can either mirror the source display or extend it, but the three monitors connected to the ports on the dock will all be the same. A DVI display may also be connected using an HDMI to DVI adapter (adapters sold separately).
Connects Keyboards, Thumb Drives and Other USB Peripherals
The USB-A hub port accepts USB peripherals, such as flash drives, mice, keyboards and printers. It supports fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices.
Charges the Connected Laptop, Smartphone or Other Device
The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the USB-C dock is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 60W.
Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB Type-C dock requires no software, drivers or external power. The compact unit fits easily into a briefcase or laptop bag for connecting on the go. It automatically resumes operation from hibernation and suspend modes.
3-Year Warranty and Environmentally Responsible Design
The U442-DOCK12-S comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
More from the Manufacturer
Transform Your Laptop’s USB-C Port into a Multiport Workstation Wherever You Go
Newer tablets, laptops, Chromebook™ and MacBook® notebooks, desktop computers and even smartphones often have USB Type-C™ ports, but come equipped with few others. Using a single USB-C™ or Thunderbolt™ 3 port, this Tripp Lite docking station adds multiple connection options to your device.

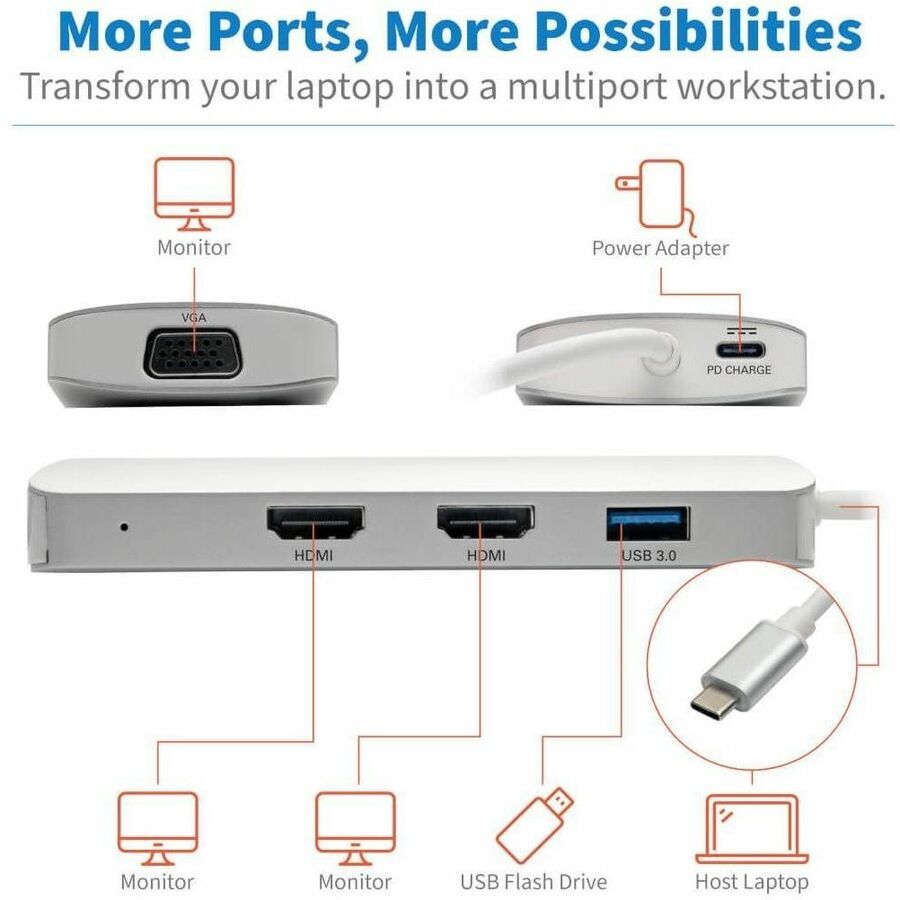

Typical Applications
Send video to HDMI monitors.
Send video to a VGA monitor.
Add a USB-A peripheral.
Power and charge your laptop.
Convert your MacBook or Chromebook into a powerful and portable workstation.
Simplify Travel with a Bus-Powered, All-In-One USB-C Docking Station
One USB-C connection provides multiple ports, so you don’t need multiple adapters. This docking station is also bus-powered, so you don’t have to travel with a separate external power supply. If you keep the docking station on your desk, you will have only one cable to unplug when you take your laptop on the road.

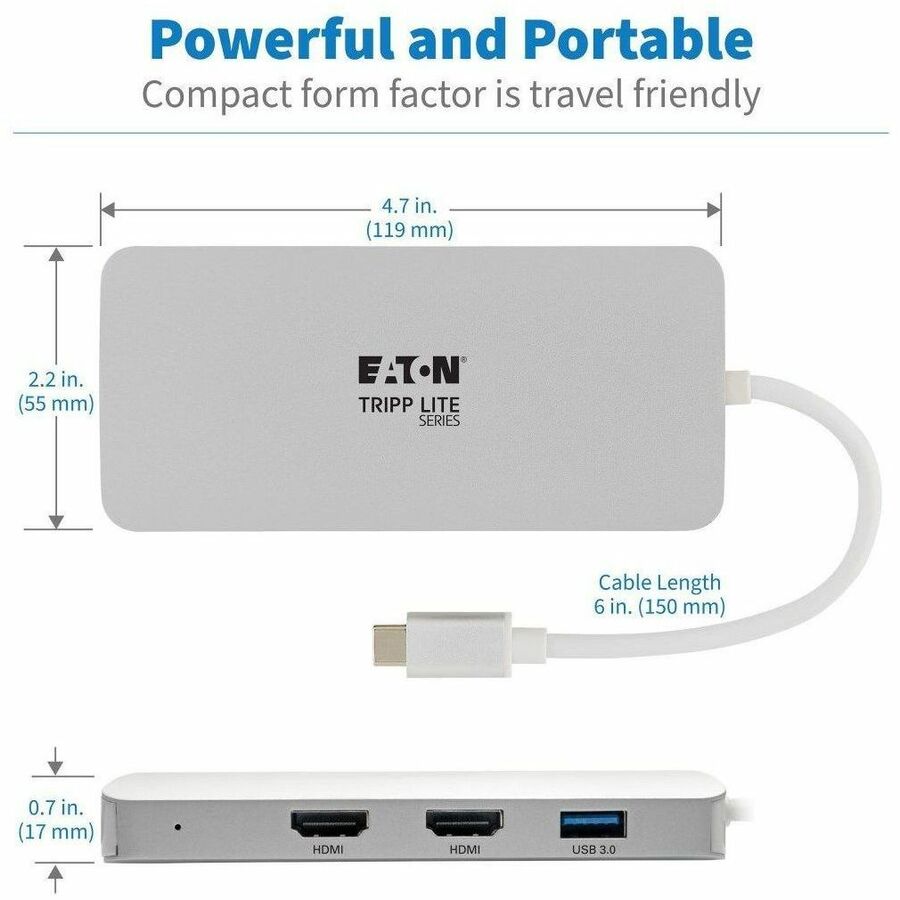

With a footprint similar in size to popular smartphones, this portable docking station fits almost anywhere.
Lightweight, streamlined design doesn’t add weight to your load.
Built-in cable eliminates the chance of losing or forgetting the USB-C cord.
Plug-and-play operation means you don’t need software or drivers.

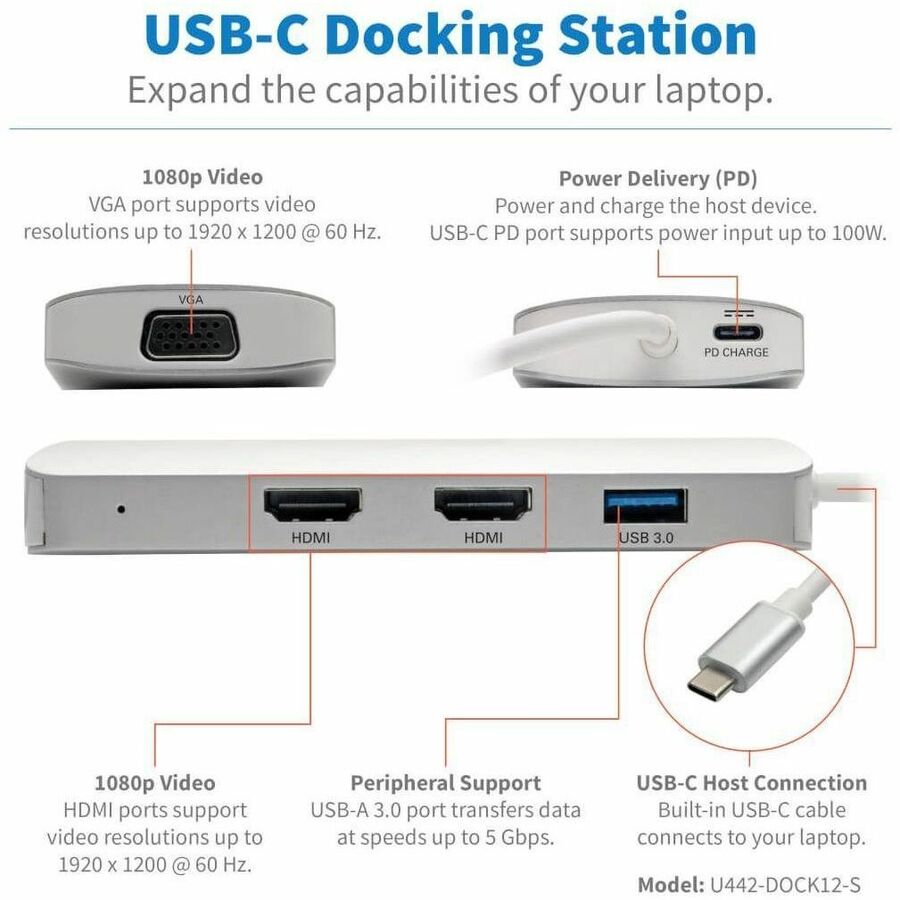

Display HD Video on an HDMI or VGA Monitor

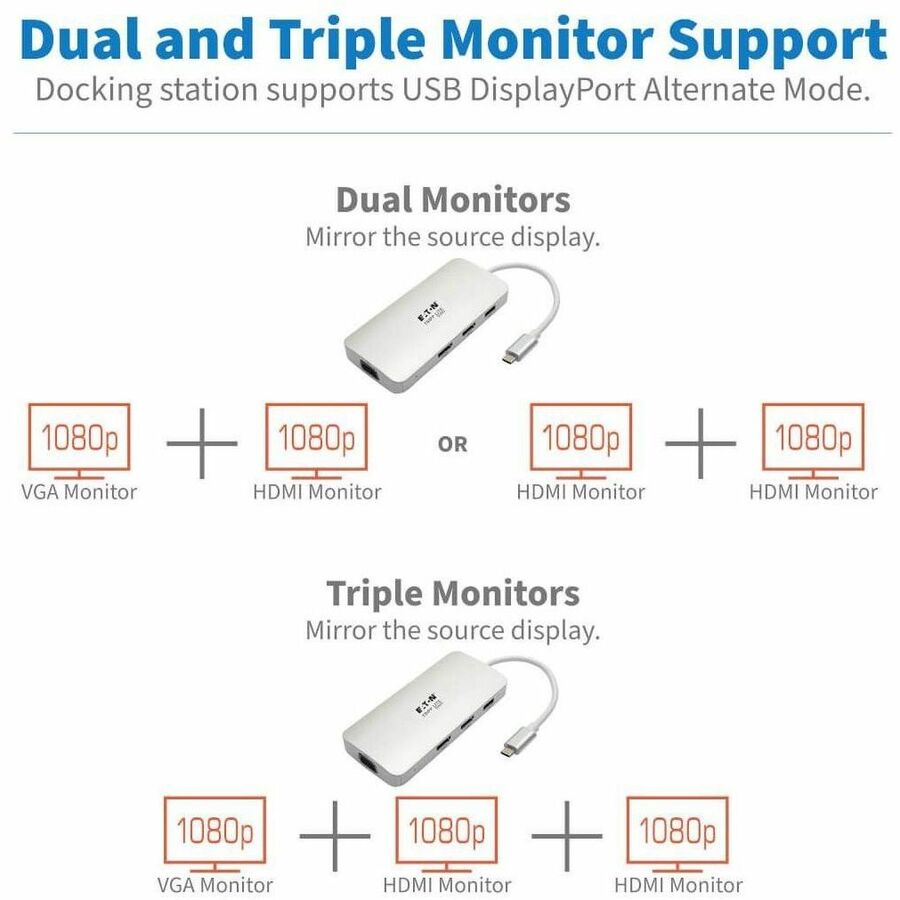

This docking station supports USB DisplayPort Alternate Mode (Alt Mode) for transmitting video to a monitor, television or projector. The HDMI and VGA ports support video resolutions up to 1920 x 1200, including 1080p, at 60 Hz. All three ports can be used at the same time with the same image shown on all three displays (mirroring the source display or extending it).
Show the same video on your laptop and a second monitor.
Use a second monitor as your primary screen.
Extend video across a second monitor.
Share video in a conference room, classroom or auditorium setting.
Connect a USB Peripheral
The USB-A port allows you to connect a USB device, like a flash drive, camera, keyboard, mouse or external hard drive. You can also connect a printer with a USB cable when a wireless connection isn’t feasible. The port supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations.
Keep Ports Available While Your Laptop Charges
Limited USB-C ports can force you to choose between connecting a peripheral and charging your laptop’s battery. The USB-C Power Delivery (PD) port powers and charges your laptop without affecting the other connections. Your laptop’s wall charger connects to the USB-C PD port, which supports power input up to 20V, 3A (60W).
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U442-DOCK12-S |
| Brand Name | Tripp Lite series |
| Product Model | U442-DOCK12-S |
| Product Name | U442-DOCK12-S Docking Station |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | USB C (Male) |
| VGA | Yes |
| Number of HDMI Ports | 2 |
| Number of HDMI Outputs | 2 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Physical Characteristics | |
| Product Color | Silver |
| Power Description | |
| Maximum Power Supply Wattage | 60 W |
| Technical Information | |
| Connectivity Technology | Wired |
| Device Supported | Tablet PC, Notebook, Smartphone, Desktop PC |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Apple Notebook: MacBook Google Notebook: Chromebook |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
