Eaton Tripp Lite Series 4K HDMI Audio De-Embedder/Extractor with TOSLINK, RCA and 3.5 mm Stereo Output, 5.1 Channel, HDCP 2.2, 4K 60 Hz
Eaton

Eaton Tripp Lite Series 4K HDMI Audio De-Embedder/Extractor with TOSLINK, RCA and 3.5 mm Stereo Output, 5.1 Channel, HDCP 2.2, 4K 60 Hz

Functions: Audio De-embedding, Audio Extraction - 3840 x 2160 - 4K UHD - Audio Line Out

SKU
P130-000-AUDIO2
Category
Video Processing/Capturing Modules

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
P130-000-AUDIO2
Category
Video Processing/Capturing Modules

Overview

Separates the audio track from an HDMI audio/video signal and sends it to a receiver, speakers or other audio system with no HDMI input.

Features | Sends HDMI Audio to a Non-HDMI Receiver or Sound Bar

This audio de-embedder and extractor separates the audio track from an HDMI audio/video source device (such as an Apple TV, Amazon Fire Stick, Blu-ray player, video game system or media server) and transmits it to a receiver, speakers, sound bar, amplifier or other audio system with digital or analog audio input. This allows you to continue using your current audio equipment without making an expensive upgrade to something with HDMI input.

Versatile Audio Options to Meet Your Device's Specifications

The P130-000-AUDIO2 features 3.5 mm stereo analog, TOSLINK digital optical and RCA digital coaxial audio outputs to match most non-HDMI receivers and audio systems. It supports 2-channel stereo and multi-channel audio up to 5.1 surround sound, as well as uncompressed audio, such as LPCM, and compressed audio formats, including DTS and Dolby Digital. An LED indicates when the unit is receiving power or transmitting an A/V signal.

Transmits 4K @ 60 Hz Video Resolutions

The P130-000-AUDIO2 also transmits the accompanying 4K video signal to a 4K television, projector or monitor. It supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz, as well as 36-bit True Color (12 bits per channel) at 4K 60 Hz and 3D formats up to 600 MHz. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Extracts audio from an HDMI A/V signal and transmits it to a separate audio system
  • Also transmits accompanying UHD video up to 4K @ 60 Hz to HDMI display
  • Ideal for connecting HDMI source to receiver or sound bar with digital or analog inputs

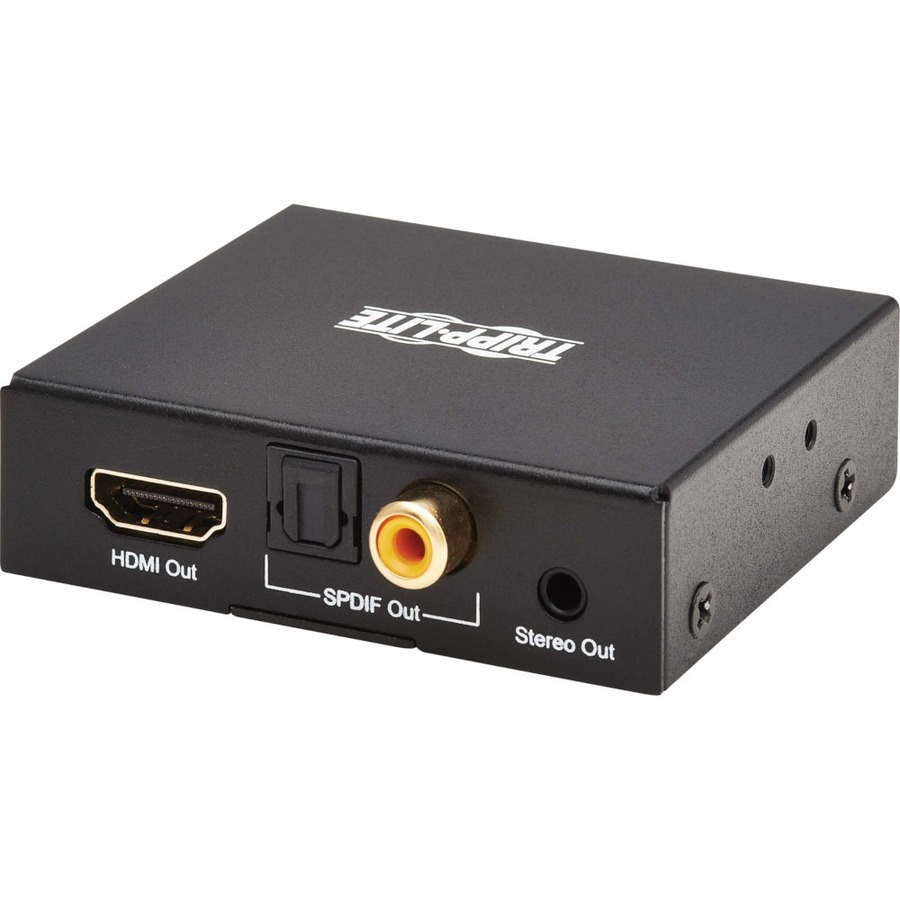

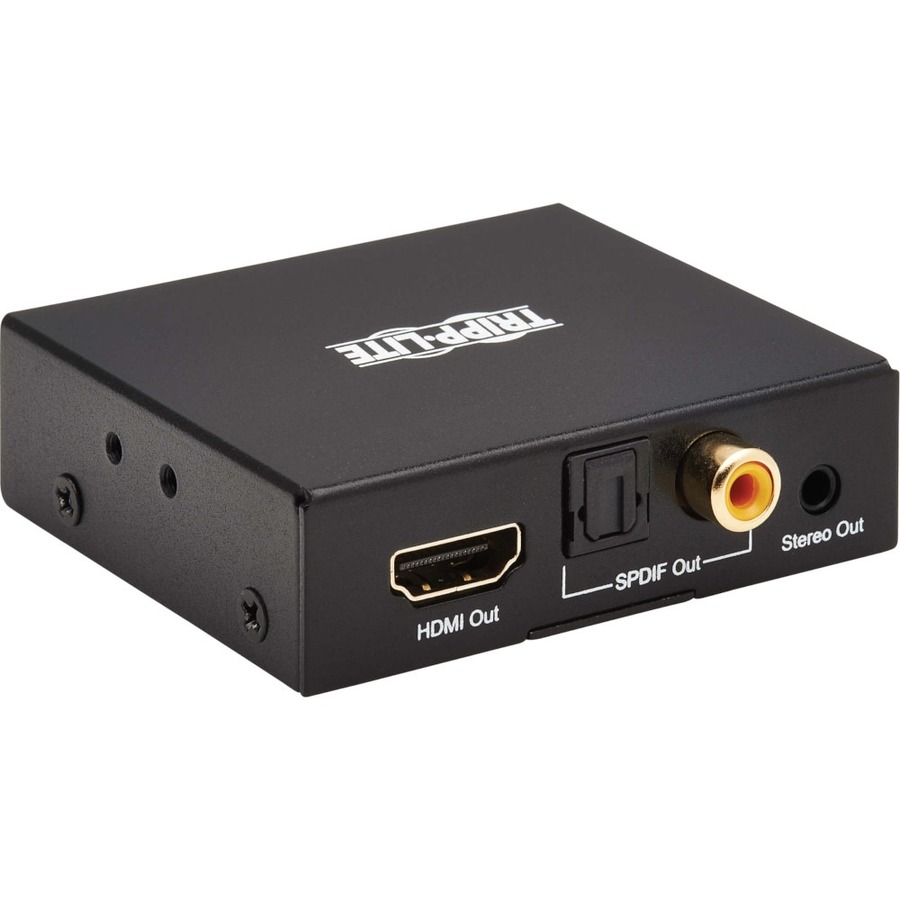

  • Features 3.5 mm stereo, TOSLINK digital optical and RCA digital audio outputs
  • Supports 2-channel stereo and multi-channel audio up to 5.1 surround sound

Specifications

Package Contents
  • P130-000-AUDIO2 4K HDMI Audio De-Embedder/Extractor
  • External Power Supply
  • Mounting Hardware
  • Owner's Manual
  • 4 x International Plug Adapters (North America, Europe, U.K., Australia)
Product TypeSignal Extractor
Manufacturer Part NumberP130-000-AUDIO2
Limited Warranty2 Year
Weight (Approximate)0.31 lb
FunctionsAudio De-embedding, Audio Extraction
ManufacturerEaton Corporation
Product ModelP130-000-AUDIO2
Product NameP130-000-AUDIO2 4K HDMI Audio De-Embedder/Extractor
Maximum Resolution3840 x 2160
Brand NameTripp Lite series
Country of OriginVietnam
Height2.8"
Width2.4"
Depth0.4"
Environmentally FriendlyYes
HDMIYes
Audio Line OutYes
Screen Mode Supported4K UHD
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
