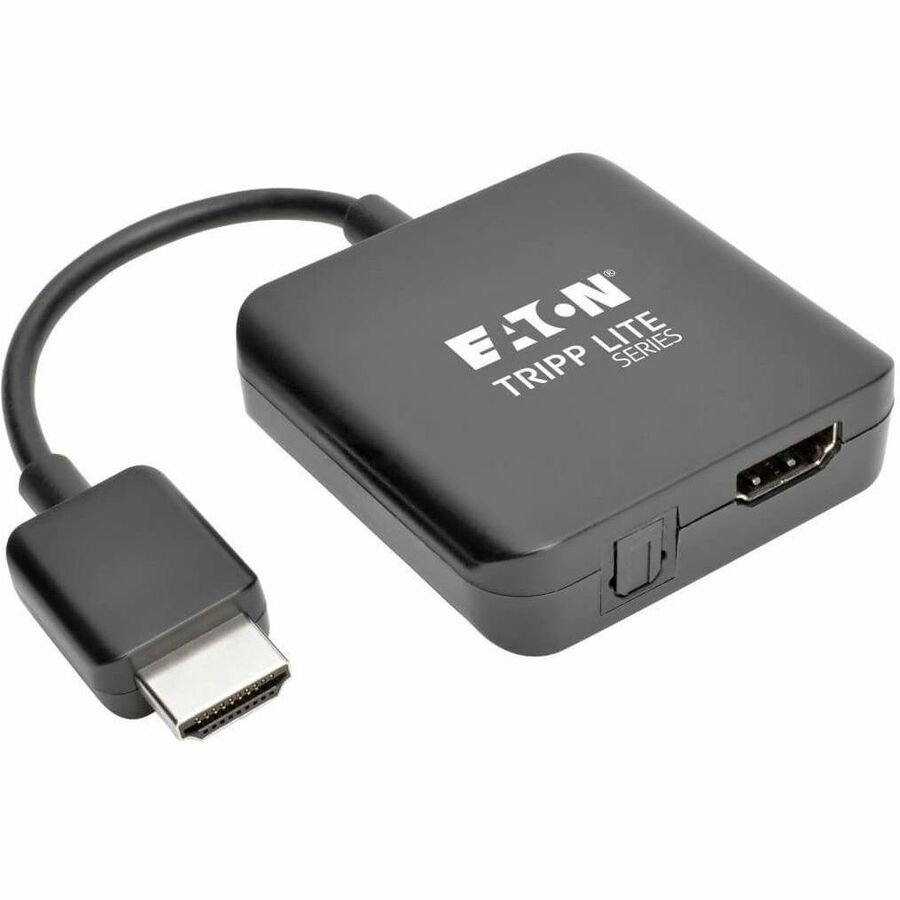

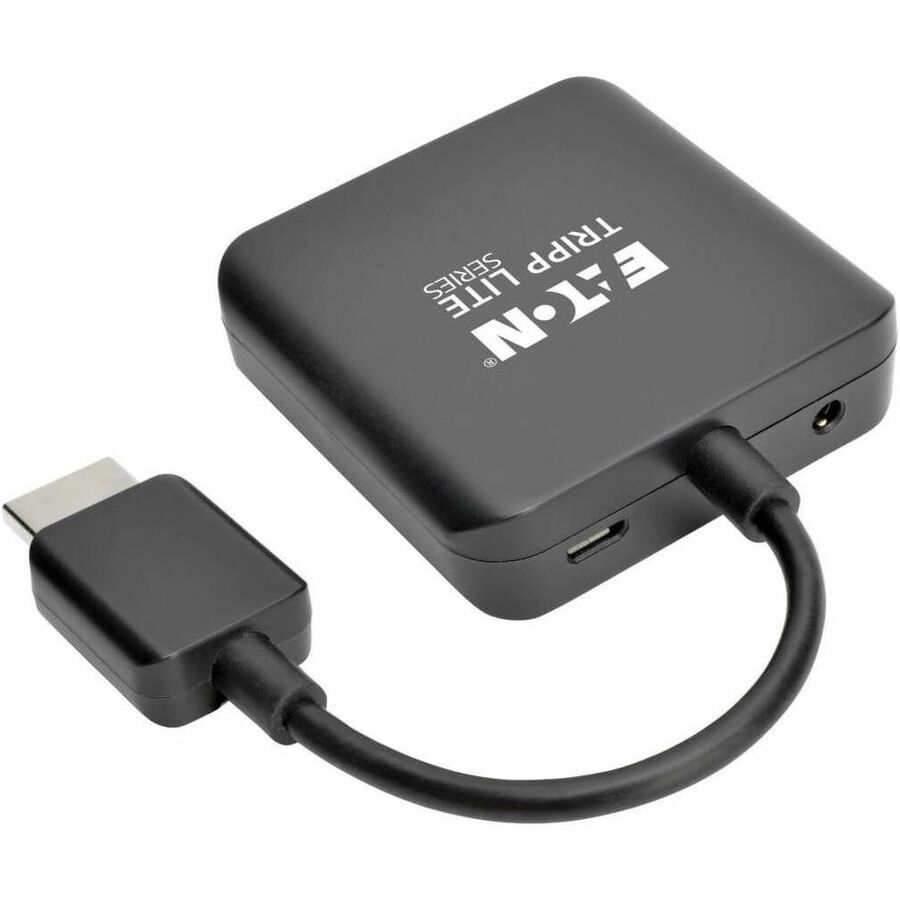

Eaton Tripp Lite Series 4K HDMI Audio De-Embedder/Extractor with TOSLINK and 3.5 mm Stereo Output, 5.1 Channel, HDCP, 4K 30Hz, 6-in. (15.24 cm)

The low-profile P130-06N-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor is recommended for connecting an HDMI source, such as a Blu-ray player or desktop computer, to audio speakers that don't have an HDMI input. It separates the audio track from the HDMI signal and sends it directly to an alternate digital or analog system. It features 3.5 mm stereo and TOSLINK digital optical audio outputs to match most non-HDMI receivers and audio systems.

The P130-06N-AUDIO supports two-channel stereo and multi-channel audio up to 5.1 surround sound. It also supports uncompressed audio, such as LPCM, and compressed audio formats, including DTS® and Dolby Digital®. An LED indicates when the unit is receiving power, transmitting an audio/video signal or transmitting 5.1-channel surround sound.

On the video side, the HDCP 1.4-compliant P130-06N-AUDIO transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. It supports 24-bit True Color (8 bits per channel) at 4K x 2K, 36-bit Deep Color (12 bits per channel) at 1080p, and optional 3D formats up to 300 MHz.

Connect the included USB Micro-B cable between the P130-06N-AUDIO and a USB port on the HDMI source or a USB charger to power the unit.

Features

Extracts Audio from an HDMI Signal and Sends It to a Separate Audio System

• Recommended for connecting HDMI source to speakers that don't have HDMI input

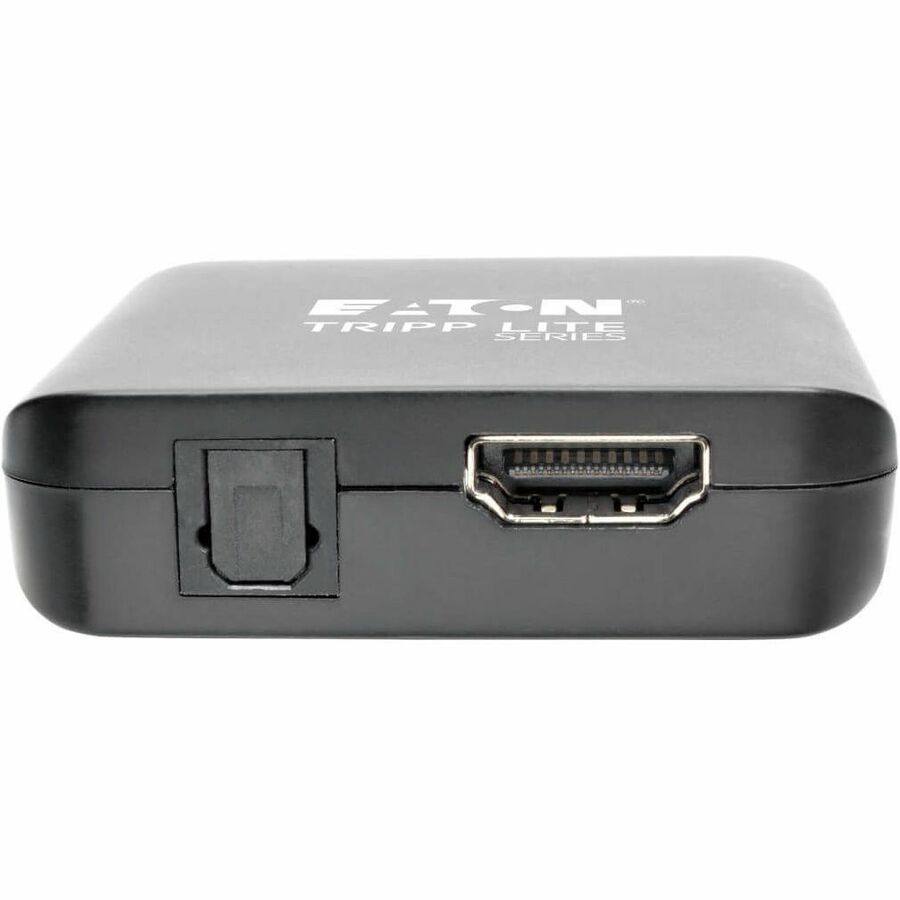

• 3.5 mm stereo and TOSLINK optical outputs connect to analog or digital non-HDMI audio equipment

• LED indicates the unit is receiving power or transmitting an audio/video signal

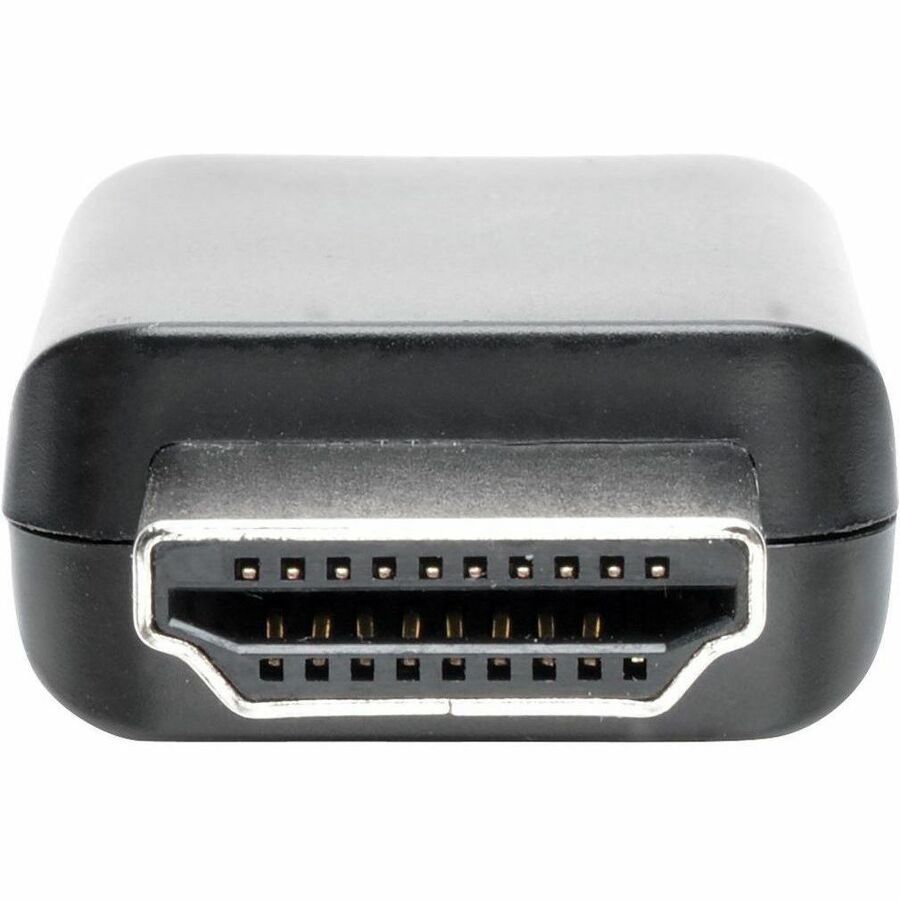

• Built-in 6 in. HDMI cable connects to audio/video source

• Included 3 ft. USB Micro-B cable provides power to the unit

Versatile Audio Options

• Supports 2-channel stereo and multi-channel audio up to 5.1 surround sound

• Supports uncompressed, such as LPCM, and compressed audio, including DTS and Dolby Digital

Vibrant UHD Video

• Transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz

• Supports 24-bit True Color (8 bits per channel) at 4K x 2K

• Supports 36-bit Deep Color (12 bits per channel) at 1080p

• Supports optional 3D formats up to 300 MHz

• Complies with HDCP 1.4 standards

More from the Manufacturer

Delivers Superior Sound Quality

This device supports two-channel stereo as well as 5.1-channel surround sound. It also supports uncompressed audio, such as LPCM, and compressed audio formats, including DTS and Dolby Digital.

Provides Ultra High Definition (UHD) Video

The P130-06N-AUDIO is compliant with HDCP 1.4 specifications so you can rest assured that your video signal will be of the highest quality. It transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. It also supports 24-bit True Color (8 bits per channel) at 4K x 2K, 36-bit Deep Color (12 bits per channel) at 1080p, and optional 3D formats up to 300 MHz.

Easy to Use & One-Year Warranty

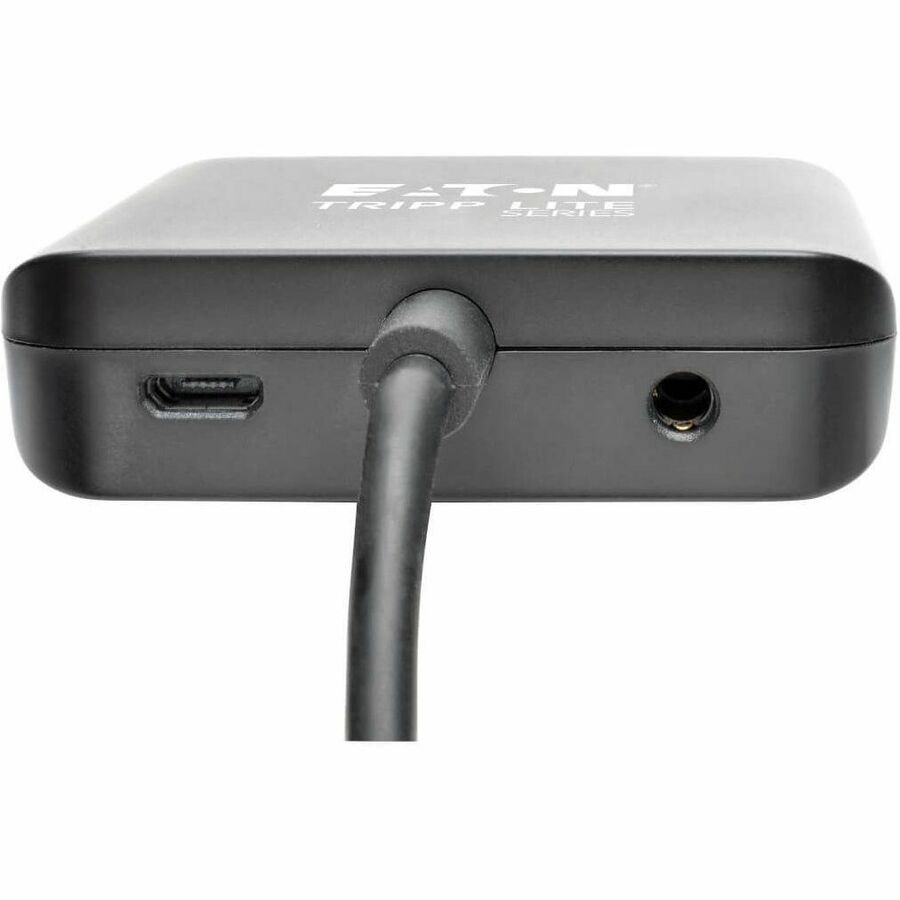

The bus-powered P130-06N-AUDIO is easy to set up and use. Simply connect the built-in 6-inch HDMI cable to your source, then use the included USB Micro-B cable to connect the Micro-B port to the USB port on your HDMI source or USB charger. Next, use a high-speed HDMI cable, like Tripp Lite’s P568-series (sold separately), to connect the unit to an HDMI monitor. Finally, use an appropriate cable and the unit’s 3.5 mm stereo or Toslink port to connect to a compatible audio system.

The P130-06N-AUDIO comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
