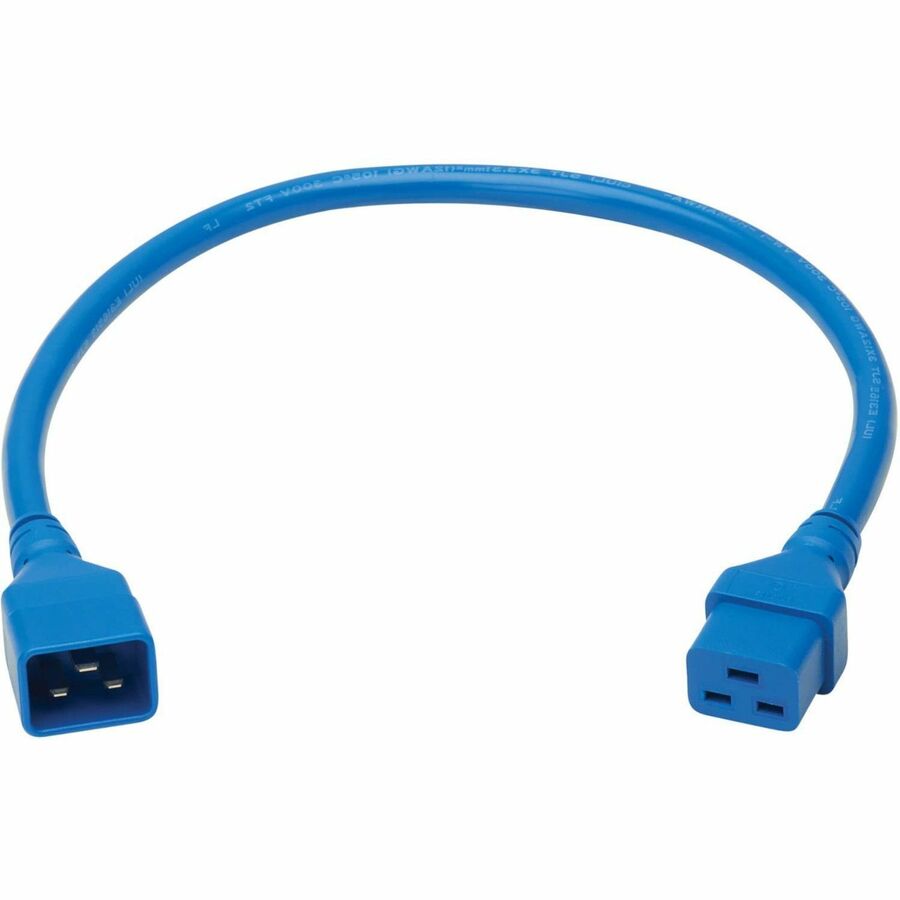

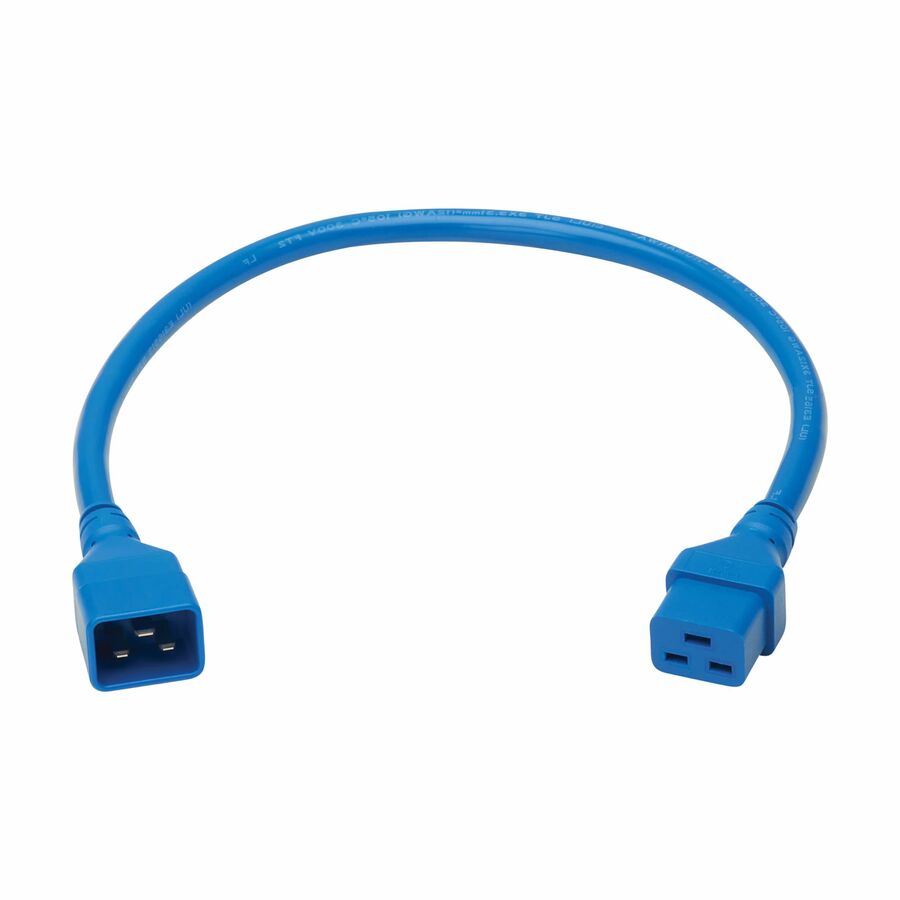

Eaton Tripp Lite Series Power Extension Cord, C20 to C19 - Heavy-Duty, 20A, 250V, 12 AWG, 2 ft. (0.6 m), Blue
For Server Chassis, Server, Router, Network Device, UPS, PDU, Network Switch - 12 Gauge - 250 V AC / 20 A - Blue - 2 ft Cord Length - IEC 60320 C20 / IEC 60320 C19 - North America
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
P036-002-ABL
Category
Power Cords
Overview
Features | 20A C20-to-C19 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty extension cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This cord can be used to connect a server, router, network switch or blade server enclosure to a UPS system or PDU. It can also replace or upgrade the standard power cord provided by the device's manufacturer. The two-foot (0.6-meter) length helps reduce cable clutter and minimize the risk of tripping.
Blue Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The UL-listed cable has a blue PVC jacket, which is easy to identify quickly in a crowded PDU or UPS system and helps prevent the cable from becoming accidentally disconnected.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Recommended for powering servers, routers and other high-output network devices
Blue cable jacket allows quick identification of devices in a crowded rack enclosure
2 ft. length allows flexibility in placing devices, while avoiding cable clutter
C20 to C19 cord replaces or upgrades standard power cord provided by manufacturer
Thick 12 AWG wire gauge manages high power levels required for larger equipment
This product is covered by a Lifetime Limited Warranty
Specifications
Environmental Conditions
Minimum Storage Temperature
-4°F (-20°C)
Maximum Storage Temperature
140°F (60°C)
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
P036-002-ABL
Brand Name
Tripp Lite series
Product Model
P036-002-ABL
Product Name
P036-002-ABL Power Extension Cord
Product Type
Power Extension Cord
Physical Characteristics
Cord Length
2 ft
Color Family
Blue
Product Color
Blue
Jacket Material
Polyvinyl Chloride (PVC), Service Junior Thermoplastic (SJT)
Power Description
Voltage Rating
250 V AC
Current Rating
20 A
Technical Information
First End Connector Type
IEC 60320 C20
First End Connector Detail
1 x 3-pin IEC 60320 C20 Male
Second End Connector Type
IEC 60320 C19
Second End Connector Detail
1 x 3-pin IEC 60320 C19 Female
Device Supported
Server Chassis, Server, Router, Network Device, UPS, PDU, Network Switch
Localization
North America
Gauge
12
Number of Conductors
3
Features
Heavy Duty
Warranty
Limited Warranty
Lifetime
Miscellaneous
Country of Origin
Vietnam
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
