Eaton Tripp Lite Series Extension Cable for Select Battery Packs, Blue 175A DC Connectors, 1 ft. (0.3 m)
Eaton

Eaton Tripp Lite Series Extension Cable for Select Battery Packs, Blue 175A DC Connectors, 1 ft. (0.3 m)

For UPS, Battery - 48 V DC175 A - Blue - 11.81" Cord Length - 1

SKU
BPEXT481
Category
Power Cords

MSRP$157.15

$102.49

Save 35%

In stock: 33

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
BPEXT481
Category
Power Cords

Overview

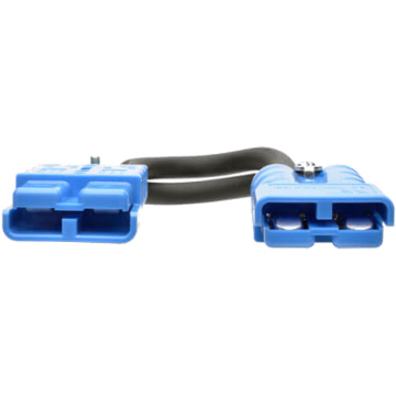

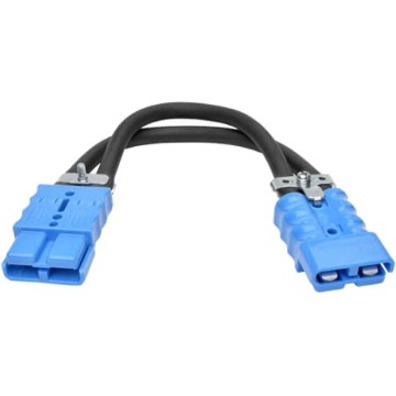

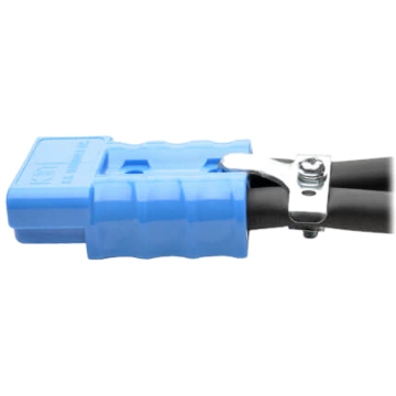

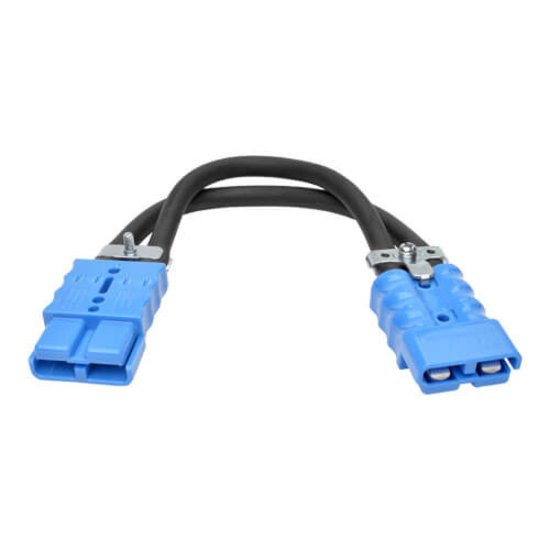

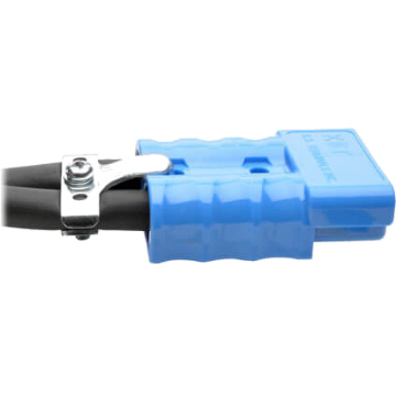

The BPEXT481 Extension Cable allows you to connect your Tripp Lite SMART5000XFMRXL UPS system and BP48V24-2U battery pack in a front-mount four-post rack configuration in order to extend runtime. It also adds one foot (0.3 m) to the connection between other compatible Tripp Lite 48V UPS systems and external battery packs. The BPEXT481 is constructed using 6 AWG two-conductor black cabling. It features two Blue 175A DC connectors: one output for the battery pack and one input for the UPS system.

Warranty

Limited Warranty: 1 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Heavy-duty 6 AWG 2-conductor black cabling
  • 2 Blue 175A DC connectors (1 output, 1 input)
  • 1 ft. (0.3 m) in length

Specifications

Product TypePower Extension Cord
Compatibility
  • Tripp Lite SMART5000XFMRXL UPS
  • Tripp Lite BP48V24-2U Battery Pack
Device SupportedUPS, Battery
Manufacturer Part NumberBPEXT481
Packaged Quantity1
Limited Warranty1 Year
Weight (Approximate)1.10 lb
ManufacturerEaton Corporation
Product ModelBPEXT481
Product NamePower Extension Cord
Voltage Rating48 V DC
Current Rating175 A
Brand NameTripp Lite series
Country of OriginChina
Cord Length11.81"
Environmentally FriendlyYes
Product ColorBlue
Color FamilyBlue
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
