1 x Network (RJ-45) - 10/100/1000Base-T, 1000Base-SX - Desktop
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

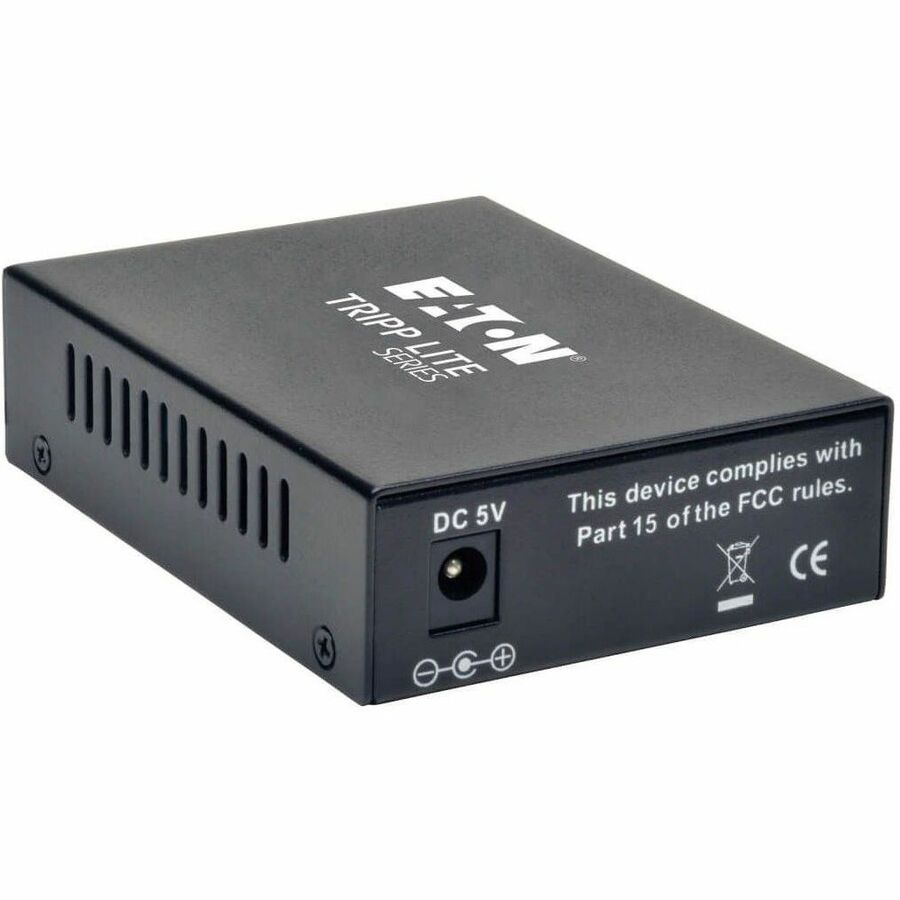

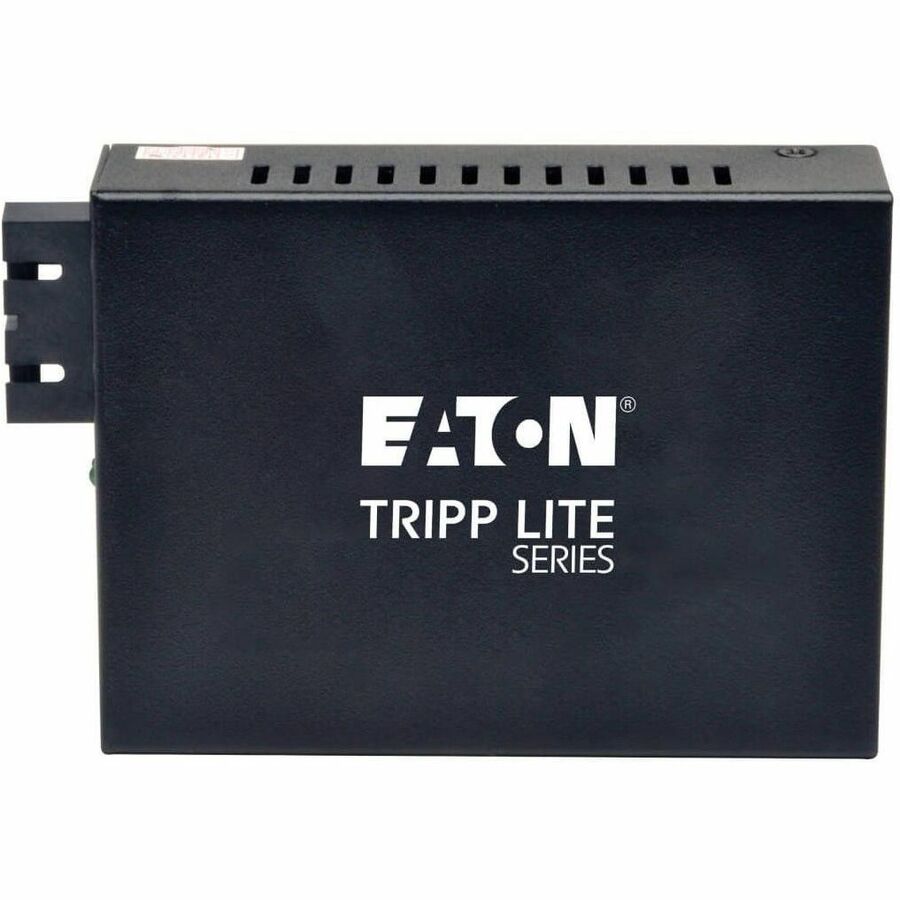

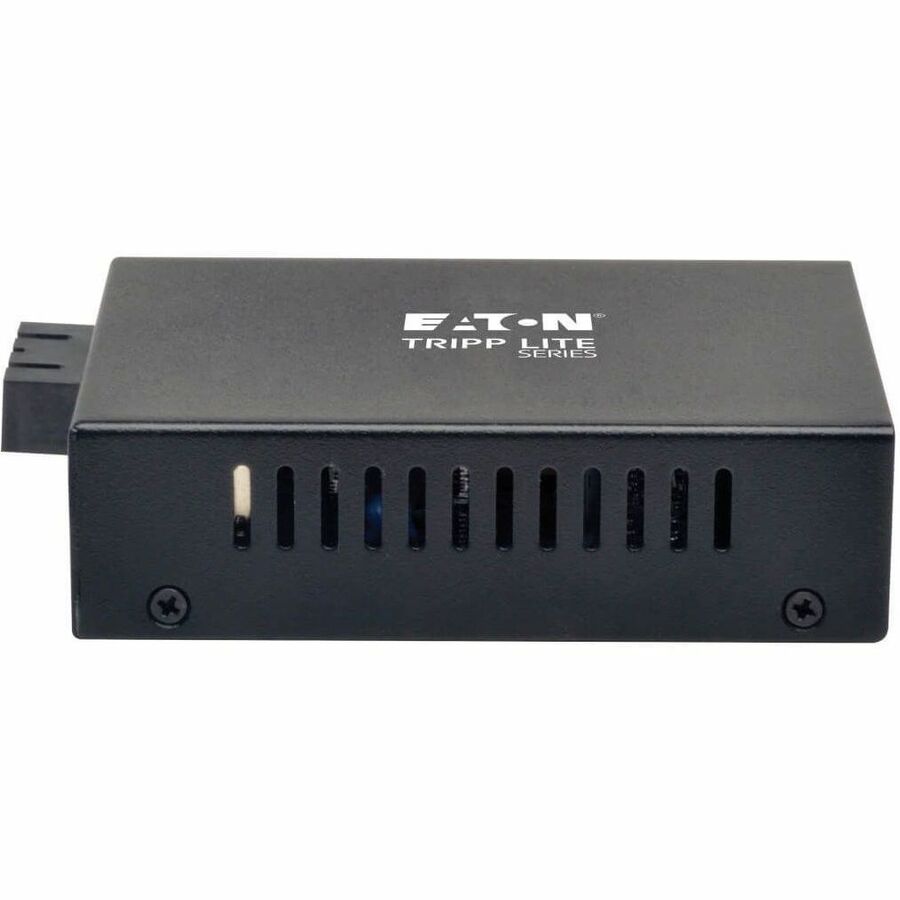

Tripp Lite's N785-001-SC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter. More from the Manufacturer
Extend a Gigabit Ethernet Signal up to 1800 ft. (550 m) Using Multimode SC Fiber Optic Cable
Your network no longer has to be limited by UTP cabling or the high price of extending its reach. With Tripp Lite’s N785-001-SC-MM 10/100/1000 Multimode Media Converter, you can extend your gigabit network up to 1800 ft. (550 m) with fast, cost-effective, SC multimode fiber optic cabling. Advanced features like selectable half or full duplex operation, 850nm wavelength and automatic MDI/MDI-X configuration provides superior signal quality and gives you ultimate network control. For peace of mind, the unit is RoHS-compliant and comes with a two-year warranty.
Advanced Monitoring and Control

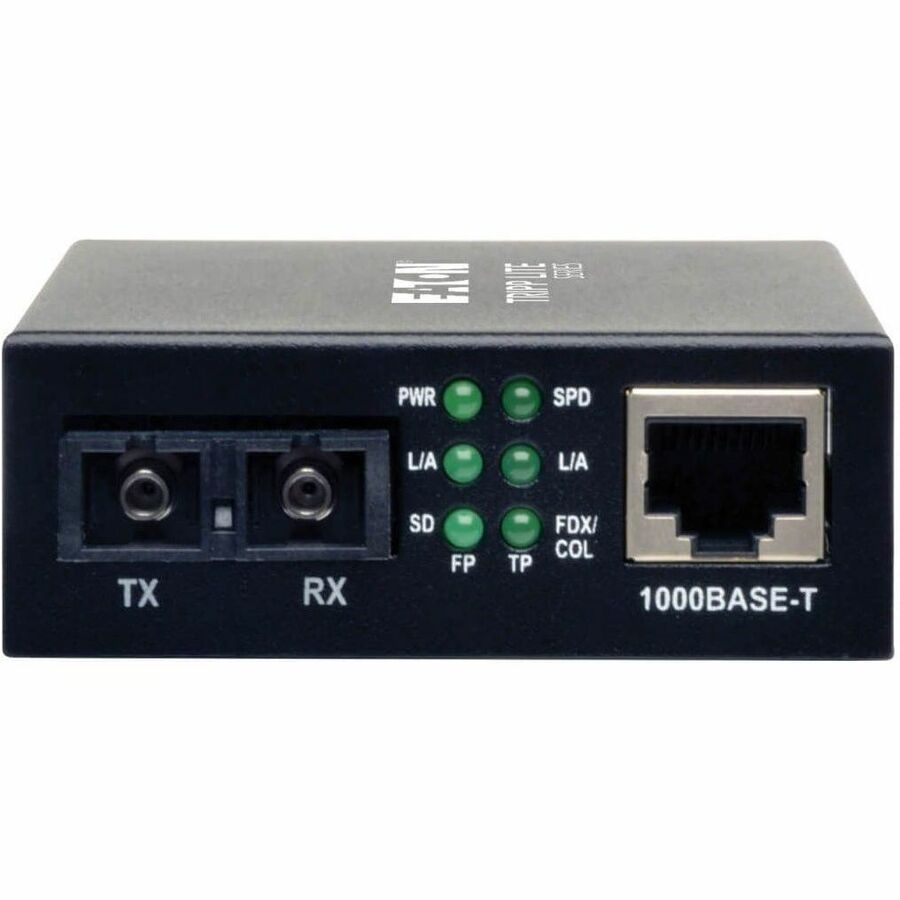

Monitoring and controlling your network nodes is easy with advanced features like selectable half or full duplex operation and automatic MDI/MDI-X configuration. Six LEDs indicate operating and alert status of the unit and connected components.
Flexible Installation

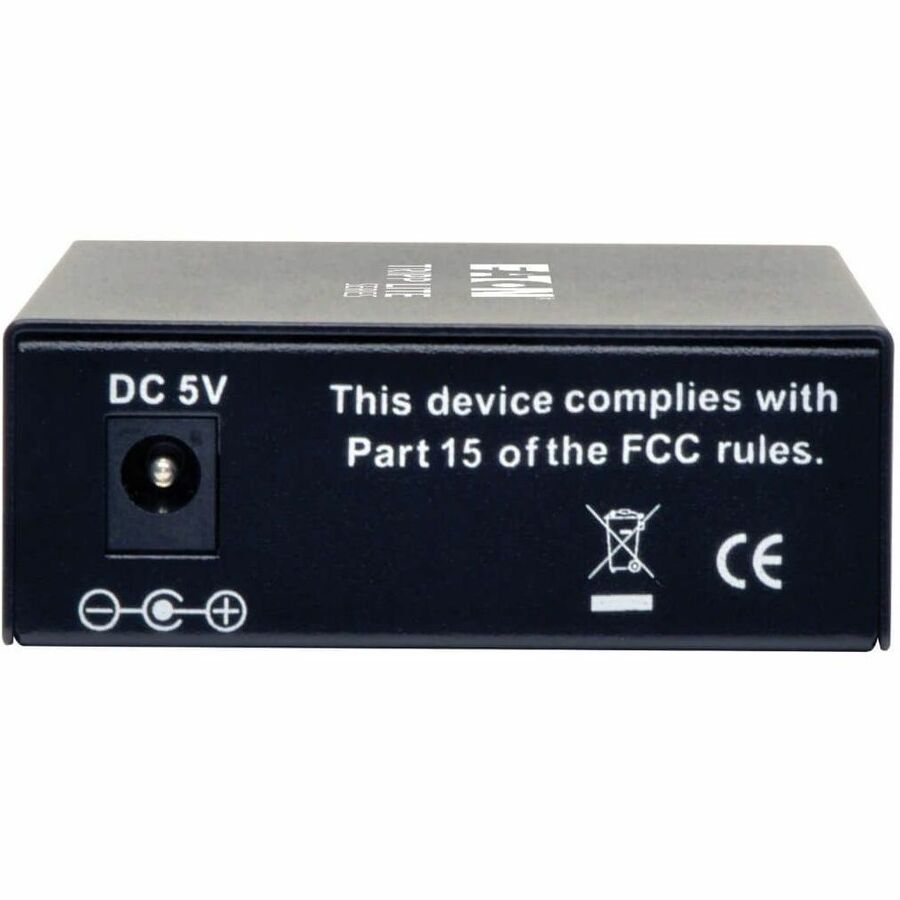

With the ability to be powered by an AC adapter, the N785-001-SC-MM allows for flexible installation at any point in your network wherever a nearby standard power outlet is available. The unit does not have to remain close to a computer, server or other signal source.
Tripp Lite N785-001-SC-MM Product Summary
10/100/1000UTP to multimode SC fiber converter extends Gigabit Ethernet signals up to 1800ft. (550 m)
Auto-detectsfull/half duplex transfer mode
Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
AutoNegotiation MDI/MDI-X
Sixperformance monitoring LEDs
850 nmwavelength
Small,compact design
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N785-001-SC-MM |
| Brand Name | Tripp Lite series |
| Product Model | N785-001-SC-MM |
| Product Name | 10/100/1000 SC Multimode Media Converter, 550M, 850nm |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T, 1000Base-SX |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1" |
| Width | 4.7" |
| Depth | 2.8" |
| Weight (Approximate) | 1 lb |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
