Overview

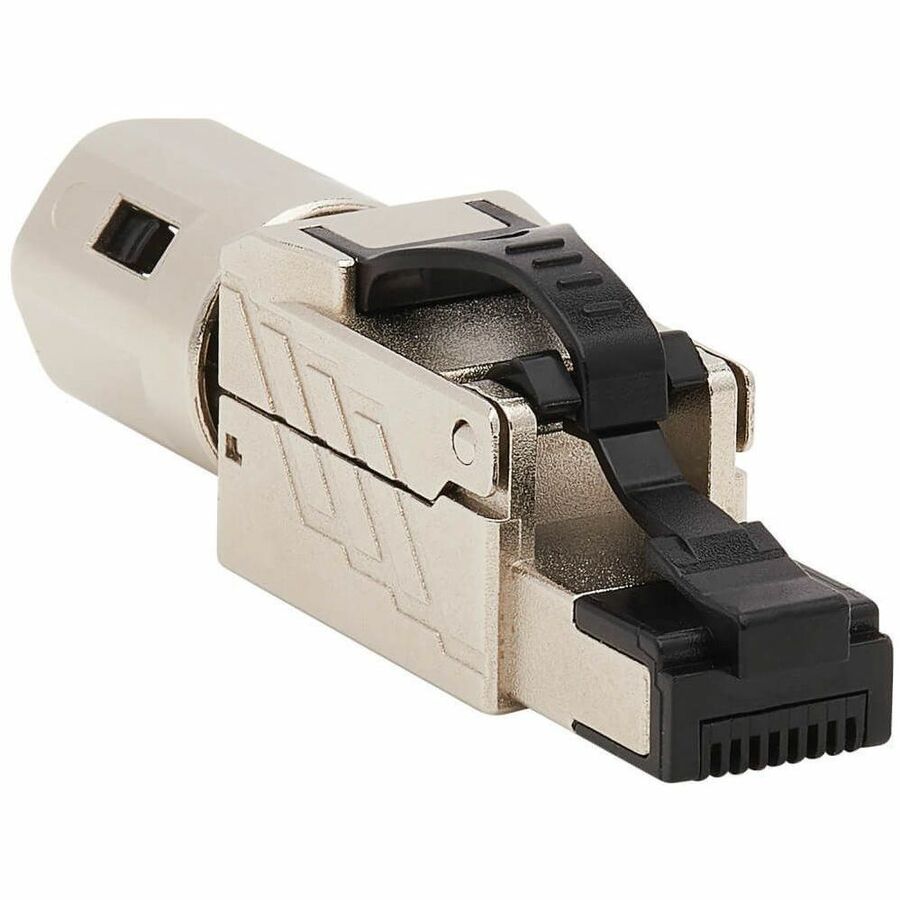

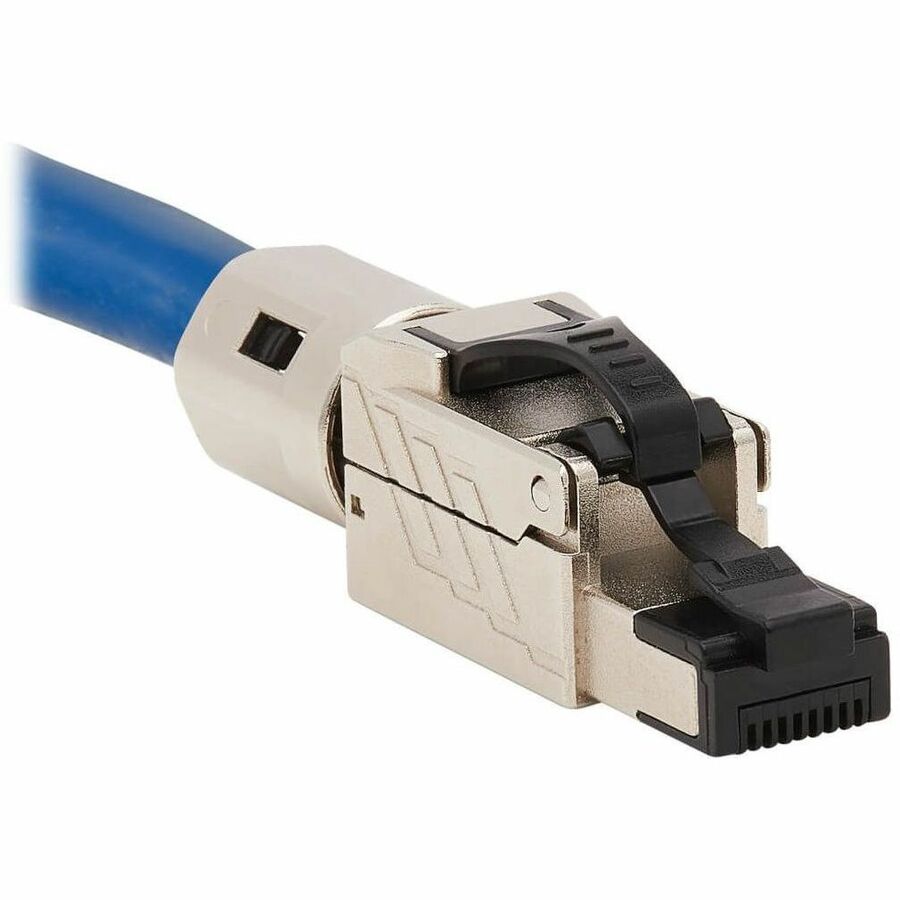

RJ45 Cat6a Plug Designed for Field Installation in Above-Ceiling Applications
This Cat6a RJ45 shielded plug simplifies the installation of devices in an above-ceiling application where installing a face plate isn't practical or where outlets, jacks and patch cords must be plenum rated. Modular Plug Terminated Link (MPTL) topology allows a Cat6a cable to be terminated to the N238-P01-MPTL-A plug, which then connects to a Type 3 or Type 4 PoE device, such as a WAP (Wireless Access Point) or surveillance camera.
Delivers Type 3 and Type 4 Power over Ethernet to Security Cameras and Other PoE Devices
Because this Cat6a shielded plug supports PoE++/4PPoE and High-Power PoE applications, it helps deliver power to PoE devices requiring up to 100 watts, such as security cameras, access control devices and large-screen displays for digital signage. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, including ceilings.
Assembles Easily with No Special Tools Required

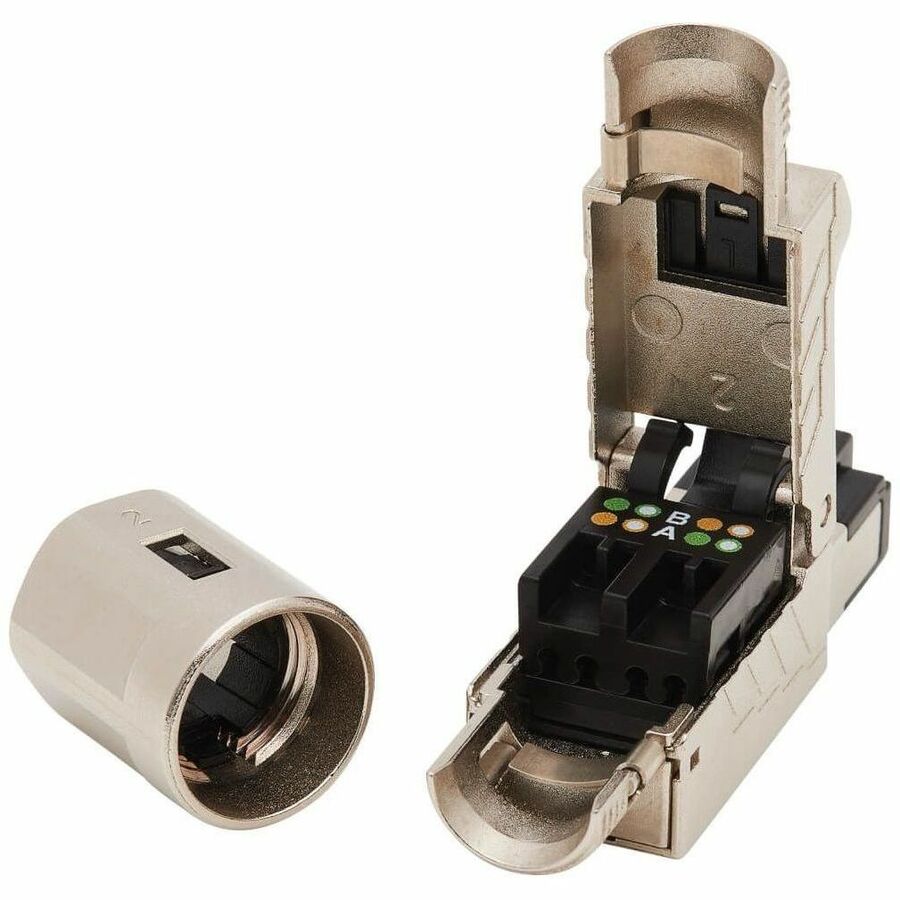

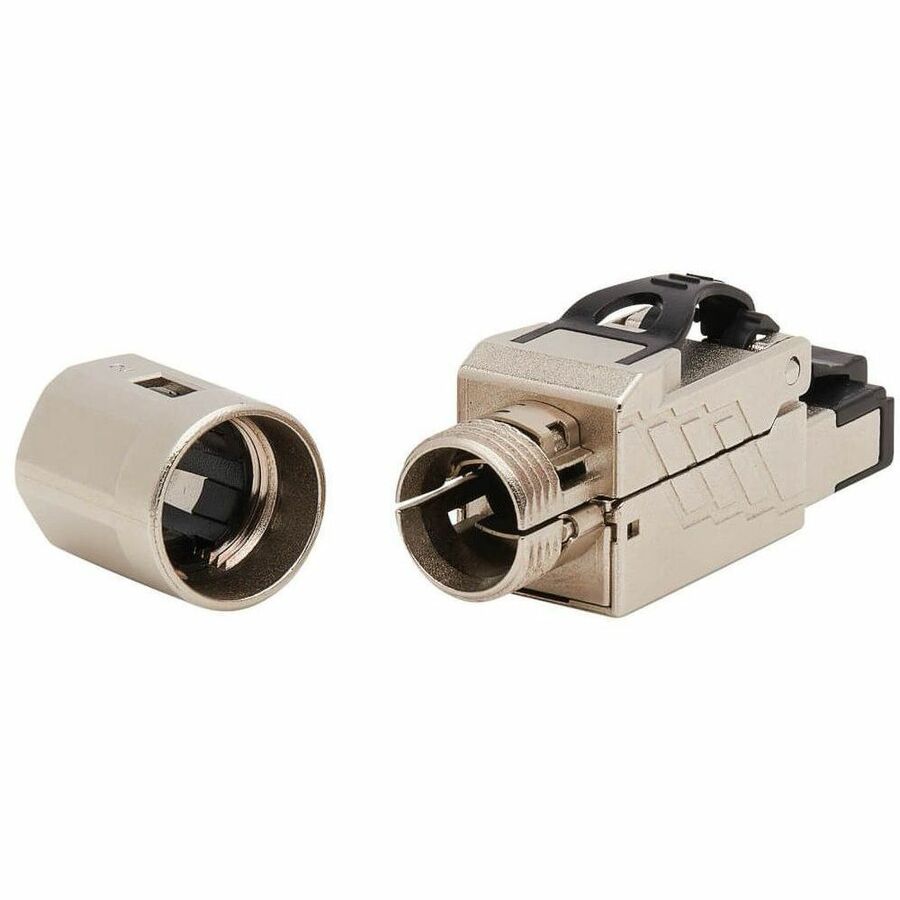

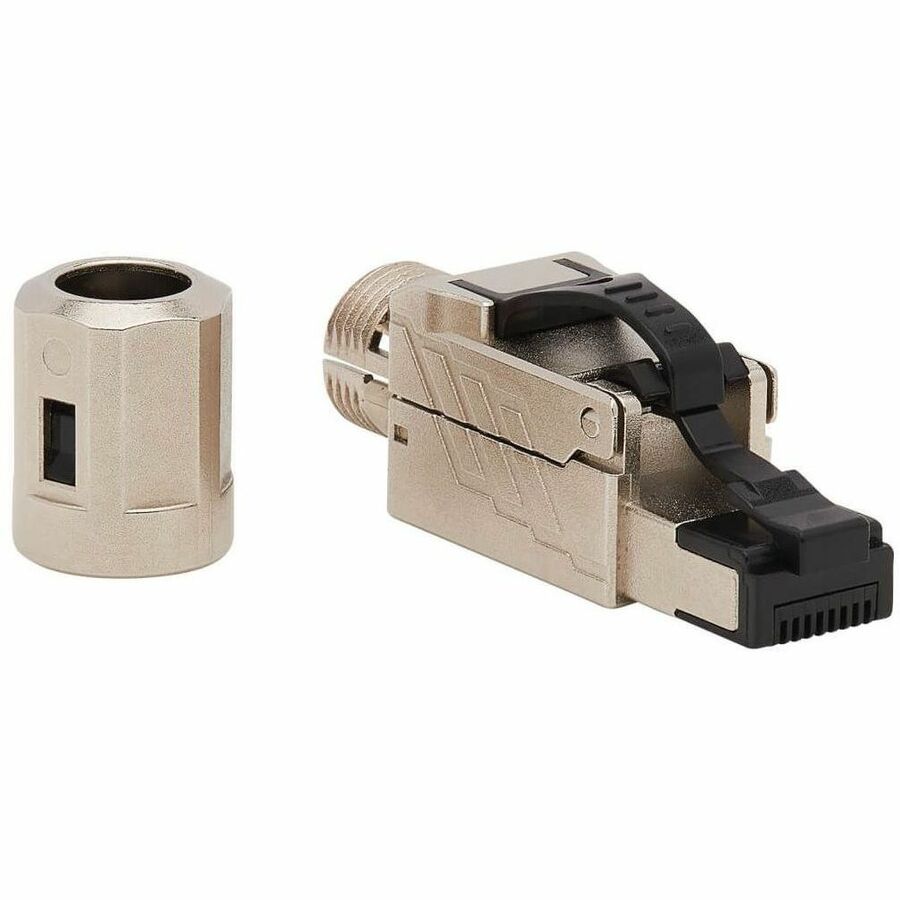

The die-cast zinc plug is made for fast, reliable terminations in the field with just a wire stripper/cutter. It accommodates 22-26 AWG solid or stranded cabling and 6.5-8.5 mm cable jacket diameters. Ideal for assembling high-performance patch cords in a hurry, the N238-P01-MPTL-A can be re-terminated as many as 20 times. An IDC cap and a dust cap are included.
TAA-Compliant for GSA Schedule Purchases
The N238-P01-MPTL-A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Designed for fast, reliable field terminations with no special tools in PoE applications
Supports PoE++ and high-power PoE to save you expense of powering PoE devices individually
Accommodates 22-26 AWG solid or stranded cabling in 6.5-8.5 mm diameters
Versatile and durable die-cast zinc plug can be re-terminated as many as 20 times
Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N238-P01-MPTL-A
Brand Name
Tripp Lite series
Product Model
N238-P01-MPTL-A
Product Name
N238-P01-MPTL-A Network Connector
Product Type
Network Connector
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Die-cast Zinc
Height
0.8"
Width
0.6"
Depth
2.3"
Technical Information
Connector Type
RJ-45 Network - Male, 110-punchdown
Connector Details
1 x RJ-45 Network Male, 1 x 110-punchdown
Shielding
Yes
Features
PoE, PoE+, PoE++, 4-Pair Power over Ethernet (4PPoE) Support
