568A/568B, TAA
1 x RJ-45 Network Male - Silver, Black - TAA Compliant
Request pricing
Confirmed with stock before any payment. TAA verified on request.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

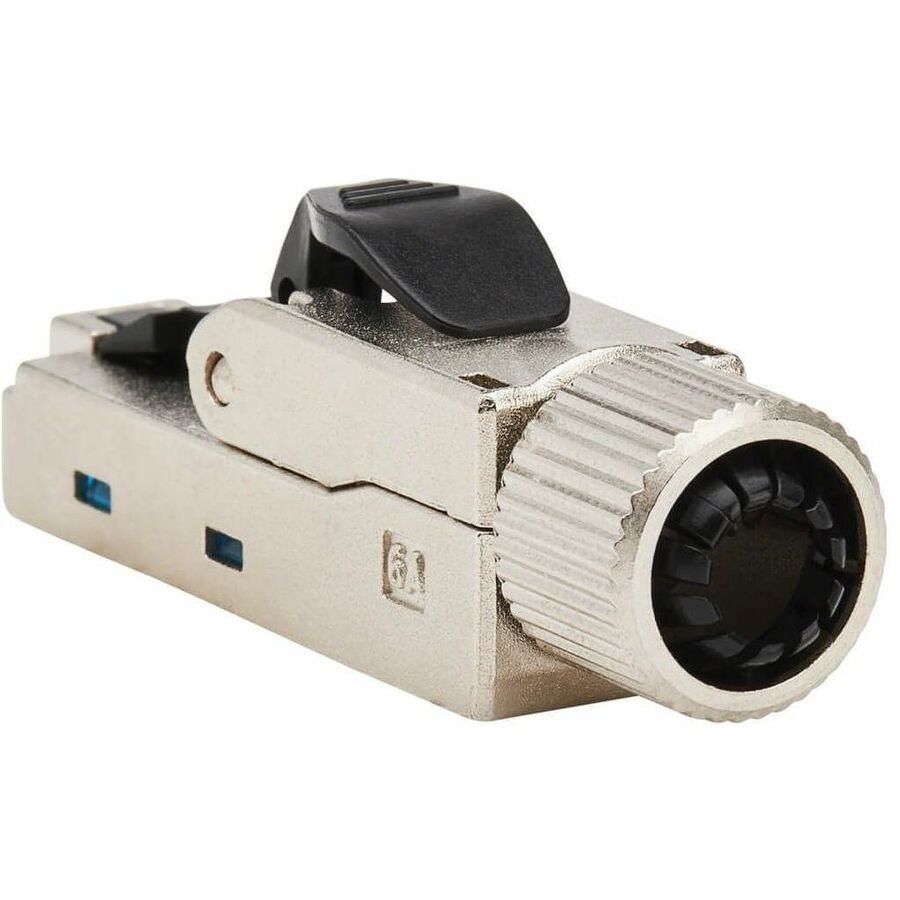

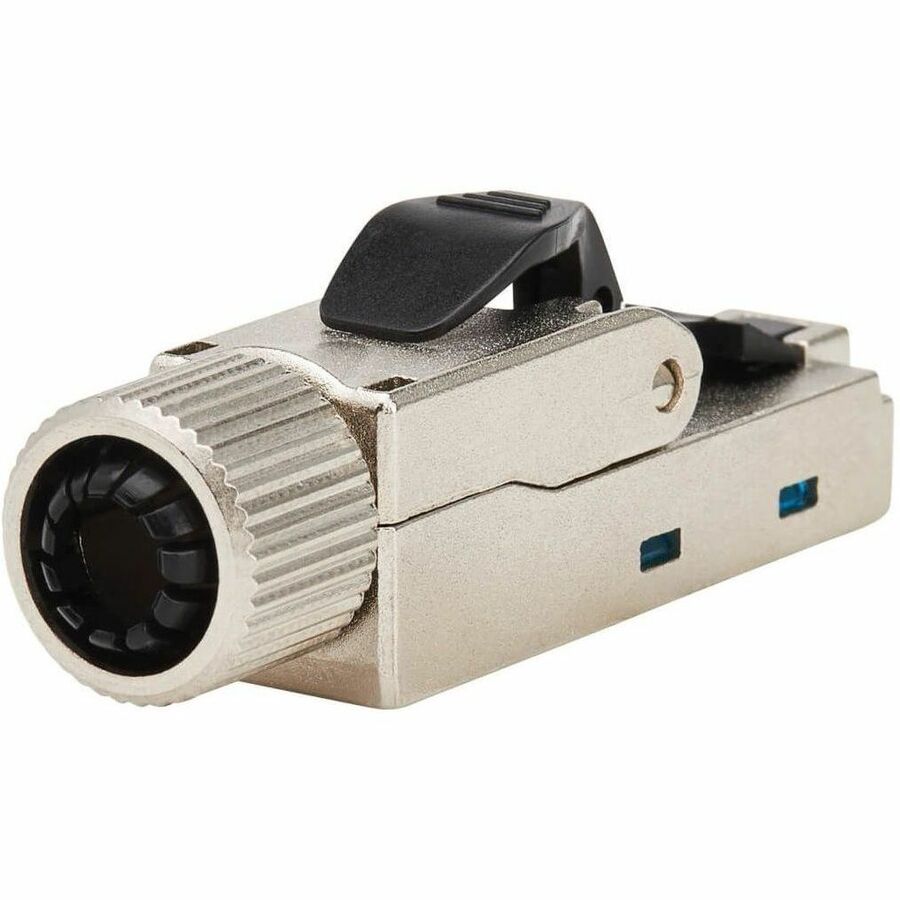

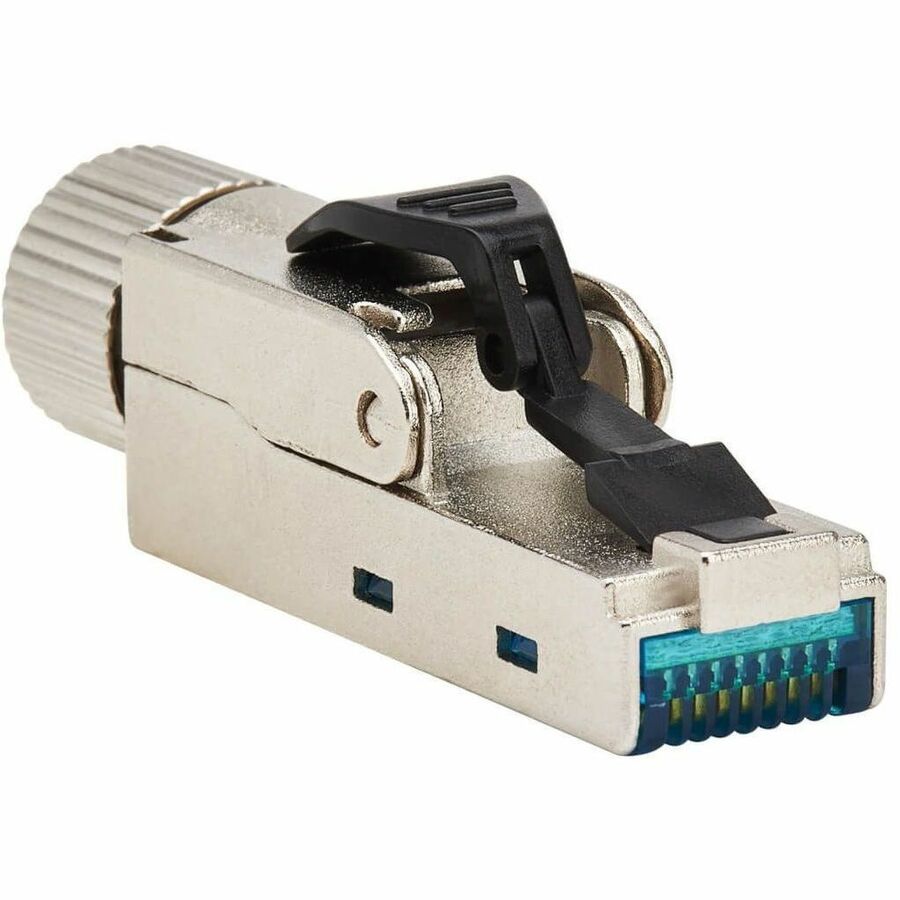

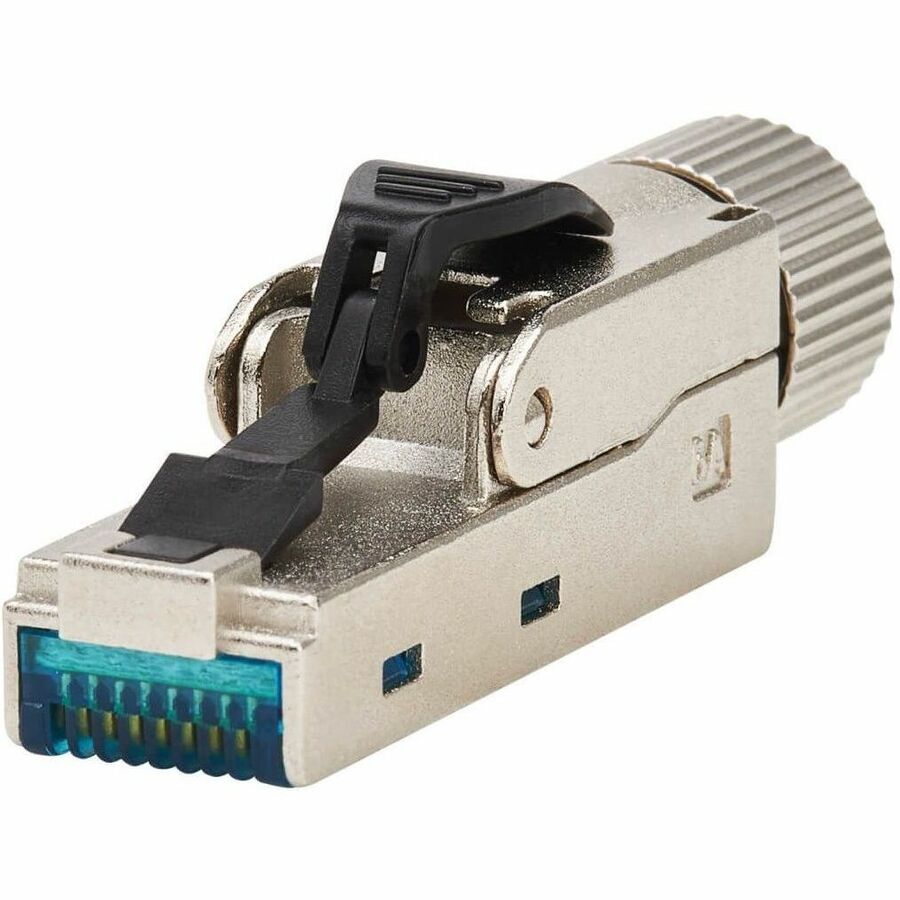

RJ45 Cat6a Plug Designed for Field Installation

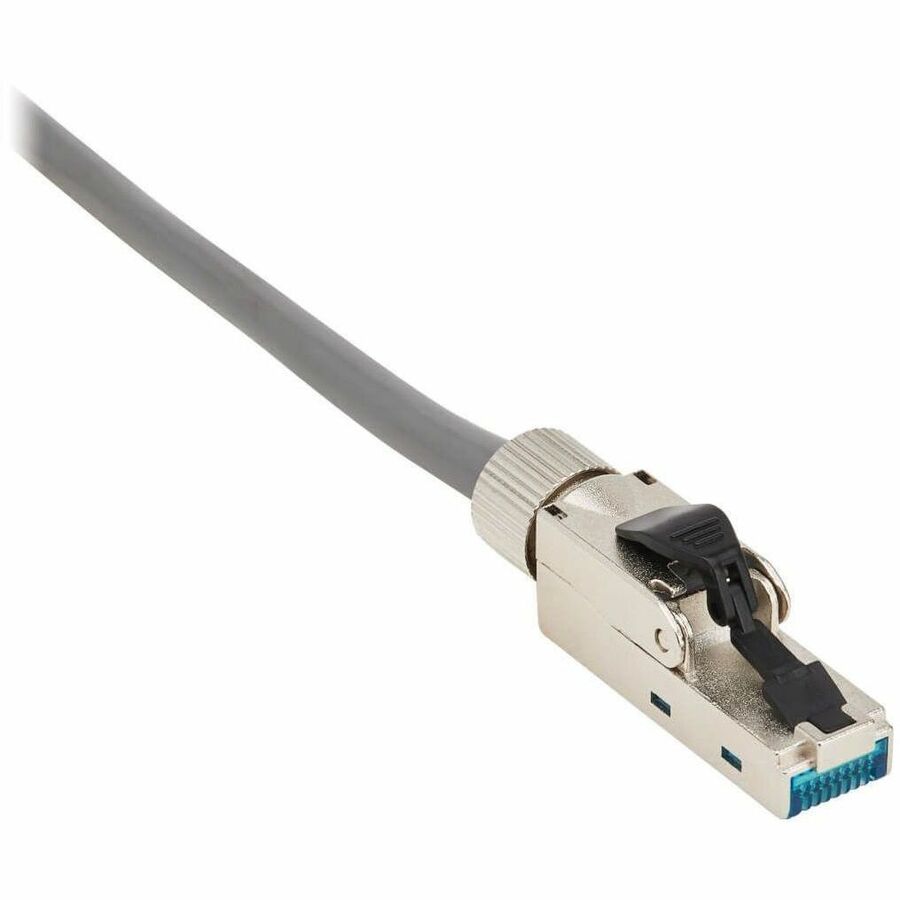

This Cat6a RJ45 shielded plug simplifies the installation of devices in an above-ceiling application where installing a face plate isn't practical or where outlets, jacks and patch cables must be plenum rated. Modular Plug Terminated Link (MPTL) topology allows a Cat6a cable to be terminated to the N232-SHC6A-1, which then connects to a Type 3 or Type 4 PoE (Power over Ethernet) device, such as a WAP (Wireless Access Point) or surveillance camera.
Supports PoE++ Applications with up to 100W of Power
Connect high-power PoE devices such as video conferencing devices, laptops and flat screens, building management devices and more. The UL-compliant N232-SHC6A-1is 4PPoE (PoE++) compatible and IEEE 802.3bt compliant for PoE applications up to 100 watts.
Assembles Easily with No Special Tools Required
The die-cast zinc plug is made for fast, reliable terminations in the field with just a wire stripper/cutter. It accommodates 22-27 AWG solid or stranded cabling and 6-9 mm cable jacket diameters. Ideal for assembling high-performance patch cords in a hurry, the N232-SHC6A-1 can be re-terminated as many as 20 times. An IDC cap and dust cap are included.
Premium Protection from EMI/RFI and Other Noise Helps Your Equipment Perform Better
The fully shielded metal housing blocks disruptive EMI and RFI line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
A Must-Have for Modern Data Centers
The durable zinc alloy and nickel-plated composition ensures your connection is built to last. A locking cylinder screws into place to ensure the installed cable remains secured.
TAA-Compliant for GSA Schedule Purchases
The N232-SHC6A-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: Lifetime
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N232-SHC6A-1 |
| Brand Name | Tripp Lite series |
| Product Model | N232-SHC6A-1 |
| Product Name | Cat6a Class EA STP Field-Termination Plug, 568A/568B, TAA |
| Product Type | Network Connector |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Silver, Black |
| Product Material | Die-cast Zinc, Metal, Nickel Plated Zinc Alloy, Polyoxymethylene (POM), Zinc Alloy, Polycarbonate |
| Height | 0.7" |
| Width | 1.9" |
| Depth | 0.5" |
| Technical Information | |
| Connector Type | RJ-45 Network - Male |
| Connector Details | 1 x RJ-45 Network Male |
| Connector Gender | Male |
| Contact Plating | Gold |
| Shielding | Yes |
| Compatible Wire Gauge | 22-27 AWG |
| Ingress Protection (IP) Rating | IP20 |
| Features | PoE, PoE++, Stranded, 4-Pair Power over Ethernet (4PPoE) Support, EMI/RF Protection |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
