SKU
N232-USC6A-1
Category
Connectors
Overview
Tool-Free RJ45 Cat6a Plug Designed for Field Installation

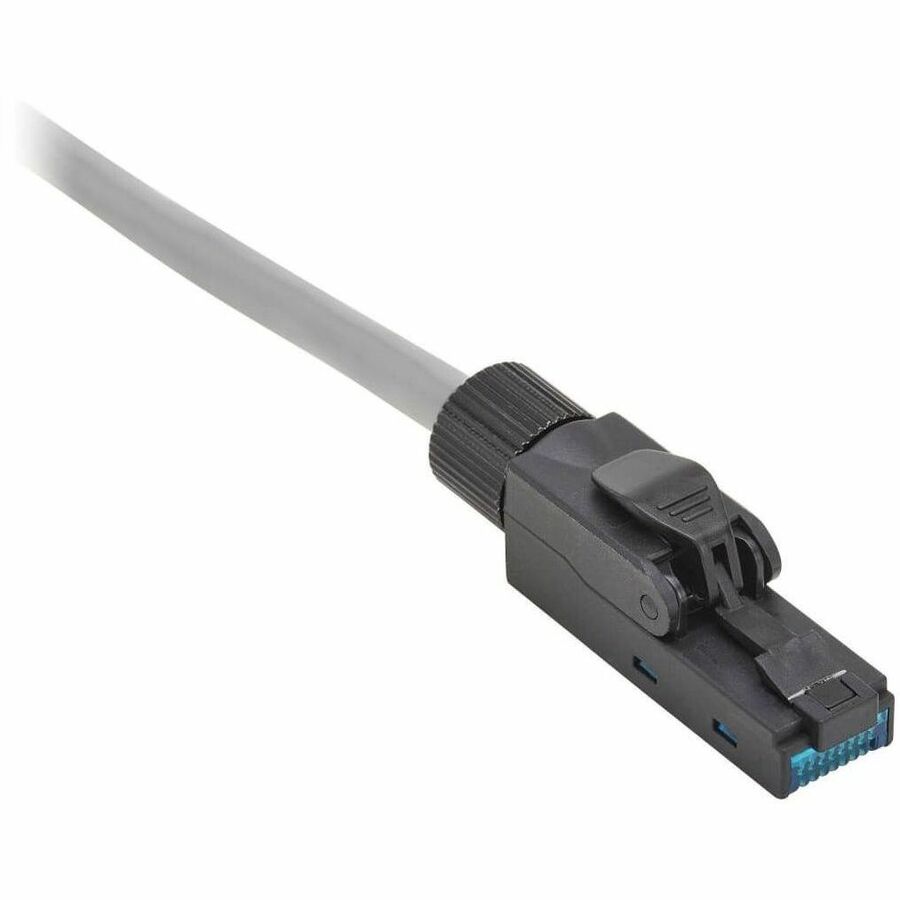

This Cat6a RJ45 plug simplifies the installation of devices in an above-ceiling application where installing a face plate isn't practical or where outlets, jacks and patch cables must be plenum rated. The clamshell design allows a Cat6a cable to be terminated to the N232-USC6A-1, which then connects to a Type 3 or Type 4 PoE (Power over Ethernet) device, such as a WAP (Wireless Access Point) or surveillance camera.
Supports PoE++ Applications with up to 100W of Power
Connect high-power PoE devices such as video conferencing devices, laptops and flat screens, building management devices and more. The UL-compliant N232-USC6A-1 is 4PPoE (PoE++) compatible and IEEE 802.3bt compliant for PoE applications up to 100 watts.
Assembles Easily with No Special Tools Required
The N232-USC6A-1 is made for fast, reliable terminations in the field with just a wire stripper/cutter. It accommodates 23-27 AWG solid or stranded cabling and 5.5-8.5 mm cable jacket diameters. Ideal for assembling high-performance patch cords in a hurry, the N232-USC6A-1 can be re-terminated as many as 20 times.
A Must-Have for Modern Data Centers
The glass-reinforced nylon construction ensures your connection is built to last. The IDC module can be installed and uninstalled up to five times. A locking cylinder screws into place to ensure the installed cable remains secured.
TAA-Compliant for GSA Schedule Purchases
The N232-USC6A-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Designed for fast, reliable field terminations with no special tools in PoE applications
Supports PoE++ and high-power PoE to save you expense of powering PoE devices individually
Accommodates 23-27 AWG solid or stranded cabling in 5.5-8.5 mm diameters
Versatile glass-reinforced nylon plug can be re-terminated as many as 20 times
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
Product Type
Network Connector
Connector Details
1 x RJ-45 Network Male
Manufacturer Part Number
N232-USC6A-1
Shielding
No
Limited Warranty
Lifetime
Connector Type
RJ-45 Network - Male
Features
PoE, PoE++, Stranded, 4-Pair Power over Ethernet (4PPoE) Support
Manufacturer
Eaton Corporation
Product Model
N232-USC6A-1
Product Name
Cat6a Class EA UTP Field-Termination Plug, 568A/568B, TAA
Brand Name
Tripp Lite series
Country of Origin
Taiwan
Height
0.7"
Width
1.9"
Depth
0.5"
Environmentally Friendly
Yes
Contact Plating
Gold
TAA Compliant
Yes
Product Color
Black
Connector Gender
Male
Color Family
Black
Ingress Protection (IP) Rating
IP20
Product Material
Glass Reinforced Nylon, Nylon, Tin Plated Phosphor Bronze
