230 ft Range - 2 x Network (RJ-45) - 3 x USB - 1 x HDMI Out - DisplayPort - 2 - 2 - 4K - 3840 x 2160 - Category 6, Category 5, Category 5e - Digital Signage System, Trade Show, Educational Facilities, Lecture Hall, Conference Room, Meeting Room, Retail, HDTV, Desktop PC, Monitor, Gaming - Wall Mountable, Pole-mountable, Rack-mountable, Surface-mountable - TAA Compliant
MSRP$526.00
$400.22
Save 24%Special order — estimated available by September 10, 2026.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
DisplayPort Extender for Digital Signage in Schools, Trade Shows and Lecture Halls
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional AV cables allow.
Extends a 4K AV Transmission up to 230 ft.
The B127A-1A1-BDBDA extends 4K signals from a DisplayPort source to a DisplayPort monitor up to 230 feet (70 meters) away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater or B127A-110-BH transceiver (both sold separately) to the application, you can extend the signal up to 400 feet (122 meters) or 460 feet (140 meters), respectively.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
The B127A-1A1-BDBDA supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization allows you to fine-tune the image quality at the remote display. HDCP 2.2 encryption allows you to stream 4K content with no complications. This extender kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable (such as P568- or P569-Series). This port does not support multi-resolution capabilities, so the connected monitor must also support 4K at 60 Hz to function properly.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers either the transmitter or receiver over Cat6 cable. Connect the included power supply at either end to power the entire installation. LEDs on both the transmitter and receiver light up to indicate the system is receiving power and a signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet.
DIP Switches Extend Your Choice of USB or IR
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 or bi-directional IR functions. Choose to control the source device via keyboard and mouse or IR remote control from the display end of the installation. Only one function can be extended at a time.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver work right out of the box with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source and the receiver to the display with user-supplied DisplayPort cables (such as P580-Series). Then, connect the two units with user-supplied Cat6 Ethernet cable (such as N202-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-1A1-BDBDA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: 1 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127A-1A1-BDBDA |
| Brand Name | Tripp Lite series |
| Product Model | B127A-1A1-BDBDA |
| Product Name | DisplayPort over Cat6 Extender Kit, Transmitter/Receiver, 4K 60 Hz, 4:4:4, Power over Cable, 230 ft. (70 m), TAA |
| Packaged Quantity | Box |
| Product Type | Video Extender Transmitter/Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 3 |
| Number of HDMI Outputs | 1 |
| Remote (IR) Input | 2 |
| Remote (IR) Output | 2 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6, Category 5, Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 1.06" |
| Transmitter Width | 4.53" |
| Transmitter Depth | 2.46" |
| Receiver Height | 1.06" |
| Receiver Width | 4.53" |
| Receiver Depth | 2.46" |
| Form Factor | Wall Mountable, Pole-mountable, Rack-mountable, Surface-mountable |
| Transmitter Weight (Approximate) | 1 lb |
| Receiver Weight (Approximate) | 1 lb |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 230 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |

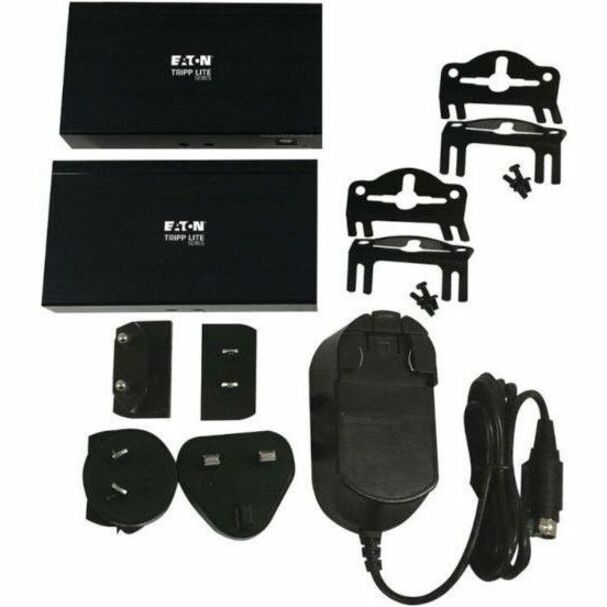

| Package Contents | DisplayPort over Cat6 Extender Kit, Transmitter/Receiver, 4K 60 Hz, 4:4:4, Power over Cable, 230 ft. (70 m), TAA External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. (1.4 m) cord 4x International plug adapters (North America, Europe, U.K. and Australia) Mounting hardware Owner's manual |
| Application/Usage | Digital Signage System, Trade Show, Educational Facilities, Lecture Hall, Conference Room, Meeting Room, Retail, HDTV, Desktop PC, Monitor, Gaming |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
