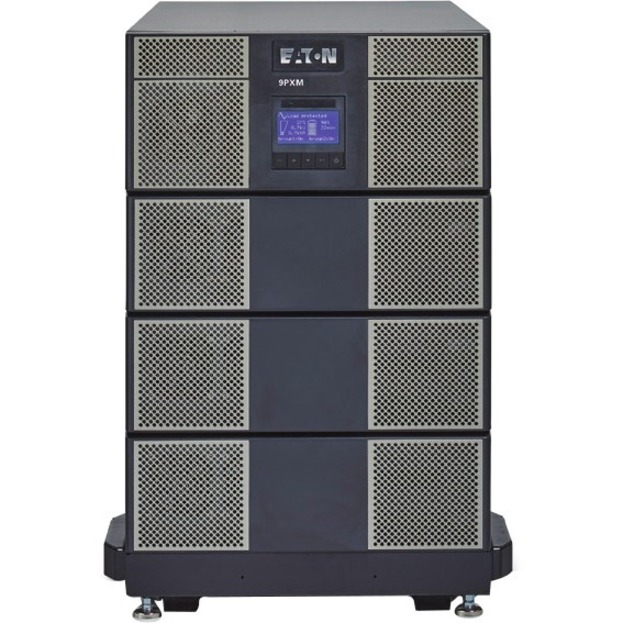

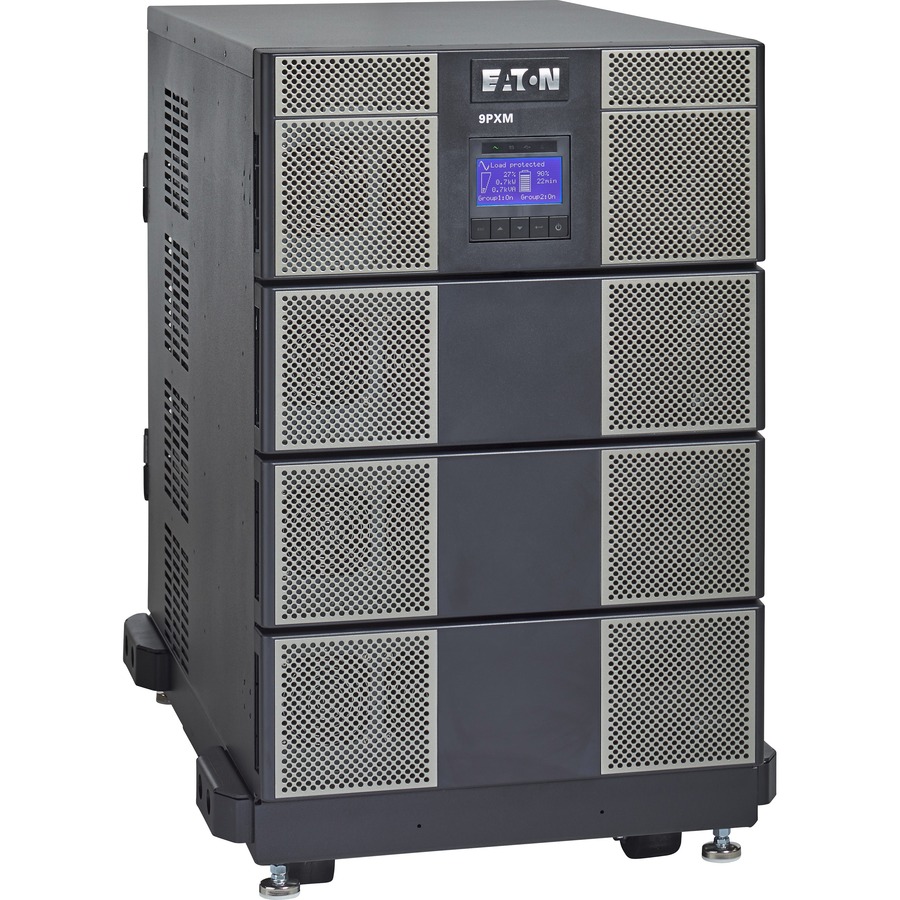

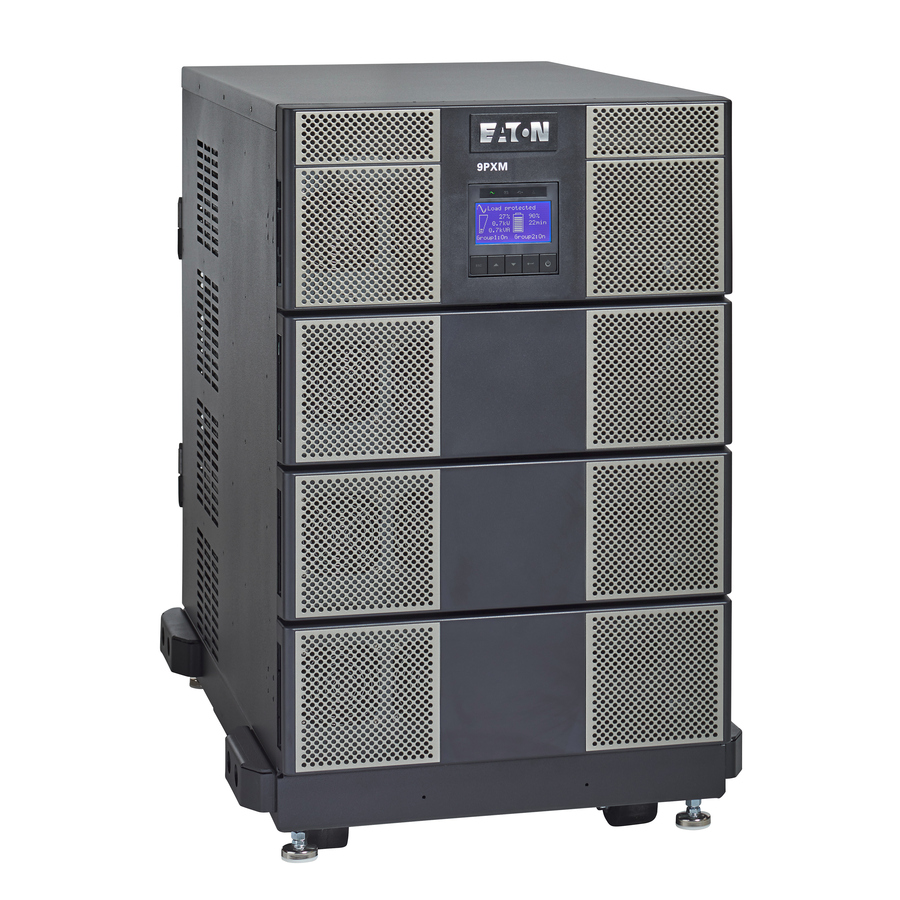

Eaton 9PXM UPS, 16kVA scaleable to 16kVA, Hardwired input, Receptacle Output, 208-240V, Rack/Tower, 14U
Rack/Tower - 6 Minute Stand-by - 230 V AC Input - 4 x NEMA 5-20R, 2 x NEMA L6-30R - TAA Compliant
- SKU
- 9PXM8S16K-PD
- Category
- Industrial UPS
MSRP$22,949.68
$14,901.77
Save 35%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 9PXM8S16K-PD
- Category
- Industrial UPS
Overview
The Eaton 9PXM UPS is a scalable, modular UPS that combines the highest level of reliability with the lowest cost of ownership. Through 4 kVA plug-and-play power modules, the 9PXM delivers an expandable level of N+X redundancy. The 9PXM fits eight or twelve-slot tower enclosures which are easily converted into 14U and 21U rackmount solutions.
Warranty
Limited Warranty: 2 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights

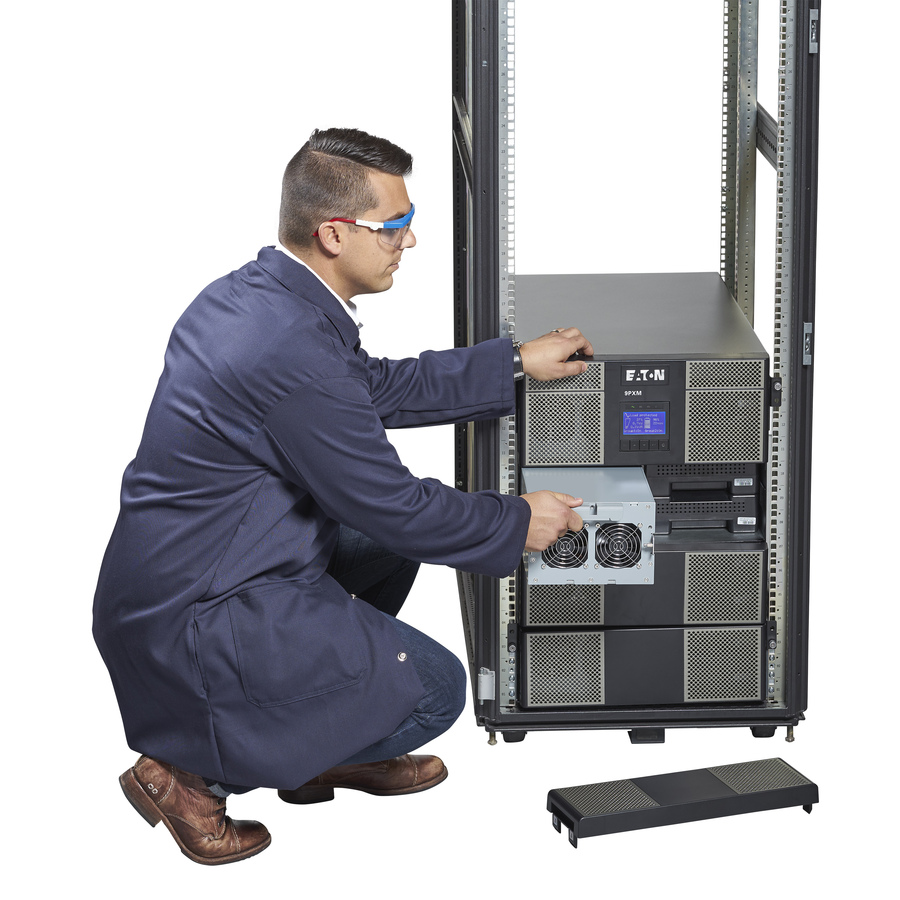

- Hot swappable battery and power modules
- universal battery slots for extended runtime
- customizable output
- rack or tower
- 14U or 21U
Specifications
| Application/Usage | IT Infrastructure, Commercial, Datacenter, Network Device, Small Computer Room, Server, Banking, Voice/Data Network, Office, POS Equipment, Call Center |
|---|---|
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | 9PXM8S16K-PD |
| Packaged Quantity | 1 Pack |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 541 lb |
| Form Factor | Rack/Tower |
| Manufacturer | Eaton Corporation |
| Product Model | 9PXM8S16K-PD |
| Product Name | 9PXM UPS |
| Network Management | SNMP/HTTP Remote Monitoring |
| Brand Name | Eaton |
| Plug/Connector Type | Hardwired |
| Input Voltage Range | 208 V AC - 240 V AC |
| Country of Origin | United States |
| Height | 25" |
| Width | 17.5" |
| Depth | 34.5" |
| Receptacle Type | NEMA 5-20R, NEMA L6-30R |
| Backup/Run Time (Full Load) | 6 Minute |
| Load Capacity (VA) | 16 kVA |
| TAA Compliant | Yes |
| Receptacle Detail | 4 x NEMA 5-20R, 2 x NEMA L6-30R |
