10-40K UPS Cabinet, Modular, AC 208/120V 220/127V, 19U, 1YR Warranty
$15,084.31
Special order — estimated available by September 10, 2026.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

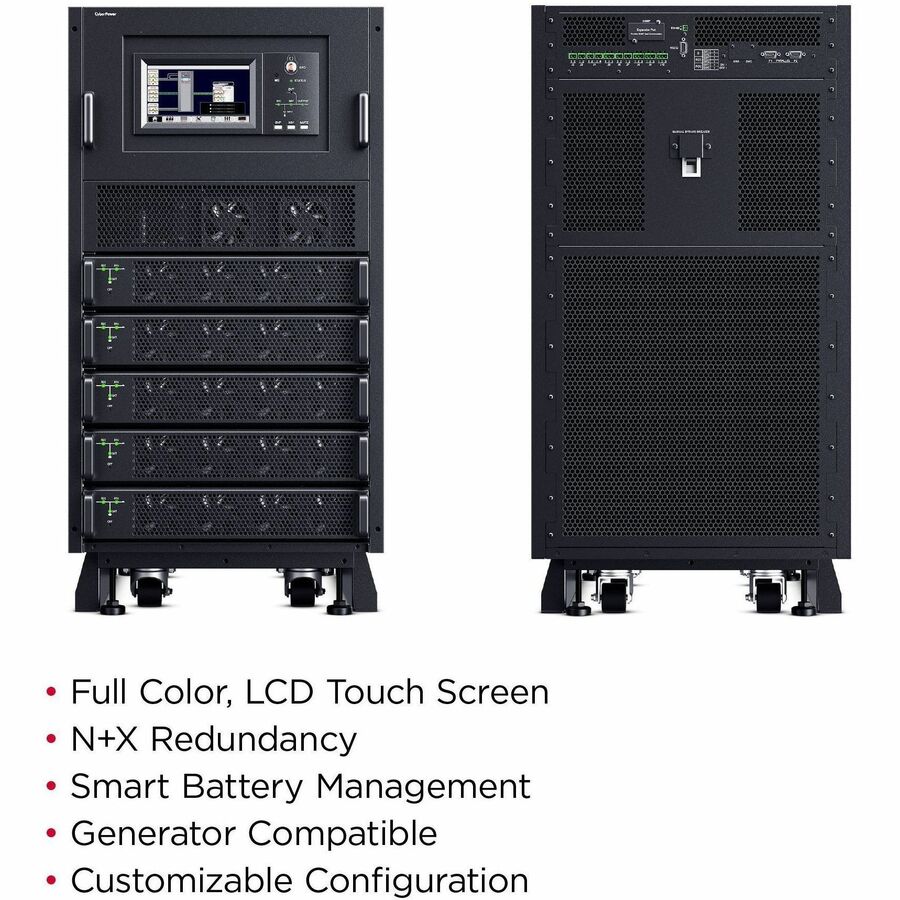

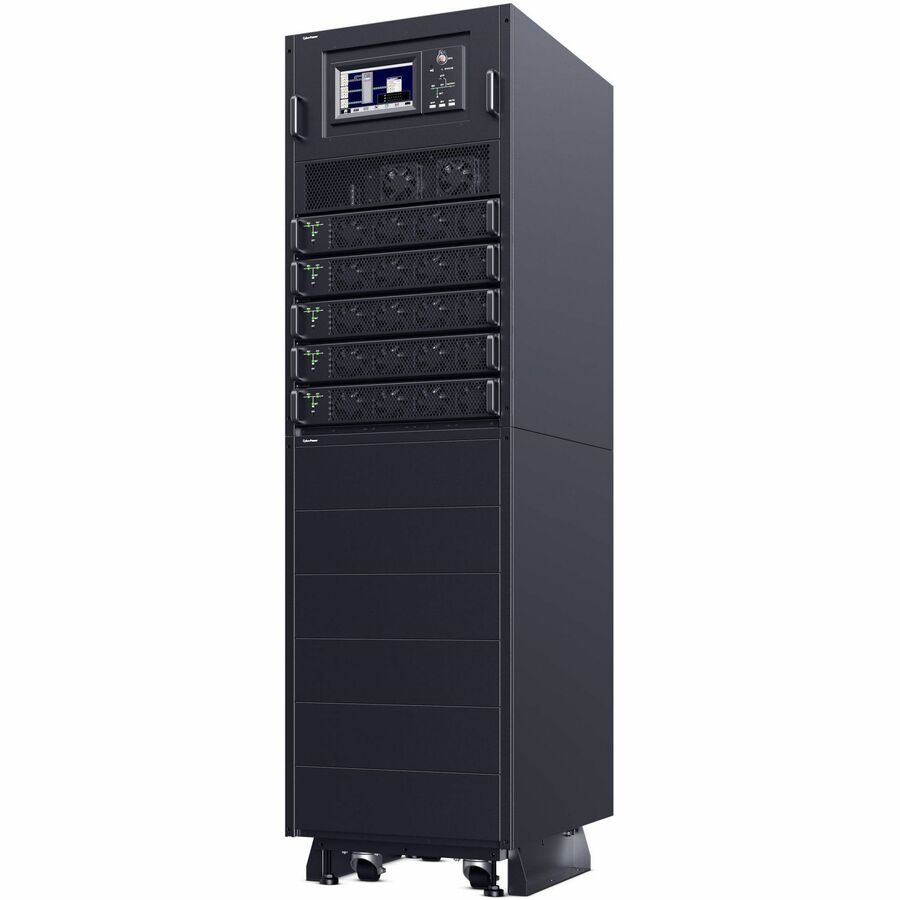

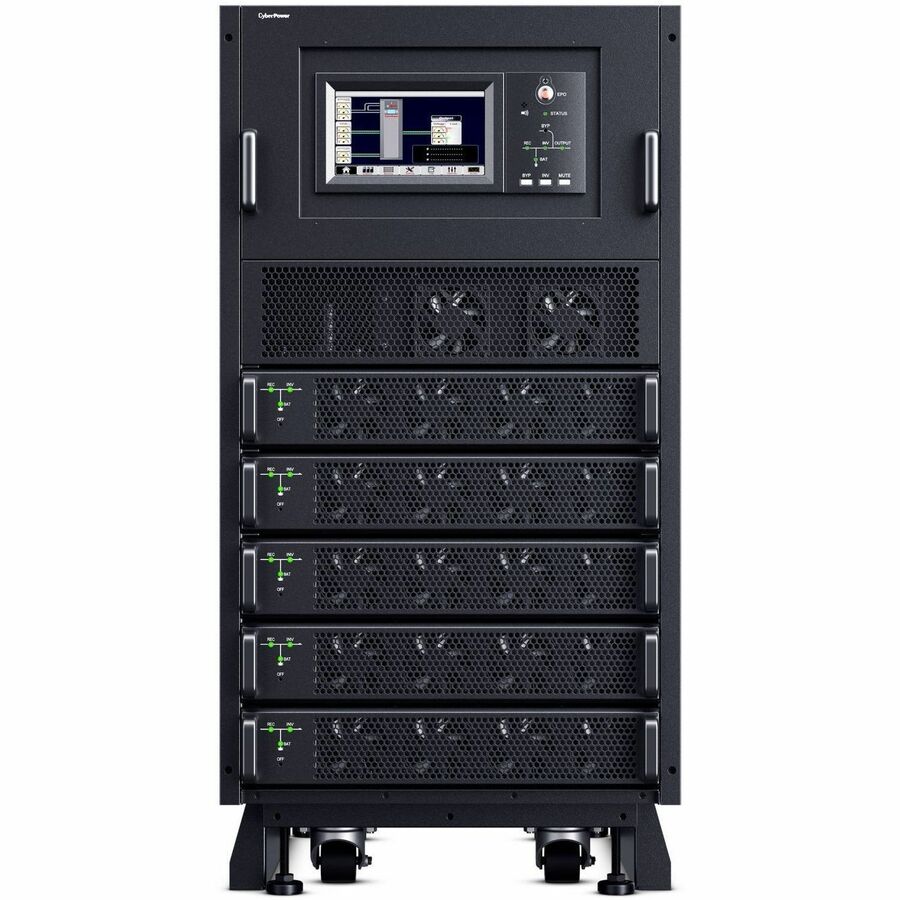

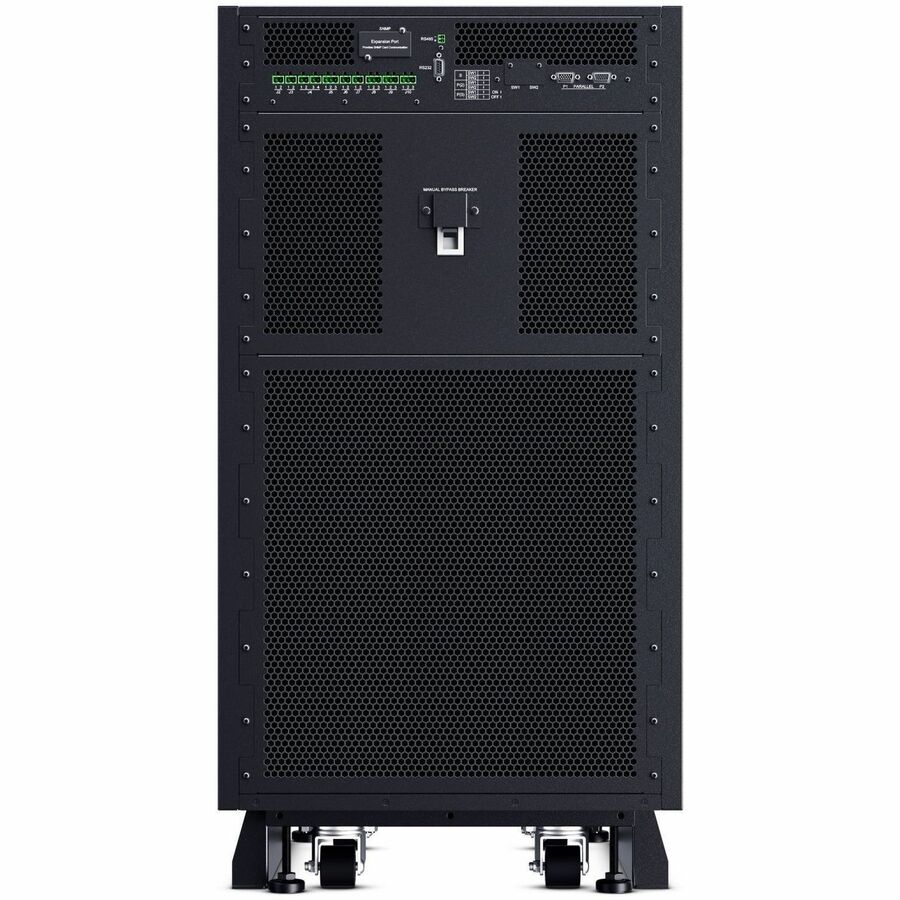

The CyberPower SM040KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.
The SM040KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM040KAMFA 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.
Limited Warranty: 1 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Battery Information | |
|---|---|
| DC System Voltage | 120 V DC |
| Battery Characteristics | Hot-swappable |
| Number of External Battery Cabinets | 12 |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators |
|
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 56 dB(A) |
| Thermal Dissipation | 3349.86 W |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | SM040KAMFA |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | SM040KAMFA |
| Product Name | SM040KAMFA 3-Phase Modular Smart App Online UPS System |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Modular |
| Rack Height | 19U |

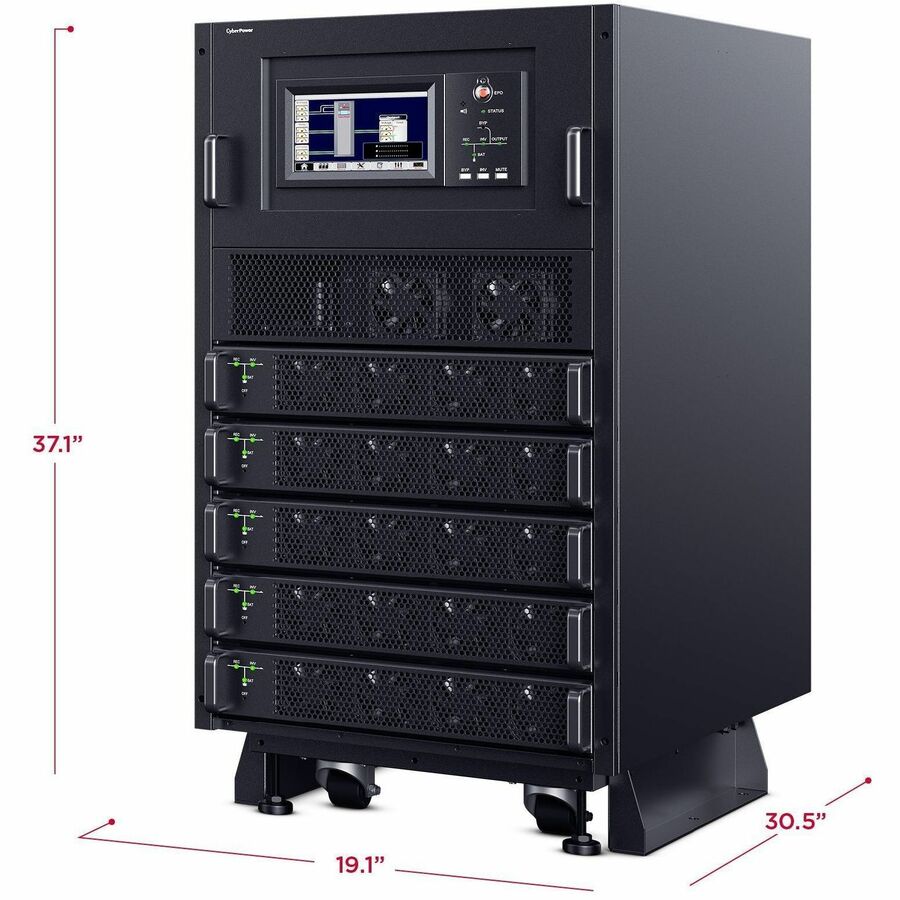

| Height | 37.1" |
| Width | 19.1" |
| Depth | 30.5" |
| Weight (Approximate) | 177.70 lb |
| Power Description | |
| Load Capacity (VA) | 40 kVA |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 187 V AC - 260 V AC |
| Output Voltage | 120 V AC, 127 V AC, 208 V AC, 220 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Receptacle Detail | 1 x Hardwired |
| Transfer Time | 0 ns |
| Protection Type | Short Circuit, Backfeed |
| Overload Protection | Yes |
| Phase | Three Phase |
| Energy Saving | Online ECO Mode Efficiency >97.5% |
| Application/Usage | Data Center |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel Business |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
