Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
SM020KAMFA
Category
Industrial UPS
Overview
The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.

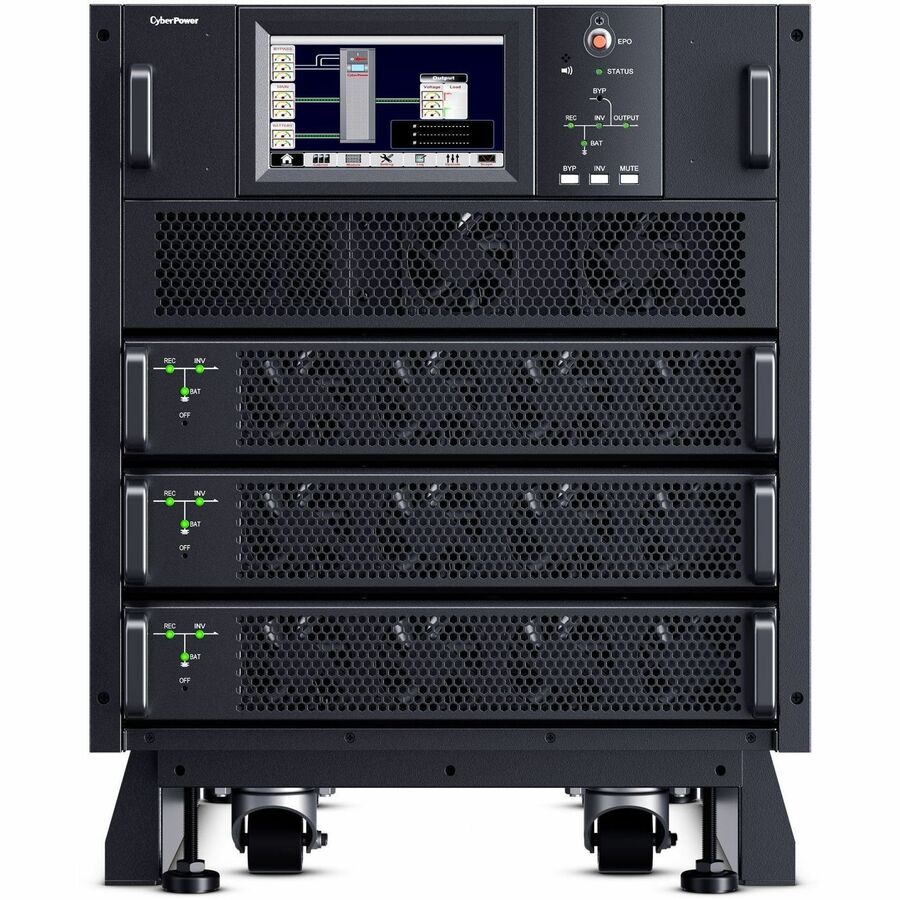

The SM020KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM020KAMFA Smart App Online 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.
Warranty
Limited Warranty: 1 Year
About CyberPower Systems
Our Vision
To be the first choice in power management solutions and the catalyst for advancing power innovation.
Our Mission
CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.

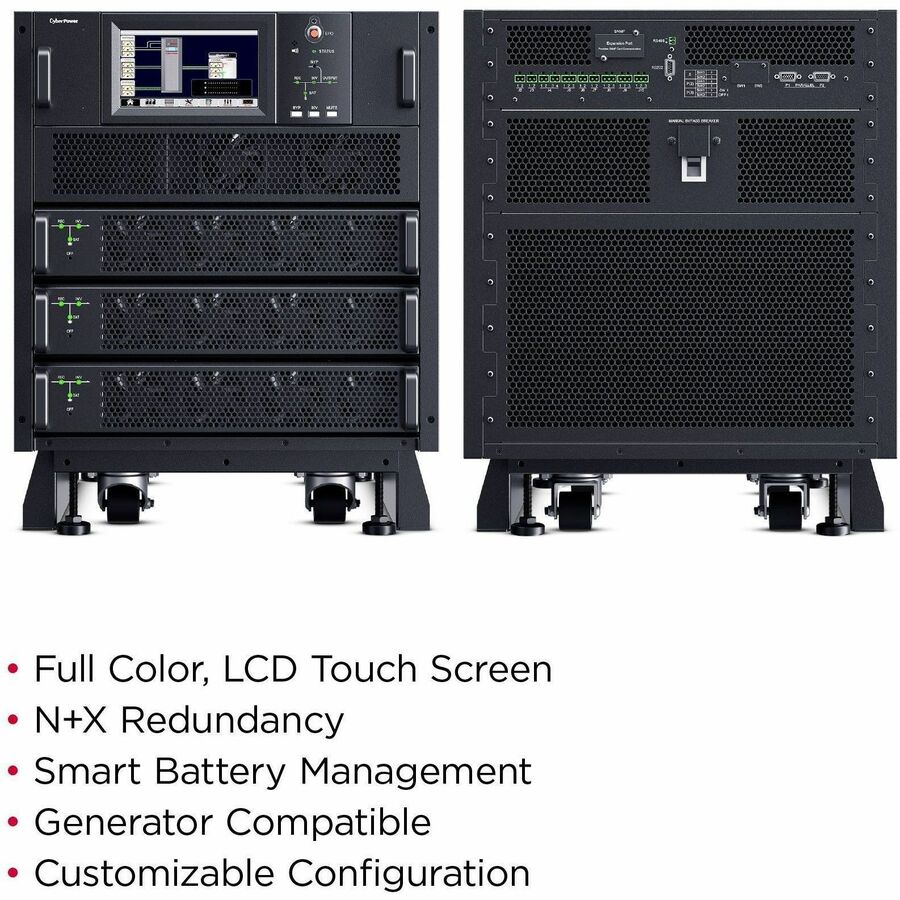

Highlights
Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+X)
Power Factor (PF): 1.0
Topology: Double-Conversion
Waveform: Sine Wave
Output: 208/120V or 220/127V VAC Configurable
Communication Ports: USB, Serial, Modbus, SNMP, EPO
Management Software: PowerPanel® Business
Energy Saving: ECO Mode Efficiency >97.5%
Warranty: 1 year
Specifications
Battery Information
DC System Voltage
120 V DC
Number of External Battery Cabinets
6
Controls/Indicators
Status Indicators
LCD: Multifunction LCD
LED Indicators: Rectifier
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Maximum Operating Elevation
10000 ft
Storage Relative Humidity
0% - 95%
Sound Emission (A-Weighted)
56 dB(A)
Thermal Dissipation
1679.93 W
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
SM020KAMFA
Brand Name
CyberPower
Product Series
Smart App Online UPS
Product Model
SM020KAMFA
Product Name
SM020KAMFA 3-Phase Modular Smart App Online UPS System
Product Type
Double Conversion Online UPS
Interfaces/Ports
Serial Port
Yes
USB (HID Compliant) Port
Yes
EPO Port
Yes
Management
Network Management
SNMP/HTTP Remote Monitoring
Physical Characteristics
Product Color
Black
Form Factor
Modular
Rack Height
11U

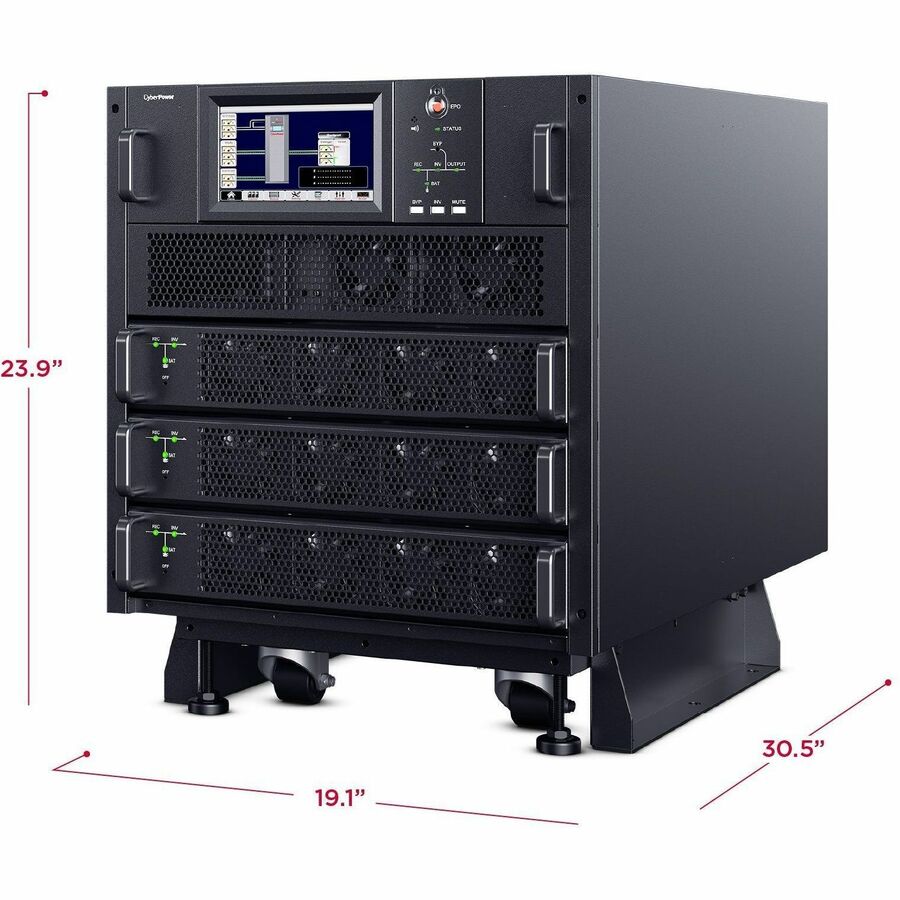

Height
23.9"
Width
19.1"
Depth
30.5"
Weight (Approximate)
133.80 lb
Power Description
Load Capacity (VA)
20 kVA
Input Voltage
120 V AC, 230 V AC
Input Voltage Range
187 V AC - 260 V AC
Output Voltage
120 V AC, 127 V AC, 208 V AC, 220 V AC
Input Frequency
60 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Technical Information
AVR
Yes
Plug/Connector Type
Hardwired
Receptacle Type
Hardwired
Receptacle Detail
1 x Hardwired
Transfer Time
0 ns
Protection Type
Backfeed, Short Circuit
Overload Protection
Yes
Phase
Three Phase
Energy Saving
Online ECO Mode Efficiency >97.5%
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
SM020KAMFA 3-Phase Modular Smart App Online UPS System
