CyberPower OL1000RTXL2UN Smart App Online UPS Systems
1000VA/900W, 100 - 125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
- SKU
- OL1000RTXL2UN
- Category
- Industrial UPS
MSRP$1,500.00
$1,164.23
Save 22%Back ordered — ships when restocked.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- OL1000RTXL2UN
- Category
- Industrial UPS
Overview
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS? ECO Mode.
The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer
Highlights
- Capacity: 1000 VA / 900 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ± 2% (configurable)
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
- Warranty: 3 year
Specifications
| Application/Usage | Mission Critical Equipment, Generator |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Software Included | PowerPanel® Business |
| Product Type | Dual Conversion Online UPS |
| Display | LCD |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | OL1000RTXL2UN |
| Limited Warranty | 3 Year |
| Output Voltage | 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC |
| Weight (Approximate) | 39.60 lb |
| Dataline Protection | RJ-11, RJ-45 |
| Form Factor | Rack/Tower |
| Status Indicators | Power On (White) |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL1000RTXL2UN |
| Product Name | OL1000RTXL2UN Smart App Online UPS Systems |
| Network Management | Dry Contact, Relay Card, SNMP Manageable |
| Overload Protection | Yes |
| Protection Type | Short Circuit |
| Surge Energy Rating | 1780 J |
| Thermal Dissipation | 80.30 W |
| Waveform Type | Sine Wave |
| Product Series | Smart App Online UPS |
| Rack Height | 2U |
| Brand Name | CyberPower |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 60 V AC - 69 V AC, 100 V AC - 125 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Alarm | Battery Mode, Low Battery, Overload, UPS Fault |
| Country of Origin | Taiwan |
| Cord Length | 10 ft |

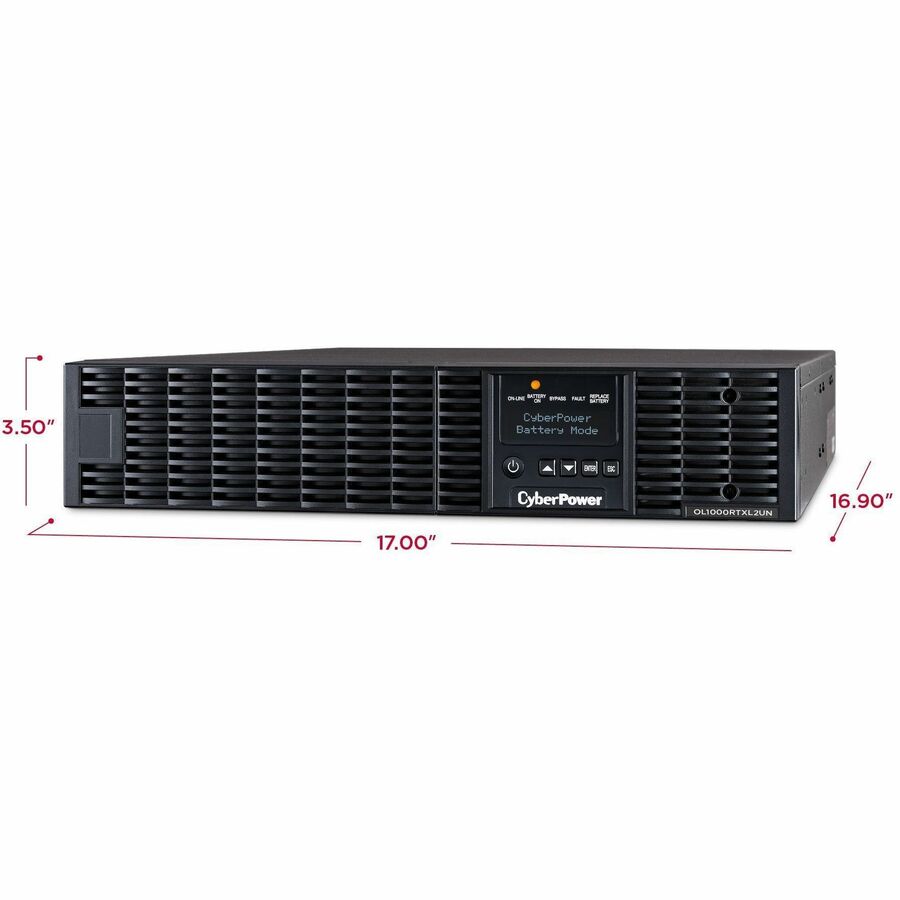

| Height | 3.5" |
| Width | 17" |
| Depth | 16.9" |
| Input Frequency | 40 Hz, 70 Hz |
| Battery Size | 12V |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Battery Capacity | 9000 mAh |
| USB | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of Batteries | 3 |
| Backup/Run Time (Half Load) | 21 Minute |
| Backup/Run Time (Full Load) | 8 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 900 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| Energy Saving | ECO Mode Efficiency >94% |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 4 Hour |
| Product Color | Black |
| Crest Factor | 3:1 |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Receptacle Detail | 8 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Circuit Breaker Current Rating | 15 A |
