5000VA/5000W, 200 - 240 VAC, Hardwire Terminal (NEMA L6-30P power cord included), 2U, Rack / Tower, Sine Wave, 4 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
MSRP$6,500.00
$5,934.43
Save 9%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 8 and Nov 12, then process your delivery right after.
Genuine CyberPower Systems through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
The CyberPower Smart App Online OL5KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL5KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

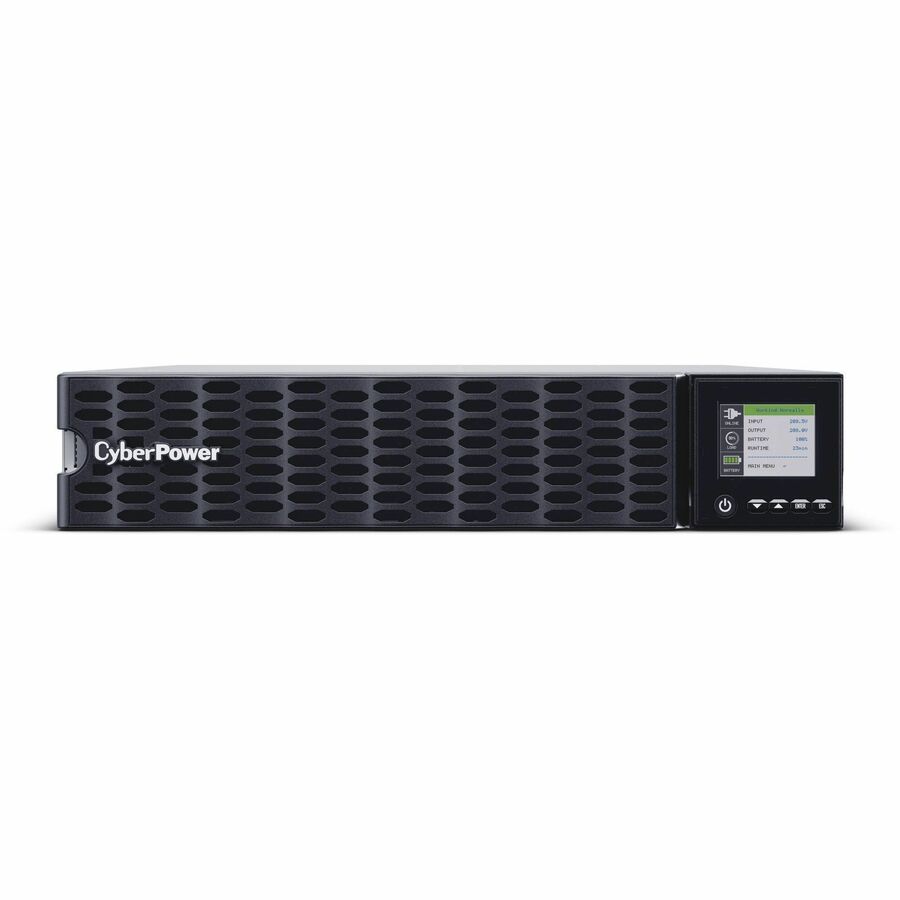

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL5KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
More from the Manufacturer
More Power, Less Space
The CyberPower Smart App UPS Online high-density design offers more power in less space allowing more room to grow. It features double-conversion topology for seamless power protection and a user-friendly, full color matrix LCD control panel that is simple to set up and easy to use.
Core Network Equipment
Ensure your Core Network Equipment stays powered and protected from surges and spikes.
Telecom/VoIP
Keep your communication lines open and running during power outages.
Server Rooms
Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.
Product Q&A
How long will the UPS power my systems after the power goes out?
This system is estimated to run for 6.4 minutes at half load, 2.3 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.
Can the battery capacity be expanded?
Yes, the OL5KRTHD can support the BP144VL2U01 extended battery module to help extend the UPS runtime.
Can the OL5KRTHD be monitored?
Yes, the OL5KRTHD comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
Do all of the outlets have battery backup and surge protection?
Yes, all four outlets provide battery backup and surge protection. One outlet provides critical load protection to maximize the run time for critical equipment.
How do I mute the alarms?
Users can disable or enable the audible alarms from the basic set up via the LCD screen, navigate to audible alarm and then set to Mute on battery.
Additional Warranty Information: Backed by a three-year warranty (including batteries) Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Battery Information | |
|---|---|
| DC System Voltage | 12 V DC |
| Number of Batteries | 12 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 5700 mAh |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Backup/Run Time (Half Load) | 7.90 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | Power On (White) |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Thermal Dissipation | 308.02 W |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL5KRTHD |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL5KRTHD |
| Product Name | OL5KRTHD Smart App Online UPS Systems |
| Product Condition | New |
| Product Type | Dual Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | No |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17" |
| Depth | 28.3" |
| Weight (Approximate) | 92.40 lb |
| Power Description | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 5000 W |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 120 V AC - 139 V AC, 200 V AC - 240 V AC |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Input Frequency | 50 Hz, 60 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-20R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Transfer Time | 0 ns |
| Protection Type | Backfeed, Short Circuit |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Cord Length | 10 ft |
| Circuit Breaker Current Rating | 50 A |
| Efficiency | 96% |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Backed by a three-year warranty (including batteries) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
