CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems
CyberPower Systems

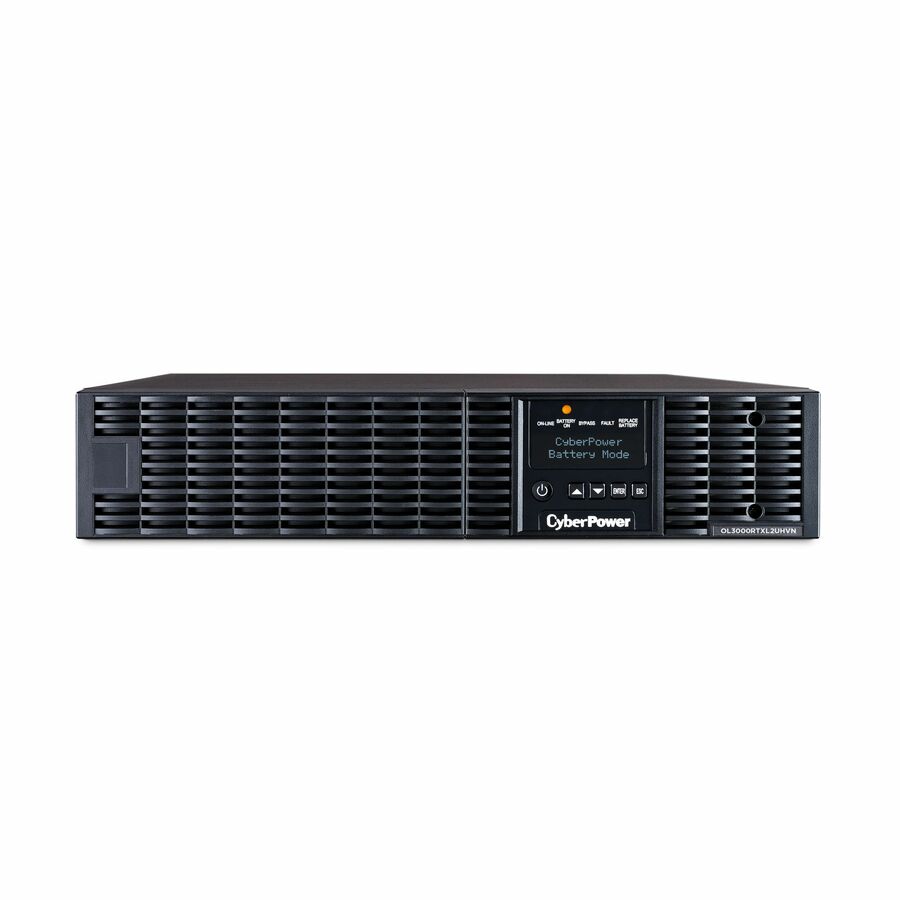

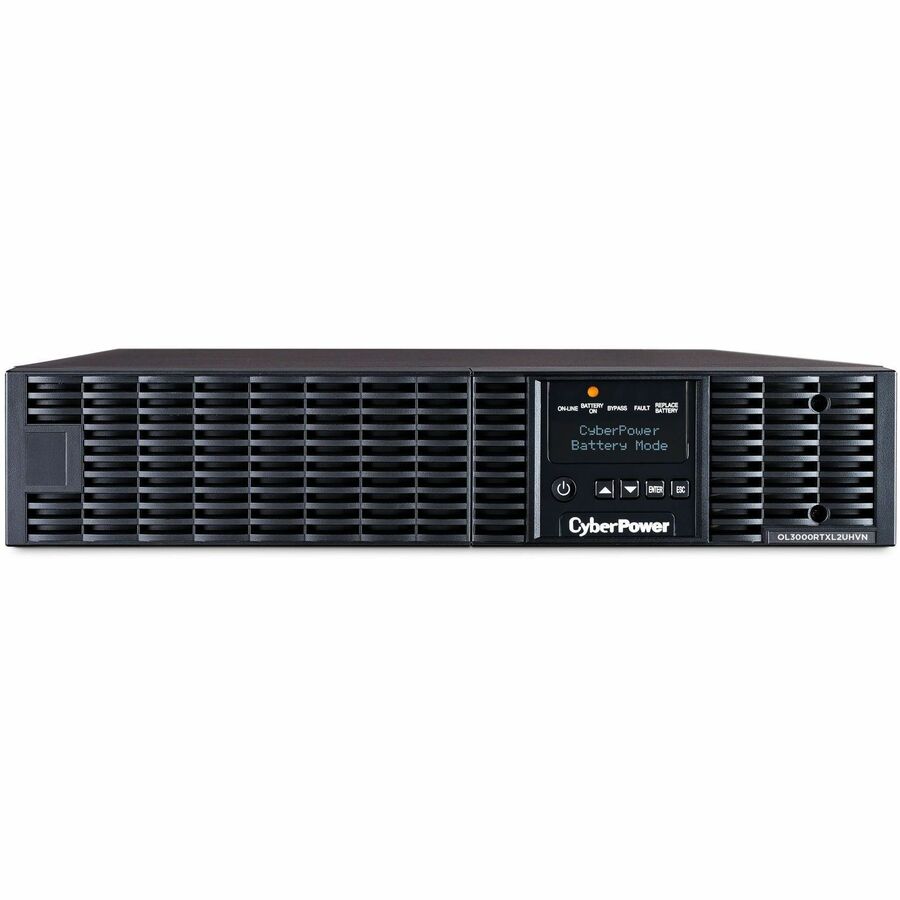

CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems

3000VA/2700W, 200 - 240 VAC, NEMA L6-20P, 2U, Rack / Tower, Sine Wave, 3 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

SKU
OL3000RTXL2UHVN
Category
Industrial UPS

MSRP$4,500.00

$3,324.04

Save 26%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
OL3000RTXL2UHVN
Category
Industrial UPS

Overview

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL3000RTXL2UHVN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS? ECO Mode.

The OL3000RTXL2UHVN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

More from the Manufacturer

Highlights

  • Capacity: 3000 VA / 2700 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 200, 208, 220, 230, 240 V ±2% (configurable)
  • Plug type & cord: NEMA L6-20P, 10 ft. cord

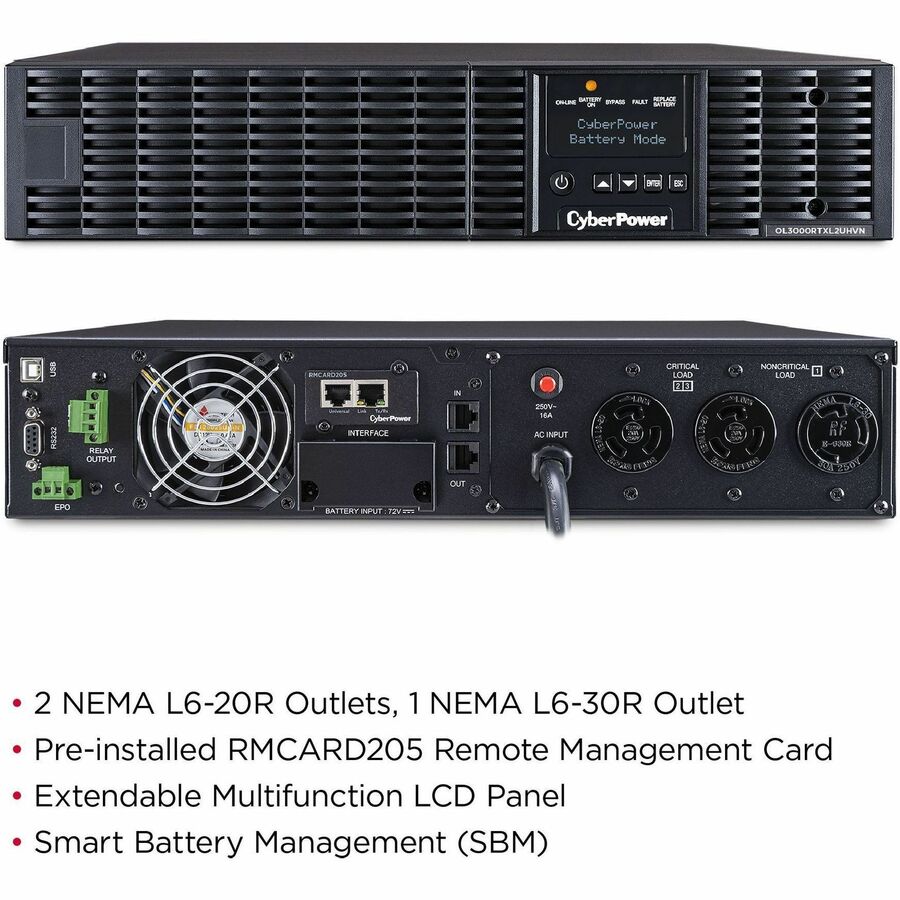

  • Outlet types: 2 × NEMA L6-20R, 1 × NEMA L6-30R
  • Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition
  • Warranty: 3 year

Specifications

Application/UsageServer, Network Device, Lab Equipment, Electronic Device, High-end System Component, Edge Computing, PBX System, VoIP, Mission Critical Equipment, Generator
Battery ChemistryLead Acid
Package Contents
  • Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS
  • User Manual
  • Registration Card
  • 2 x Rackmount Rails
  • 2 x Rackmount Ears
  • 2 x Hanging Brackets
  • Phone Line
  • USB Communication Cable
  • Serial Interface Cable (RS-232)
  • 8 x M5X7L Black Flat Head Screws
  • 12 x M5X12L Black Pan Head Screws
  • 6 x M5X6L Silver Pan Head Screws
  • 8 x Plastic Washers
  • 12 x Screw Hole Dust Covers
  • 12 x Rubber Pads
  • Software Download Card
Software IncludedPowerPanel® Business
Product TypeDual Conversion Online UPS
DisplayLCD
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberOL3000RTXL2UHVN
Limited Warranty3 Year
Output Voltage200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Weight (Approximate)68.20 lb
Dataline ProtectionRJ-11, RJ-45

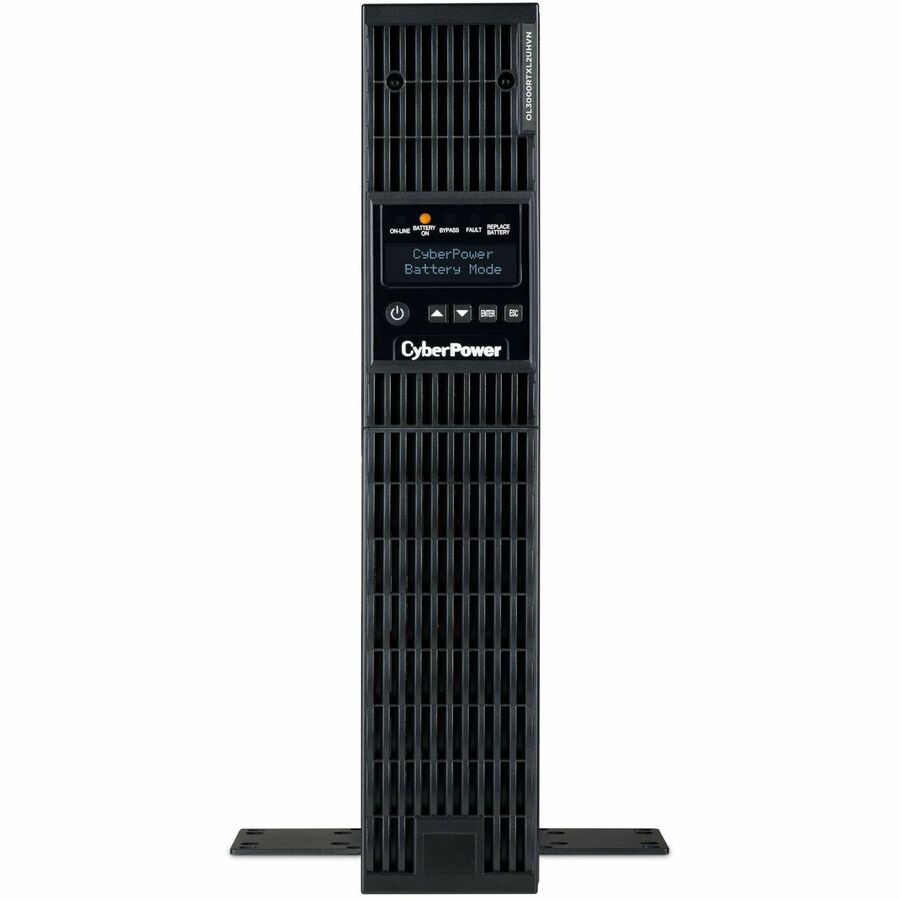

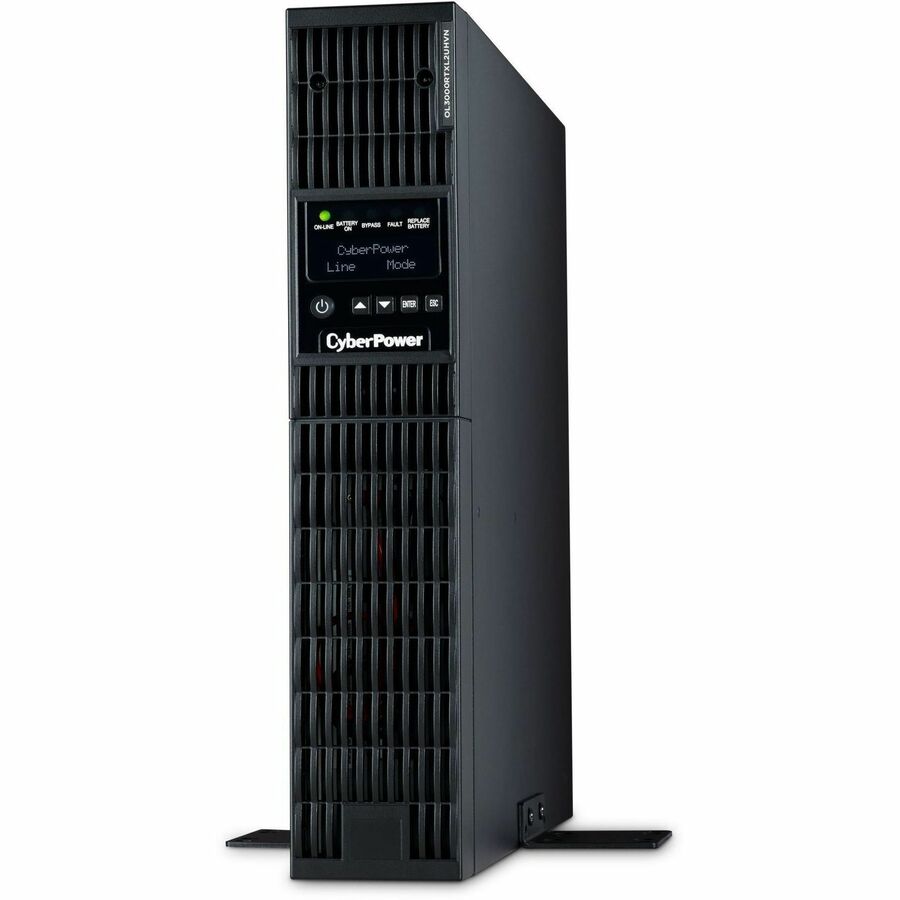

Form FactorRack/Tower
Status IndicatorsPower On (White)
ManufacturerCyberPower Systems, Inc
Product ModelOL3000RTXL2UHVN
Product NameOL3000RTXL2UHVN Smart App Online UPS Systems
Network ManagementDry Contact, Relay Card, SNMP/HTTP/CLI Remote Monitoring
Overload ProtectionYes
Protection TypeShort Circuit
Surge Energy Rating445 J
Thermal Dissipation231.53 W
Waveform TypeSine Wave
Product SeriesSmart App Online UPS
Rack Height2U
Brand NameCyberPower
Plug/Connector TypeNEMA L6-20P
Input Voltage Range120 V AC - 139 V AC, 200 V AC - 240 V AC
Output Frequency50 Hz, 60 Hz
AlarmBattery Mode, Low Battery, Overload, UPS Fault
Country of OriginPhilippines
Cord Length10 ft

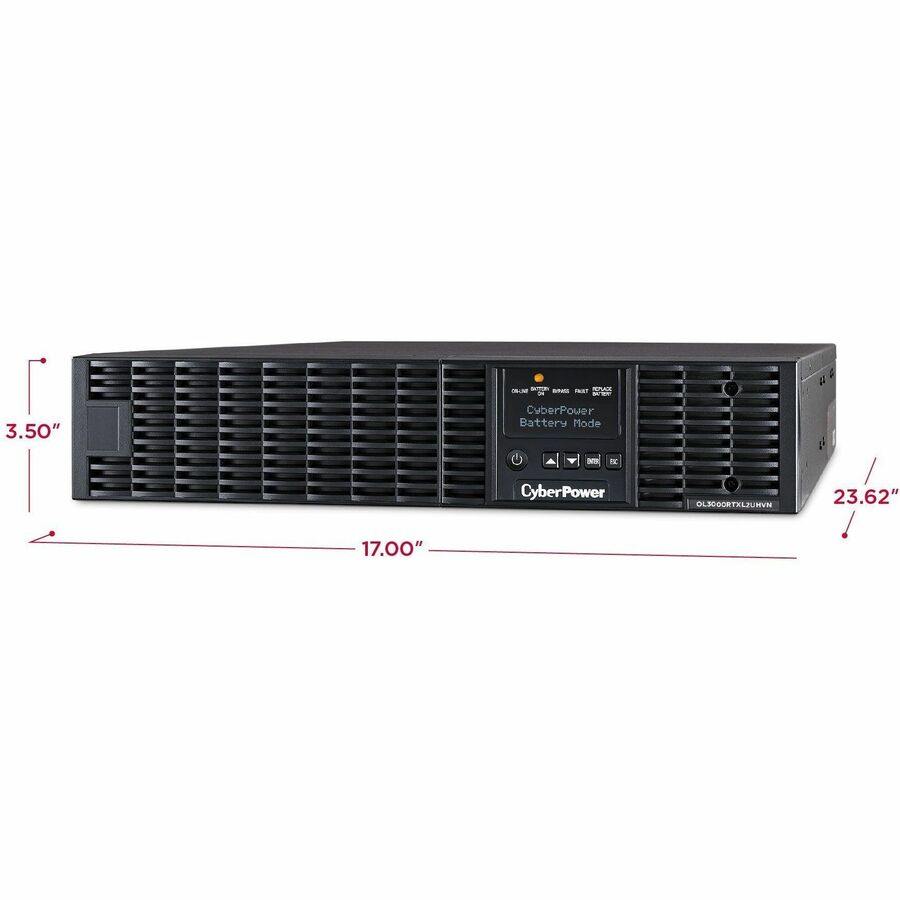

Height3.5"
Width17"
Depth23.6"
Input Frequency50 Hz, 60 Hz
Battery Size12V
Receptacle TypeNEMA L6-20R, NEMA L6-30R
Environmentally FriendlyYes
Battery Capacity9000 mAh
USBYes
Maximum Operating Temperature104°F (40°C)
Serial PortYes
Number of Batteries6
Backup/Run Time (Half Load)12.50 Minute
Backup/Run Time (Full Load)4 Minute
Battery CharacteristicsSealed
Load Capacity (VA)3000 VA
Load Capacity (Watt)2700 W
EMI/RFI Noise FilterYes
Replaceable BatteryYes
Energy StarYes
DC System Voltage12 V DC
Energy SavingECO Mode Efficiency >97%
EPO PortYes
USB (HID Compliant) PortYes
Maximum Operating Elevation10000 ft
Maximum Storage Elevation50000 ft
Operating Humidity0% - 90%
Storage Relative Humidity0% - 95%
Storage Temperature-4°F (-20°C) - 113°F (45°C)
Transfer Time0 ns
Typical Battery Recharge Time4 Hour
Product ColorBlack
Crest Factor3:1
Input Power Factor0.99
Output Power Factor0.9
Receptacle Detail2 x NEMA L6-20R, 1 x NEMA L6-30R
Sound Emission (A-Weighted)55 dB(A)
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Circuit Breaker Current Rating16 A
