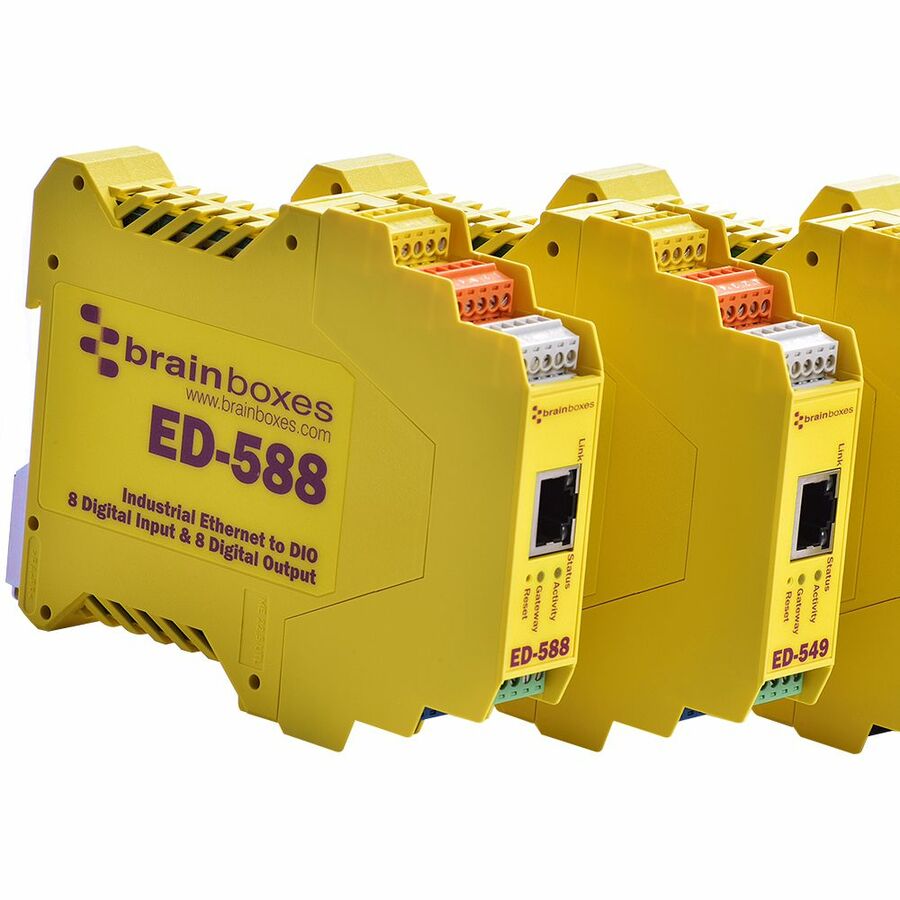

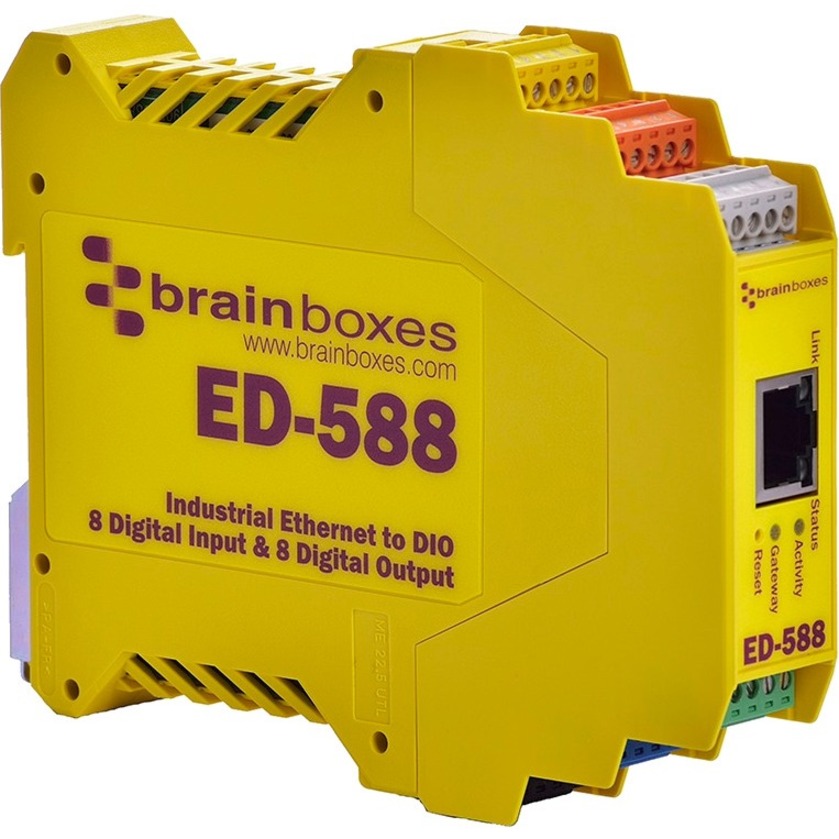

Brainboxes Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485…
Gateway
1 x Network (RJ-45) - Fast Ethernet - 10/100Base-T - DC - Rail-mountable
SKU
Category
Transceivers/Media Converters
MSRP$16,208.78
$14,570.84
Save 10%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 24 and Nov 28, then process your delivery right after.
Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Transceivers/Media Converters
Country of origin
United Kingdom
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Ethernet to DIO device: 8 non-isolated digital input channels and 8 digital output channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'.
The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
The outputs are good for driving hot and cold resistive loads, capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Warranty
Limited Warranty: Lifetime
Highlights
8 Digital Inputs, 8 Digital Outputs and an RS485 Gateway Port
Control any input or output from TTL to high voltage high current industrial devices

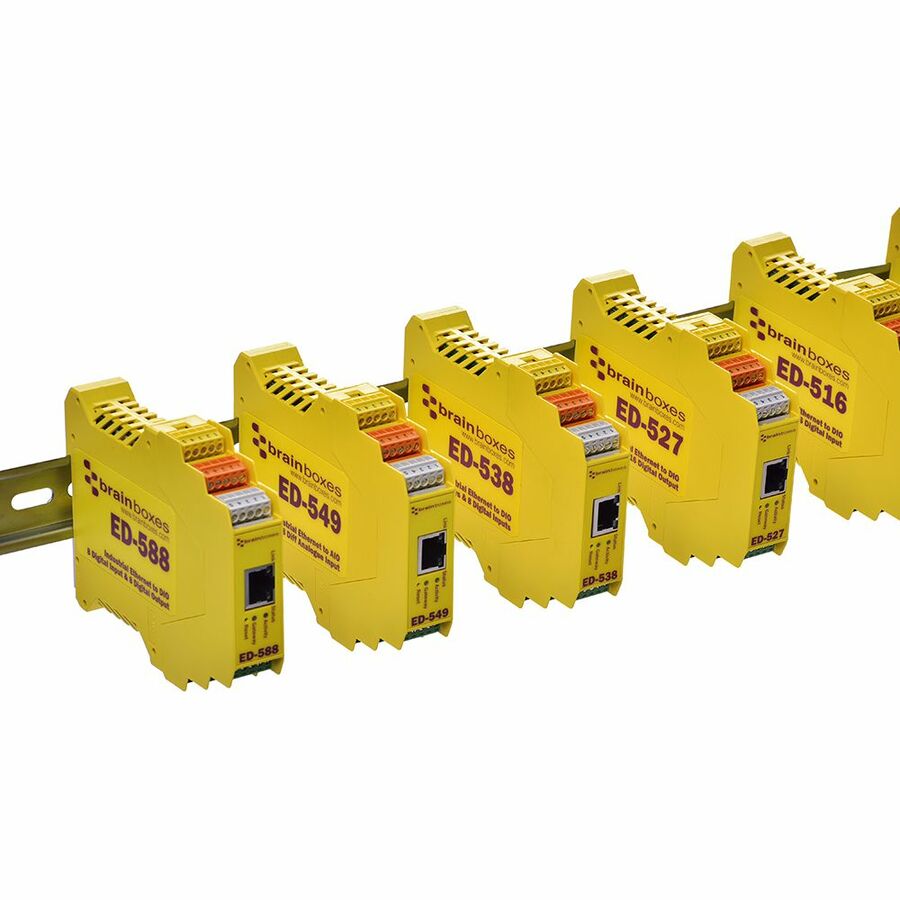

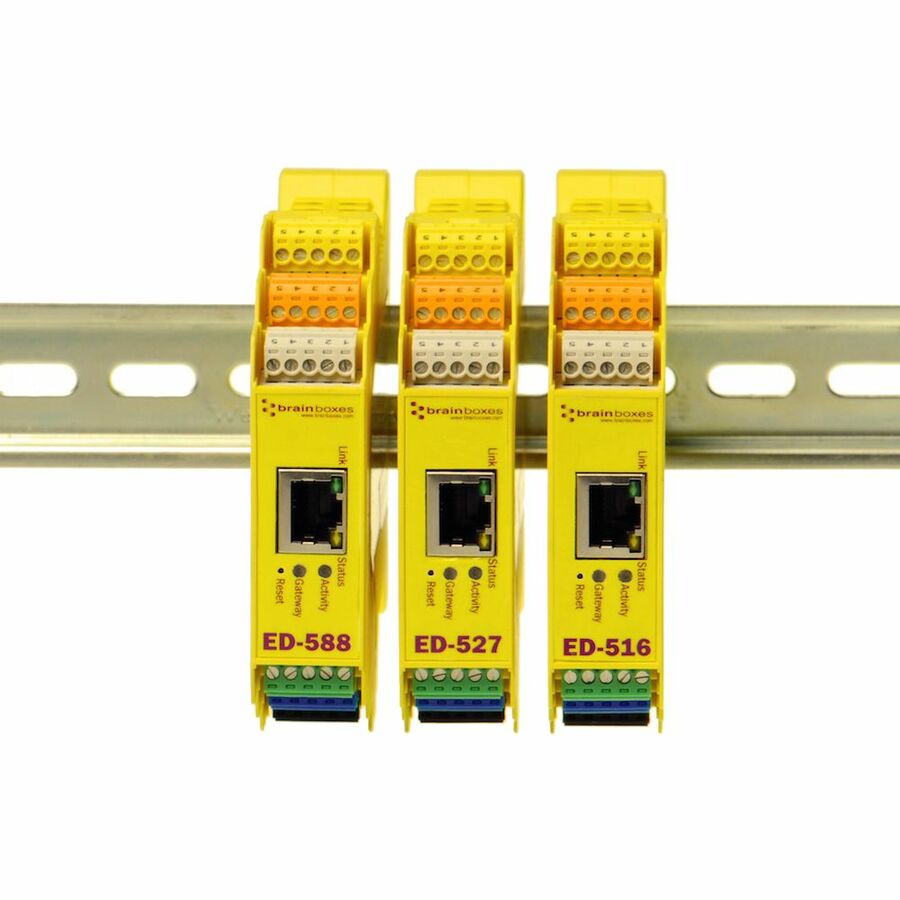

Factory floor process control and automation, Integrated DIN rail mount
Supports simple ASCII or industry standard Modbus TCP
-30°C to +80°C Temperature range
Software APIs for Visual Basic, C# and more
Videos
Brainboxes Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
ED-588-X50M
Brand Name
Brainboxes
Product Model
ED-588
Product Name
Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
1
Network (RJ-45)
Yes
USB
No
Management Port
No
Number of Network (RJ-45) Ports
1
Media & Performance
Media Type Supported
Twisted Pair
Network & Communication
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T
Physical Characteristics
Form Factor
Rail-mountable

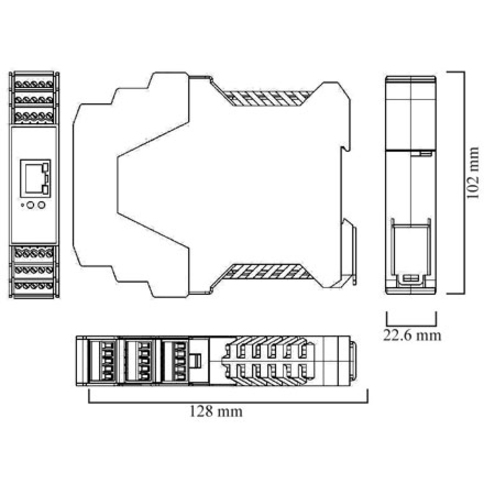

Height
0.9"
Width
5.1"
Depth
4"
Weight (Approximate)
4.87 oz
Power Description
Power Source
DC
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway
Installation CD Including Manual
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
