MSRP$197.25
$181.02
Save 8%Special order — estimated available by September 10, 2026.
Genuine Brainboxes through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Ethernet to DIO device: 3 Form A Relays and 3 Digital Inputs. Powerful ARM 80 MHz, 32 Bit CPU.
The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. It behaves as a web relay controlled over ethernet. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
The outputs are good for driving hot and cold resistive loads, capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.
Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.
Relay specification: 5A @ 30 VDC, 5A @ 250VAC, 5 A @ 110VAC
More from the Manufacturer

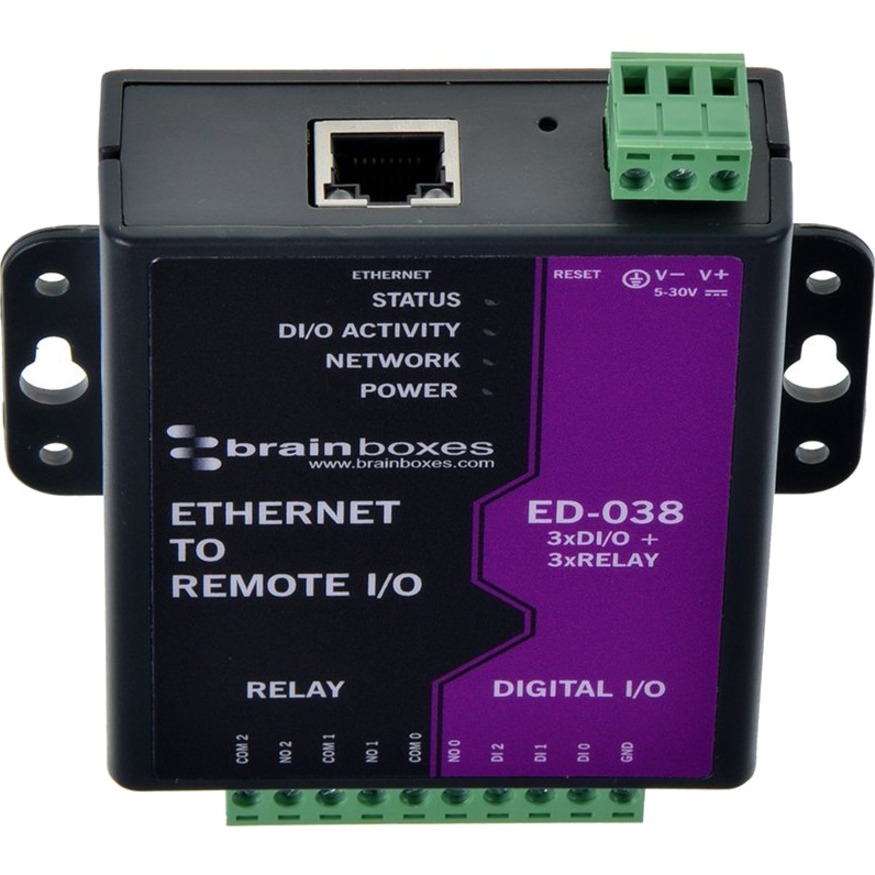

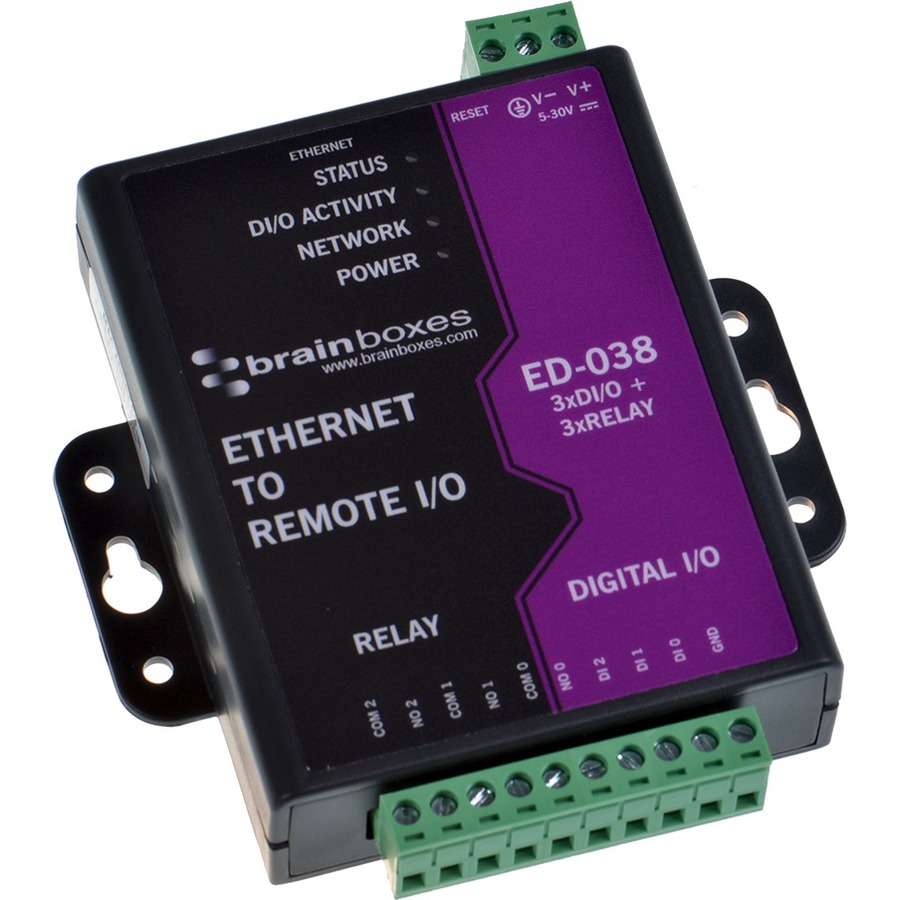

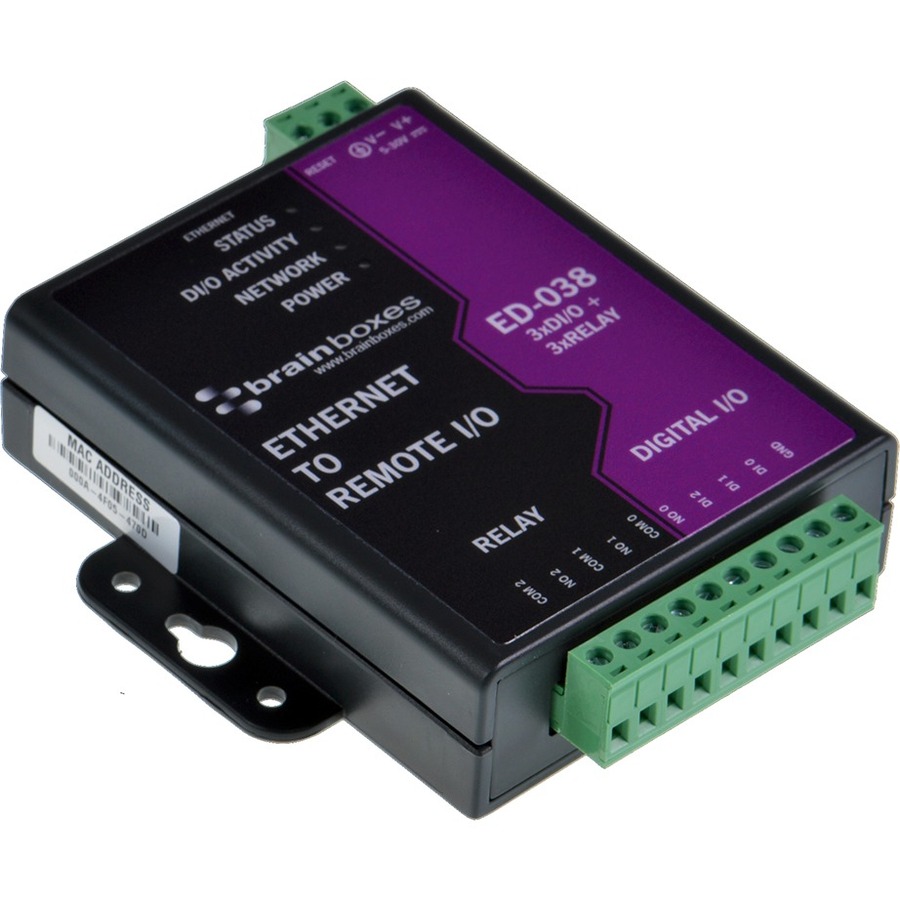

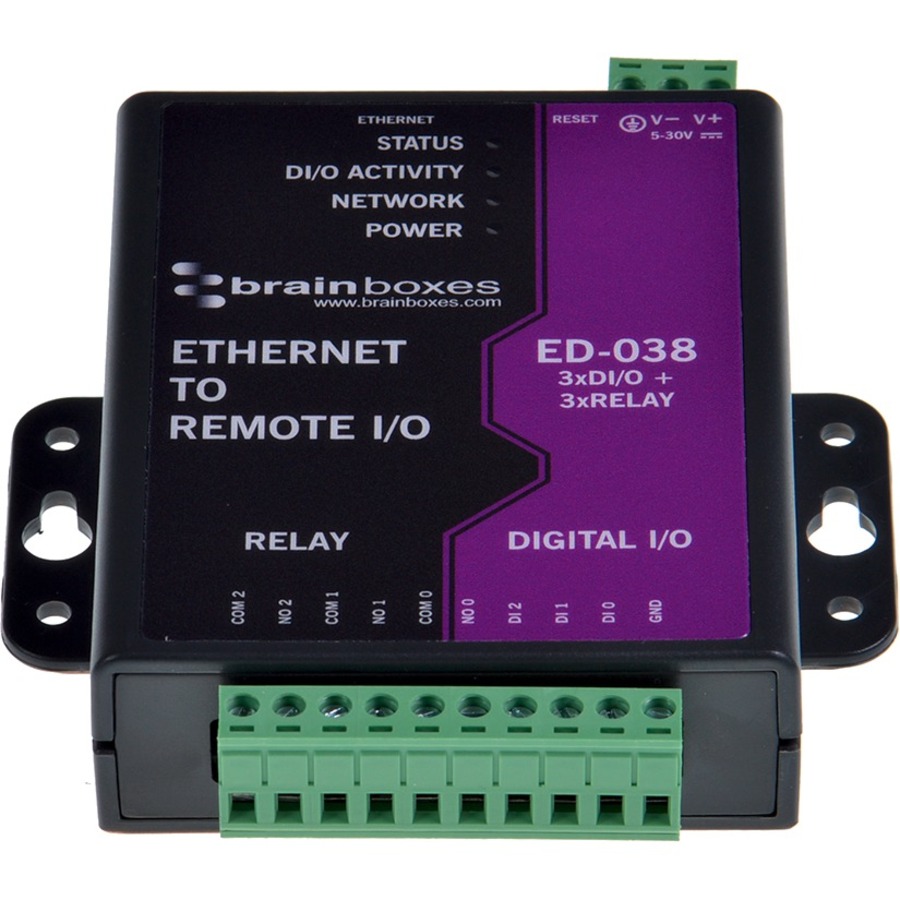

ED-038 Ethernet to Digital I/O Relay
1 Ethernet Port
User friendly software interface Simple web based configuration, monitoring and control
Software APIs for VB, C# and more
3 Form A Relay Outputs
3 Digital Inputs
3 Form A Relays and 3 Digital Inputs
Relays: 5A @ 30 VDC, 5A @ 250VAC, 5 A @ 110VAC
Factory floor process control and automation
User friendly software interface, Legacy compatible
0°C to +60°C Temperature range, Wall mountable
Software APIs for Visual Basic, C# and more
Ethernet to DIO device: 3 Form A Relays and 3 Digital Inputs. Powerful ARM 80 MHz, 32 Bit CPU.
The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. It behaves as a web relay controlled over ethernet. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
The outputs are good for driving hot and cold resistive loads, capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.
Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.
Relay specification: 5A @ 30 VDC, 5A @ 250VAC, 5 A @ 110VAC
Easy to set up with LED status
lights for Digital I/O lines that
correspond to simple to read
webpage
+5 to +30 Volt Power Input
enables the device to be run
from USB, a vehicle battery or
the factory floor
Integral wall mount option can
be used with MK-048 clips to
allow DIN rail mounting
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ED-038 |
| Brand Name | Brainboxes |
| Product Model | ED-038 |
| Product Name | ED-038 Ethernet to Digital I/O Relay |
| Product Type | Ethernet To Digital IO Module |
| Physical Characteristics | |
| Height | 1" |
| Width | 4.6" |
| Depth | 3.9" |
| Weight (Approximate) | 4.73 oz |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
