Overview

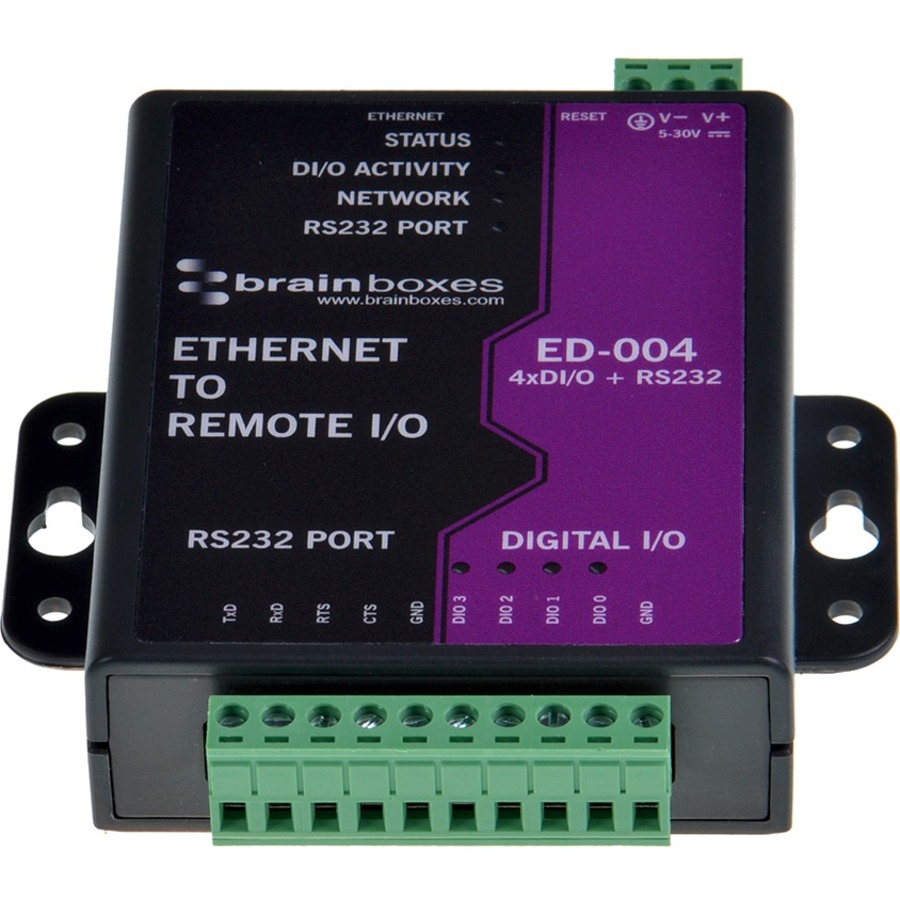

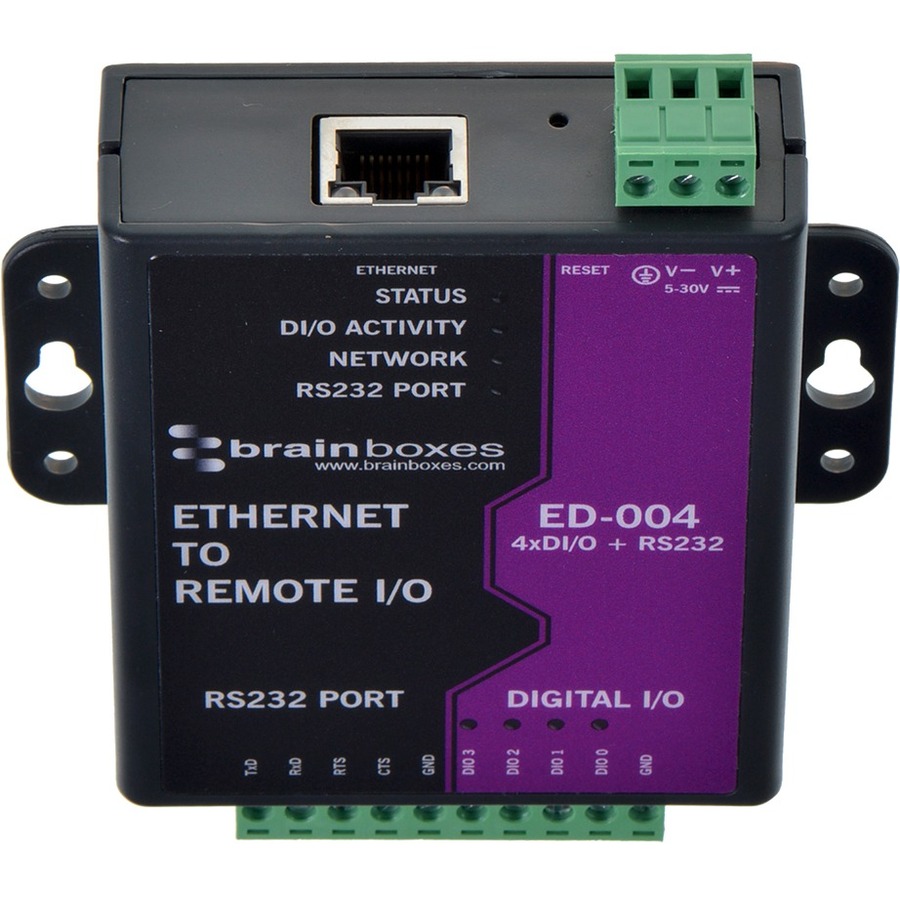

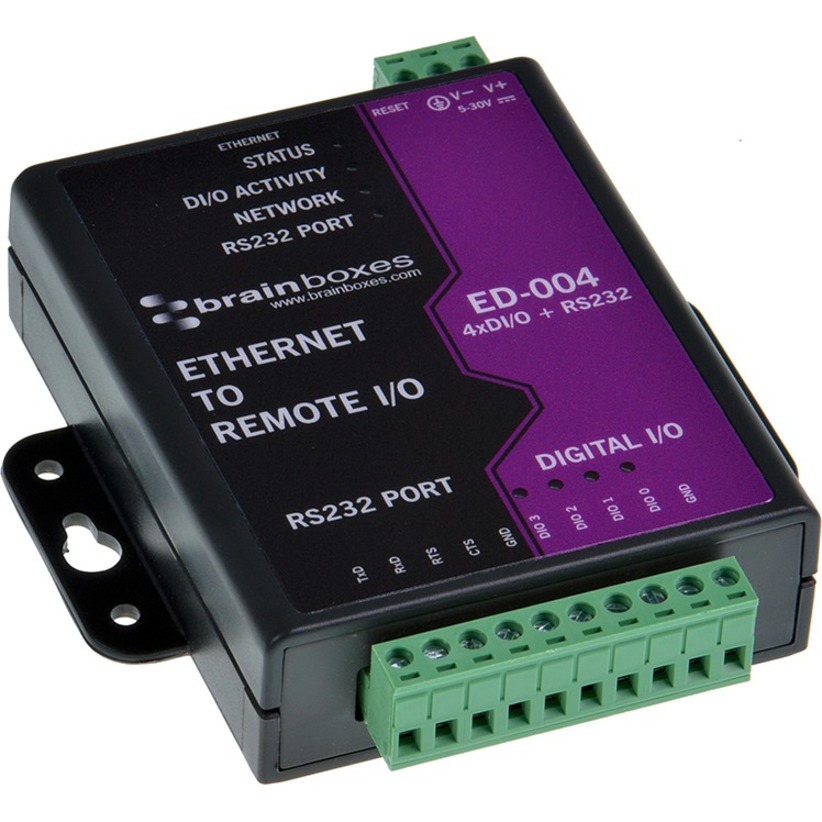

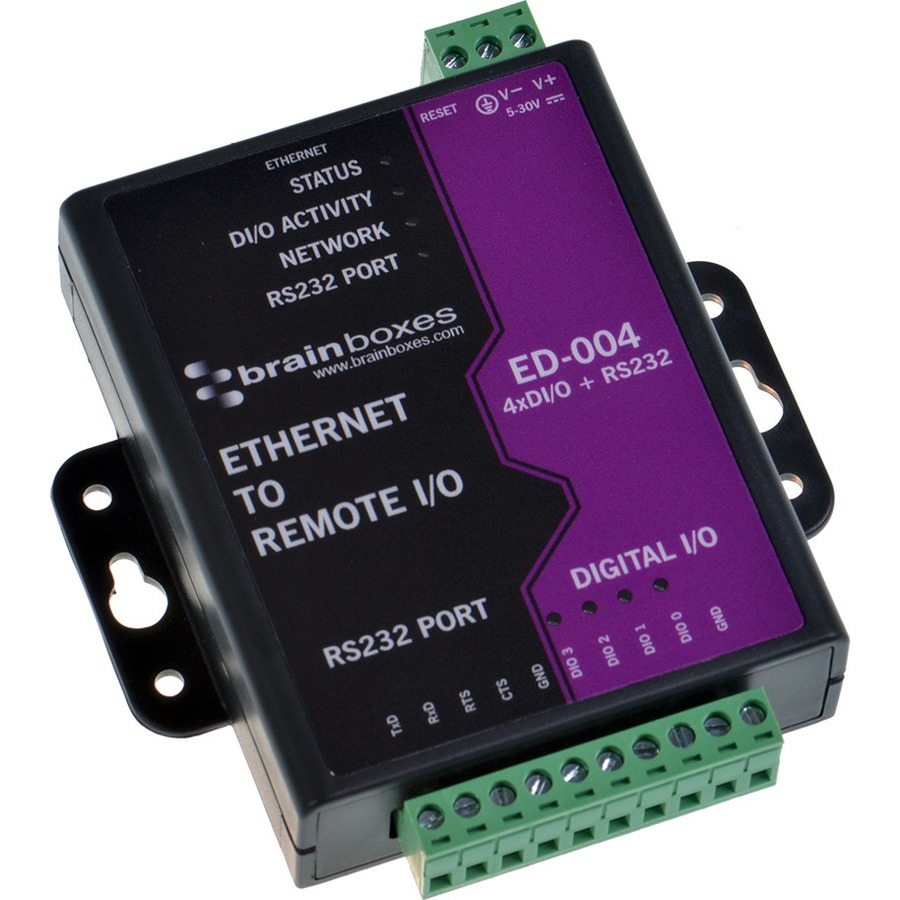

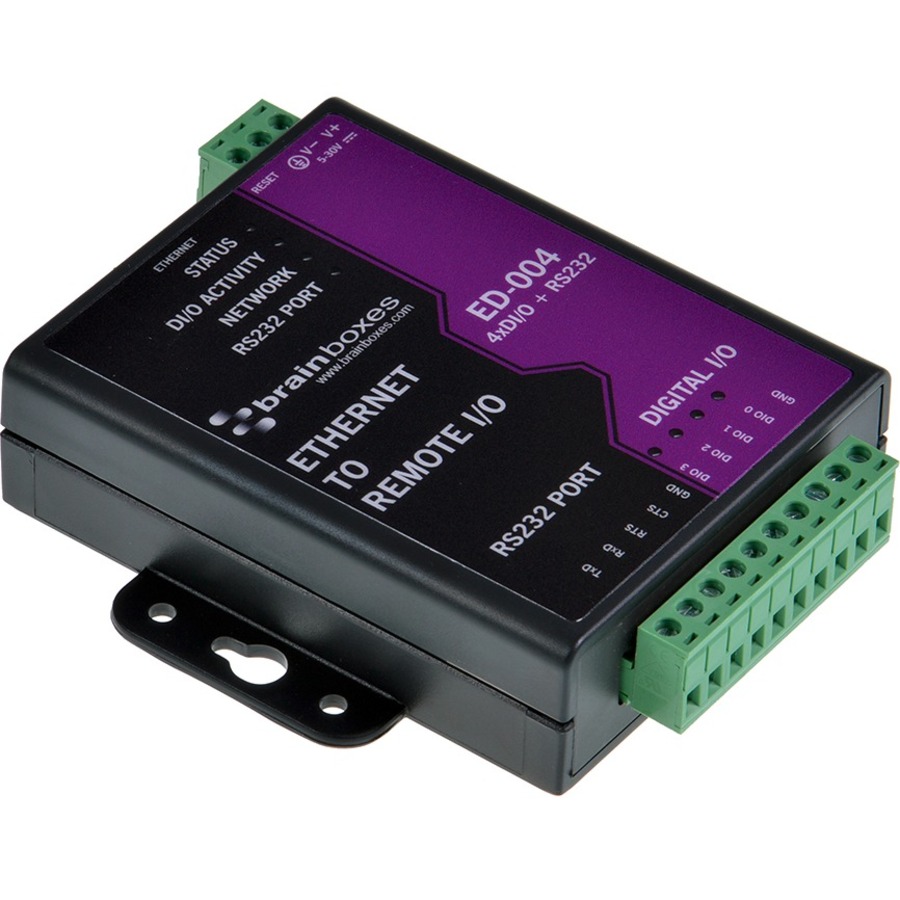

Ethernet to DIO device with Serial port: 4 digital input channels or 4 digital output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Warranty
Limited Warranty: Lifetime
Highlights
4 Digital Inputs/Outputs + RS232 Serial Port
Complete Ethernet to Serial Device Server: up to 1 MegaBaud
Factory floor process control and automation
User friendly software interface, Legacy compatible
0°C to +60°C Temperature range, Wall mountable
Software APIs for Visual Basic, C# and more
Videos
Brainboxes Ethernet to 4 Digital IO and RS232 Serial Port
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
ED-004
Brand Name
Brainboxes
Product Model
ED-004
Product Name
Ethernet to 4 Digital IO and RS232 Serial Port
Product Type
Ethernet To Digital IO Module
Physical Characteristics
Height
1"
Width
4.6"
Depth
3.9"
Weight (Approximate)
4.44 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Ethernet to 4 Digital IO and RS232 Serial Port
Installation CD Including Manual, Microsoft Signed Drivers & Utilities
Quick Start Guide
Country of Origin
United Kingdom
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
