Brainboxes - Ethernet to 8 Digital IO Lines

Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.

Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..

More from the Manufacturer

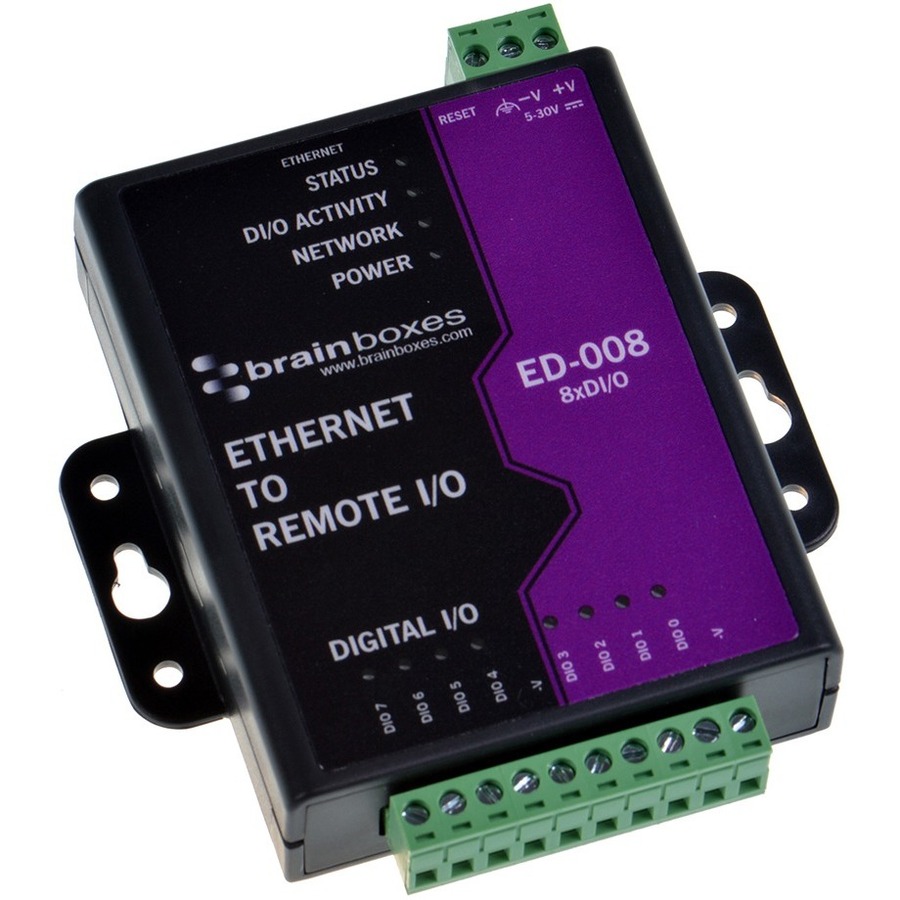

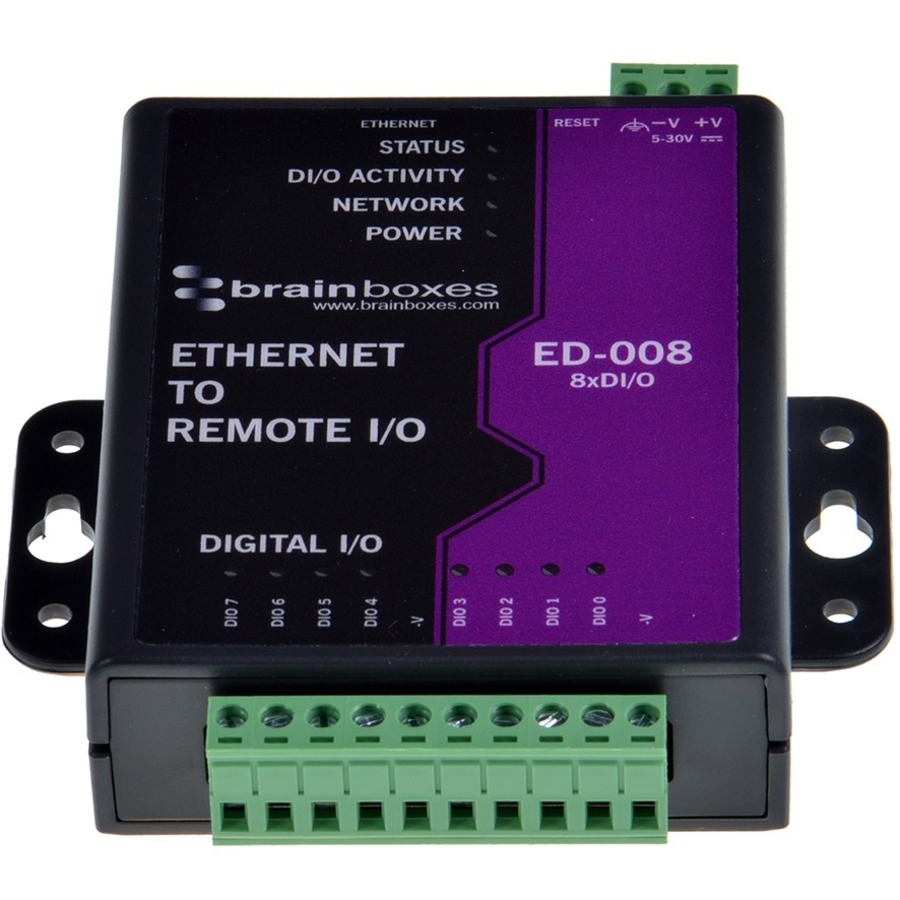

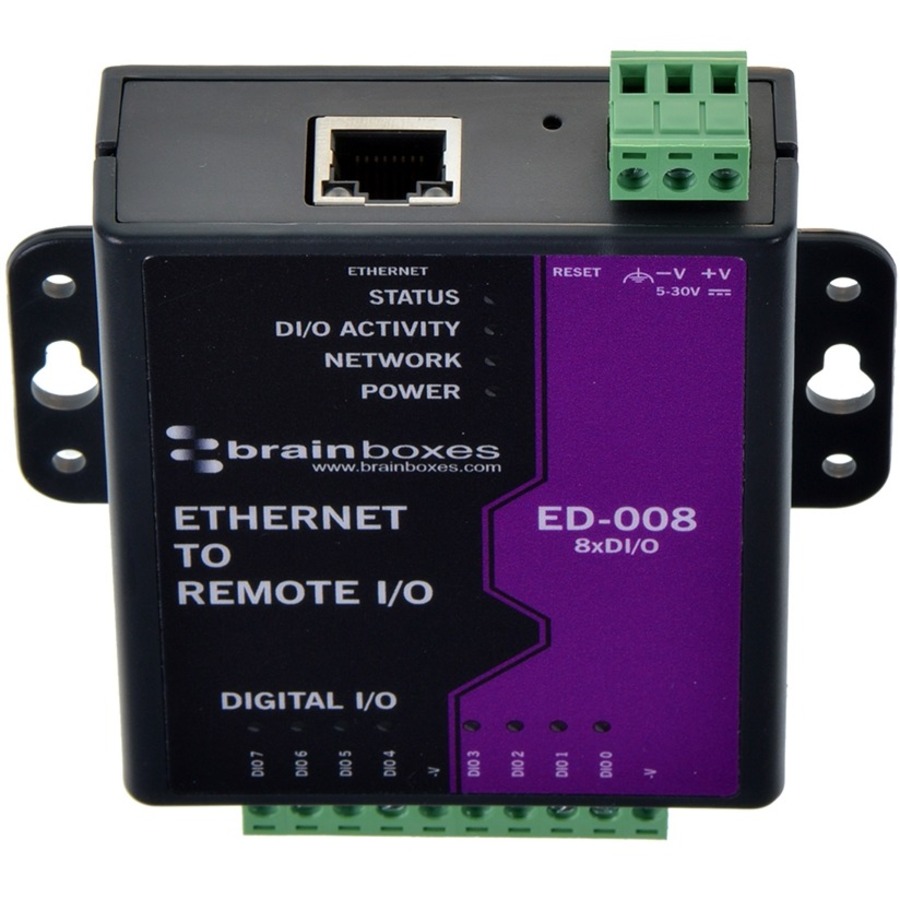

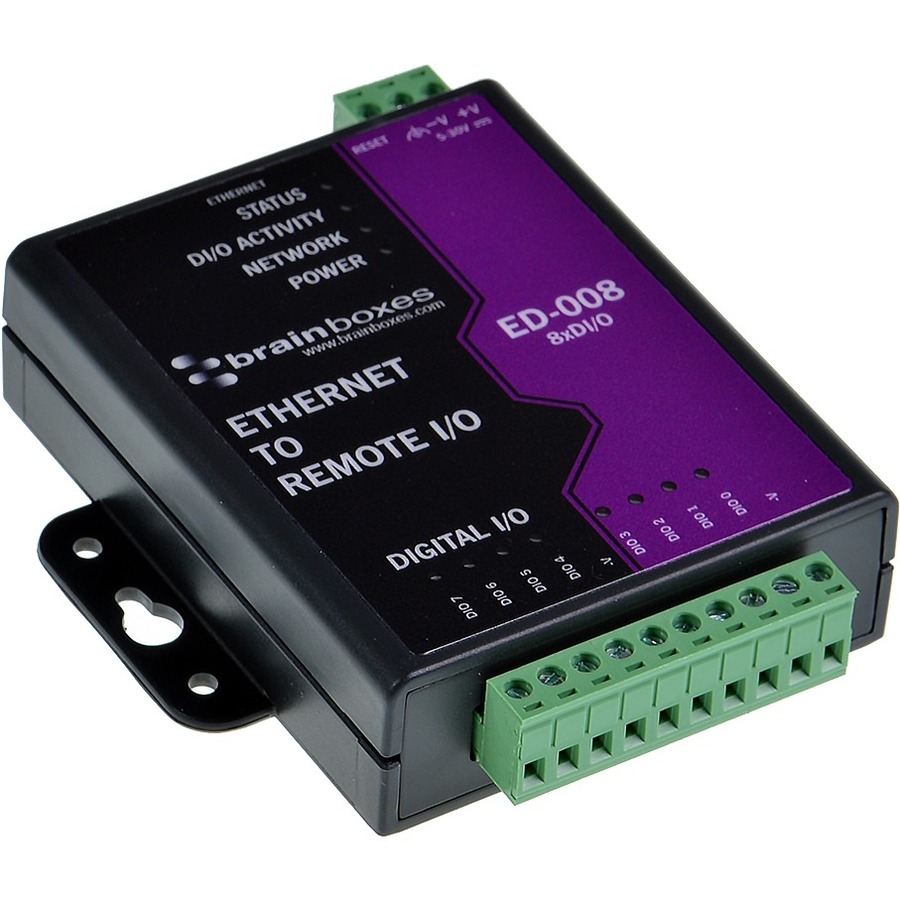

ED-008 Ethernet to Digital I/O

8 Digital Ports independently can be In or Out

User friendly software interface Simple web based configuration, monitoring and control

Software APIs for VB, C# and more

8 Digital Inputs/Outputs

Control any input or output from TTL to high voltage high current industrial devices

Factory floor process control and automation

User friendly software interface, Legacy compatible

0°C to +60°C Temperature range, Wall mountable

Software APIs for Visual Basic, C# and more

Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.

Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..

Easy to set up with LED status

lights for Digital I/O lines that

correspond to simple to read

webpage

+5 to +30 Volt Power Input

enables the device to be run

from USB, a vehicle battery or

the factory floor

Integral wall mount option can

be used with MK-048 clips to

allow DIN rail mounting
