SKU
ED-204
Category
Ethernet I/O Modules
Overview
Ethernet to DIO device with Serial port: 4 digital input channels . Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
More from the Manufacturer

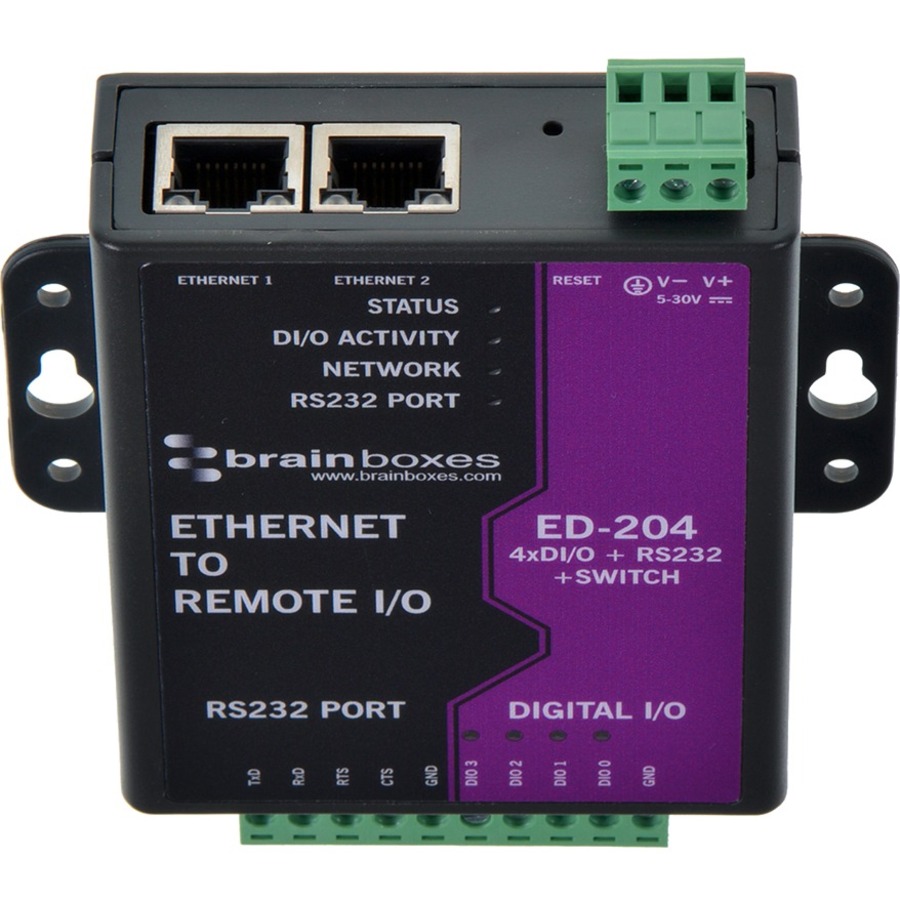

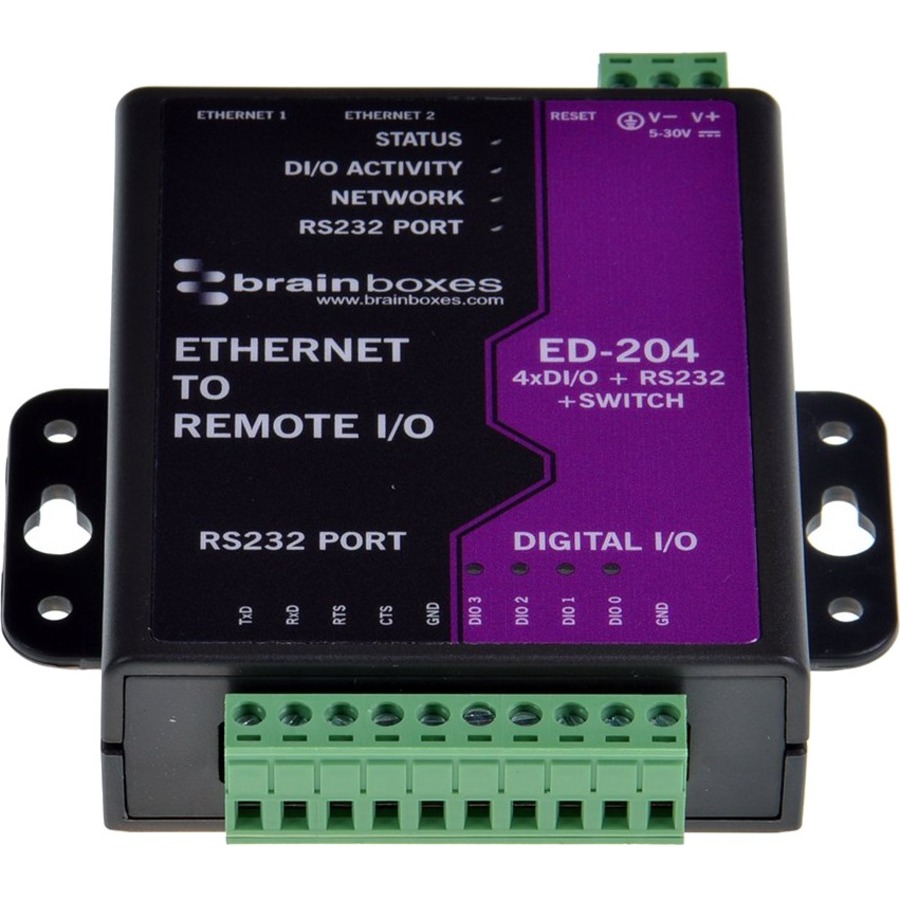

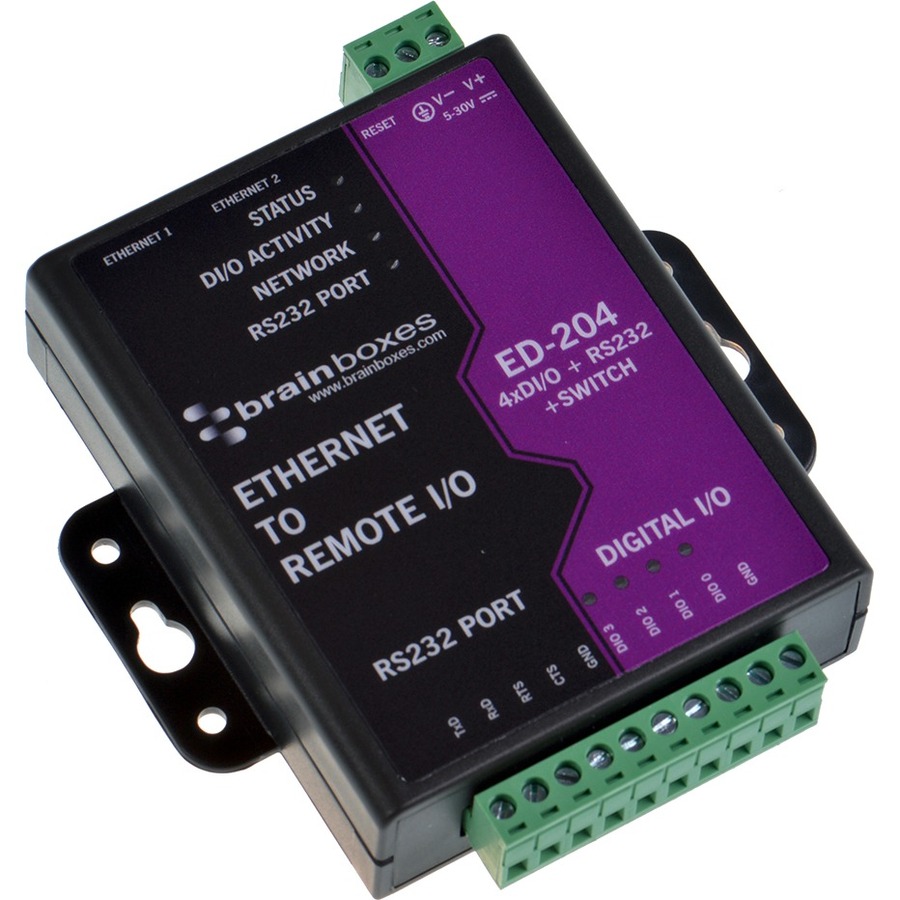

ED-204 Ethernet to Digital I/O +RS232 +Switch
4 Digital Ports independently can be Inor Out
1 RS232 Serial Port
2 Ethernet Port
User friendly software interface Simple web based configuration, monitoring and control
Software APIs for VB, C# and more
4 Digital Inputs/Outputs + RS232 Serial Port + Ethernet Switch
Complete Ethernet to Serial Device Server: up to 1 MegaBaud
Factory floor process control and automation
User friendly software interface
0°C to +60°C Temperature range
DIN rail & Wall mountable
Ethernet to DIO device with Serial port: 4 digital input channels . Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Easy to set up with LED status
lights for Digital I/O lines that
correspond to simple to read
webpage
+5 to +30 Volt Power Input
enables the device to be run
from USB, a vehicle battery or
the factory floor
Integral wall mount option can
be used with MK-048 clips to
allow DIN rail mounting
Warranty
Limited Warranty: Lifetime
Highlights
4 Digital Inputs/Outputs + RS232 Serial Port + Ethernet Switch
Complete Ethernet to Serial Device Server: up to 1 MegaBaud
Factory floor process control and automation
User friendly software interface
0°C to +60°C Temperature range
DIN rail & Wall mountable
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
ED-204
Brand Name
Brainboxes
Product Model
ED-204
Product Name
Ethernet to 4 Digital IO and RS232 Serial Port with Ethernet Switch
Product Type
Ethernet To Digital IO Module
Physical Characteristics
Height
1"
Width
4.6"
Depth
3.9"
Weight (Approximate)
4.73 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Ethernet to 4 Digital IO and RS232 Serial Port with Ethernet Switch
Installation CD Including Manual, Microsoft Signed Drivers & Utilities
Quick Start Guide
Country of Origin
United Kingdom
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
