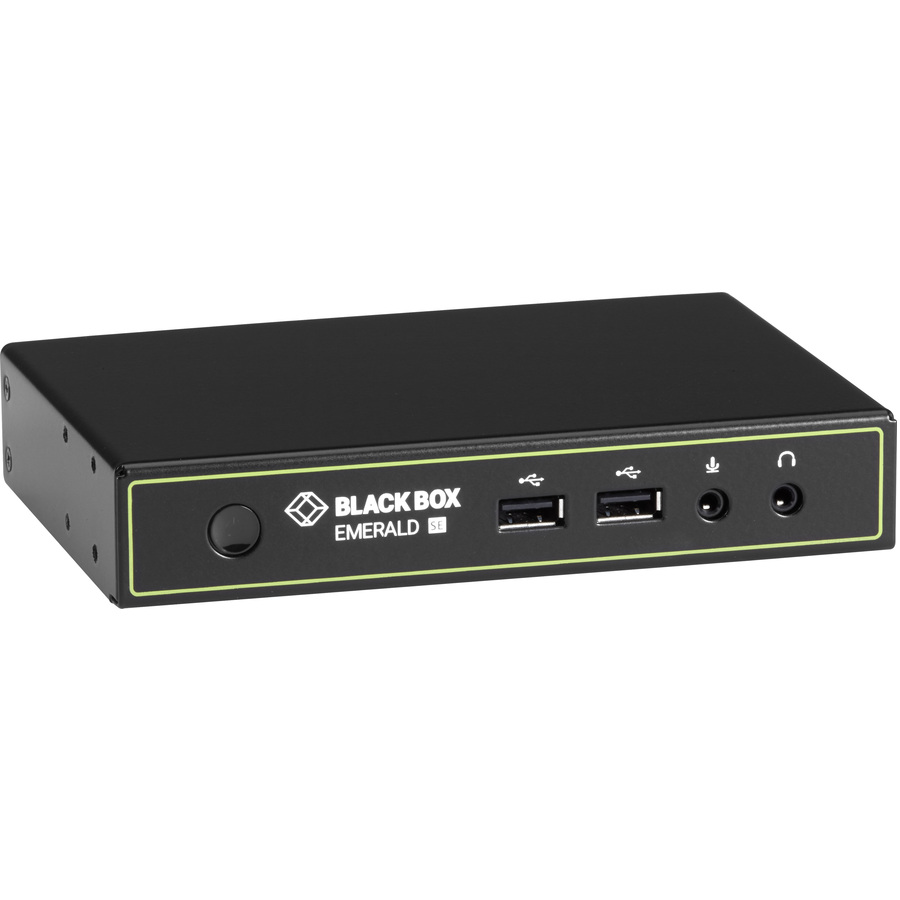

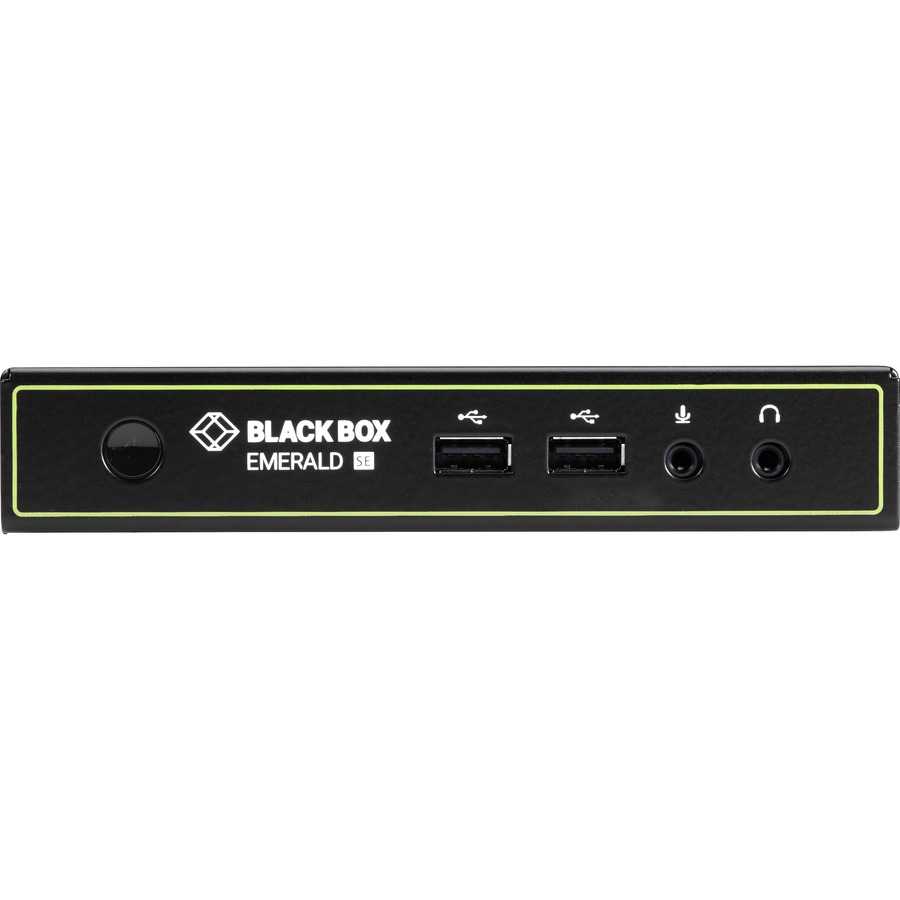

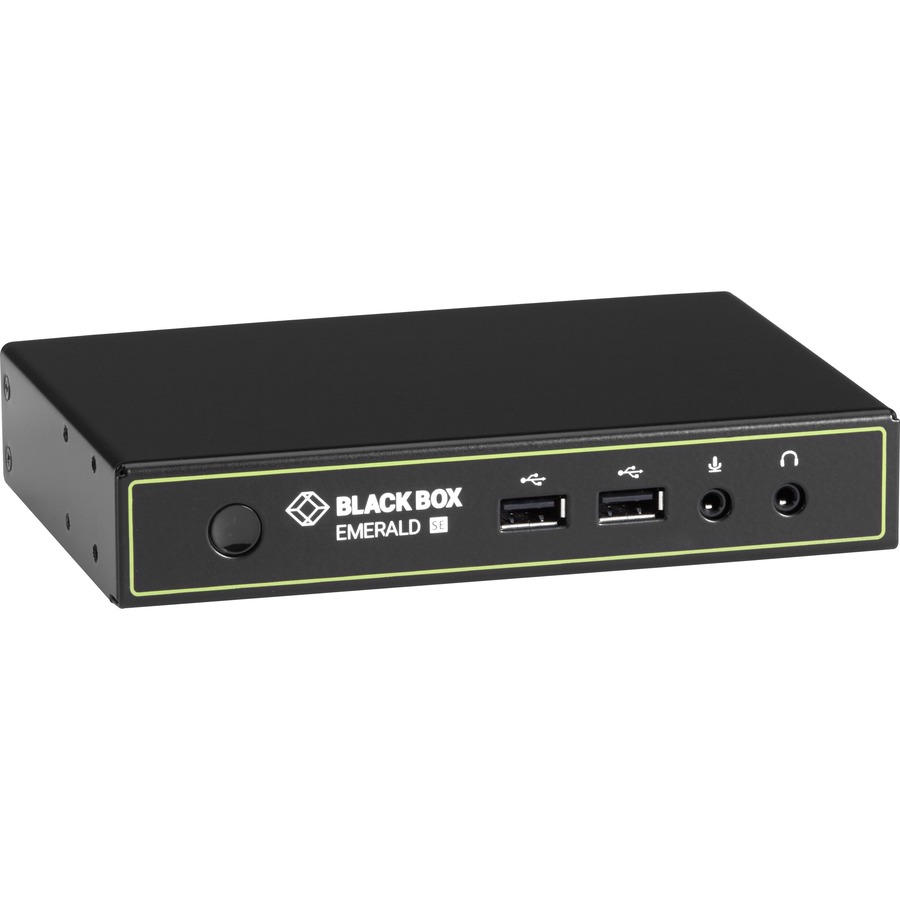

Black Box Emerald SE DVI KVM-over-IP Matrix Switch Receiver - Single Head, Full HD DVI, VUSB 2.0, Serial, Audio
1 Computer(s) - 328.08 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - 1 x DVI - 120 V AC, 240 V AC Input Voltage - Desktop - For PC, Linux, Mac - TAA Compliant
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
EMD2000SE-R
Category
KVM Consoles/Extenders
Overview
Emerald SE DVI: Cost-Effective IP KVM for Everyday Operations
Start with the Emerald Ecosystem
Emerald Standard Edition (SE) DVI receivers extend physical computers, virtual machines, and remote applications across standard IP networks while providing centralized management and fast operator switching. As the entry point into the Emerald ecosystem, it delivers enterprise-class KVM performance without enterprise-level complexity. Native support for Windows®, macOS®, and Linux® systems, along with VMware®, Microsoft®, and Citrix® virtual environments, enables flexible BYOD and virtualization deployments.
Affordable and Easy to Deploy

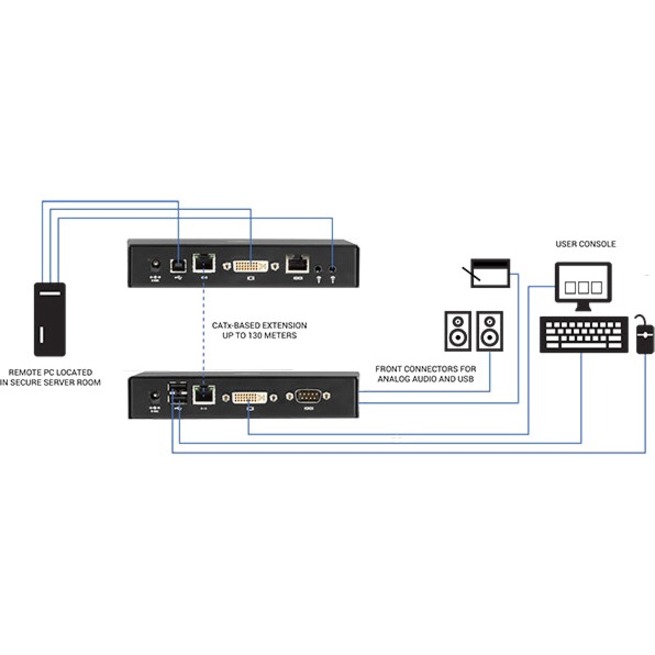

Designed for organizations that need reliable KVM extension without specialized infrastructure, Emerald SE DVI transports pixel-perfect HD DVI video, transparent USB 2.0, and stereo audio across your existing network. Its compact footprint and low power consumption make deployment simple in control rooms, IT environments, and corporate workspaces.
Built for Daily Operations
Mathematically lossless DVI video, sub-second switching, and 128-bit SSL encryption provide operators with a responsive, secure experience. Available in single- and dual-head DVI models, Emerald SE supports a wide range of desktop and workstation applications.
Ready to Expand
Deploy point-to-point today and grow into a fully managed switching environment tomorrow. Centralized management through Boxilla® keeps operators productive while allowing the Emerald ecosystem to scale as requirements grow. When additional resiliency is required, Emerald Performance Edition (PE) adds dual-network redundancy for mission-critical environments.
Warranty
Limited Warranty: 2 Year
Highlights
Pixel-perfect HD DVI video with mathematically lossless quality
Connect physical computers and virtual machines
Supports Windows, macOS, and Linux BYOD environments
Sub-second switching across connected systems
Emerald Standard Edition entry into the Emerald ecosystem
Connection Folders simplify operator workflows
Centralized management and resilience through Boxilla
Affordable single and dual-head DVI connectivity
FIPS 140-3 Inside [CMVP #5002]
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
EMD2000SE-R
Brand Name
Emerald® SE
Product Model
EMD2000SE-R
Product Name
KVM-over-IP - DVI-D, USB 2.0, Audio, RJ45
Packaged Quantity
1
Product Type
KVM Extender Receiver

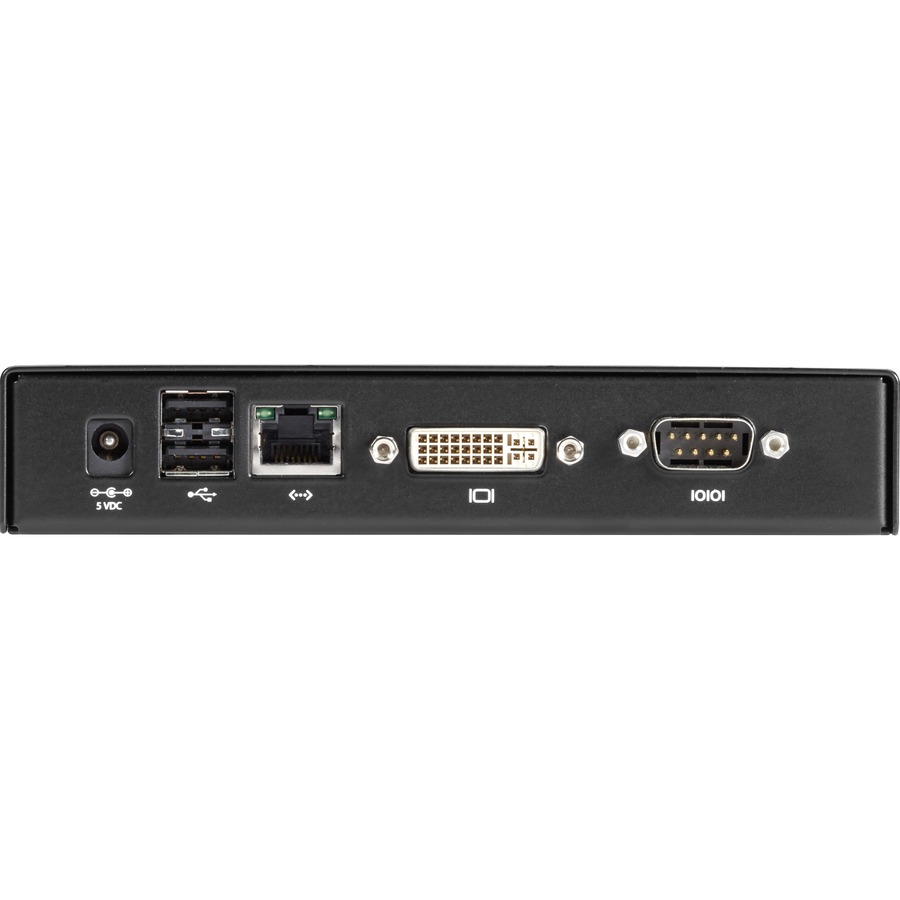

Interfaces/Ports
Network (RJ-45)
Yes
USB
Yes
DVI
Yes
Headphone
Yes
Microphone
Yes
Number of Network (RJ-45) Ports
1
Number of USB Ports
4
Number of DVI Ports
1
Physical Characteristics
Form Factor
Desktop
Receiver Height
1.15"
Receiver Width
6.20"
Receiver Depth
4.20"
Receiver Weight (Approximate)
1.36 lb
Power Description
Input Voltage
120 V AC, 240 V AC
Input Voltage Range
100V AC to 240V AC
Power Consumption
6.50 W
Technical Information
Connectivity Technology
Wired
KVM Technology
Digital
Number of Computers Supported
1
Number of Remote Users Supported
1
Maximum Operating Distance
328.08 ft
Data Link Protocols
TCP/IP
Device Type
KVM Extender
Video
Graphic Mode
WUXGA
Maximum Video Resolution
1920 x 1200
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
KVM-over-IP - DVI-D, USB 2.0, Audio, RJ45
1 x 5 Vdc Power Supply
1 x Power Cord
Platform Supported
PC, Linux, Mac
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
